CNC machine tools perform an important part in modern manufacturing. These tools have the potential to meet current and future production needs because they offer exceptional automation, precision and reliability. They are skilled at managing complicated manufacturing tasks as well as increasing production line efficiency
In this blogpost we will cover different types, functions as well as applications of CNC machine tools.

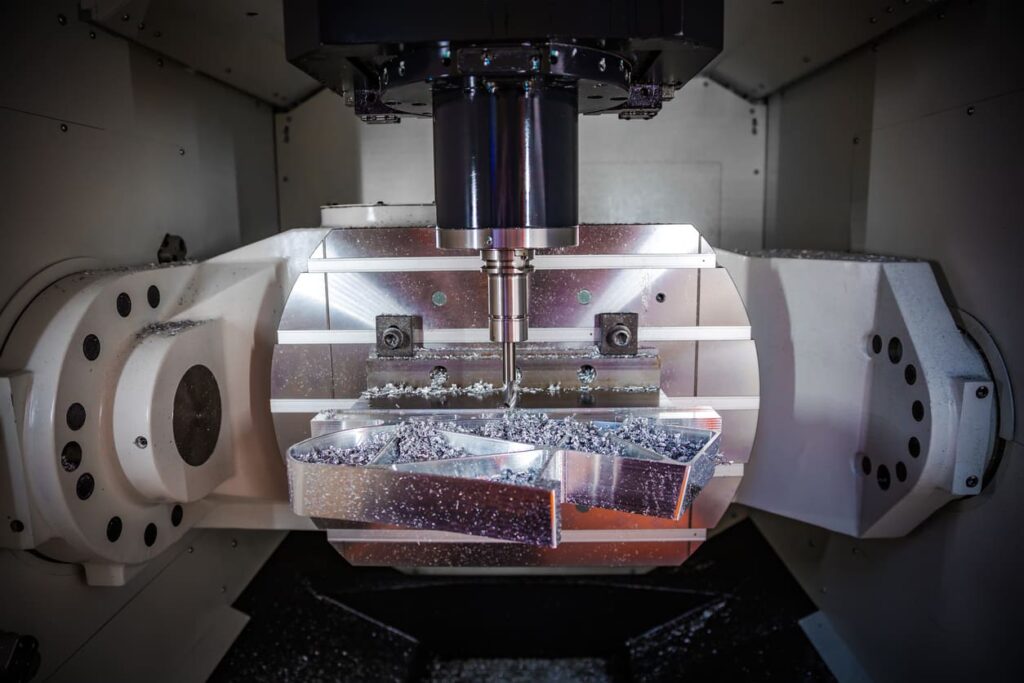

1. CNC Milling Machines
CNC milling machines remove material from a workpiece using a rotary cutter. In this milling operation, cutting tool moves linearly along different axes. These machines excel in automation and precision and perform an important part in automotive, aerospace and metalworking sectors.
Main Types of CNC Milling Machines
Horizontal Milling Machines
In these machines spindle arrangement is horizontal. They are capable of handling large workpieces smoothly and provide high production speeds. Due to their horizontal arrangement, chips are efficiently removed during operation.
Vertical Milling Machines
Vertical Milling Machines have a vertical spindle arrangement. These machines make complicated shapes and cut things accurately. Tasks like boring, drilling as well as machining complicated parts are done using these machines.
Universal Milling Machines
These machines have both vertical and horizontal milling capabilities. This gives users the ability to perform both types of operations on the same platform.
Common Applications
Many industries such as automotive, medical and aerospace use these CNC milling machines due to their high accuracy and material versatility.

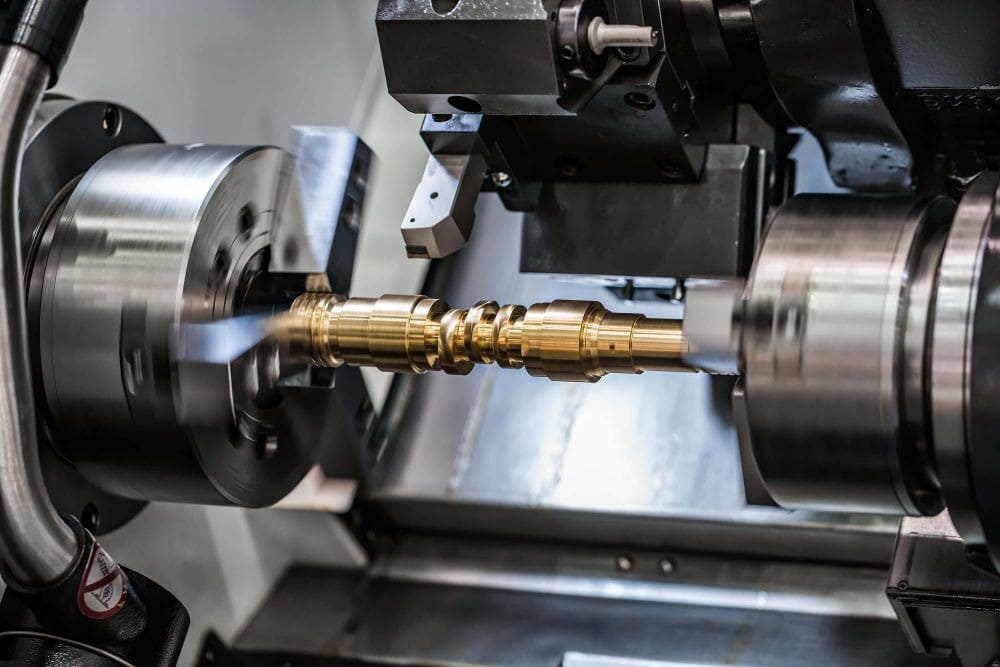

2. CNC Lathes
Unlike CNC mills, in a CNC lathe, the workpiece is rotated to shape the material and the cutting tool remains stationary. These machines are used to make conical and cylindrical shapes. To get accurate machining results these CNC systems precisely control both tool movement and rotation speed.
Types of CNC Lathes
Vertical CNC Lathes
In these machines workpieces are rotated on the vertical axis. They work on those large or heavy parts which need to remain stable during the turning operation.
Horizontal CNC Lathes
Unlike vertical CNC Lathes, these machines position workpieces horizontally. They provide accurate and stable performance for boring, turning and facing operations.
Turret Lathes
Turret Lathes use a rotating turret which holds multiple tools. This design reduces tool change delays and allows for higher production volumes.
Main Applications
Many industries such as aerospace, automotive and medical rely on CNC lathe to produce cylindrical or round workpieces with accuracy.

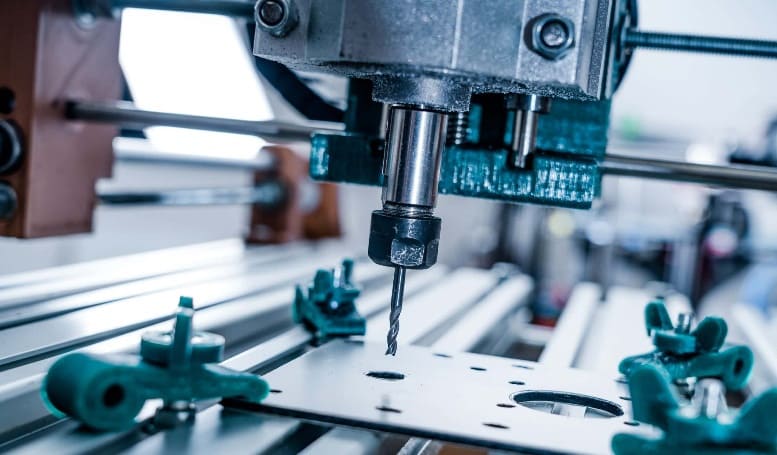

3. CNC Drilling Machines
CNC drilling machine is used to make accurate holes in workpiece. It performs many operations such as tapping, drilling, reaming and counter boring. These CNC systems make uniform and high quality holes in different materials.
Types of CNC Drilling Machines
Horizontal Drilling Machines
These machines make vertical holes on the workpiece. They are used in deep hole drilling & continuous cutting applications.
Vertical Drilling Machines
Unlike horizontal drilling machines these machines drill horizontally. They make accurate holes particularly on flat surfaces.
Common Applications
Many industries such as automotive manufacturing and electronics use CNC drilling machine to make accurate holes in different materials.
4. CNC Grinding Machines
CNC Grinding Machines remove material from workpieces using abrasive wheels. These machines create smooth surface finishes on workpieces.
Types of CNC Grinding Machines
Cylindrical Grinding Machines
These machines carefully smooth out the outside surface of cylindrical workpieces.
Surface Grinding Machines
These machines create smooth and flat surfaces. With the help of these machines, extraordinary accuracy and smoothness are obtained.
Centerless Grinding Machines
Centerless Grinding Machines carry out continuous grinding operations on round workpieces without using any center support.
Main Applications
High precision industries such as automotive, aerospace and medical device manufacturing use CNC grinding machines.

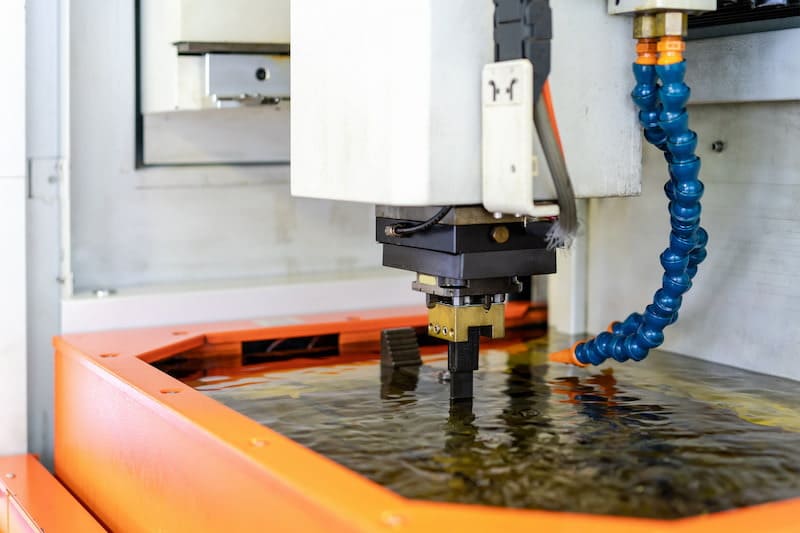

5. CNC Electric Discharge Machines (EDM)
CNC Electric Discharge Machines use electric discharge or sparks to remove material. These machines are mostly used to work on hard materials and create intricate metal details.
Types of CNC EDM Machines
Wire EDM
Wire EDM uses a wire electrode to cut metal. With the help of these machines complicated shapes and fine details are created.
Sinker EDM
These machines cut metal using a special electrode. This electrode moves vertically to remove material and create the desired shape.
Main Applications
Tool and die makers mostly use CNC EDM machines. Moreover these machines are also used in industries such as aerospace and medical to make complicated and uniform cuts.

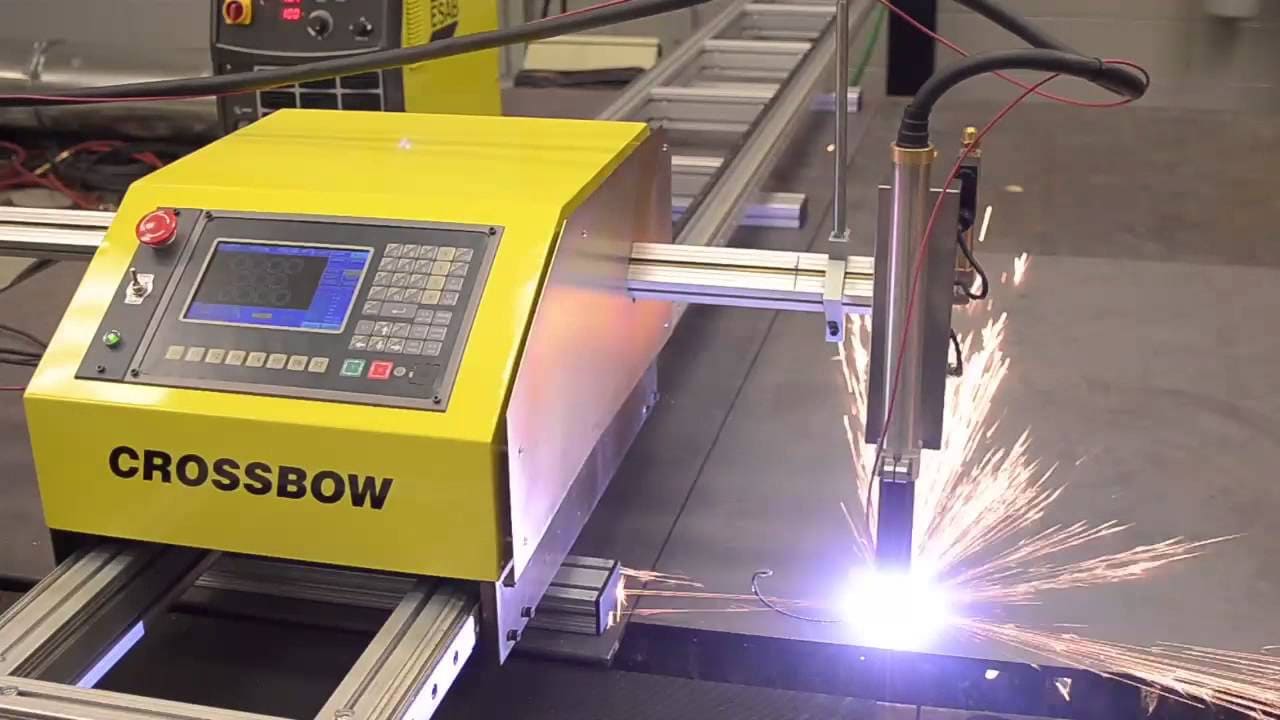

6. CNC Plasma Cutting Machines
CNC plasma cutting machines use plasma torches to cut conductive materials. During cutting process material is melted and removed.
Types of CNC Plasma Cutting Machines
Pipe & Tube Plasma Cutters
These machines cut pipes and tubes and are mostly used in automotive and construction industries.
Table Type Plasma Cutters
Table Type Plasma Cutters use a flat table when cutting metal sheets. Aluminum, copper, brass and other metal industries generally use these cutters.
Common Applications
Many industries such as aerospace, automotive & construction sectors use CNC Plasma Cutting Machines to cut metal tubes, sheets and plates.
7. CNC Laser Cutting Machines
CNC laser cutting machines use laser beams to cut materials through melting, burning or vaporization. These machines are mostly used to cut thin material.
Types of CNC Laser Cutting Machines
Fiber Laser Cutters
Fiber Laser Cutters use fiber lasers to cut metal. These machines are great at cutting metal quickly particularly steel, aluminum and brass.
CO₂ Laser Cutters
These cutters cut materials using a CO₂ based laser system. These cutters provide outstanding accuracy and versatility.
Main Applications
Many industries such as automotive, aerospace & metal fabrication sectors rely on CNC laser cutting technology.
8. CNC Water Jet Cutting Machines
These machines use a high pressure water stream to cut the material. Abrasive particles are often used during this process to increase cutting efficiency.
Types of CNC Water Jet Cutting Machines
Abrasive Water Jet Cutters
Abrasive Water Jet Cutters cut the material by using a high pressure stream of water mixed with abrasive particles. They are perfect for cutting strong materials such as stone & metal.
Pure Water Jet Cutters
Unlike abrasive water jet cutters these cutters do not need abrasive material. These cutters are useful for cutting soft materials such as plastic, rubber and foam.
Main Applications
Water jet cutting machines are ideal for industries which need precise cutting of hard materials such as automotive, aerospace and mounting sectors.

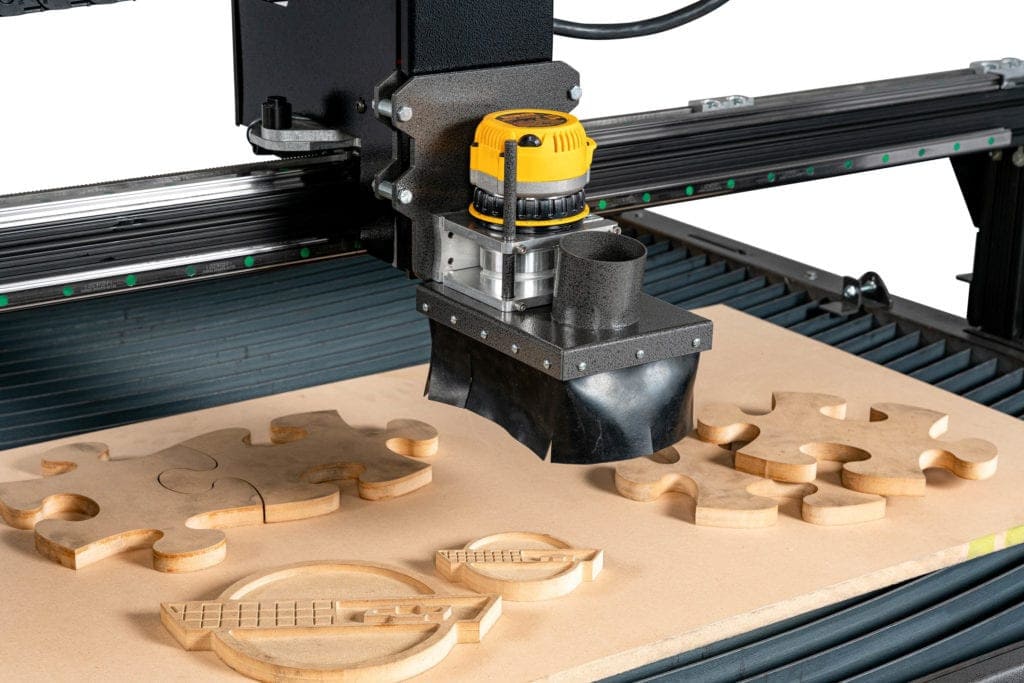

9. CNC Routers
CNC routers combine cutting, drilling and engraving capabilities to cut through many materials such as plastic & wood. These rotors are suitable for both testing and mass production.
Types of CNC Routers
Stone and Metal Routers
These machines cut and shape hard materials such as stone and metal.
Wood Routers
These machines cut and shape wood for cabinetry, furniture production as well as for sign making.
Common Applications
CNC routers perform an important part in sign making, woodworking and manufacturing industries.

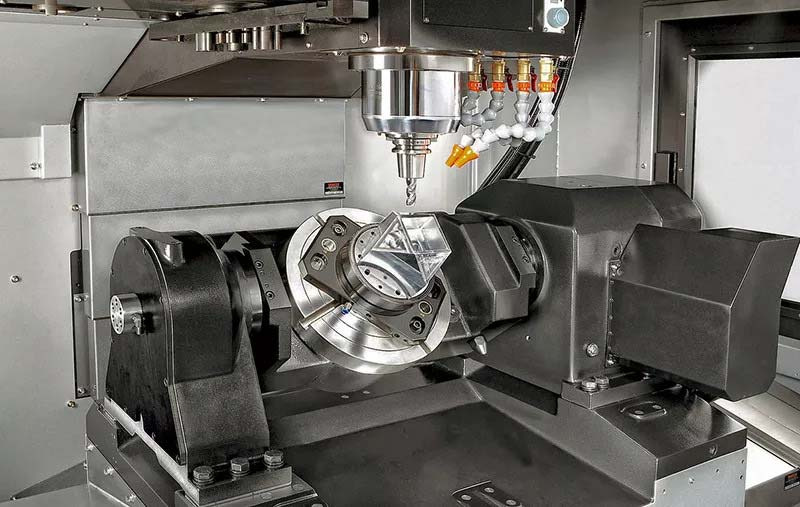

10. CNC Multi Axis Machines
CNC multi-axis machines provide advanced machining capabilities because they can move in more than one axis. This multi axial movement results in better accuracy.
Types of CNC Multi-Axis Machines
3 Axis Machines
These machines can move in three axes. That’s why they can track movement, position & orientation of objects very accurately.
4 Axis & 5 Axis Machines
These machines can move in four and five axes. In order to create complicated geometric shapes additional rotary axes are also added to them.
Main Applications
Many industries such as automotive, aerospace and medical depend on multi axis machines to produce complicated parts.
Factors Influencing the Selection of CNC Machine Tools
Material Suitability
Each material needs a specific type of CNC machine for optimal processing. Therefore machinery should be selected according to the characteristics of material to reduce costs and maximize productivity.
Geometry & Part Complexity
The type of CNC machine needed for operations directly depends on the complexity and geometric shape of target parts. In order to get high precision results and to create complex designs with fine details, special tools & multi axis machines are needed.
Production level
High production level needs machines with fast processing capabilities and automation features. These characteristics help to increase production performance as well as minimize cycle times.
Tolerance and Precision Requirements
Machines with advanced control systems are needed for parts which demand strict tolerances and high precision. These machines must preserve outstanding stability throughout their operation.
Cost Considerations
The prices of CNC machines vary depending on their capabilities. Therefore it is necessary for organizations to allocate appropriate budget based on their production needs and expected profits.
To Sum Up
CNC machine tools perform an important part in modern manufacturing due to their convenience, functionality and efficiency. For both prototype and mass production, selection of appropriate CNC machinery is very important. Manufacturers use different types such as lathes, milling machines, drilling equipment, grinding tools & cutting systems to fulfill their specific production needs.
As a CNC machining manufacturer with rich manufacturing experience, we also have abundant resources in CNC equipment. If you wish to import various brands of CNC equipment from China, please feel free to contact us at any time. We will be more than happy to assist you.
Related Questions
Can CNC machines produce both prototypes & mass produced parts?
Yes, CNC machines can be used for both purposes. Due to their versatility they can manufacture part in any quantity
What makes CNC machining effective at minimizing production errors?
CNC machining minimizes human error due to their automated nature. The accurate machine setup greatly reduces inconsistencies and defects in productions
What impact does cutting tool material have on CNC machining results?
Cutting tool materials have a direct impact on machine’s efficiency, wear resistance and surface finish quality. High quality tools are often needed for harder materials to maintain precision.
Can CNC machines be used for both engraving & cutting operations?
Yes CNC machines can be used for both cutting and engraving operations if appropriate tools and materials are used.

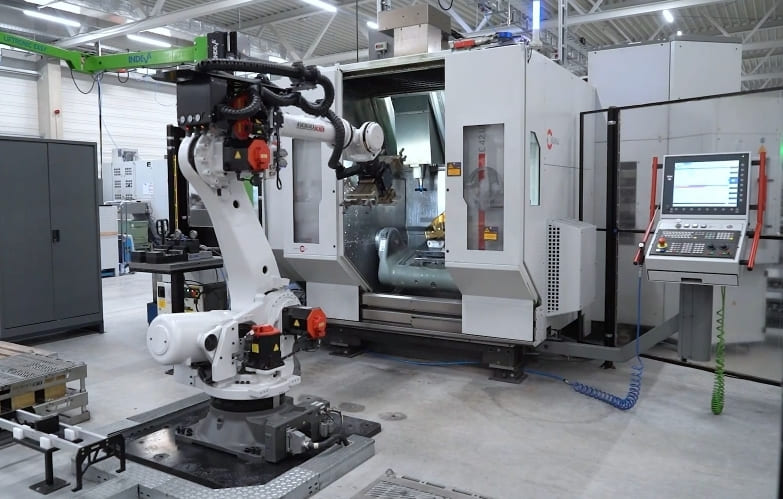

Can CNC machines be integrated with robotic systems for automated material handling?
Yes CNC machines can be integrated with robotic systems. By doing so, material handling operations such as loading and unloading become automated as well.
