Aerospace, healthcare as well as semiconductor industries often need parts with extremely precise tolerances. Standard machining often cannot meet these strict requirements. Ultra‐precision machining fills this gap by providing unmatched accuracy. In this blog post you will find the main techniques, key benefits and essential steps for understanding and applying ultra‐precision machining.
What is Ultra Precision Machining
Ultra precision machining (UPM) stands out as a manufacturing process that achieves exceptional accuracy. It works at scales below a micron, sometimes even reaching nanometer levels.
With this process, manufacturers can create parts with extraordinary surface finishes, usually between 1 and 50 nanometers Ra.
Methods of Ultra Precision Machining
Manufacturers use several specialized methods to reach nanometer level precision. Every technique offers unique benefits based on the material and application.
1. Mechanical Methods

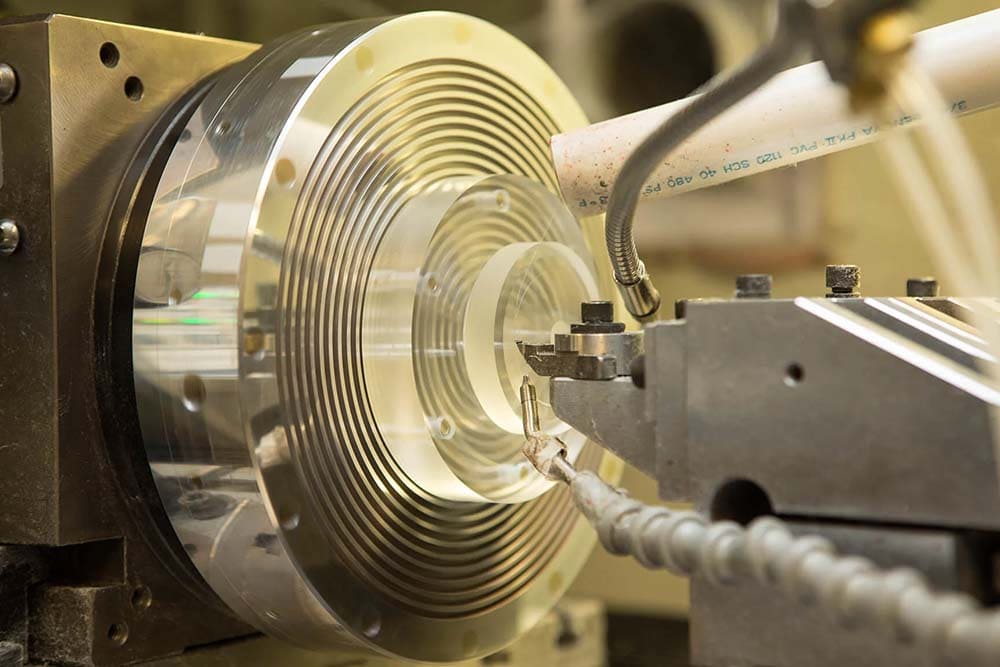

Single point diamond turning (SPDT)
A single crystal diamond tool, mounted on a machine with hydrostatic slides and high stiffness, forms the core of single‐point diamond turning. This method can reach surface roughness values from 1 to 10 nanometers and give accuracies between 0.1 & 1 micron. The diamond tool’s cutting edge may have a radius of just tens of nanometers.
SPDT works particularly well for making optical parts like lenses, mirrors as well as prisms from materials such as aluminum, copper or brittle substrates like germanium.

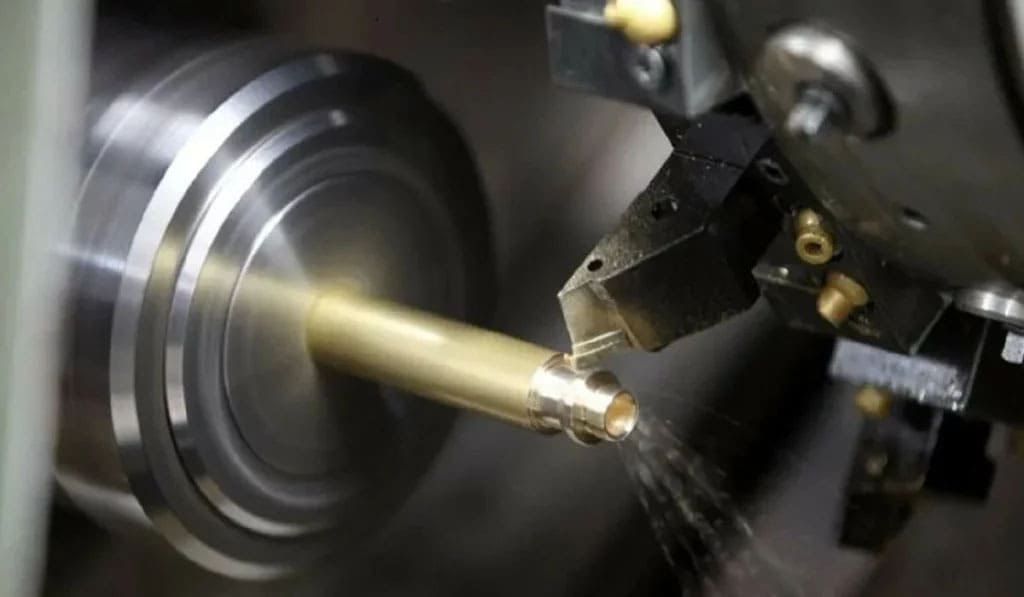

Ultra Precision Milling, Turning, Grinding, Polishing
These processes are advanced versions of standard machining. Micro milling and micro turning use tiny cutting tools to produce detailed features with tolerances as tight as ±0.5 µm. Similarly ultra‐precision grinding and polishing use fine abrasives to achieve mirror‐like surfaces with nanometer level smoothness. This quality is essential for high performance optics and semiconductor parts.
Abrasive Based Techniques
Abrasive based techniques use tiny abrasive particles to remove material with high accuracy.
Chemical mechanical polishing (CMP) achieves angstrom‐level precision by combining chemical agents with nano sized abrasives. These abrasive particles mostly measure between 20 and 200 nanometers which allows for ultra smooth finishes below 1 nanometer Ra.
Magnetic abrasive machining uses 0.5 micrometer particles. A controlled & high speed magnetic field directs the abrasive flow and further improves surface quality.
Hybrid & Advanced Methods
Laser‐assisted Machining
Laser‐assisted machining uses a laser to heat the cutting zone before the tool makes contact. The laser raises the temperature between 800 °C and 1200 °C which can reduce material hardness by up to 70 %. As a result cutting forces drop by 26% to 75% compared to standard machining. This method works particularly well for tough materials like ceramics, titanium alloys and hardened steels.
Electrochemical Machining
Electrochemical machining removes metal by using controlled electrolysis instead of physical cutting. The process places a cathode tool and an anode workpiece in an electrolyte with a gap of 80 to 800 µm between them. This process can achieve tolerances as close as 5 µm and surface finishes down to Ra 0.05 µm.
Because the tool never touches the workpiece, there is no tool wear and the surfaces remain burr‐free. This makes the method appropriate for hard super alloys such as Inconel and for titanium aluminides.
Ultrasonic Vibration-assisted Machining
This technique applies high frequency vibrations to the tool to improve cutting. The tool moves back and forth at ultrasonic frequencies, normally above 20 kHz, and creates micro level intermittent cuts. These vibrations lower cutting forces, reduce friction as well as help remove chips. As a result the process produces better surface finishes on hard‐to‐machine materials like hardened steel and titanium alloys.
Parts that Enable Ultra Precision
1. Machine Design
Maximum stability is the goal in ultra precision machine construction. Many machines use granite bases to control vibration and limit thermal expansion. Air‐bearing spindles and hydrostatic slideways are critical components. These features lower friction and reduce motion errors. The result is repeatable positioning accuracy below 50 nanometers which leads to extraordinary part quality.
2. Tooling
Performance in ultra precision machining depends heavily on the cutting tools. Manufacturers often use single crystal diamond or polycrystalline diamond (PCD) for these tools. These materials are extremely hard and resist wear. The sharp cutting edges they provide allow for mirror‐like surface finishes. Cutting forces stay low because of this sharpness.
3. Workpiece Materials
Choice of the right material is essential for ultra precision machining. Aluminum alloys like 6061‐T6 and OFHC copper are popular choices. Their machinability and thermal properties are excellent. These materials hold their dimensions better than steel alloys when temperatures change. To reach nanometer level finishes, materials should have low work hardening, high thermal conductivity as well as enough ductility.
4. Environment & Process Control
Machining accuracy depends directly on environmental conditions. Thermal expansion and vibration can affect results. Keeping the temperature within ±0.1°C stops dimensional drift. Humidity levels below 45% help prevent corrosion and keep materials stable. Moreover vibration isolation systems block outside disturbances and protect nanometer level precision.
5. Fixturing & Clamping
Precision fixturing keeps the workpiece within micrometer tolerances during machining. Zero‐point clamping systems achieve setup repeatability better than 3 micrometers. These systems use pneumatic actuation and mechanical locking to apply steady clamping forces. Well‐designed fixtures reduce distortion and give the workpiece reliable support while cutting.
Benefits of Ultra Precision Machining
Ultra precision machining brings measurable improvements to industries that demand high quality and innovation. These benefits affect both how products perform and how they are designed.
Tight Tolerance
Parts can reach dimensional tolerances as close as ±0.0001 inches. This accuracy lets components fit perfectly in complicated assemblies and removes the need for extra rework.
Extraordinary Surface Finish
This process can create mirror‐like surfaces, sometimes smoother than 10 nanometers. Because of this, extra polishing steps are not needed and this saves time.
Complex Geometries
Precise tooling and computer control make it possible to machine detailed 3D shapes and tiny features. These shapes cannot be achieved with standard machining methods.
Material & Energy Savings
Fewer rejected parts mean less material is wasted. Modern machines and improved workflows also use less energy which lowers costs and supports sustainable production.
Improved Performance
The resulting parts last longer, fail less often as well as work more efficiently. This boosts equipment lifespan and reliability, especially in fields like aerospace & energy.
Applications & Industry Sectors
Optics & photonics
Ultra precision machining is essential for making high quality optical parts in this sector. It produces lenses, mirrors and prisms with accuracy down to the nanometer. This level of precision is needed for cameras, telescopes and advanced laser systems to assure clear images and proper light transmission.
Semiconductor / MEMS / NEMS
Making semiconductors needs very high precision to build silicon wafers and microchips with features at the nanometer scale. Ultra precision machining creates microelectromechanical systems (MEMS) and nanoelectromechanical systems (NEMS) for electronics and car sensors. Devices such as accelerometers, gyroscopes and pressure sensors need dimensions accurate to less than a micron.
Aerospace & defense
Ultra precision machining creates turbine blades, fuel injectors, navigation parts as well as structural components with sub‐micron tolerances. Manufacturers use this process for tough materials like titanium & Inconel. These parts assure safety and reliability in aircraft, satellites, advanced weapons and military vehicles.
Medical
Precision is essential for patient safety in the medical field. Ultra precision machining makes surgical tools, custom implants and prosthetics with high accuracy. This technology supports the production of complicated, biocompatible devices for advanced diagnostics and minimally invasive procedures. As a result patient outcomes improve.
Challenges & Limitations
Ultra precision machining offers impressive results but manufacturers also encounter some challenges as well:
- High Equipment & Operation Cost: Running ultra precision machines and using specialized tools and materials requires a large investment. Diamond tooling and strict environmental controls increase ongoing costs. Small‐batch or custom jobs become expensive because of these factors.
- Long Setup & Processing Time: To reach sub‐micron accuracy, operators must calibrate machines carefully, maintain stable environments as well as change tools often. These steps slow down production cycles. Complicated or unique parts take much longer to produce than with standard machining.
- Environmental & Temperature Sensitivity: Keeping temperature and environmental conditions stable is difficult. Even small temperature changes of ±0.1°C or slight vibrations can affect sub‐micron tolerances. This can lead to scrap or the need for rework.
Still, companies that work with RICHCONN gain flexible production choices, affordable prototyping along with expert guidance. These advantages help reduce waste and speed up the development of custom precision parts.
To Sum Up
Ultra precision machining achieves tolerances at the nanometer scale, produces mirror‐like surfaces and creates complicated shapes for vital industries around the world. Meeting these requirements needs highly rigid machines, diamond tipped tools, controlled environments and skilled measurement techniques.
For reliable nanometer‐level parts you can avail the services of Richconn’s ISO certified CNC precision experts. You can contact us anytime.
Related Questions
Ultra precision machining can hold dimensional tolerances from 0.1 to 1 micrometer and achieve surface finishes below 50 nanometers Ra. Moreover using diamond turning, surfaces can be improved further to 1 to 10 nanometers Ra.
The shape of the tool and advanced coatings both improve cutting accuracy and extend tool life. As tools wear, their shape changes, which raises cutting forces and lowers surface quality. Careful monitoring of tool wear is necessary to maintain results.
Key advances include in‐process measurement systems, eco‐friendly manufacturing, AI‐based process control, new smart materials and Industry 4.0 features. These trends help increase efficiency and achieve nano level precision.
Real‐time measurement tools make it possible to adjust machining instantly and keep nanometer accuracy. Automated feedback systems are correct for heat expansion and tool wear therefore production continues without stopping.
Ultra precision machining can reach sub‐micron tolerances while standard methods only reach micron‐level accuracy. It uses special machines, tightly controlled environments and custom tooling to make parts at the nanometer scale.
