For manufacturing, undercut machining is very important. It allows the production of complicated geometric features needed for functionality and assembly of parts. This method gives extraordinary advantages in producing particular interlocking features and geometries. Let’s look into the types, tools, methods and practical uses of undercut machining.
What is Undercut Machining?
Undercut machining is a process that produces recessed features under the surface of a workpiece in areas which are inaccessible by standard tools. It involves cutting tools to produce ridges and cavities in the material. This method makes components with complicated geometries for particular functional needs.
Undercuts Types
Undercuts are classified into two main categories on the basis of their location on the workpiece: internal and external.
Internal Undercuts
Hidden features produced within the parts, such as cavities inside gear hub, are known as internal undercuts. It is difficult to machine these undercut because of low visibility and limited tool access in the whole cutting process.
External Undercuts
On the other side, external undercuts are visible characteristics on the outer surface of parts. This makes them easy to machine thanks to their simple setup procedures. Main examples are mechanical parts and mold components where external features need to extend beyond the main surface.
Geometric Profiles
Undercuts come in different geometric profiles and all of them are designed according to particular functional needs and uses. Some of the geometric profiles are given as:
T-slot Undercuts
T-shaped recesses in workpieces show T-slot undercuts. This is a two step process: First, cut a straight piece with a standard end mill. Then, the horizontal part is made using a particular T-slot cutter. They generally range from 3 to 35mm in width. These are best to make sliding connections and to mount the fixtures.
Dovetail Undercuts
Strong mechanical joints benefit from dovetail undercuts which feature a flat bottom and angled sides. These profiles are made by using cutting tools that have tapered edges (45° to 60°). Engineering and woodworking use dovetail undercuts for secure connections of components.
One sided Undercuts
Asymmetrical recesses on a single workpiece surface define one sided undercuts. These special cuts accommodate special assemblies such as retaining rings or seals. Multi axis CNC machines equipped with lollipop cutters perform this operation and need careful attention to clearance for best tool function.
Tapered Undercuts
Gradually narrowing from one side to another, tapered undercuts make frictional and strict fits between mechanical components. Tapered end mill cutters produce slopes that are necessary for assemblies demanding safe connections.
Threaded Undercuts
Internal threads for the screwing mechanisms in parts, such as bolts, are a hallmark of threaded undercuts. To produce them, special thread taps and mills are used. Cutting tools move in a helical path to make external or internal threads.
Spherical Undercuts
Curved and three dimensional cavities that resemble spheres are called spherical undercuts. Parts which need rotary motion such as bearings and ball joints mostly incorporate these features. CNC machines use ball nose end mills with rounded tips to execute these complicated curved profiles to give a smooth surface finish.
Keyway Undercuts
Keyway undercuts are slots that stop independent rotation between two mechanical parts. These mostly appear in rotational and shafts components that transmit torque. To make these slots, machinists use special keyway cutters or broaches. Broaches produce perfect slots in a single pass while keyway cutters function similarly as T-slot cutters in milling machines.
Relief Undercuts
Small grooves or recesses cut around shafts and bearings are relief undercuts. These features perform dual purposes: provide necessary clearance and decrease stress concentrations between parts. Machinists use standard slotting cutters or undercut end mills to remove material in multiple passes to obtain the desired depth and shape.
O-ring Groove Undercuts
In pneumatic and hydraulic systems, O-ring groove undercuts make channels that house O-rings by making leak proof seals. These grooves need correct dimensions to match particular O-ring sizes. Machinists mainly turn to special O-ring groove cutters to assure right placement and smooth surface finish and also to avoid leaks under pressure.
Equipment and Tools for Undercut Machining
Special tools are needed to produce right undercuts in machined parts. And, every tool has a particular role to obtain different geometric attributes.
Undercutting End Mills

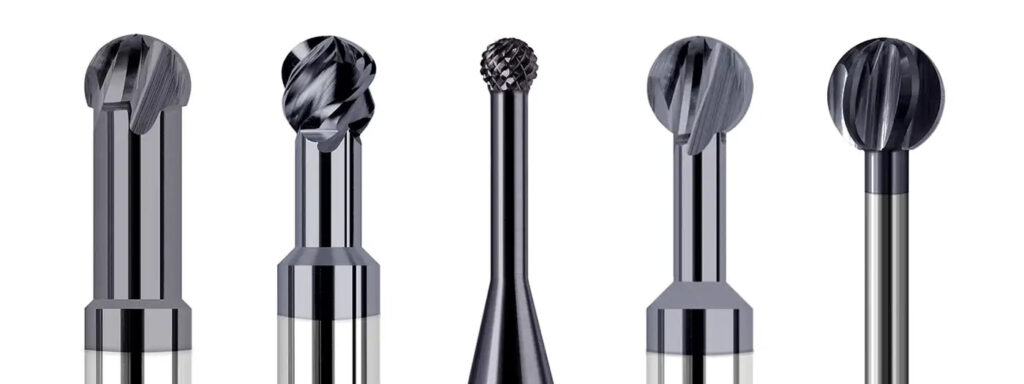

They are extraordinary tools that have cutting edges on both sides and tips. Their shape helps make deep grooves and complicated shapes in a single pass. These are available in tapered and spherical shapes. They are outstanding for producing complex geometries in areas which are inaccessible by standard tools. They perform extraordinarily well in operations such as deburring, contouring and slotting.
Lollipop Cutters

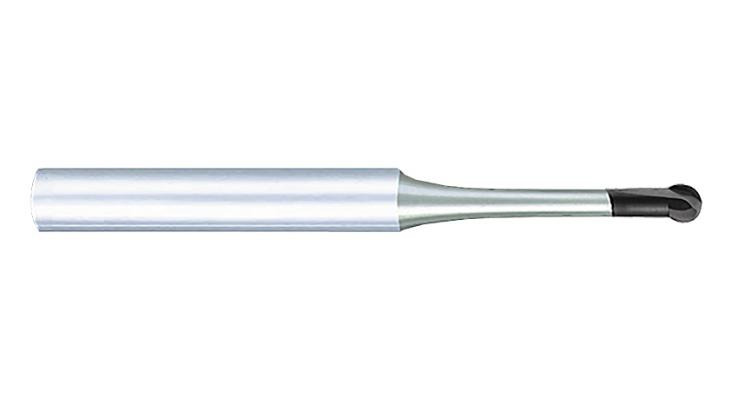

Lollipop cutters have a unique narrow shaft and round tip. These tools can make perfect finishes and spherical bottom undercuts. Providing different wrap angles from 220° to 300°, lollipop cutters give options for different needs: thinner necks permit greater clearance while thicker necks offer more stability.
T-slot Cutters

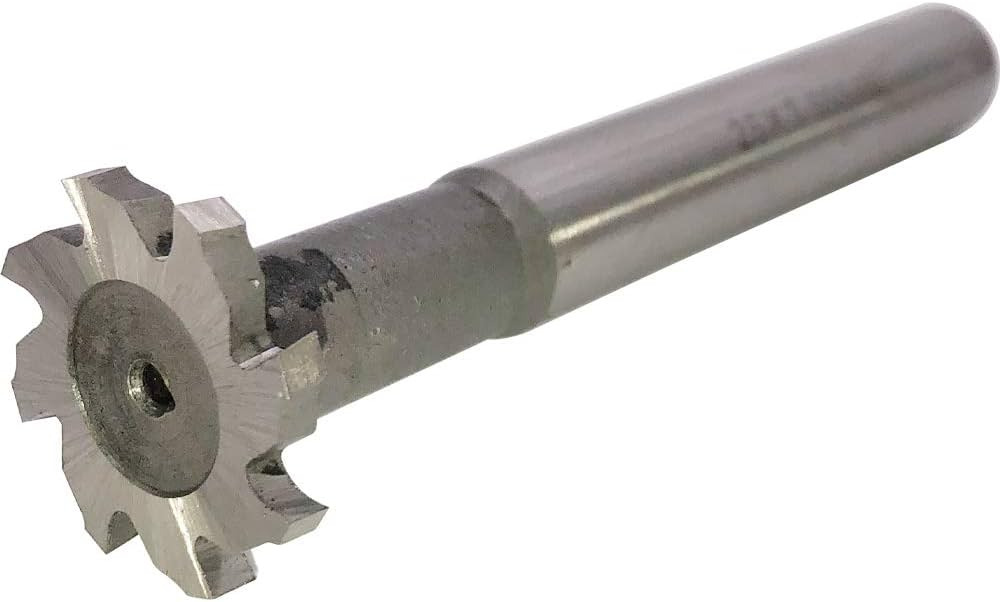

By combining vertical shafts with horizontal blades, T-slot cutters produce T-shaped undercuts. These tools cut both the sides and bottom of slots in one pass and make sure accurate dimensional control and smooth surface finish. Main uses are mounting fixtures and machine tool tables.
Keyway Cutters

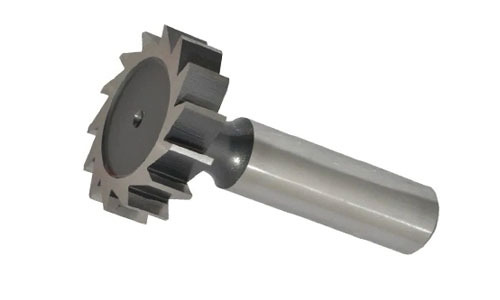

Straight cutting edges characterize keyway cutters which machine all sides of keyway undercuts in a single operation. These special tools give accurate dimensions for proper key fitment. They can also make slots for mechanical connections between parts.
Dovetail Cutters
Angled blades on the dovetail cutters produce trapezoidal undercuts. Generally, they have standard angles of 45° and 60° but particular angles up to 120° are also available for special uses. These tools have a very important role in making strong mechanical joints in different materials.
Working Process of Undercut Machining
Undercut machining is based on a methodical strategy that involves different necessary stages. Now we’ll go through these steps in detail.
Structural Analysis
The process starts with engineers analyzing design of parts by using CAD software. This observation finds the requirements and locations of undercut to find if an internal or external undercut is needed. By assessing the geometry of components, engineers make sure all undercuts are manufacturable and accessible.
Tool Selection
Picking the right cutting tools is fundamental and depends on both material properties and undercut type. Particular tasks call for tools such as dovetail cutters, lollipop cutters or T-slot cutters on the basis of required depth and profile. It’s very important that the chosen tool can access the undercut area without interfering with other part features.
Tool Path Planning
Next step is the programming of correct cutting paths in a CNC machine. This stage focuses on making sure of complete material removal from hidden or complicated regions. Engineers use CAM software to optimize cutting speeds and feed rates for smooth machining and keeping part quality.
Precision Control
CNC technology plays an important part in maintaining tolerances in the whole machining process. Following programmed instructions, the machine cuts material along the defined path with high accuracy. Reaching correct results depends on proper workpiece fixturing and correct tool orientation.
Quality Control
The final stage involves a complete inspection of machined parts. Technicians verify that all undercuts are according to the needs of design by using 3D scanning technology or measuring instruments. This step makes sure that recessed surfaces are according to required tolerances and guarantees that components will function as intended.
Techniques for Undercut Machining
Machining uses different strategies to produce correct undercuts. These techniques provide distinct advantages on the basis of uses and part specifications.
Milling
Milling is a main method to produce undercuts through substance removal with rotary cutters. Simple undercuts are obtained using 3-axis movement whereas complicated geometries need 5-axis capabilities. This process is particularly effective for producing internal pockets, intricate shapes needed in medical and aerospace components and slots with reliefs.
Turning

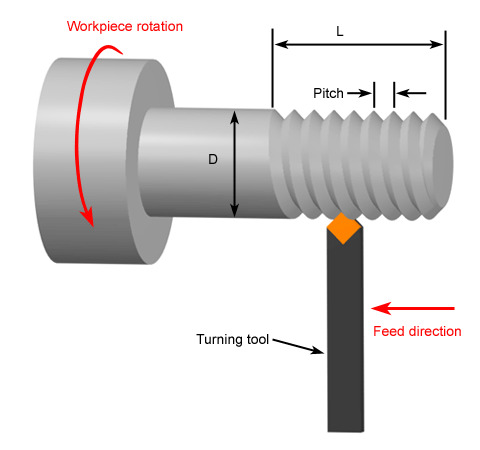

For cylindrical parts, turning is an effective method to make undercuts such as relief and neck grooves. It combines tool movement with workpiece rotation. Traditional turning operates on two axes (X and Z) but Swiss style turning provides more accuracy through synchronized axis movements. To obtain desired undercut angles turning mostly uses special grooving tools or tilted tool holders.
Electrical Discharge Machining (EDM)

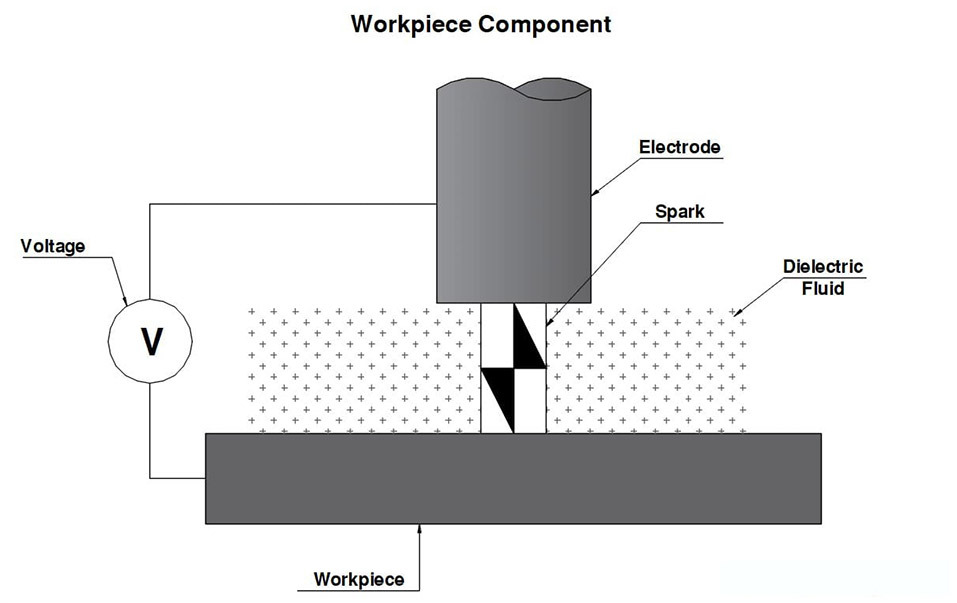

EDM produces undercuts using controlled electrical sparks between workpiece and electrode. This strategy produces those sharp corners and internal features which are difficult through conventional approaches. A dielectric fluid cools the workpiece and removes debris to get accurate cuts without direct tool contact.
CAM Programming
Computer-Aided Manufacturing software has an important role in undercut machining operations. It supports production of detailed tool paths that place cutting tools on right positions to create undercuts. They optimize cutting speeds and feed rates because they avoid tool interference with existing part features.
4 Axis-5 Axis Machining

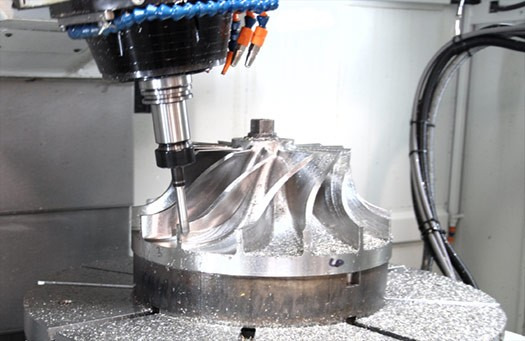

Multi-axis machining gives increased adaptability to make complicate undercuts. By allowing tools to reach the workpiece from multiple angles, additional rotational axes make it possible to machine complex undercut in a single setup. This ability is particularly important for medical devices and aerospace parts that require accurate and multi-directional undercuts.
Uses of Undercut Machining
The ability of undercut machining to produce complicate geometries makes it very important in different industries. The main uses of undercut machining are given below:
Mold and Die Manufacturing
In mold making, undercuts are very necessary for producing intricate part designs. They allow production of molds and dies that yield components with features such as internal cavities and snap-fits.
Aerospace Parts
Aerospace industry is based on undercut machining to produce lightweight but robust parts. This technique is important for manufacturing engine components, landing gear parts and airframe structures. It guarantees both the structural integrity and max performance.
Automotive Parts
Undercuts are necessary in automotive manufacturing. They increase mechanical engagement of shafts and gears. O-ring grooves also guarantee leak proof seals in fluid systems.
Medical Devices
Precision is very necessary when manufacturing medical devices. Undercut machining supports complicated implants and production of ergonomic surgical instruments. It also takes part in the design of functional and compact medical machinery.
Consumer Electronics
The electronics industry benefits greatly from undercut machining. Relief undercuts in housings provide assembly adaptability and T-slot undercuts in connectors make sure of secure component attachment.
Challenges in Undercut Machining
While undercut machining is universal, it has some technical problems for modern manufacturing. Accessing complicated or deep features needs costly and special cutting tools because of the limited tool access. Thin walled parts are particularly prone to workpiece deflection during the machining process. Interrupted cutting conditions and complicated geometries increase tool wear. Overcoming these difficulties needs careful planning and execution to get best results.
Conclusion
Undercut machining has an important role in making complicated geometries in different industries from consumer electronics to aerospace.
If you need any type of undercut machining then RICHCONN is your best option. Contact us anytime and discuss your manufacturing needs.
FAQ’s
How can I optimize undercut machining process?
To optimize undercut machining, when possible use standard tool dimensions and shallow cuts. Use lollipop cutters for complicated features. Program correct tool paths and keep proper cutting speeds.
What are future trends in undercut machining?
Future trends in undercut machining are based on AI integration, 5 axis CNC machines, “done in one” production methods and automated processes to decrease manufacturing difficulties and increase accuracy.
What is difference between undercut machining and standard machining processes?
Undercut machining requires special tools to reach those areas where standard end mills cannot. It makes recessed features under the surface whereas old machining works from the above.
