In manufacturing field, metal plating is a necessity. This plating increases a product’s resistance to corrosion, its electrical conductivity and hardness and helps manufacturers make better decisions about design and development of their products.
Today we will see what metal plating is, its process, advantages and uses.

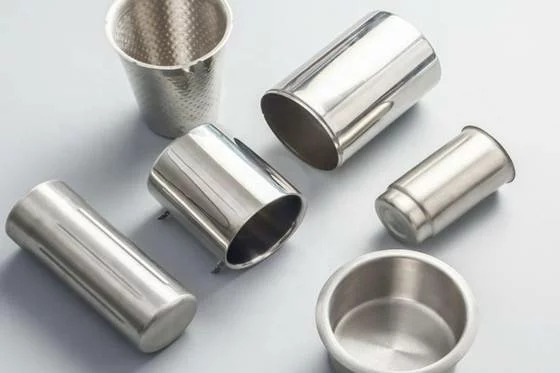

What is Metal Plating?
Metal plating is a manufacturing method in which layer of metal is applied on the outside of a workpiece. From automotive to electronics, metal plating finds widespread uses in different fields and it improves the performance and reliability of the products.
Metal Plating Types
The field of metal plating contains different methods and all of them have particular uses and processes.
1. Electroplating
In electroplating, an electric current drives deposition of metal ions onto a substrate and it’s the most widely used method. This results in an adherent and uniform coating that increases both visual appeal and protection against resistance. Fields from automotive to electronics mostly use this versatile process.

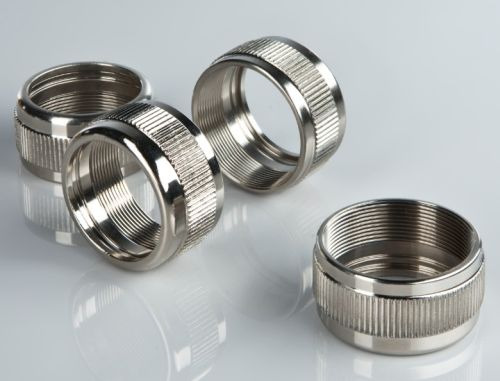

2. Electroless Plating
Electroless plating is an autocatalytic process that doesn’t need electricity for deposition of the metal. This method gives uniform coatings on complicated shapes such as non conductive surfaces. It also achieves tolerance up to ±0.0001 inches, hardness levels of Rc 62 and better resistance to corrosion. These characteristics make electroless plating appropriate for accuracy demanding uses in electronics and aerospace.
3. Physical Vapor Deposition (PVD)
In a vacuum environment, PVD generates ultra-thin and high-performance coatings. This atomic level process permits accurate control over the properties of coating and produces layers measuring 1 to 5 microns with extraordinary hardness (up to Rc 67) and corrosion resistance. PVD is mainly used in aerospace, medical and automotive sectors owing to its ability to produce extremely durable coatings.
Metals Suitable for Plating

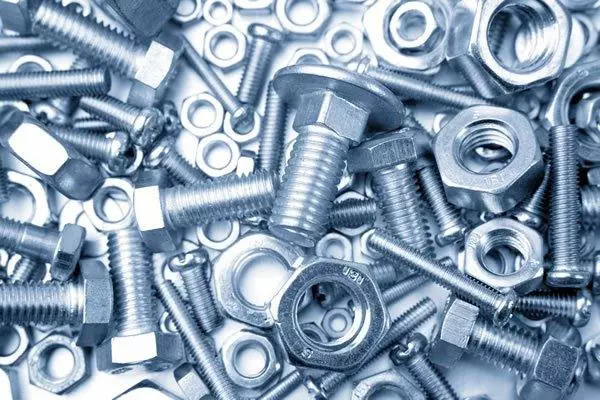

Zinc Plating
Because of its sacrificial protection mechanism, zinc plating is distinctive in terms of corrosion resistance. On the basis of coating thickness (5 to 110µm), this method can tolerate up to 96 hours of salt spray test. The construction and automotive fields mostly use zinc plating thanks to its durability and affordability.
Nickel Plating
Nickel plating gives better durability and corrosion resistance. Its performance varies based on phosphorus content (3-12%) and heat treatment and it can get a minimum hardness of 850 Vickers. This method’s ability to make uniform coatings on intricate geometries with extraordinary wear resistance makes it a top choice for automotive, electronics and aerospace fields.

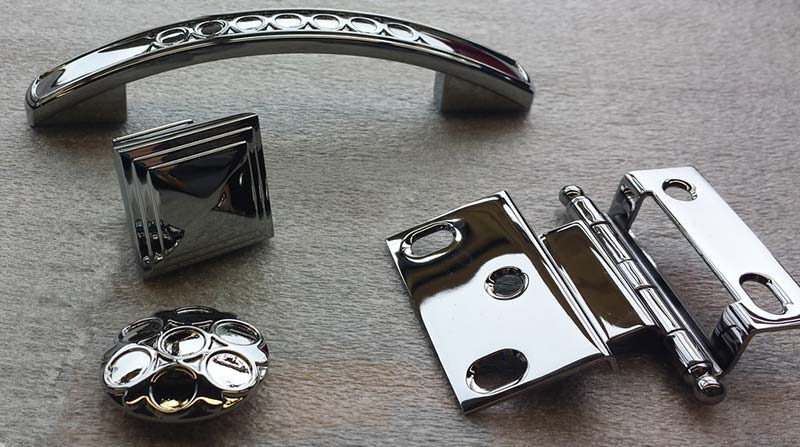

Chrome Plating
A thin chromium layer deposited through chrome plating gives extraordinary corrosion protection, hardness (66-70 HRC) and wear resistance. This method increases component performance and durability in automotive, mining and hydraulics sectors with its thicknesses of 0.020 to 0.127 mm.

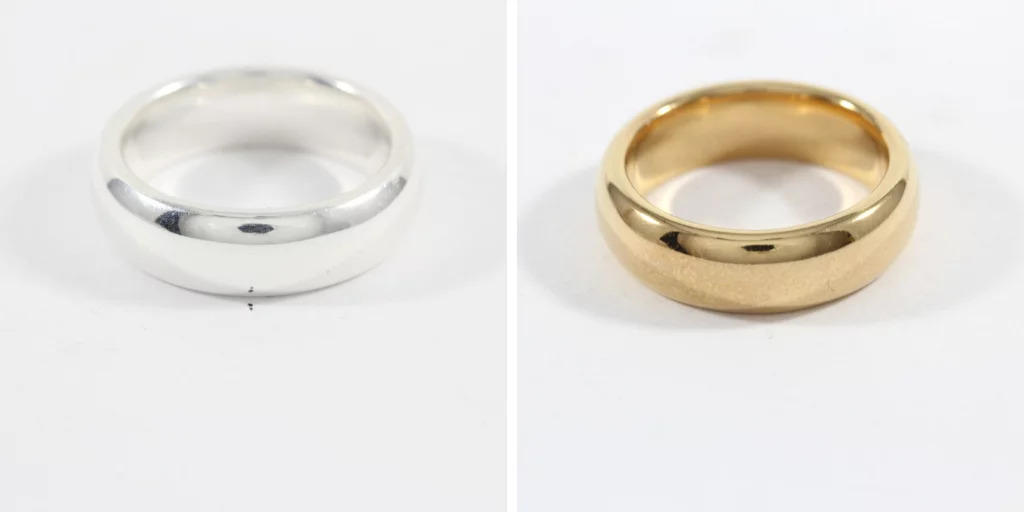

Gold and Silver Plating
Improved conductivity and corrosion resistance define silver and gold plating. The biocompatibility of gold (99.9% pure) makes it best option for medical machinery while silver’s antibacterial properties suit water filtration systems. Both metals give extraordinary wear resistance and some gold alloys can reach 23 to 24 HRC hardness.

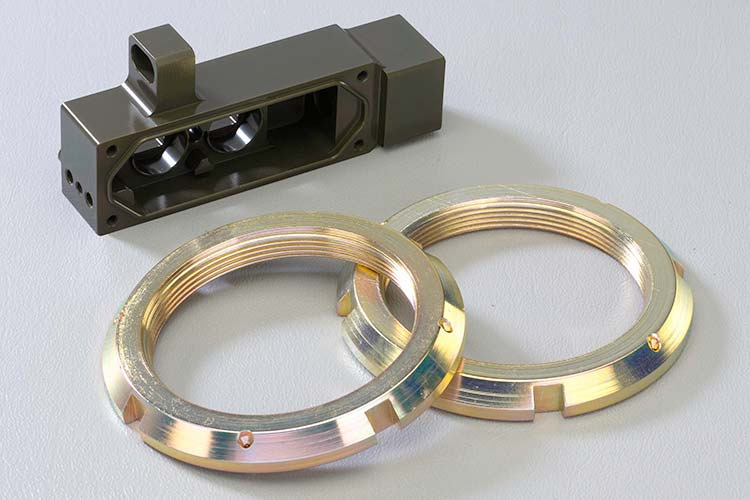

Cadmium Plating
For marine environments, cadmium plating is used to control corrosion. It’s gives low friction, sacrificial protection and extraordinary electrical conductivity. Despite its toxicity, military and aerospace fields continue to use cadmium plating, owing to its distinctive combination of properties.

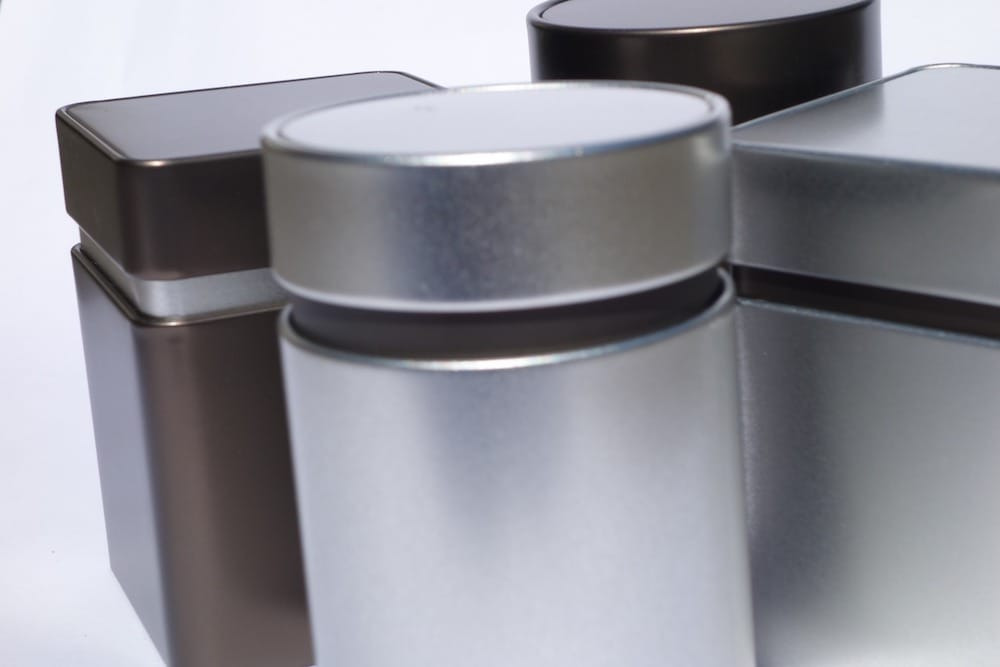

Tin Plating
Tin plating combines corrosion resistance with high electrical conductivity. Generally applied in thicknesses of 5 to 30µm, this method gives better solderability and protection. Fields, for example electronics, food processing and automotive, value tin plating for its cost friendly performance in contrast with precious metal alternatives.
Metal Plating Process
The metal plating process uses different steps to acquire high quality finishes. Every phase is given in detail:
Preparation
Surface preparation makes the foundation of successful metal plating. First, parts are separated and then stripped to remove existing coatings. Next step is polishing that produces a mirror like and smooth surface. The final step is complete cleaning for removing contaminants to confirm maximum adhesion.
This whole process, which usually includes electro cleaning with particular solutions results in an ideal substrate for plating.
Plating Techniques
After preparation, the substrate enters the actual plating phase. Different methods are present and all of them are suitable for particular uses.
Electroplating uses electric current to deposit ions of a metal on the substrate. On the other side, electroless plating depends on chemical reactions without electricity. For more specialized needs, physical vapor deposition (PVD) gives accuracy of atomic level while plasma spray coating gives better wear resistance.
Post Plating Treatments
The plating process concludes with very important post treatments that increase component performance.
Heat treatments, for example annealing, promotes adhesion and increases internal stresses. To improve corrosion resistance, passivation makes a protective layer of oxygen. Chromate conversion coatings are best for zinc and aluminum substrates. These operation specific treatments extend the functionality and lifespan of plated parts.
Advantages of Metal Plating
Better Aesthetic Appeal
Metal plating produces shining finishes which increase visual appeal. Fields from jewelry to automotive can customize shapes and colors to increase their product’s aesthetics.
Improved Corrosion Resistance
A protective barrier is produced during metal plating which protects base metals from corrosive environments. As a result, lifespan of a component increases.
Electrical Conductivity
Silver or gold plating greatly improves electrical conductivity. This help electronics because of better signal transfer and lower resistance.
Increased Strength and Hardness
Nickel or chrome coatings applied through metal plating increase overall strength and surface hardness. Consequently, durability and wear resistance improve for components in demanding operations. Examples are high performance automotive engine parts and aerospace turbine blades.
Cost Effectiveness
Long term savings result from metal plating because of reduced maintenance needs and extended product life.
Wear Resistance
Nickel or hard chrome coatings applied through metal plating greatly improve wear resistance. High friction uses such as industrial bearings and engine cylinders benefit greatly from this.
Applications of Metal Plating
Owing to its multifunctionality, metal plating is used in different industries.
Automotive Industry
In automotive manufacturing, electroplating has a very important role. It increases the corrosion resistance of engine parts and improves aesthetics of decorative trims. It also boosts the conductivity of electrical connectors. These improvements take part in longevity and performance of vehicles.
Electronics
The electronics market depends on metal plating to maximize component performance. PCBs, semiconductors and connectors benefit from increased corrosion resistance and conductivity. For tiny electronic components, coatings of copper, silver and gold are especially effective.
Aerospace
Aerospace operations need extraordinary material properties which metal plating gives. Important parts such as landing gear, airframe structures and engine parts gain increased corrosion resistance, durability and thermal stability from plating processes.
Medical Devices
In the medical field, metal plating increases the functionality of different machines. Surgical tools, diagnostic machines and implants benefit from improved biocompatibility, antimicrobial attributes and corrosion resistance. Silver and gold coatings are particularly valuable in medical operations for patient safety and device reliability.
Decorative Uses
Metal plating also serves aesthetic purposes in addition to functional uses. It transforms the appearance of jewelry, architecture and furniture elements. While gold, chrome and silver coatings make shining finishes, custom patinas give distinctive artistic expressions. This multifunctionality makes metal plating a favorite between artists and designers.
Challenges and Considerations
Metal plating industry faces many environmental issues because of waste management and hazardous chemicals. It is difficult to get equal coating adhesion and thickness particularly on complicated shapes.
Generally, companies solve these issues by using less toxic materials and closed loop systems. They also use modern waste treatment methods. Better surface preparation is also very important for a quality coating.
Conclusion
Metal plating increases product performance, longevity and aesthetics across different industrial fields. This multipurpose process gives many advantages from improved electrical conductivity to increased corrosion resistance.
If you are looking to get top quality metal plating service then Richconn is the best option. You can contact our experienced team anytime for free consultation.
FAQ’s
1. What metals are generally used in plating and why?
Gold, tin, silver, chrome, copper, nickel and zinc are mostly used plating metals. Each gives particular properties according to different needs like nickel gives greater resistance to wear and gold plating saves products from rust.
2. How does metal plating improve the looks and durability of a metal?
Metal plating increases the durability through different ways. It gives a protective barrier against corrosion, improves wear resistance and increases surface hardness.
3. What are some environment related concerns of metal plating?
Metal plating harms environment in some ways. These are potential release of heavy metals and toxic chemicals, generation of hazardous waste and risks of water and air pollution. Additionally, the process mainly requires high energy consumption. To deal with these concerns, companies are implementing proper waste management systems, emission control measures and adopting cleaner technologies.
