Surface finish is an important part of manufacturing that influences aesthetics, performance and product quality. It provides less waste, better product quality with performance and customer satisfaction. By learning these important factors and benefits, you can improve your manufacturing process and produce better products.
What is Surface Finish?
Surface finish is the surface texture and topography of a product. It is the microscopic peaks, valleys and patterns on a manufactured part’s surface.
Surface finish is important for determining product appearance, performance and durability. It is measured in many ways but roughness average (Ra) is the most common.
Key Concepts of Surface Finish
Surface finishes cover different parameters that define the characteristics of material surface. Engineers and manufacturers need to acknowledge these important terms to increase manufacturing process and product performance.

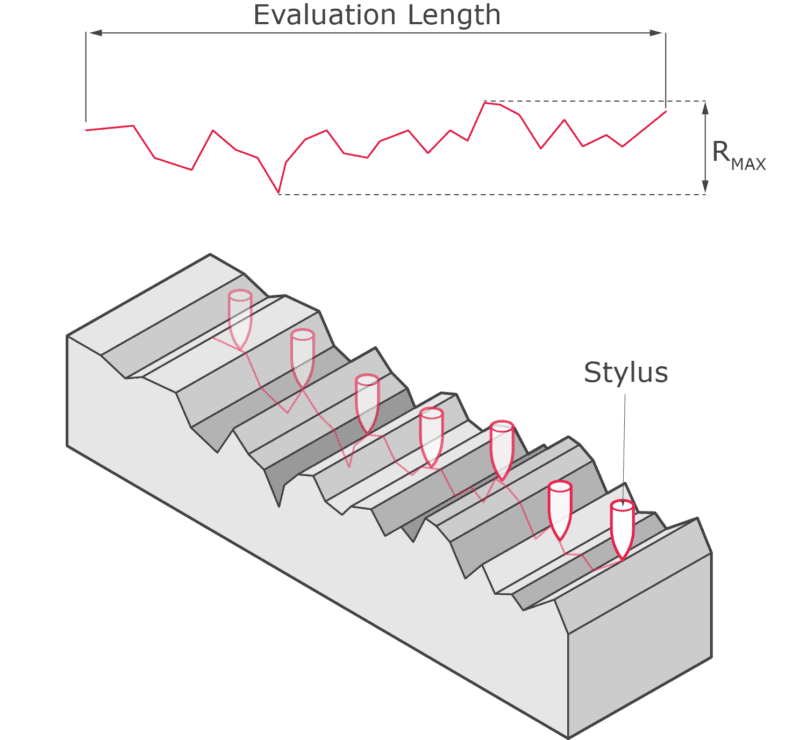

Roughness
Microscopic surface irregularities on material surfaces are measured by surface roughness. It is measured in micrometers (μm) using parameters like Rz (maximum height) or Ra (arithmetic average). Adhesion, friction and wear properties are also influenced by roughness. Optical instruments and profilometers are used to measure roughness. The optimal roughness varies by application from ultra smooth (Ra < 0.1 μm) for optics to intentionally rough (Ra > 3 μm) for better adhesion in some manufacturing processes.

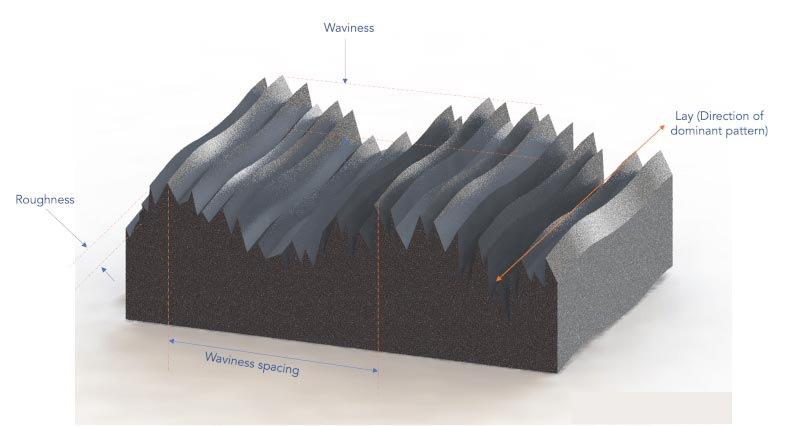

Waviness and Lay
Wider surface deviations with longer wavelengths than roughness are called waviness. This is measured by parameters like Wa (average waviness) and Wt (total waviness). It also impacts bearing and sealing performance of mechanical components.
Whereas lay is the predominant surface pattern which is important for both lubrication and fabrication. Common lay patterns are circular, parallel and perpendicular. Both waviness and lay contribute to a part’s aesthetic appearance and functional performance.
Measurement Methods
Surface finish measurements use different methods to analyze and measure surface characteristics. These techniques provide accurate data for process upgrading and quality control. Some important methods are:
- Profilometry: This method uses a diamond stylus to trace surface contours. It can measure vertical displacement to nanometer precision (100-1 nm). This method also gives 2D profiles and 3D topographic maps which are broadly used in manufacturing for quantitative analysis of surface roughness.
- Optical measurement: Light interference or reflection is used in this method to calculate surface topography with common methods like confocal microscopy and white light interferometry. These non-contact methods provide high resolution 3D surface maps with vertical resolution down to 0.1 nm. They are usually preferred for highly reflective or delicate surfaces.
- Laser scanning: High speed laser beams are used to measure surface topography in this non-contact method. It can reach 10 nm vertical resolution which facilitates 3D mapping of large areas quickly. It is good for in-line inspection and intricate geometries processes.
Factors that influence Surface Finish
Surface finish is influenced by many interrelated variables. These are the important factors that shape the manufacturing process and the surface characteristics of parts.

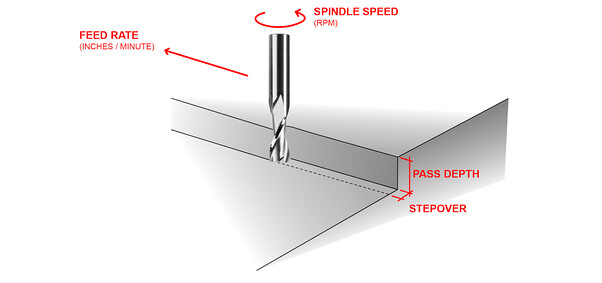

Machining Parameters
Surface finish is mostly determined by machining parameters like depth of cut, spindle speed and feed rate. Smoother surfaces are normally produced due to higher spindle speeds, while increased feed rates lead to poor surface finish. Depth of cut has a less impact but it still can influence the final part finish. These factors interact in a complicated way so they need to be carefully adjusted to get the desired results.
Tool Geometry and Condition
Surface finish is greatly influenced by tool geometry. It includes important factors like nose radius, rake angle and clearance angle. Chip removal is easier with a positive rake angle of 0-20°, while surface finish is impacted by the nose radius. In finishing operations, a larger nose radius (0.4-0.8 mm) normally gives smoother surfaces.
Workpiece Material Properties
Microstructure, ductility and material can substantially impact surface finish. Harder materials usually provide better finish but will also increase tool wear. Ductile materials may form built up edges which can degrade surface finish. Furthermore, finer microstructure produces smoother surfaces, while coarser microstructure may give rougher finish due to machining difficulties and uneven wear.
Machine Rigidity and Stability
Surface finish is heavily dependent on machine tool rigidity. Vibration and chatter caused by lack of rigidity will cause irregular surface patterns. Stability or high stiffness in the machine-tool-workpiece system will decrease deflections under cutting forces and facilitate smoother surfaces. Proper fixturing and tool selection can further increase stability and decrease surface roughness.

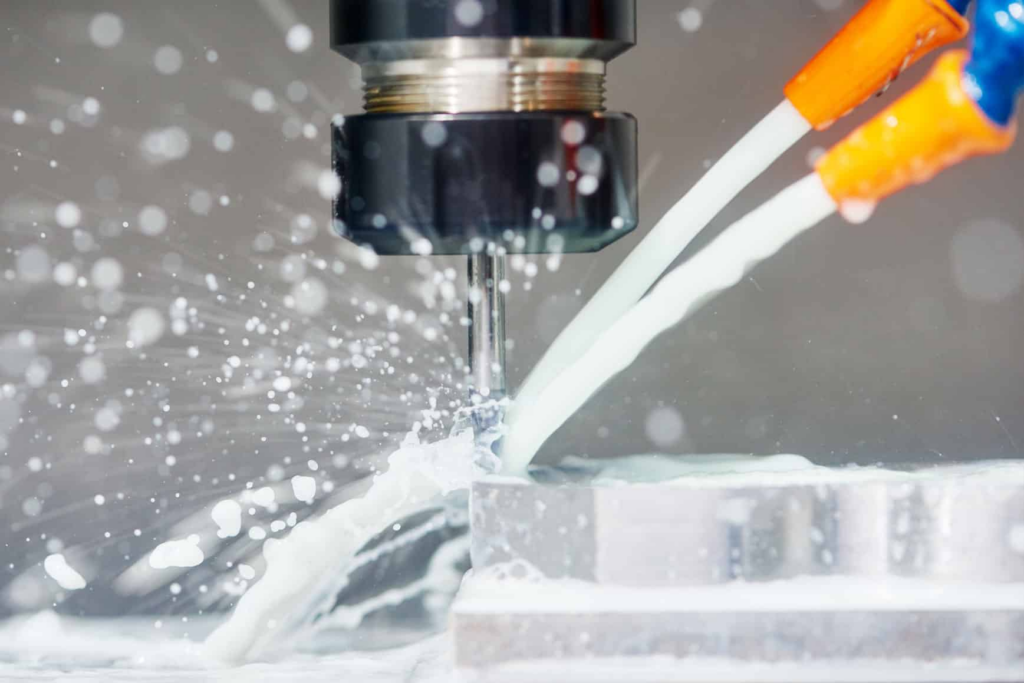

Coolant Type and Application
Coolant choice is also a big factor in surface finish. Different types of coolants like soluble oils which give general purpose lubrication. On the other hand, synthetic fluids are used due to better cooling. High pressure coolant delivery will improve chip evacuation and penetrate the vapor barrier which then forms a hydraulic wedge. This will provide better surface finish particularly for materials that are hard to machine like titanium alloys.
Common Surface Finishing Processes
Different techniques are used to increase surface properties like mechanical, chemical, thermal and advanced processes. These can change surface characteristics to meet particular aesthetic and functional needs.

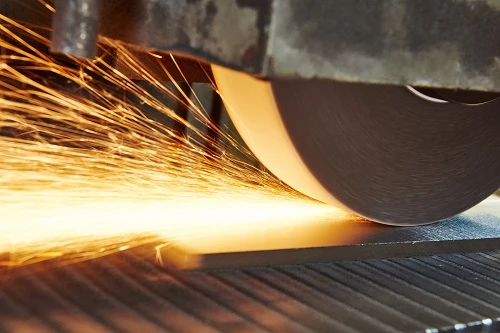

1. Mechanical Finishing
Physical abrasion or deformation of a material’s surface is carried out in mechanical finishing. It includes grinding, polishing and buffing. Abrasive blasting like sandblasting which propels high speed particles to change the surface. For shaping metal surfaces with high precision, manufacturers use precision grinding with abrasive belts. These processes acquire desired surfaces, remove burrs and smooth surfaces successfully.

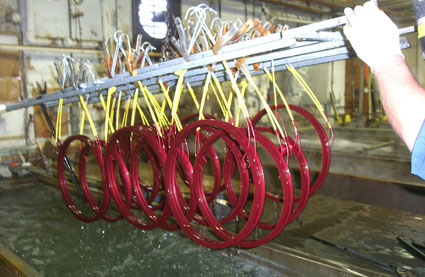

2. Chemical Finishing
This technique can change surface properties through coatings or reactions. Chemical finishing also uses many procedures like anodizing, electroplating and etching. Protective layers of oxide are formed on metals during anodizing, while electroplating deposits metal ions onto substrates. Material is removed selectively through chemical etching. These methods increase conductivity, corrosion resistance and produce complicated patterns on surfaces.

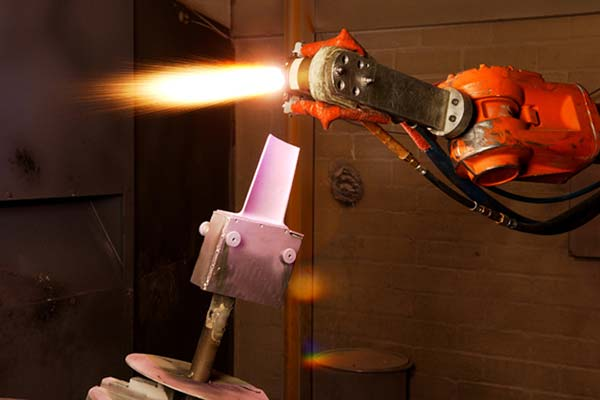

3. Thermal and Additive Processes
Thermal processes like laser surface modifications and flame polishing can change material properties through controlled heating. Additive methods like plasma spraying deposit material at speeds up to 450 m/s. It can also reach coating thickness from 20 μm to several mm.
Whereas laser ablation is used to acquire accurate alteration with beam power densities up to 10^8 W/cm^2. Both thermal and additive processes make thermal barriers and increase wear resistance.
Benefits of Optimizing Surface Finish
Accurate surface finishing has many advantages. It increases products lifespan, aesthetics and performance. Some common benefits are.
- Performance Enhancement: A better surface finish can substantially increase part performance. A smoother surface minimizes friction which decreases energy loss and wear.
- Aesthetic and Functional Benefits: Products with outstanding surface finishes look attractive with impressive texture qualities. It decreases glare, increases light reflection better and allows accurate control of surface textures.
- Corrosion Resistance and Durability: Surface irregularities that can cause corrosion are mostly minimized by improving surface finish. Smooth surfaces also have less areas for corrosive agents to accumulate. Some finishes like passivation or anodising make protective layers that can largely increase product life.
- Cost Savings: A good surface finish decreases long term costs by increasing parts durability with less wear and decreasing maintenance frequency. It also makes manufacturing proficiency better due to lower scrap rates and less rework.
Applications across Industries
Improving surface finishes is important in many different sectors. From aerospace to medical devices, precise surface characteristics can increase product performance and reliability.
Automotive and Aerospace
Surface finishing reduces friction in engines, enhances aerodynamics and improves corrosion resistance for valuable components like fuel systems, turbine blades and landing gear.
Medical Devices
Accurate surface finishing makes scalpels, implants, pacemakers, forceps and diagnostic equipment more compatible with the body by lowering the risk of contamination and improving their functionality.
Consumer Electronics and Aesthetics
Surface finishing is used to strengthen product functionality, appeal and durability in wearables, smartphones and laptops through techniques like anodizing, polishing, and nano-coatings.
Conclusion
Surface finish upgradation is important for quality manufacturing. It is good for product aesthetics, performance and durability across different industries like automotive and aerospace. Knowing and using the right surface finishing techniques can greatly improve product quality and manufacturing proficiency.
Richconn provides expert CNC machining and surface finishing services. Contact us today to improve your product quality. Our team guarantees quality, proficiency and accuracy according to your project needs.
FAQ’s about Surface Finish
How do different surface finishes affect product performance and durability?
Surface finishes influence corrosion protection, friction and wear resistance. Smoother finish minimizes, wear and friction, while textured finish can increase lubrication retention. Particular coatings also provide extra protection against environmental factors.
How does surface roughness measurement impact manufacturing tolerances?
Surface roughness measurement guarantees design specifications are met. It guides process adjustments which impact part functionality and dimensional accuracy. Precise measurement allows tighter tolerances. This is important for high performance parts in industries like medical and aerospace.
How can optimising surface finish optimization lead to cost savings in the manufacturing process?
Optimized surface finish can increase tool life with less material waste and decrease post processing needs. Right finish selection can also improve part performance by increasing customer trust and minimizing warranty claims.
