Transmission shafts have an important role in the smooth operation of vehicles and industrial machinery. The knowledge about how they work and their different parts can help you increase performance, diagnose issues and decrease maintenance costs.
So in this blog post, we’ll look into the types, main parts, benefits and applications of transmission shafts in detail.
What is a Transmission Shaft?

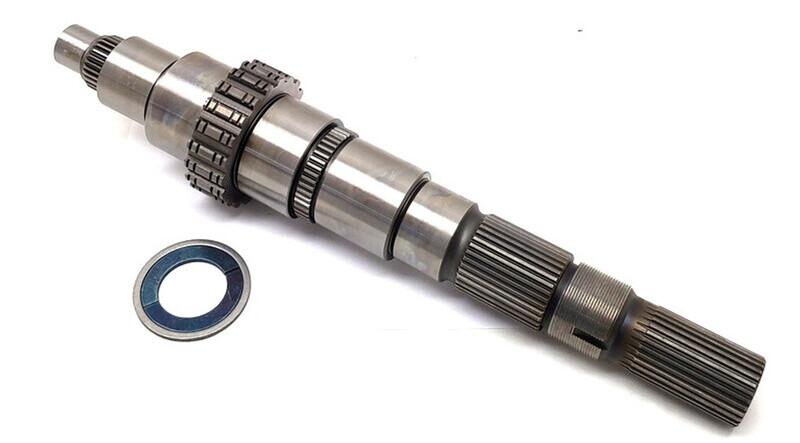

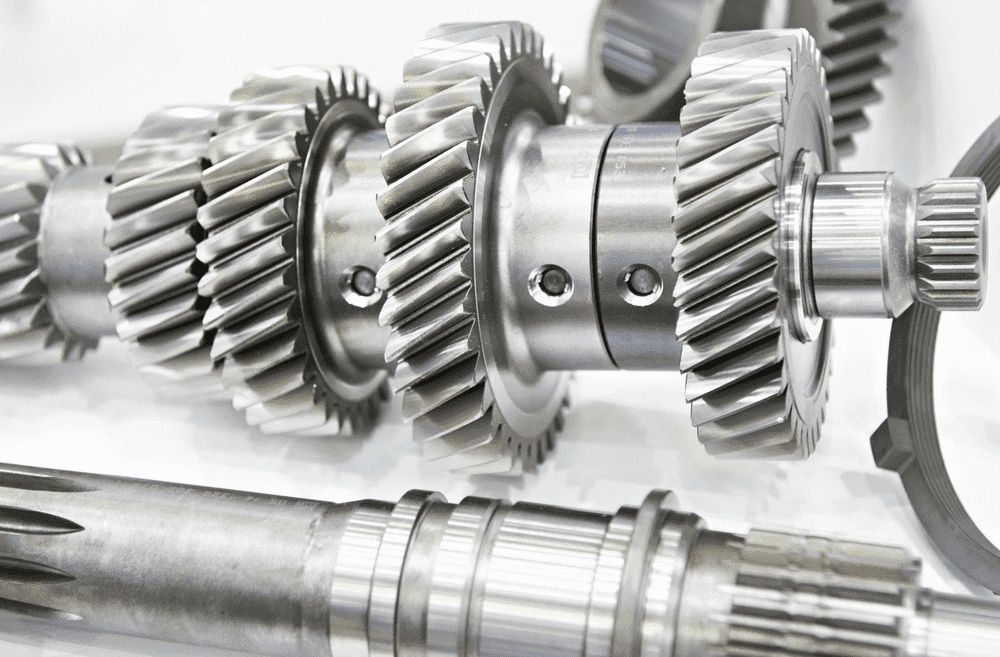

A transmission shaft is a mechanical part that transfers spinning power between different sections of a vehicle or machine. Cylindrical rods are usually crafted to handle twisting force while transmitting torque. In automotive, they connect the engine to the gearbox and then to the wheels which permit power flow through the drivetrain.
Types of Transmission Shafts
There are different types of transmission shafts and each type serves a special purpose in different operations.

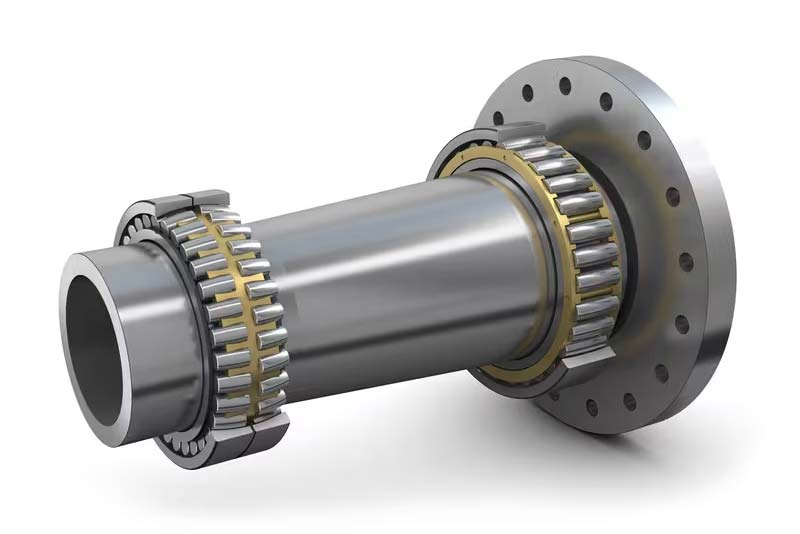

Main Shaft
Main shaft is also known as the output shaft. It is the main power transmission part in a gearbox. It gets torque from the motor and transfers it to the drive wheels. Manual transmissions have this shaft directly linked to the clutch assembly.
This shaft is usually made from high-strength alloy steel because of the very high torsional forces it must handle. Their splined design is necessary for smooth gear changes as it permits seamless engagement and disengagement of gears.
In high-performance vehicles, engineers usually choose hollow main shafts. This layout decreases rotational inertia while keeping torsional stiffness. It proves very helpful in racing situations where fast acceleration and deceleration are very important.

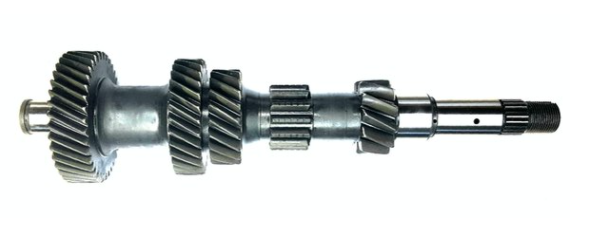

Counter Shaft
Counter shaft also has an important role in gear ratio adjustment and power transmission like the main shaft. Manual transmissions use this type of shaft to carry multiple gears that mesh with those on the main shaft. It permits best speed tuning and torque transfer.
These shafts are usually made from high-strength alloy steel to manage massive torsional forces. Their design mostly incorporates keyways or splines for stable gear installation. Heavy-duty vehicles prefer counter shafts for their ability to support smooth gear changes while handling considerable loads.

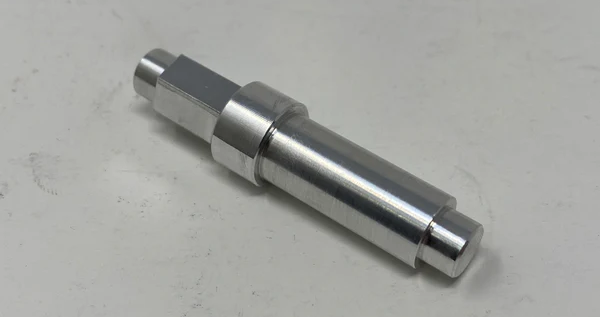

Idler Shaft
Complex transmission systems use idler shafts for a particular job. These parts mainly preserve gear spacing or change direction of motion. Idler shafts are made from hardened steel and are usually shorter than main or counter shafts. Their strategic placement lets them connect with other mechanical pieces. It makes them mandatory in complicated machinery designs.
Car transmissions mostly use idler shafts to control gear spots in narrow spaces. Manufacturing and farming gear also benefit from the shafts’ ability to flip rotation direction without disturbing overall power transmission. Here, idler shafts permit complicated motion paths and increase project function and performance.

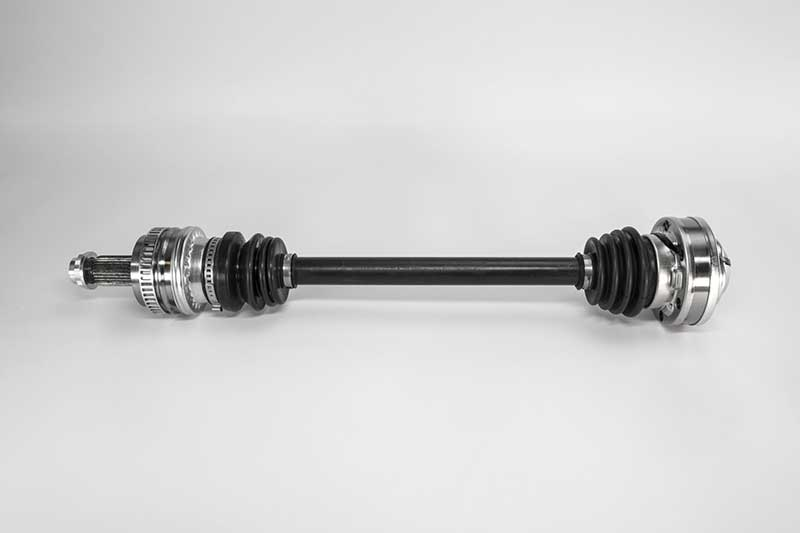

Drive Shaft
Power transmission heavily depends on drive shafts. It’s also called propeller shafts. These cylindrical parts link the transmission to the differential. This permits torque transfer in four-wheel and rear-wheel drive vehicles. High-strength steel or aluminum alloys usually form drive shafts. Drive shafts must resist big torsional stress while staying light to minimize spin inertia.
Long-wheelbase trucks and SUVs usually have two-piece drive shafts with a center support bearing. This setup decreases shaft whip at high speeds and increases durability and stability. Some modern drive shafts add hollow designs or composite materials to further maximize the strength-to-weight ratio. These upgrades are very important for increasing vehicle performance and fuel efficiency.
Key Components of Transmission Shafts
Many different parts work together to guarantee smooth operation. Now, we’ll break down these important parts that form transmission shafts.
Materials Used
Transmission shaft performance greatly depends on the material chosen. AISI 1045 or 4140 high-quality carbon structural steel is common due to its great strength and machinability balance. Situations that need higher strength-to-weight ratios may use alloy steels like 4340 or advanced composites like carbon fiber.
Aerospace applications mostly prefer titanium alloys for their extraordinary corrosion resistance and strength-to-weight ratio.
Design Features
Optimal performance and durability of transmission shafts rely on critical design features. Splines, grooves and keyways are important to facilitate component attachment and power transmission. Automotive transmissions use splined shafts for smooth gear engagement and disengagement. Industrial machinery usually uses keyways to secure connections between mating components and shafts.
Engineers carefully design shaft fillets and diameter transitions to minimize stress concentrations. In aerospace applications where weight reduction is very important, you should use hollow shafts with maximized wall thicknesses. These design elements unite with precision balancing techniques certify maximum efficiency and minimal vibration across different operating conditions.
Bearings and Supports

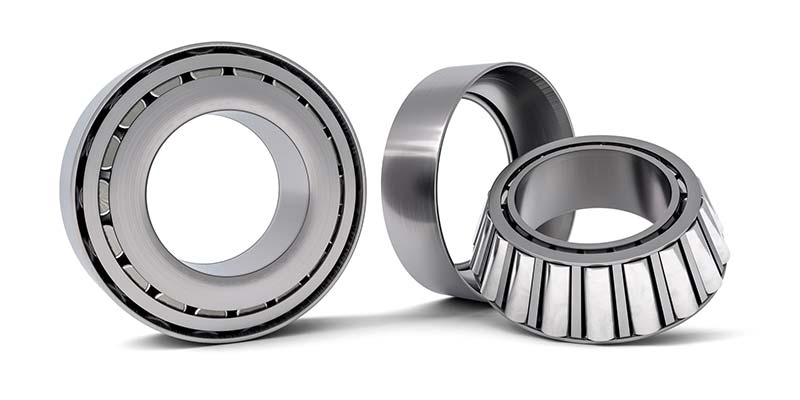

Smooth turning and load sharing in transmission shafts rely on bearings and supports. Differential gears use tapered roller bearings to handle both axial and radial loads. This setup preserves accurate gear meshing while sending fundamental driving forces to the wheels.
Needle roller bearings support gears that spin separately from the shaft in manual transmissions. This allows coherent gear changes and reduces friction. High-speed uses like turbine shafts in aerospace prefer angular contact ball bearings. These bearings manage both axial and radial loads along with minimizing heat development.
How Transmission Shafts Work?
Next, we’ll go through how transmission shafts actually work. Let’s first look at the energy transfer process of these shafts.
1. Energy Transfer Process
Rotational energy transfer is the basis of transmission shaft working. The engine’s crankshaft starts this by turning linear piston action into rotational force. This torque then moves through the clutch setup to the transmission’s input shaft. The splined input shaft engages different gear sets to change torque output and rotational speed.
Manual transmissions use the main shaft and countershaft together to get different gear ratios. The final output speed and torque sent to the driveshaft depend on the chosen gear mix. This mechanical connection contributes to proficiently spreading power throughout the vehicle’s drivetrain. It ultimately results in spinning the wheels.
2. Role in Gearbox Functionality

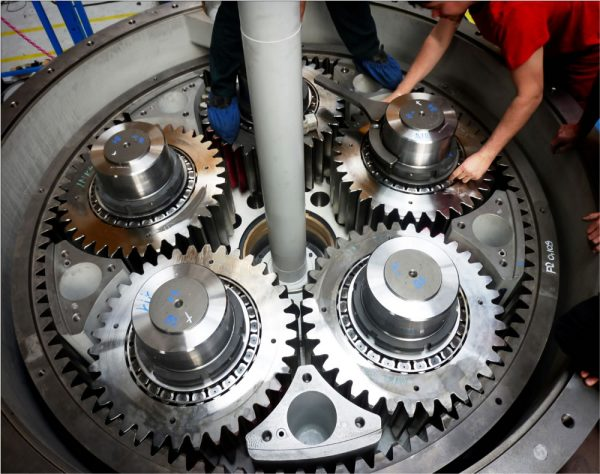

In the gearbox, drive shafts let power transfer happen proficiently and facilitate gear mesh. The main shaft in manual gearboxes works with the countershaft through many gear sets. Synchronizers on the main shaft make the gears spin at the right speeds when shifting, so they engage smoothly.
Gears can slide along the main shaft’s splined design to engage or disengage as required. This setup lets the gearbox change speed ratios and torque between the wheels and engine and maximize vehicle performance in multiple driving conditions. Accurately engineering these shafts minimizes power loss and maximizes proficiency of the drivetrain setup.
3. Impact on Vehicle Performance
The design and function of drive shafts greatly impact vehicle performance. Effective power transfer from the motor to the wheels directly affects fuel efficiency, acceleration and general driving dynamics. Well-engineered shafts reduce power loss and guarantee best torque delivery across speed ranges.
High-performance vehicles usually have lightweight composite propeller shafts. These parts reduce rotational mass, improving acceleration and responsiveness. Their ability to handle higher RPMs allows for faster top speeds. Shaft torsional stiffness impacts drivetrain noise, shift quality, drivetrain vibration and harshness. Properly balanced shafts reduce vibrations, give a smoother ride and make related parts last longer.
Applications
Transmission shafts are adaptable parts used in many areas. Let’s examine where you might see them working.

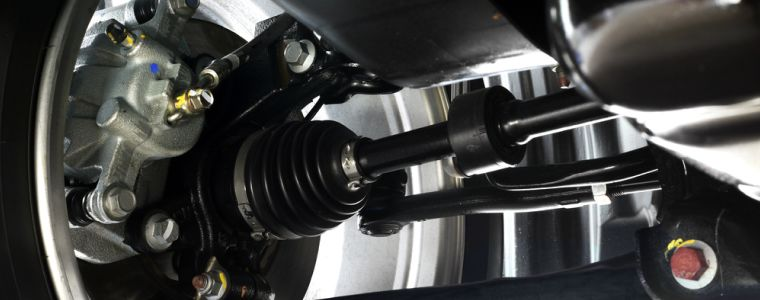

Automotive Sector
Cars depend heavily on transmission shafts to transfer power. In manual gearboxes, the main shaft links the motor to the transmission and transmits torque at different speeds. Drive shafts which are usually made of high-strength alloy steel, move power from the gearbox to the differential.
Constant velocity (CV) joints, in front-wheel-drive vehicles, allow angular movement while keeping a uniform speed. High-end cars mostly use carbon fiber drive shafts to cut rotational mass and boost acceleration.
Industrial Machinery

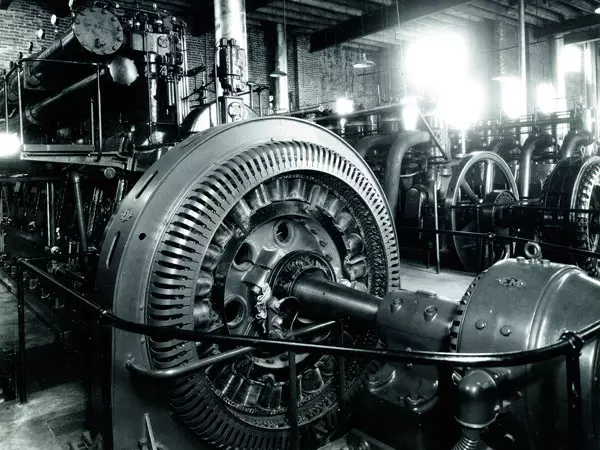

Transmission shafts have an important role in industrial power transfer and machine operation. Conveyor systems use these shafts to transmit rotational force to drive rollers. These shafts mostly incorporate splines or keyways for safe coupling with pulleys or gears.
In heavy-duty settings like steel mills, transmission shafts can have one-meter wide diameter and handle over 1 million Nm of torque. CNC machines need precision ground shafts for accurate motion control with tolerances as tight as ±0.005 mm.
Aerospace Applications

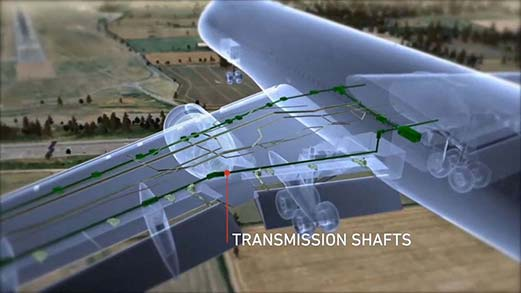

Aerospace engineering take advantage from the reliability and accuracy of transmission shafts. Aircraft engines use high-performance shafts to transfer power from turbines to compressors that run at over 20,000 RPM. These parts generally use advanced materials like carbon fiber composites or titanium alloys to minimize weight while keeping strength.
Helicopter rotor setups use shafts to move power from the engine to main and tail rotors which handle vibrations and extreme twisting loads. Strict testing including fatigue checks and non-destructive tests guarantees best performance of aerospace-grade shafts in tough flight conditions.
Benefits of High-Quality Transmission Shafts
Transmission shafts are very beneficial in many different uses. Some of the advantages they provide are:
Durability and Longevity
Great durability defines high-quality transmission shafts. These parts handle extreme fatigue cycles and twisting stresses. Made from robust alloys like AISI 4340 or 300M steel these shafts take on torque loads over 1000 Nm. Their fatigue life mostly exceeds 10^7 cycles and it assures long working lifespans.
Surface treatments like induction hardening or nitriding improve their wear resistance. As a result, these shafts maintain best performance even in harsh conditions which decreases maintenance costs and reduces downtime.
Performance Enhancements
High-quality transmission shafts greatly improve complete machinery performance. Precision-engineered shafts like AISI 4340 high-strength alloys handle over 2000 Nm torque loads. This increased capacity permits more efficient power transfer and minimizes drivetrain energy losses.
Vehicles with these advanced shafts accelerate better and respond quicker. Also, improved designs with less mass and more stiffness reduce torsional vibrations. So users experience smoother operation and lower noise at different RPMs ranges.
Maintenance and Reliability
High-quality transmission shafts cut down on maintenance needs and improve reliability. AISI 4340 steel, with 1500 MPa tensile strength, resists fatigue well. Precision-engineered shafts with 0.4 μm surface roughness have less wear and longer service intervals.
In demanding industrial uses, properly maintained shafts achieve 10,000+ hours of Mean Time Between Failures (MTBF). This means lower maintenance costs, less downtime and better efficiency in different areas.
Cost Efficiency
Throughout their lifespan, high-end transmission shafts save substantially on costs. AISI 4340 steel with 1500+ MPa yield strength, lasts longer thus need fewer replacements. Precision-engineered shafts with below 0.4 μm surface roughness minimize friction losses and improve fuel efficiency in vehicles.
In Industrial settings, 5 % energy usage can be reduced by using these shafts, saving cost in long-term. Greater durability also means fewer maintenance interventions which further decrease net expenses.
Maintenance and Troubleshooting
Even quality transmission shafts require proper care and maintenance. In this section we will look at some common issues that could arise while using these shaft. We will also see how these problems can be solved.
Common Issues
Transmission shaft failures are usually evident from certain symptoms. Some odd noises like whining or grinding point out bearing or gear wear. Vibrations over 0.15 inches per second (peak velocity) can indicate imbalance or misalignment. Overheating with temperatures above 180°F (82°C) causes too much friction or lubrication issues.
In manual transmissions, difficulty shifting gears suggests synchronizer or clutch problems. Red or brown fluid spills of oil leaks point to gasket or seal failures. Addressing these problems quickly can prevent big failures and lengthens shaft life.
Preventative Maintenance
Transmission shaft durability needs a full preventive maintenance program. Start with regular checks. Use laser tools to verify shaft alignment and keep misalignment under 0.05 mm/100 mm. Closely track vibration levels and keep them under 2.8 mm/s RMS for best performance.
A lubrication analysis every 500 hours can spot early signs of wear. If the particle counts reach over 100/mL at 4 μm, it is the sign for potential issues. Use thermal imaging to locate areas having temperature differences of more than 10°C. Following these maintenance rules greatly reduces sudden failures and increase transmission shaft service time.
Repair vs. Replacement
The decision between repair and replacement of transmission shafts requires careful thought. Repair cost usually ranges from $300 to $1,500. It depends on the extent of damage. Small issues like bearing adjustments or seal replacement make repairs budget-friendly. On the other hand, major damage like large gear wear or cracked housing required replacement. New shafts can cost $1,800 to $3,400.
To make this decision, consider the vehicle or machine’s age, reliability needs and condition. Always get a certified technician’s suggestions and diagnosis for an accurate assessment.
Conclusion
Transmission shafts are fundamental parts that deliver great value in many industries. Their solid design certifies durability and cost-effectiveness in long term while their shape maximizes project abilities. Regular maintenance and fast problem-solving are necessary to guarantee best performance and increased lifespan. The knowledge about their parts, types and uses will let you make better choices about their use and upkeep.
FAQs
1. What are the most common materials used in manufacturing transmission shafts?
High-quality alloy steels like 4340 and carbon structural steels like AISI 4140 and 1045 are the standard materials for manufacturing transmission shafts. Manufacturers use advanced composites like carbon fiber and titanium alloys for situations that need higher strength-to-weight ratios.
2. How do transmission shafts contribute to vehicle performance and fuel efficiency?
Transmission shafts proficiently transfer engine power to the wheels through well-matched gear ratios. This transfer of engine power greatly impacts vehicle acceleration, fuel usage and operation smoothness. These parts permit the engine to run in its best RPM range to minimize power loss during transmission. The net effect is smoother driving, better pickup and decreased gas consumption.
3. How do keyways and keys function in preventing slippage in transmission shafts?
Keys and keyways mechanically interlock the shaft and mounted components to prevent slippage. A key fits into matching slots (keyways) cut into both component and shaft to lock them together to transmit torque and stop relative rotation. This straightforward but effective mechanism confirms reliable power flow while allowing easy assembly and takedown when required.
