In CNC machining and precision engineering, thread standards are critical. Among the most widely used are UNC (Unified National Coarse) and UNF (Unified National Fine). Knowing UNC UNF thread meaning is essential for designers, machinists, and engineers. The choice between coarse and fine threading impacts strength, durability, assembly speed, and vibration resistance.
This article provides a detailed comparison of UNC vs UNF threads, covering their technical specifications, differences, applications, and machining considerations. By the end, you will clearly understand what does UNC mean for threads, when to use UNF, and how precision CNC machining ensures accuracy in threaded components.
What Does UNC Mean for Threads?
When people ask, “what does UNC mean for threads?”, they are referring to Unified National Coarse threads. These threads feature fewer threads per inch (TPI), resulting in a coarser pitch. This makes them easier to assemble and stronger when used in softer materials.
Key traits of UNC threads:
- Coarse pitch with fewer threads per inch.
- Ideal for general engineering, construction, and mass production.
- Excellent performance in softer materials such as aluminum, brass, or mild steel.
- Faster assembly and disassembly due to larger thread spacing.
UNC threads are highly resistant to stripping and are commonly used in structural applications and heavy machinery.
What Does UNF Mean for Threads?
By contrast, UNF threads stand for Unified National Fine. They have more threads per inch, resulting in a finer pitch. When engineers ask, “unc unf meaning,” they want to know how pitch differences influence strength and precision.
Key traits of UNF threads:
- Fine pitch with more threads per inch.
- Provide greater resistance to vibration and loosening.
- Ideal for aerospace, automotive, and high-precision applications.
- Allow for stronger holding power in applications requiring tight tolerances.
UNF threads are perfect when vibration resistance and accuracy are crucial, such as in aircraft fasteners, automotive parts, and sealing applications.
Distinguishing Between UNF and UNC Threads
The key to optimizing machining processes lies in understanding the distinctions between UNF and UNC Threads. UNF Threads, with their finer pitches and tighter tolerances, provide a more delicate grip, ideal for scenarios where precision is non-negotiable. In contrast, UNC Threads, with their coarser pitches, offer a more robust connection, suitable for applications where strength is the primary concern.
In machining, the choice between UNF and UNC Threads can significantly impact the final product’s quality and performance. Imagine a scenario where a CNC machine is tasked with creating intricate components for aeronautical engineering. In this case, UNF Threads would be the preferred choice, ensuring the precision required for such critical applications.
Let’s dive deeper into the technical specifications of UNF and UNC Threads.
| Feature | UNC (Unified National Coarse) | UNF (Unified National Fine) |
|---|---|---|
| Threads per Inch (TPI) | Fewer (coarser) | More (finer) |
| Strength | Stronger in softer materials | Stronger in harder materials |
| Vibration Resistance | Lower | Higher |
| Assembly Speed | Faster | Slower |
| Precision Fit | General use | High tolerance fit |
| Typical Applications | Construction, heavy machinery, mass production | Aerospace, automotive, precision instruments |
Analyzing Technical Specifications of UNF and UNC Threads
Technical specifications serve as the guiding principles for precision machining. For UNF Threads, these specifications include thread dimensions, tolerances, and angle measurements. The finer details in these specifications make UNF Threads ideal for applications where every micron matters.
Consider the manufacturing of medical devices where precision is non-negotiable. UNF Threads, with their meticulous specifications, ensure that components fit seamlessly, meeting the stringent requirements of the medical industry.
UNC Threads, with their coarser specifications, find their niche in applications where a balance between strength and precision is crucial. Think of a scenario in automotive manufacturing, where components need to withstand external forces while maintaining a level of precision. UNC Threads provide the necessary equilibrium in such situations.
Here’s a visual diagram comparing UNC (coarse pitch) and UNF (fine pitch) threads. UNC has fewer, wider-spaced peaks, while UNF has more tightly packed peaks, representing finer threads.
Application of UNF and UNC Threads in CNC Machining
The practical implementation of UNF and UNC Threads in CNC machining is where theory meets reality. Selecting the appropriate threading standard can make or break the precision and efficiency of the machining process.
In CNC machining, the choice between UNF and UNC Threads often hinges on the specific requirements of the project. Let’s consider a scenario where a CNC machine is tasked with crafting components for aerospace engineering. UNF Threads, with their fine precision, become the natural choice, ensuring the intricate parts meet the stringent demands of aerospace applications.
Conversely, when the emphasis is more on durability and reliability in a CNC machining process, UNC Threads step into the spotlight. Industries like heavy equipment manufacturing rely on UNC Threads to withstand immense pressure and stress while maintaining a functional and reliable connection.
To optimize CNC machining processes, it’s crucial to understand the project’s intricacies, material characteristics, and the expected stress levels the components will endure. By aligning these factors with the appropriate threading standard, manufacturers can achieve the desired precision and durability in their final products.
Let’s explore the toolkit essential for utilizing UNF and UNC Threads in CNC machining.
Recommendations for Tools and Resources related to UNF and UNC Threads
The efficacy of UNF and UNC Threads in CNC machining is significantly enhanced by the tools and resources employed in the process. Precision cutting tools, thread gauges, calipers, and specialized CNC machines equipped to handle different threading standards become indispensable assets.
Here’s a snapshot of the essential tools:
| Tool | Description |
|---|---|
| Precision Cutting Tools | End mills, taps, and dies designed for fine threading and accuracy |

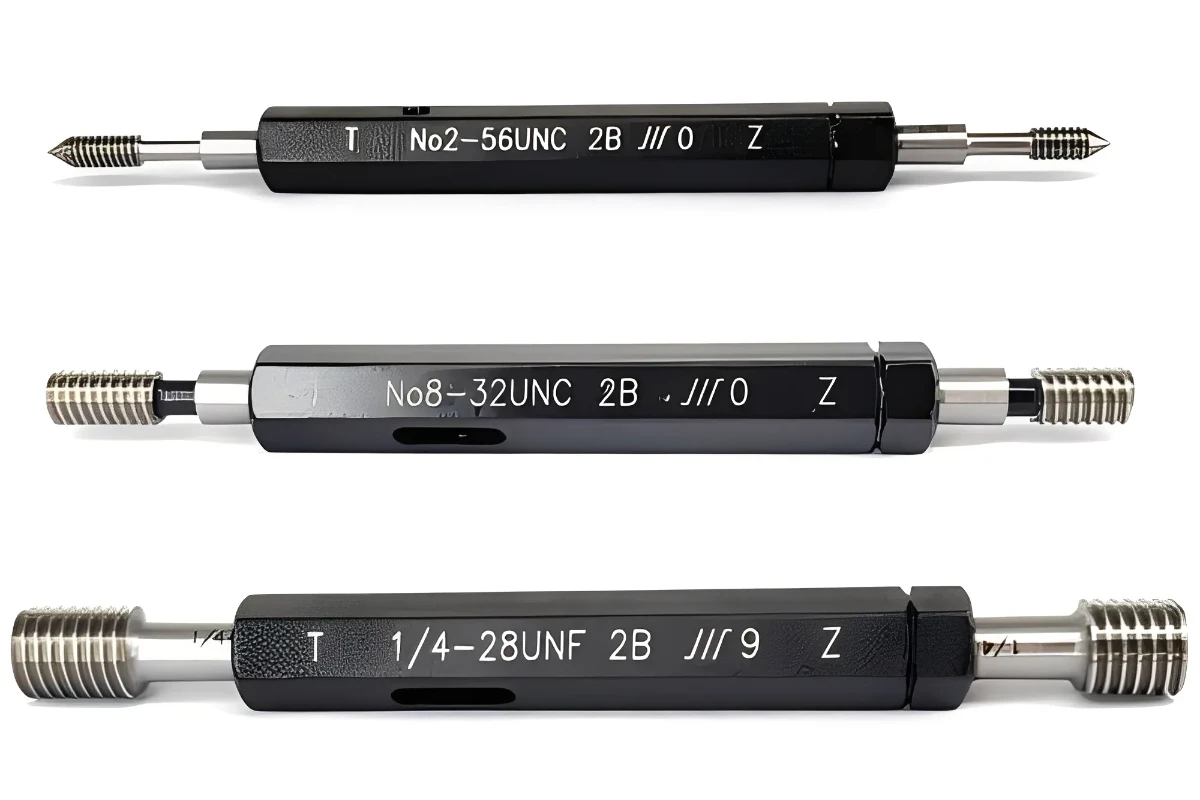

| Thread Gauges | Ensures conformity to specified thread standards |
| Calipers | Precision measuring instruments for accurate thread dimensions |
| CNC Machines | Configured to handle UNF and UNC Thread specifications |
Suppose a CNC precision machine shop aims to enhance its capabilities in UNF and UNC Threads. In that case, investing in these tools and ensuring they meet industry standards becomes paramount. Accurate measurement and precision machining tools guarantee the adherence to the strict tolerances demanded by UNF Threads and the durability offered by UNC Threads.
Showcasing Real-world Successes in UNF and UNC Thread Implementations
Real-world applications often exemplify the practical advantages of employing UNF and UNC Threads in manufacturing. These success stories highlight the prowess of precision machining when the right threading standards are meticulously chosen and applied.
Consider an automotive assembly line where the use of UNF Threads in critical components significantly enhances vehicle performance. The precise fit provided by UNF Threads ensures the integrity of parts, contributing to the overall reliability and safety of the vehicle. Manufacturers leveraging UNF Threads in such scenarios yield vehicles with enhanced durability and reduced maintenance issues.
In contrast, UNC Threads shine in heavy machinery manufacturing, where robustness and reliability are pivotal. Equipment designed with UNC Threads withstands harsh operational conditions, offering longevity and minimal risk of structural failures. Industries relying on heavy machinery, such as construction and mining, benefit immensely from the resilience provided by UNC Threads.
Exploring these success stories underlines the versatility of UNF and UNC Threads across diverse industries. Their ability to cater to specific requirements while ensuring precision or strength positions them as indispensable standards in the manufacturing landscape.
Let’s pivot our focus to Richconn’s expertise in UNF and UNC Thread machining services.
Richconn’s Expertise in UNF and UNC Thread Machining Services
Richconn, a vanguard in precision machining, boasts unparalleled expertise in UNF and UNC Thread CNC machining services. Our commitment to delivering exceptional quality, coupled with advanced machining capabilities, positions us as a preferred partner for precision manufacturing needs.
Our suite of services encompasses:
- Tailored Solutions: Richconn offers bespoke machining solutions tailored to specific UNF and UNC Thread requirements. Whether it’s delicate components demanding UNF precision or robust structures necessitating UNC strength, our expertise ensures superior results.
- Quality Assurance: With stringent quality control measures, every component manufactured at Richconn undergoes rigorous testing to meet and exceed industry standards. Our commitment to precision and durability is ingrained in every product we deliver.
- Client Success Stories: Collaborations with a diverse clientele across industries showcase Richconn’s prowess in implementing UNF and UNC Threads to achieve superior results. Our track record speaks volumes about our ability to cater to multifaceted machining needs.
Let’s now explore the depth of Richconn’s specialized services in UNF and UNC Threads.
Conclusion
Understanding UNC UNF thread meaning is essential in mechanical engineering and CNC machining. UNC threads excel in strength and rapid assembly, especially in softer materials and heavy machinery. UNF threads provide higher precision and vibration resistance, making them indispensable in aerospace, automotive, and precision equipment.
The decision between UNC vs UNF depends on application requirements such as material hardness, vibration conditions, and tolerance needs. By working with experts like Richconn, you gain access to high-quality machining services that ensure accurate, durable, and application-specific threads.
Whether you need UNC or UNF threads, Richconn offers unmatched expertise, advanced equipment, and strict quality control to guarantee success.
FAQ
What does UNC mean for threads?
UNC stands for Unified National Coarse threads. They have fewer threads per inch, providing strength and fast assembly.
What does UNF mean?
UNF stands for Unified National Fine threads. They have more threads per inch, giving higher precision and vibration resistance.
UNC vs UNF, which is stronger?
Both are strong, but UNC performs better in softer materials, while UNF is stronger in precision and vibration-heavy applications.
Are UNC and UNF interchangeable?
No. The pitches are different. Using the wrong fastener can lead to cross-threading or joint failure.
Where are UNC and UNF threads commonly used?
UNC is common in construction and machinery, while UNF dominates in aerospace, automotive, and hydraulic systems.
