Unstable thread pitch leads to unreliable fastening. This not only minimizes the strength of the assembled part but also puts the risk of sudden detachment. Therefore, you must calibrate your CNC lathe machine correctly to ensure consistent thread pitch on the workpiece.

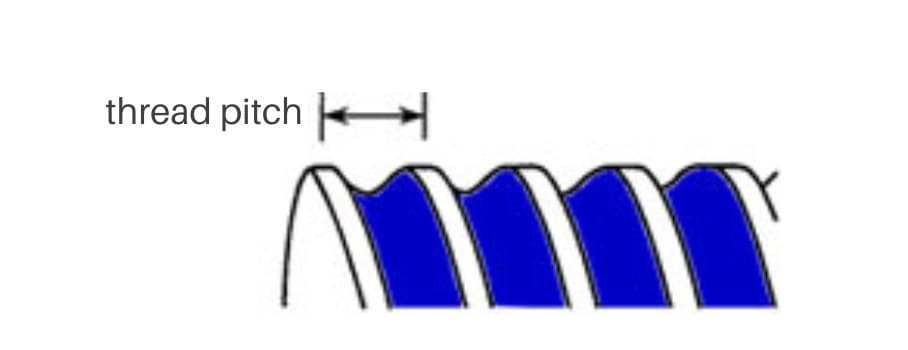

What Is Thread Pitch in a CNC Lathe Machining?
In CNC lathe machining, thread refers to the distance between the corresponding points on adjacent threads of a threaded workpiece (screws, bolts, etc.). It is measured either in millimeters or as Threads Per Inch (TPI).

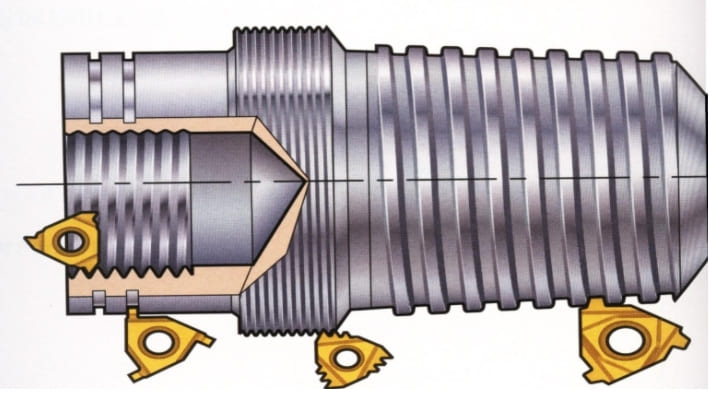

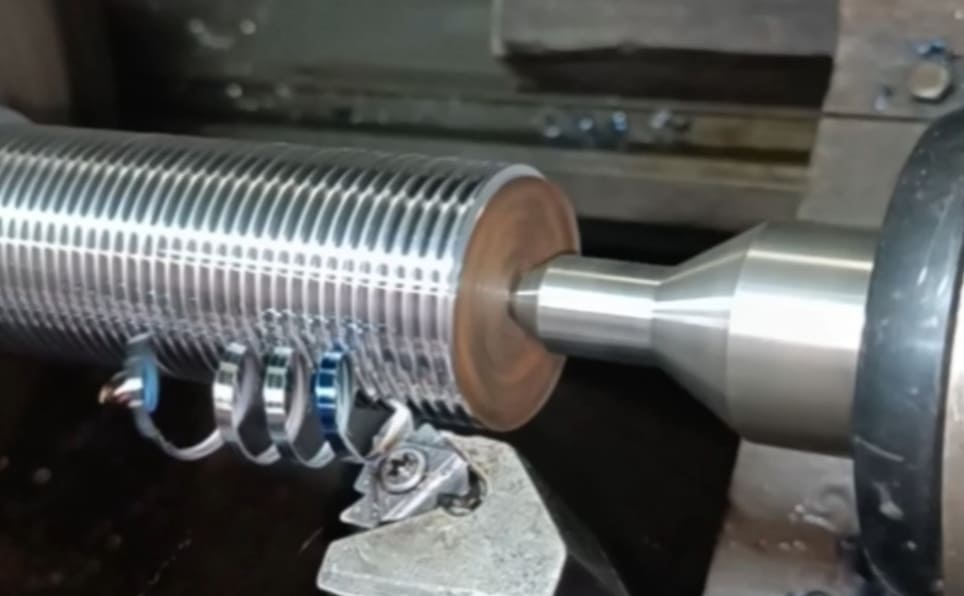

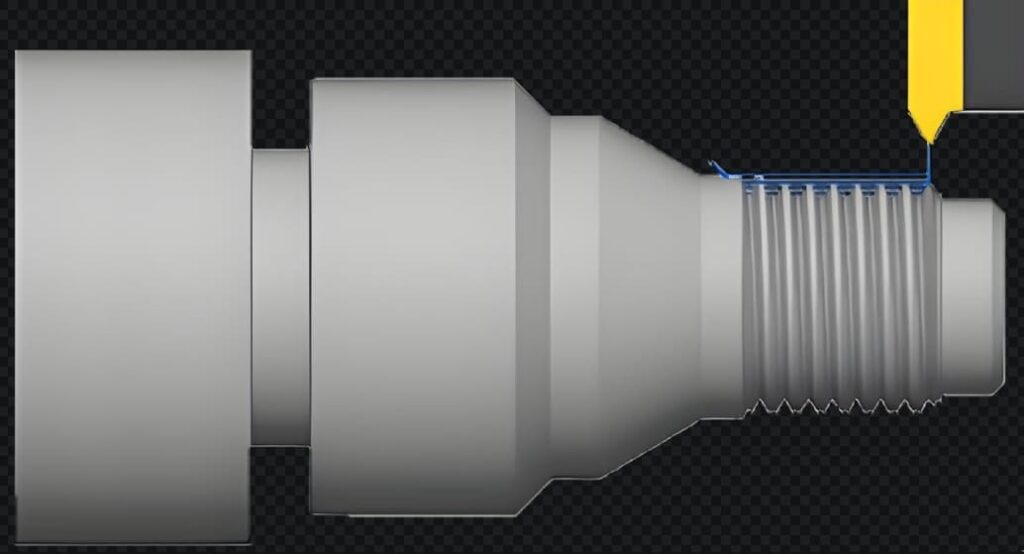

Thread pitch is an important parameter to consider while using a CNC lathe machine as the fit, strength, and performance of the work piece depend on it. The CNC machine controls the tool movement and spindle rotation to give the accuracy of the thread pitch as programmed. This way, precise thread profiles are achieved in screws, bolts, or other threaded components via CNC lathe machining.
Problems Occur Due to Unstable Thread Pitch
Poor Thread Fit & Functioning Failure
If the thread pitch is unstable, the fitting of the part will either be too loose or too tight. So, the fastening of the bolt or nuts will not fit properly and won’t be reliable. Imagine having such issues with fastening threaded parts of aerospace, or automobiles! It will have a functioning failure and cause life-threatening risks.
Example of unstable thread pitch:
If you cut a 2mm pitch for a 12 TPI thread, it won’t match the part. A 12 TPI thread means there are 12 threads within one inch (25.4 mm). So, the actual pitch here is (25.4 mm / 12) ≈2.1167 mm per thread. If you cut 2mm pitch for this, it will have loose fitting issues. So, your parts will not be joined properly, and if joined, it will have the risk of departing at any moment.
Assembly Difficulties
Incorrect pitch leads to mismatch and cross-thread making fastening difficult. Either your screws will get too loose requiring extra force application to fit or too tight and get jammed. This not only leads to poor connection but also increases assembly time, making the entire process difficult.
Strength and Load Distribution Issues
An unstable thread pitch creates stress on certain points rather than the entire threaded part. As a result of such uneven load distribution, the connection loosens and fails under high pressure.
Manufacturing Defects & Waste
In CNC lathe machining, a fixed tolerance level is provided to the manufacturer, which they must maintain. Therefore, if the standard is not followed, the parts are to be reworked or discarded. This leads to high wastage and increased production costs.
Causes of Unstable Thread Pitch
Incorrect Machine Calibration
An outdated CNC software, misalignment of the tool, or improper machine parameter setup, can lead to unstable thread pitch. This ends up forming an inconsistent thread pitch that is either too tight or too loose. As CNC lathe machining is an automated process, you must calibrate and program it correctly to get an accurate thread pitch.
Tool Wear and Damage
The cutting tools used in CNC lathe machining get worn out as they come in frequent contact with heavy metals. This damaged or worn-out tool hampers cutting precision and creates inconsistent thread pitch.
Machine Vibrations
Your machine can face vibration during operation for several reasons. It can be caused by misplacement of the device, wrong setting, or uneven machine placement surface. Such vibration misplaces the tools and moves the workpiece while machining. As a result, wrong or incorrect thread pitch is created.
Incorrect Cutting Parameters
CNC lathe machining requires correct parameter settings including the spindle speed, feed rate, and depth of cut. If you mess up in setting these parameters, it will end up creating an unstable thread pitch while machining. Besides, misalignment between the spindle and lead screw causes a non-constant pitch.
Environmental Factors
Environmental factors like temperature affect both the working piece and the CNC machine. For instance, with temperature fluctuation, a metal workpiece can expand or contract, this affects the pitch or threading dimensions.
Calibration Technique To Fix Unstable Thread Pitch in CNC Lathe Machining
Machine Calibration
Check if the lead screw of the CNC lathe machine is well fitted. Next, fix the alignment of the spindle using a dial indicator and make sure it lies parallel to the tailstock. However, you should follow axis-wise calibration techniques for accuracy. Below we have added geometric calibration methods for CNC lathe machining:
Linear Axis Calibration
| Calibration Method | Primary Use | Application | Accuracy |
|---|---|---|---|
| Laser Interferometer | X and Z axis calibration | Ensuring precise lead screw movement for thread pitch accuracy | Extremely high |
| Ballbar Testing | Circular interpolation and machine geometry | Detecting axis straightness and squareness, affecting thread accuracy | High |
| Dial Indicators and Gauge Blocks | Verifying axis travel and parallelism | Ideal for routine checks and minor adjustments in smaller operations | Moderate |
Axis Squareness and Parallelism
| Calibration Method | Primary Use | Application | Accuracy |
|---|---|---|---|
| Axis Perpendicularity (X and Z) | Ensuring the X and Z axes are perpendicular | Prevents skewed movement and thread pitch errors | High |
| Tailstock Parallelism | Ensuring the tailstock is parallel to the Z-axis | Maintains stability and accurate thread quality | High |
Tool Calibration
Measure the diameter and length of the tools to ensure accurate thread depth and pitch. Besides considering the tool condition, worn out or damaged tools create unstable thread pitch. So, for precise thread cutting, make sure the cutting tool is sharp enough. Moreover, it is also important to verify the correctness of the threading insert.
Spindle Calibration
Excessive spindle runout causes inconsistent thread pitch. So, measure spindle runout using a dial indicator and if it’s too high, fix the spindle bearings and other components for accuracy.
Feed Mechanism Calibration
The feed mechanism deals with the movement of the machine and the workpiece, which directly affects the thread pitch. To calibrate the feed mechanic checks if the lead screw, motors, and encoders are functioning correctly. For doing so, here are the steps to follow:
- Check for backlash in the lead screw
- Ensure the feed rate synchronizes with the spindle
- Verify whether the encoders are providing accurate feedback to the CNC system
This will provide a smooth feed mechanism enhancing the overall quality of the machining parts.
Using Calibration Standards
For checking the thread pitch accuracy of the machine parts, follow calibration standards like thread gauges and test pieces. For instance, use thread plug and ring gauges to measure the thread dimension.
Besides, you can also use standardized test pieces with known specifications as set by industry standards. In this case, high-tech machines like the Coordinate Measuring Machine (CMM) are used for maintaining accuracy.
Software Calibration
Regular inspection of the parameters is correctly programmed in the CNC software. By adjusting the software, you can fix small errors like backlash or wrong lead screw pitch, etc.
Preventive Measures for Stable Thread Pitch
- Maintain a schedule for regular machine cleaning, inspection, and lubrication
- Use the right type and amount of lubricants to ensure smooth part movement
- Inspect for worn or broken cutting tools
- Maintain consistent spindle speeds and feed rates
- Use sufficient coolant for keeping the temperature of the machine and workpiece constant
- Minimize vibrations and ensure proper machine leveling
Conclusion
Before CNC lathe machines, calibrate the machine well to avoid unstable thread pitch. Make sure all the tools are aligned properly and the parameters are correctly set. However, no worries about CNC lathe machining with RICHCONN.
We have 100 CNC lathes that support machining on workpieces with a diameter ranging from 2.0 mm to 20 mm. Besides, we follow ISO 2768 standards to ensure reliable machining. And when it comes to maintaining consistent thread pitch, we offer a minimum tolerance level of ±0.003 mm for CNC lathe machining. So you can trust us with confidence and contact us for any type of CNC machining services.
FAQs
What is the ideal lathe speed for threading?
An average lathe speed of 300 RPM is the ideal speed for threading most of the materials. This balances smooth cutting and minimizes heat generation during threading.
How is thread pitch measured?
A thread pitch gauge is the most common tool for measuring thread pitch. However, other tools like micrometers or calipers are also used, but these are not common options.
How can machine calibration help fix unstable thread pitch?
Calibration ensures proper alignment of the tools and lead screws; minimizes backlash and vibration; and adjusts spindle speed and feed mechanisms. This way it ensures correct operation of the CNC machine fixing the issues of unstable thread pitch.
