Are you struggling to pick between up‐milling and down‐milling for your project? A wrong decision here can result in increased tool wear as well as material waste and poor surface finish. In this blogpost we will cover the top 8 differences between up and down milling so you can pick the best one for your needs.

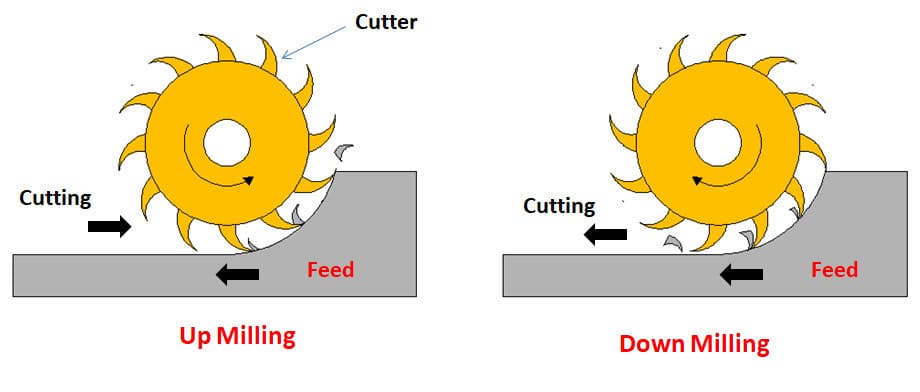

1. Definitions & Fundamental Concepts
In up‐milling or conventional milling, the cutter rotates against the direction of workpiece feed. This opposite direction movement creates a situation in which the cutting edge initially meets workpiece at zero chip thickness.
Then as the cutter continues its rotation, the chip thickness slowly increases from zero to maximum. This gradual engagement causes the cutting tool to slide against workpiece before actually cutting which in turn generates considerable friction.
On the opposite, in down milling (which is also known as climb milling), the cutter rotates in same direction as the workpiece feed. This alignment produces immediate engagement at which the cutting tool digs into the material at maximum thickness.
As the cutter moves forward, the chip thickness slowly decreases from maximum to minimum. Furthermore this instant engagement removes the sliding effect that is commonly seen in up milling.

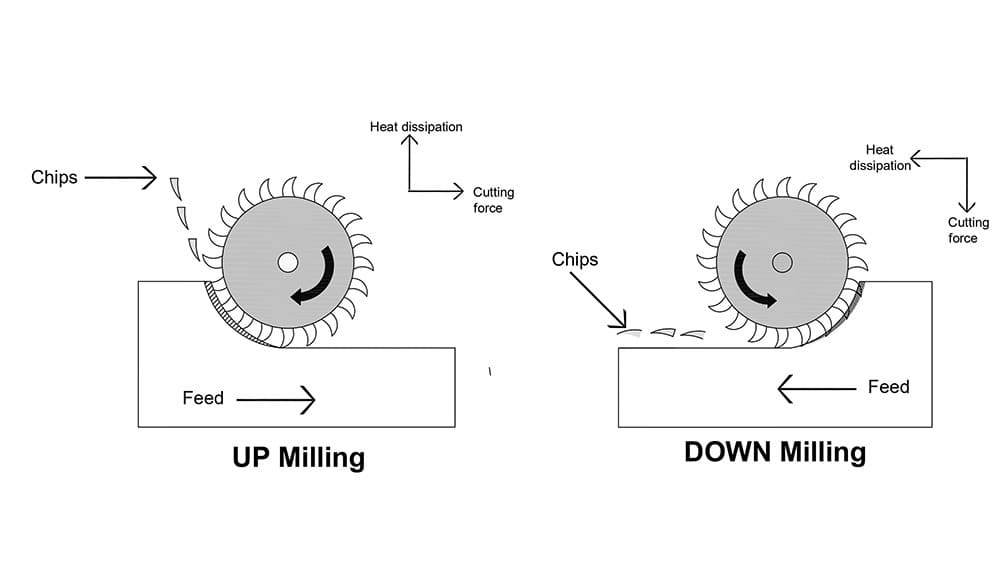

2. Mechanisms of Chip Formation
In up‐milling, the chip thickness starts at zero which then slowly increases as the cutter moves through the material. This gradual increase in chip thickness causes two issues–puts additional stress on the tool and causes rubbing at the start. This phenomena then leads to work hardening & higher heat generation near the cut end.
In down milling, on the other hand, the cutting edge engages immediately with the workpiece at maximum chip thickness. This thickness then decreases as the cut progresses & allows the tool to cut proficiently with less heat buildup & friction. But a stable machine setup is needed to prevent tool pull‐in because of aggressive initial engagement.

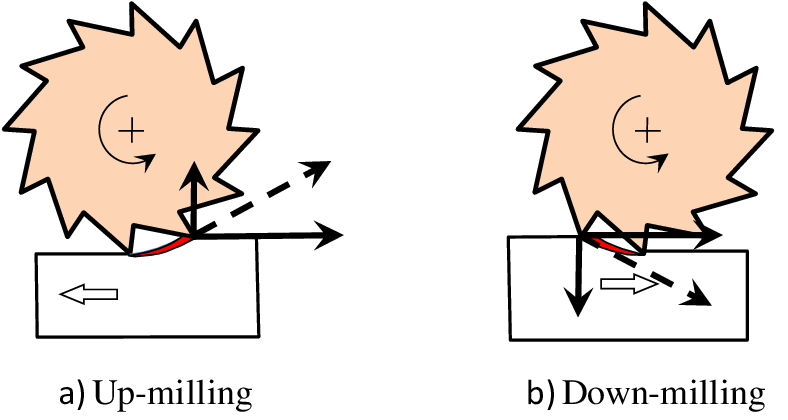

3. Cutting Forces & Tool Wear
In up‐milling, cutting forces are directed upward. They can destabilize the workpiece by lifting it from its clamping. This instability usually leads to vibrations during machining of hard materials. Furthermore the opposing force increases friction as the tool progresses. This in turn causes greater heat generation & rapid tool wear which decreases tool life.
In down milling, on the other hand, cutting forces, that are applied downward, press the workpiece hard against the table. This stabling force not only improves machining accuracy but decreases vibrations too. Besides that the immediate engagement of the tool with maximum chip thickness reduces friction & heat generation which contributes to long tool life and smooth operation.
4. Machine Tool Considerations
Up‐milling is better suited for those machines that are prone to backlash like older machines. This is because of cutter’s rotation against the feed direction which prevents the tool from pulling into the workpiece. Additionally this assures stability and reduces the risk of sudden movements and that too without any advanced backlash compensation mechanisms.
Down milling, in contrast, requires machines that have electronically compensated or minimal backlash. The rotation of cutter along the feed direction can cause tool pull‐in. So as a result precise machining becomes challenging on less rigid or older equipment.
Some modern CNC machines that have backlash eliminators are good for down milling. These machines improve precision & assure smooth operations too.
See Also: What is CNC Precision Machining
5. Surface Finish and Quality
Due to the different cutting mechanics there is a great difference in surface finish & quality of parts machined by up‐milling and down‐milling
In up‐milling, the opposite rotation of tool against the direction of feed causes cutting edge to rub against workpiece before fully engaging. This rubbing can lead to uneven surface textures as well as work hardening which will result in a poorer finish.
On the contrary, down milling provides outstanding surface finish. Here the tool rotates with the feed direction in order to guarantee immediate cutting action without rubbing. This reduces irregularities & vibrations to produce smoother, more polished surfaces that are also suitable for precision machining tasks.
Also See: Surface Finish in Manufacturing
6. Chip Evacuation and Heat Generation
In up‐milling, chips are expelled upward that normally accumulate in the cutting zone. This increases the risk of chip recutting which in turn decreases machining proficiency and damages the workpiece surface.
Furthermore the rubbing action at the start of cut generates a lot of heat. This heat can accelerate tool wear & deform the workpiece specially when machining harder materials.
In contrast down milling directs chips downward – away from the cutting area. This proficient chip evacuation not only decreases heat buildup but also minimizes thermal distortion to assure better tool life & machining precision. Therefore it is best for high‐speed operations because of its outstanding chip evacuation.
7. Applications and Material Suitability
Up‐milling is preferred for machining brittle and hard materials like high carbon steel or cast iron etc. The gradual engagement of the cutting tool decreases impact forces which reduces tool breakage & wear. Hence this is perfect for roughing operations or during machining materials that have variable hardness.
However down milling is suitable for finishing operations where good surface quality is required. The cutter engages the material at its maximum depth and then slowly minimizes contact to assure smooth cuts. This method is particularly effective for ductile materials where surface finish as well as precision are important. Some example are plastics and aluminum.
Also See: CNC Roughing and Finishing ─ Complete Comparison
8. Advantages and Disadvantages
Up Milling
| Advantages | Disadvantages |
|---|---|
| Suitable for machining brittle or hard materials like cast iron & ceramics. | Higher cutting forces increase machine stress as well as tool wear. |
| Gradual cutter engagement decreases the risk of tool breakage. | Poor surface finish because of inconsistent chip formation. |
| Less heat diffusion to the workpiece which preserves material properties. | Requires heavy fixturing in order to prevent workpiece lifting. |
Down Milling
| Advantages | Disadvantages |
|---|---|
| Produces superior surface finish and is perfect for precision applications | Requires machines that have minimum or compensated backlash. |
| Proficient chip evacuation not only minimizes tool wear but heat buildup too. | Cutter pull‐in can lead to instability on older equipment. |
| Lower cutting forces assure better dimensional accuracy & smoother operations. | Not suitable for machining abrasive or hard materials. |
When to Choose Up Milling & Down Milling?
Up‐milling is good for machining hard & brittle materials. This is because cutting forces need to be minimized to avoid damage. Additionally it is also preferred for roughing operations. For example to remove large amounts of material or to machine forgings & castings.
Down milling is better for finishing operations that need smooth surface finishes as well as high accuracy. Apart from that, it is also suitable for machining ductile materials because of its downward cutting forces. These forces stabilize the workpiece & assure better chip evacuation.
To Sum Up
Up‐milling gives better control with inconsistent materials whereas down milling provides outstanding surface finish as well as better chip evacuation and increased tool life. But the ultimate choice between them depends on your machining needs & material properties.
If you require any kind of milling services – up, down or any other, then RICHCONN is your best option. You can contact us anytime.
Related Questions
Which milling method is better for surface finish – Up Milling or Down Milling?
Down milling is better for surface finish. This is because the chip thickness decreases from maximum to zero which decreases heat generation and friction. So it assures smoother cuts & impressive surface quality.
How do cutting forces differ between up milling and down milling?
In up‐milling, cutting forces are directed upward that lift the workpiece off the table. So as a result it needs stronger clamping. Conversely, down milling generates downward forces that press the workpiece against the table to improve stability during machining.
Is climb milling expensive?
Yes climb milling is quite expensive in the start because it requires sophisticated backlash control machines. But it improves proficiency & reduces tool wear and secondary operations which makes it cost‐effective over time.
