Manufacturing requires quality surface finishes which determines the product appeal and performance. Vapor polishing provides an accurate and quick means to give shiny and smooth plastic parts. The polishing process, suitable materials, real world applications and advantages of vapor polishing technology are covered in this guide.

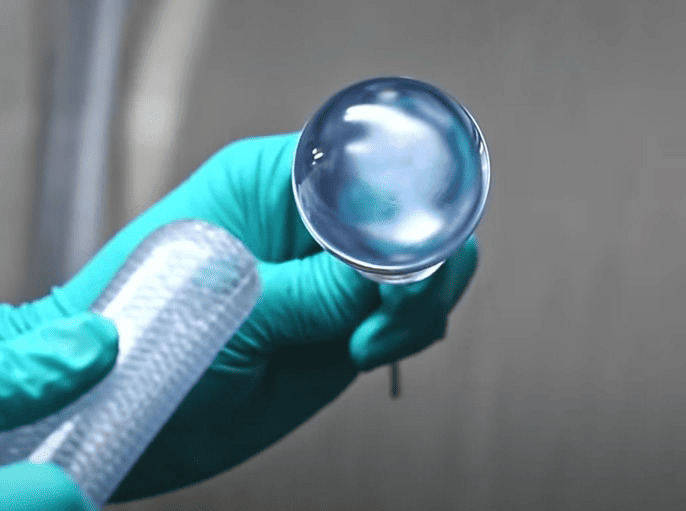

What is Vapor Polishing?
Surface finishing method in which material surfaces are transformed by chemical vapors is called vapor polishing. It works simply by exposing parts to controlled solvent vapors so that the outer layer is melted temporarily. The melting smooths imperfection and gives a professional and shining finish on the material.
Materials Appropriate for Vapor Polishing
Vapor polishing is not a material specific solution. Some of main materials used in this technique are:

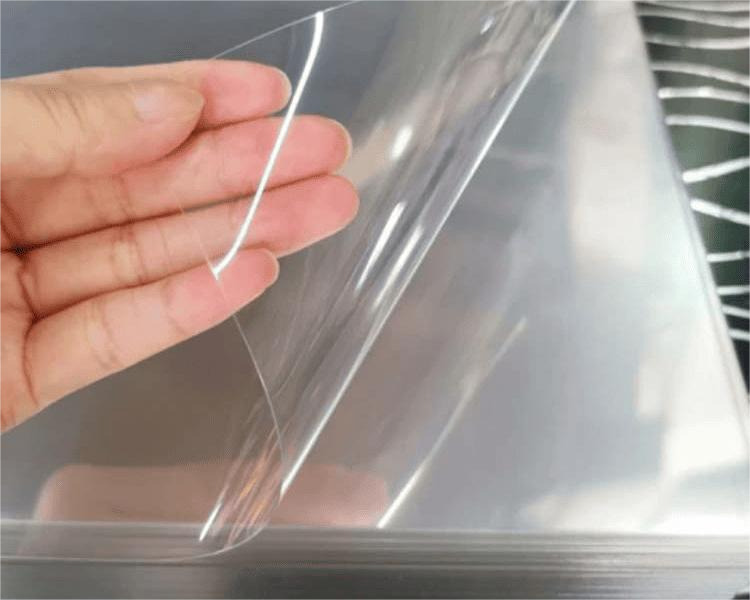

Polyethylene Terephthalate Glycol (PETG)
PETG is used in vapor polishing with solvents such as THF or D-Limonene. The treatment changes surface into a glossy finish and makes it appropriate for 3D printed parts.

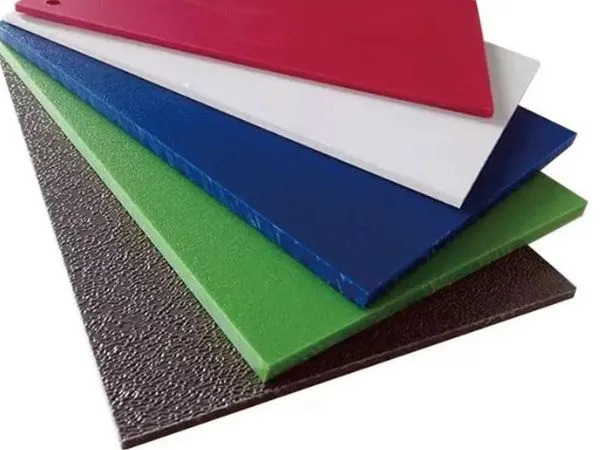

Acrylonitrile Butadiene Styrene (ABS)
Acetone vapor smooths ABS parts. This process eliminates layer lines and produces a glossy surface which improves the total appearance of the component.
Polycarbonate (PC)
The distinctive molecular structure of polycarbonate makes it an outstanding candidate for vapor polishing. When exposed to particular solvents such as methylene chloride then glass-like smoothness and clarity is obtained.
Acrylic (PMMA)
Acrylic surfaces work best with Dichloromethane. This procedure changes PMMA into smooth finish while keeping its dimensional accuracy. This results in a shatter resistant and lightweight material with increased visual appeal.

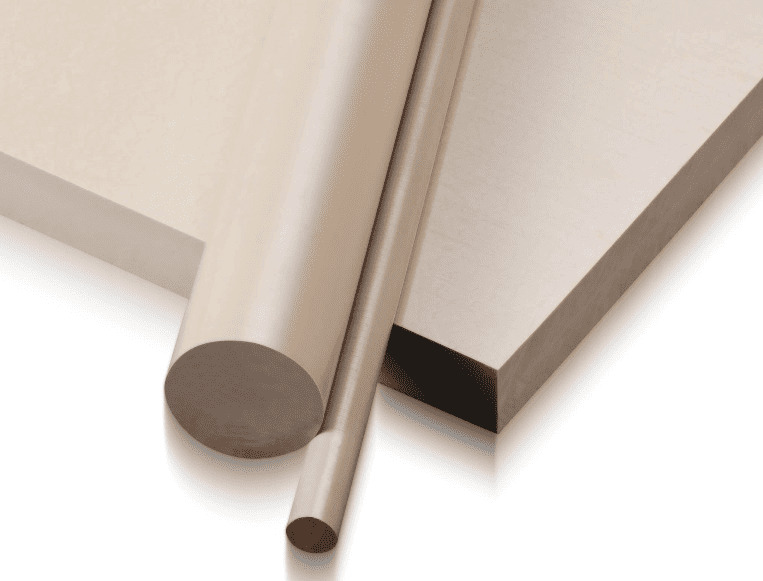

Polyether Ether Ketone (PEEK)
PEEK uses special solvents for vapor polishing because of its huge chemical resistance. This process improves surface finish of PEEK parts while keeping their mechanical properties.
Nylon (Polyamide)
MEK or ethylene dichloride vapor treatment improves surface quality of nylon components. It fills surface voids without compromising the mechanical properties.

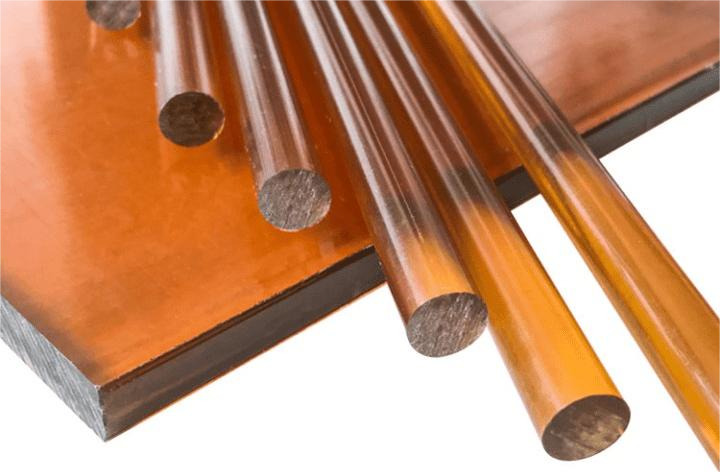

Polyetherimide (PEI)
Thanks to its mechanical characteristics and heat resistance, PEI becomes more impressive after vapor polishing. This treatment produces smooth surface which increases durability and chemical resistance of a material.
Polysulfide
Controlled vapor exposure brings out outstanding clarity in polysulfone parts. This engineering plastic retains its dimensional stability while gaining improved surface characteristics from the treatment.
The Vapor Polishing Process
The vapor polishing process needs complete control of environmental conditions and full attention to obtain maximum results. Let’s now examine each phase of this technical process:
1. Preparation of the Workpiece
Start by removing all dust, contaminants and grease from the workpiece surface. Deep surface marks require additional preparation such as 1000 and 1500-grit sandpaper to sand irregular surfaces that will respond steadily to vapor treatment.
2. Selection and Heating of Solvent
Match your solvent to the type of material: polycarbonates respond well to Weld On 4, acetone is good for ABS and some plastics need MEK. Heat the selected solvent until it reaches its boiling point (Weld-On 4 needs approximately 400°C) in controlled environment. Strict temperature monitoring inhibits safety hazards and maintains the integrity of process.
3. Vapor Generation
In a closed chamber, heated solvent changes into vapor. Success is based on keeping steady vapor concentration throughout the process which requires accurate control of both temperature and pressure parameters.
4. Exposure of the Workpiece to the Vapor
Mount the workpiece with its surfaces oriented downward toward the solvent source. Two methods obtain vapor contact: repeated cycling in a sealed environment or pressurized air spray use. Surface irregularities begin to smooth out as the vapor starts a controlled chemical interaction with plastic.
5. Dwell Time
Different materials and finish requirements affect exposure durations. Monitor the process closely to get complete surface refinement without risking over exposure. In this phase, vapor enters and smooths microscopic surface irregularities.
6. Controlled Cooling
When the surface reaches desired smoothness then activate proper ventilation to remove the vapor. Quick solidification follows vapor removal and results in a refined surface finish. Watch carefully for possible surface abnormalities or warping during this phase.
7. Inspection and Quality Assurance
A thorough inspection confirms surface uniformity, overall smoothness and optical properties. You must find any spot that might need extra attention such as incomplete polishing or irregular areas.
Advantages of Vapor Polishing
Increased Aesthetics
A perfect and top quality appearance comes out after the treatment of vapor polishing. Removal of surface flaws and layer lines makes this process necessary for prototype development and consumer products where visual quality is primary.
Better Optical Clarity
The transformation of plastic surfaces through vapor polishing gives extraordinary optical clarity. Surface Irregularities dissolve during treatment and give a transparent and glass like finish. Medical devices and optical components particularly benefit from this improved clarity.
Speed and Cost Effectiveness
Traditional polishing methods cannot match the speed of vapor treatment. Labor cost decreases thanks to this productivity, particularly when dealing with geometrically complicated materials and big batches.
Improved Surface Smoothness
Microscopic scratches and voids disappear as the vapor polishing produces a uniform surface texture. Resulting smooth finish decreases friction and improves both visual appeal and tactile quality.
Dimensional Accuracy is Preserved
The main advantage of vapor polishing over mechanical methods lies in its dimensional stability.
Preservation of accuracy is necessary for those parts which need very tight tolerances or have complicated geometry.
Uses of Vapor Polishing
Automotive Field
Cut pieces and dashboard parts get top quality finishes from vapor polishing. This procedure improves visual appeal of exterior and interior plastic components of cars.
Medical Parts
Diagnostic equipment require non-porous and smooth surfaces that vapor polishing gives. These surfaces resist contamination, support cleaning and maintain their integrity against perspiration.
Optical Components
Light transmission increases greatly in vapor polished plastic lenses. This process produces pristine surfaces that allow max light passage for accuracy driven optical scenarios.
Prototyping and 3D Printing
3D printing industry uses vapor polishing to remove layer lines from printed parts. This finishing converts prototypes to top quality grade parts that are suitable for end use scenarios.
Aerospace Industry
Instrument panels and control systems in the aerospace industry benefit through vapor polished surfaces. These treated parts give better durability for aviation use.
Vapor Polishing vs Traditional Polishing
If you want to pick the right finishing technique for your needs, then it is necessary that you understand how vapor polishing is different from traditional polishing methods.

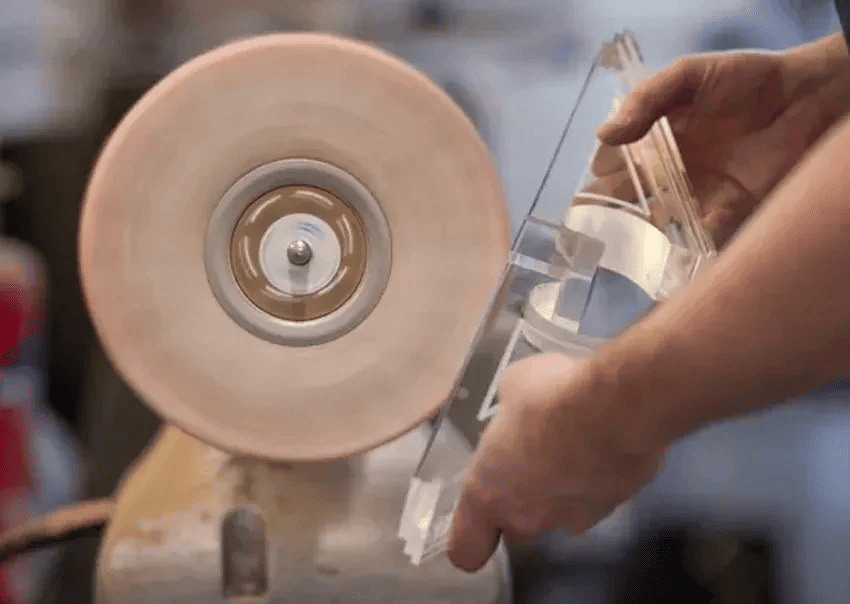

Mechanical Polishing
Manual polishing methods demand extensive hands on physical effort and proficiency. The process generally costs less in materials but introduces difficulties with complicated geometries. Also micro scratches and surface inconsistencies usually remain, whereas vapor polishing gives uniform results throughout intricate surfaces.
Abrasive Flow Machining
Flowing abrasive media through components obtains smooth surfaces but it usually removes excessive material. While effective, the high operational costs limit its uses. Vapor polishing gets comparable results with much less cost and minimum material loss.
Flame Polishing
Direct flame polishing smooths plastic edges successfully on simple shapes. But, this method risks material distortion and limits treatment to external surfaces only. The accuracy of vapor polishing makes it particularly appropriate for heat sensitive materials and preserving dimensional accuracy throughout the process.

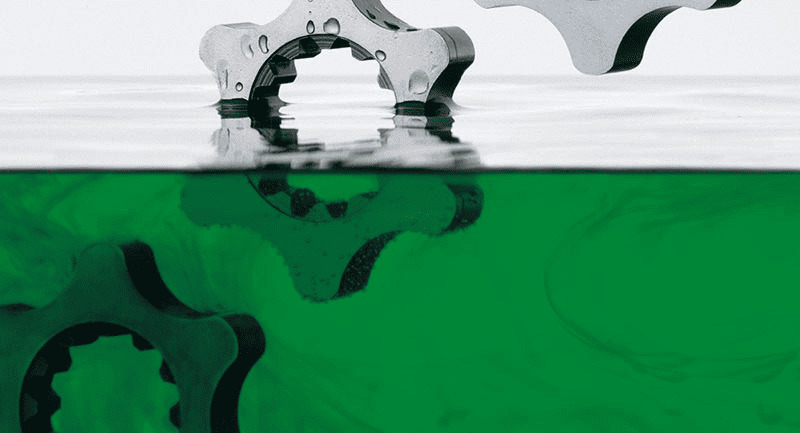

Chemical Polishing
The immersion of components in liquid solutions characterizes chemical polishing processes. This method affects the entire component surface and makes exact control difficult.
Electrochemical Polishing
Through electrochemical reactions, metal surfaces benefits from material removal abilities of electropolishing. This method proves ineffective for plastic parts. In comparison, vapor polishing shines with thermoplastic materials and gives better surface quality.
Conclusion
Vapor polishing shines as the best surface finishing method for thermoplastic parts. It improves surface smoothness and optical clarity while preserving dimensions. Industries such as medical, aerospace and automotive benefit from these capabilities.
If you want professional services for vapor polishing then contact RICHCONN and get better surface finishes for your plastic components.
FAQs
Does vapor polishing affect dimensions of the part?
Vapor polishing generally saves dimensional accuracy of parts. However, little changes can happen because of the plastic flow during the process. Careful control of parameters decreases these effects.
Is vapor polishing safe?
Yes it is; If done in a controlled environment and by a trained person. Proper safety measures, for example use of ventilation systems and protective gear, are a must to avoid exposure to hazardous vapors.
How long can vapor polishing process take?
The actual vapor polishing takes few seconds to minutes on the basis of size of the part. But preparation and cooling time can increase the total duration.
Can you vapor polish any plastic?
No, all plastics are not appropriate for vapor polishing. You can only polish thermo plastics e.g ABS, polycarbonate, acrylic.
Does vapor polishing improve mechanical properties?
Its true vapor polishing commonly improves optical clarity and surface finish but it can also increase mechanical properties of a material such as its surface durability and can also decrease the possibility of scratching.
