Ceramic components perform an important part in semiconductor manufacturing for wafer handling systems. These components provide outstanding thermal stability as well as durability and decreased contamination risks.
In this blogpost we will cover manufacturing process for ceramic wafer handling components, common ceramic materials and their applications in semiconductor manufacturing.
What are Wafer Handling Ceramic Components?
In simple terms wafer handling ceramic components are special devices that are made from highly-pure ceramics such as silicon carbide and alumina. They are designed for cleanroom environments in order to safely transport and manipulate semiconductor wafers. Such components are chuck lift pins, end effectors, wafer chucks etc.
Manufacturing Processes for Ceramic Wafer Handling Components
Step 1- Material Selection & Formulation
The process begins with the selection of pure ceramics such as silicon carbide, aluminum nitride powders or alumina (99.5-99.99%). They are chosen because of their outstanding chemical inertness & wear resistance.
These materials are then combined with binding agents and additives for precise formulation to obtain optimum density. This formulation must meet two most important requirements; It must assure minimum porosity and maximum structural strength for semiconductor applications.
Step 2- Shaping and Forming Techniques
The ceramic wafer components then undergo shaping and forming processes.
In this step three prominent techniques are used—isostatic pressing, extrusion and injection molding.
Isostatic pressing assures uniform density in complicated geometries and injection molding permits complex designs to be produced with accurate shapes. Moreover extrusion is suitable for making elongated components with consistent dimensions.
Step 3- Sintering & Densification
After that, shaped green bodies are subjected to sintering.
In conventional sintering, components are heated at temperatures between 1,000 and 2,000° C. But advanced methods such as cold sintering densify ceramics around 400°C. This decreases processing time as well as energy consumption.
This compresses and densifies ceramic powders through external pressure and liquid phase in order to obtain fine grained materials with high density.
Final Step- Surface Finishing and Coating
In the final stage different surface finishing techniques such as lapping, grinding and polishing are used to remove surface imperfections. These techniques aid in obtaining ultra low surface roughness that is required for wafer handling components.
A 50μm semiconductive ceramic layer is then applied to the components for static elimination. This coating not only provides erosion protection but gives chemical resistance too.
Types of Ceramic Materials Used in Wafer Handling

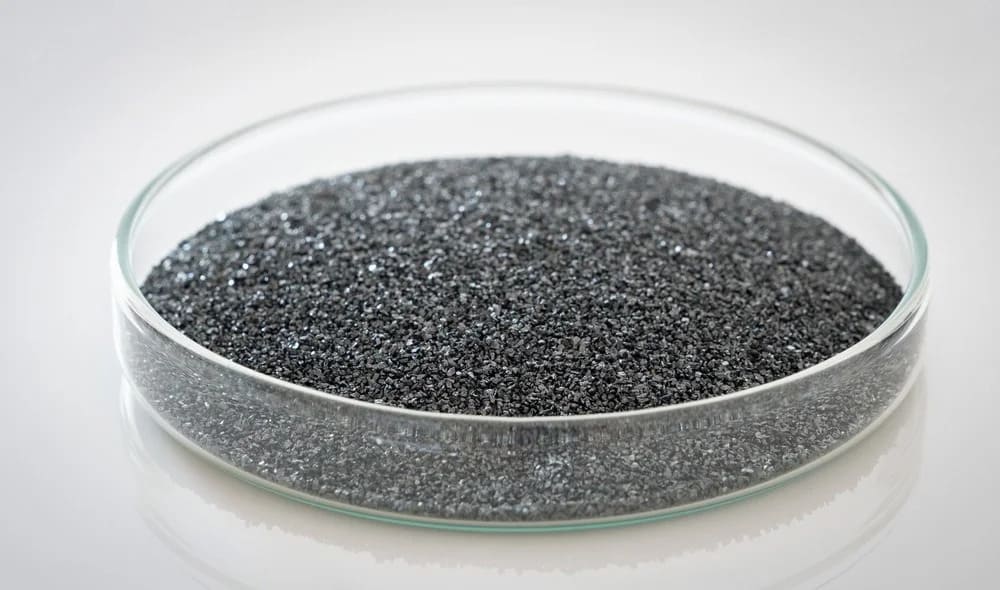

Silicon Carbide (SiC)
Silicon carbide has impressive breakdown field strength (2.2 MV/cm) and thermal conductivity (4.9 W/cm·K). Besides that, this material is stable at temperatures up to 2800° C and resists chemical reactions. Hence it is best for high temperature semiconductor processing.
Alumina (Aluminum Oxide)
Alumina is broadly used in wafer handling because it has very good hardness, strength as well as corrosion resistance. In addition to providing outstanding electrical insulation, it is also stable at high temperatures. Thus it is perfect for components such as vacuum chucks & wafer chucks.
Aluminum Nitride (AlN)
Aluminum nitride is characterized by low thermal expansion and extraordinary electrical insulation properties. These features are particularly useful in semiconductor wafer handling equipment where electrical isolation and thermal management are important.
Fused Silica
Fused silica shows outstanding UV transmission characteristics and has ultra low thermal expansion coefficient of 0.52 x 10-6/K. In semiconductor manufacturing it is good for photolithography processes and wafer handling because of its impressive dimensional stability & chemical resistance.
Common Ceramic Components in Wafer Handling Systems
End Effectors
Ceramic end effectors are robotic handling tools that have built-in vacuum channels. These components feature Bernoulli grip system in order to keep wafer float height of 50μm. Besides that they have edge grip mechanism to transfer wafer in high temperature environments without any damage.
Lift Pins
Wafer handling systems require ceramic lift pins to permit accurate wafer elevation and transfer between processing pedestals and robotic arms.
These automated pins feature vertical actuation mechanisms with spring loaded tips in order to guarantee secure wafer support. Furthermore their triangular design decreases contact with metal which in turn minimizes particle contamination during semiconductor processing operations.
Wafer Cassettes & Carriers
Wafer carriers and cassettes are specially designed to transport and store wafer safely during semiconductor processes.
These components protect wafers from mechanical damage. Moreover these components not only protect wafers from mechanical damage but assure their contamination free handling too.
Wafer Handling Arms
Ceramic robotic arms provide automated wafer transport with multi axis precision control between processing stations.
These setups incorporate vacuum channels and special end effectors to assure safe wafer handling. Moreover they guarantee particle free operation in high temperature semiconductor procedures because of their ceramic construction.
Vacuum Chucks & Wafer Chucks
Wafer and vacuum chucks perform an important part during semiconductor processing to secure wafers in correct position.
Ceramic vacuum chucks provide uniform suction using microporous structures whereas vacuum chucks show extraordinary thermal stability and conductivity. This in turn permits proficient heat dissipation in high temperature semiconductor manufacturing conditions.
Properties of Ceramics Beneficial for Wafer Handling
Chemical Resistance
Ceramics have great chemical resistance against alkalis and acids because of fully oxidized chemical bond. This bond prevents further oxidation.
In addition, this inherent property also helps them to keep their structural integrity in harsh semiconductor processing environments. For example during plasma exposure and aggressive chemical etching.
Mechanical Strength & Durability
Ceramics have extraordinary compressive strength and hardness that make them wear resistant and durable. Because of these properties & their crystalline structure, ceramic components preserve surface quality and dimensional stability even during repeated wafer handling operations.
Electrical Insulation
Ceramics feature wide bandgap structure and tight bound electrons. Hence they provide outstanding electrical insulation. These materials have high dielectric strength of more than 10¹³ Ω·cm which stops electrical leakage and avoids charge buildup during processing.
Thermal Stability
Ceramics show outstanding thermal stability and can preserve their properties up to temperatures of 1750°C. This stability is because of their strong covalent and ionic bonds so that they can resist thermal degradation.
Apart from that, in wafer handling systems, it guarantees that components retain their functionality and do not warp during high temperature processes.
Advantages of Using Ceramic Components in Wafer Handling
Improves Durability & Lifespan
Ceramic components provide great wear resistance, chemical stability as well as thermal stability which makes them durable. Moreover these properties extend operational lifespan of wafer handling systems due to minimal component degradation.
Better Yield & Wafer Quality
Ceramic components provide impressive chemical resistance, ultra flat surfaces and corrosion resistance that improve wafer quality. These properties minimize mechanical damage as well as contamination during processing. So as a result these components increase productivity in semiconductor manufacturing.
Resistance to Contamination
Ceramics have dense, non-porous structure and are chemically inert. Thus they are resistant to contamination. This property guarantees clean processing environment in order to safeguard wafer integrity and decrease defect rates during semiconductor manufacturing.
Compatibility with High-Temperature Processes
In high temperature environments ceramic components are better because of good shock resistance. This property assures reliable performance in semiconductor processes where exact temperature control is required to maintain vapor integrity, for example during chemical vapor deposition & ion implantation
Cost-Effectiveness
Ceramic components provide long term cost savings in wafer handling systems. They provide better longevity which minimizes the need for frequent replacements. Besides that their stability and wear resistance under extreme conditions decrease operational downtime and reduce operational costs as well.
Applications in Semiconductor Manufacturing
Packaging & Testing
Ceramic nozzles, lift pins and electrostatic chucks are made from ceramics that are used during packaging and testing. These components protect devices against environmental conditions, assure consistent performance in important applications and can undergo rigorous testing procedures.
Wafer Fabrication
Cantilever paddles, wafer boards and furnace tubes are all made of ceramics such as silicon carbide and alumina. These materials provide consistent performance through resistance to chemical degradation & stability at high temperatures.
Wafer Inspection & Metrology
Ceramic components assure accuracy in wafer inspection and metrology through excellent dimensional stability and chemical resistance. These properties enable three main functions which are surface measurement, process monitoring and accurate defect detection.
To Sum Up
In short ceramic components are important in semiconductor manufacturing because of their impressive thermal stability and precision. Their distinct features guarantee proficient wafer handling as well as reliability and maximum productivity in all important processes.
Related Questions
Can ceramic components be integrated into existing wafer handling systems?
Yes these components have standard interfaces and can directly replace metal components with little adjustments.
Are ceramic wafer handling components customizable?
Yes ceramic components like arms and end effectors can be customized in terms of material purity (alumina 99%–99.8%), size and design as per the requirements of equipment.
What maintenance is required for ceramic wafer handling components?
Regular maintenance includes cleaning procedures, checking for wear and tear as well as replacing parts such as coatings or seals to reduce particle generation.
Can ceramic wafer handling components be repaired if damaged?
Yes if there is minor damage, they can be refurbished by polishing or recoating. But in cases of severe structural damage, they will require complete replacement.
What is the lifespan of ceramic wafer handling components?
Their life span can exceed 80,000 wafer cycles if maintained properly. But harsh conditions such as corrosive gases and high heat can shorten their lifespan.
