Connector pins perform an important part in making electrical connections safe and reliable in multiple sectors. You will usually find them in PCB‐mounted assemblies as well as automotive wiring. By understanding their types, uses and main advantages you can pick the best option for any particular demand.

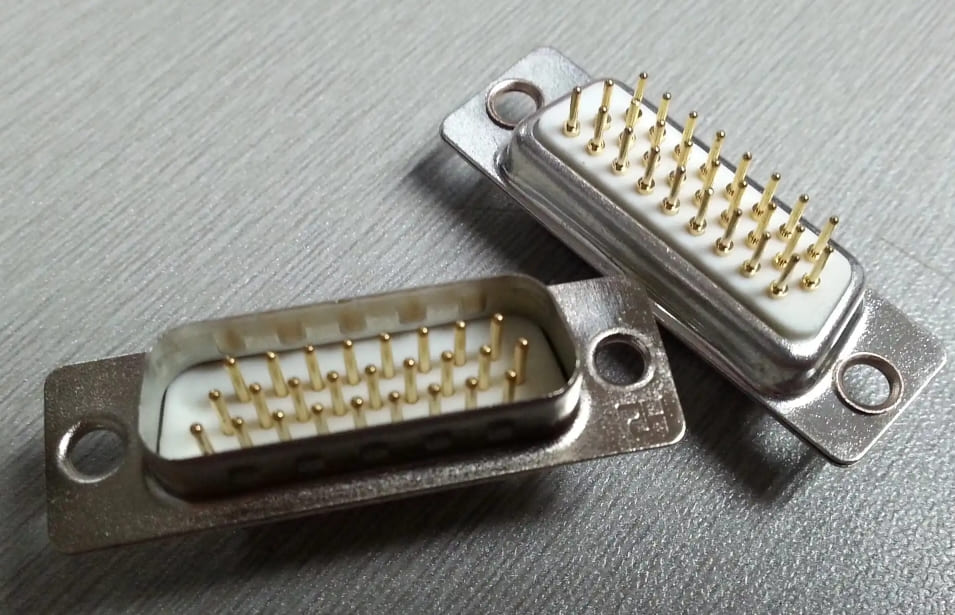

What are Connector Pins?
In simple terms, connector pins are metal contacts that connect parts or circuits to each other. They typically connect to compatible terminals or sockets to make a steady electrical connection. Engineers create these pins in a variety of designs and sizes. Each structure supports specific voltage, current or signal management requirements in electronic assemblies.
Also See: Connectors Manufacturing_ Process, Types, Materials & Uses

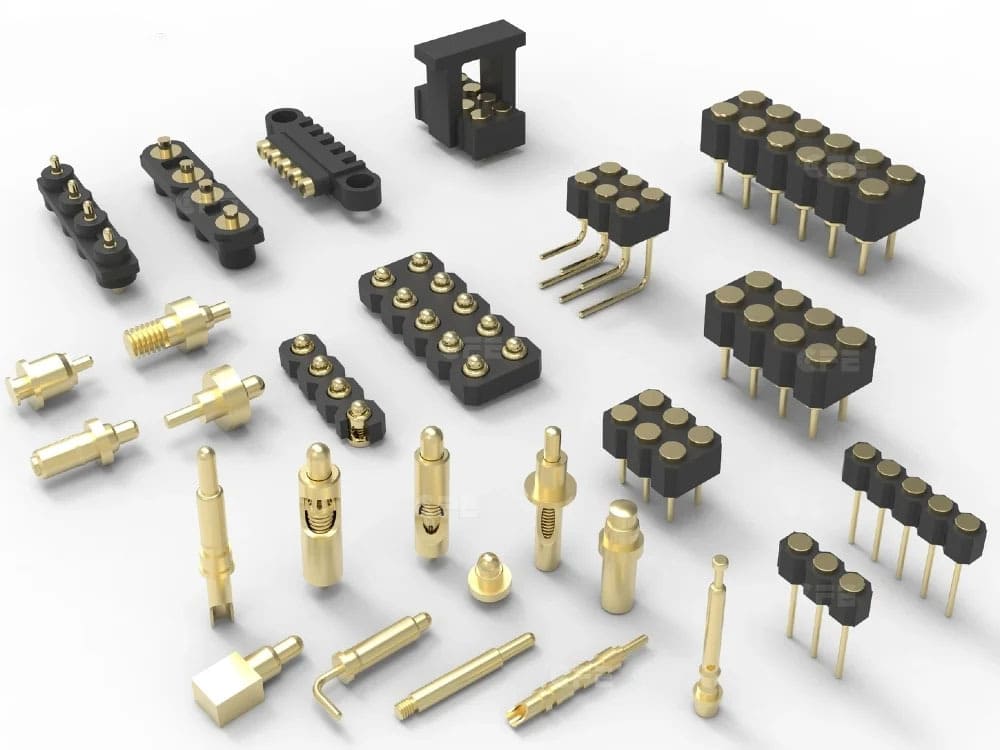

Types of Connector Pins
Based on Mechanism of Action

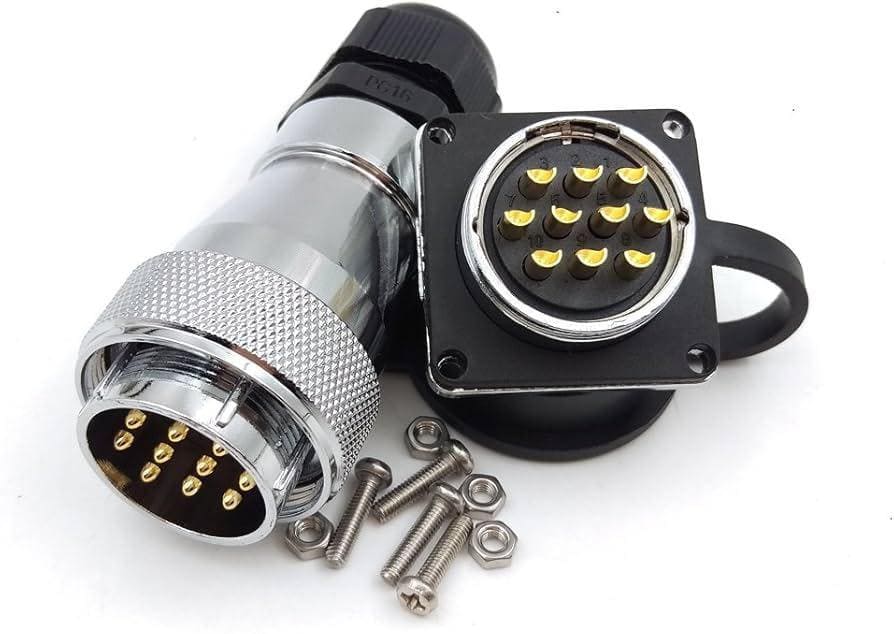

Power Pins
Power pins primarily transfer electrical energy to circuits. They handle high currents, with industrial connectors sometimes carrying more than 10A. The robust construction of power pins prevents voltage drops and also stops overheating during prolonged use.

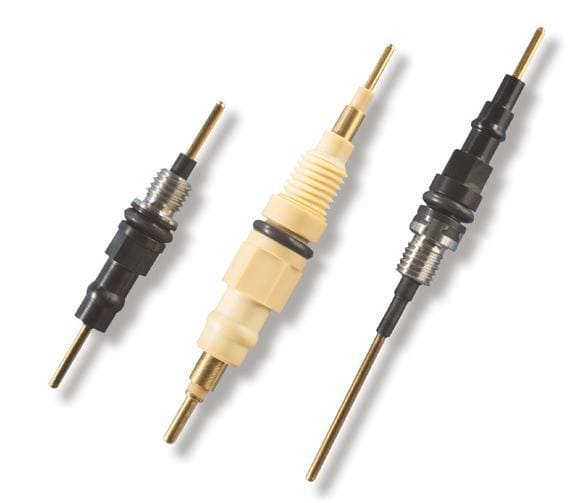

Signal Pins
Manufacturers design signal pins to communicate signals or transfer data between devices. In digital systems these pins usually work at low voltages, for instance 3.3 V or 5 V. The isolation and setting of signal pins must be accurate. This accuracy helps decrease crosstalk between signals.

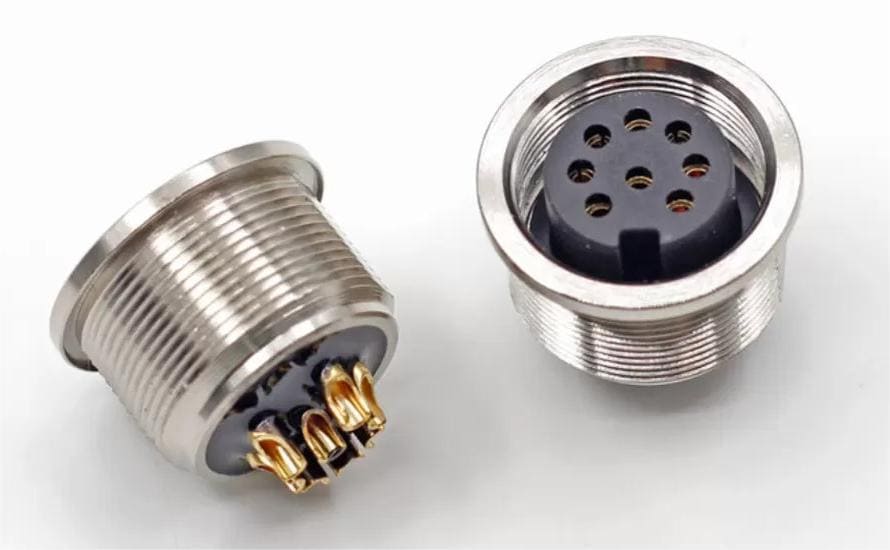

Ground Pins
Ground pins provide a steady return path for electrical current. They maintain signal integrity and help decrease electrical noise. In several connectors, ground pins are placed between the signal pins. This arrangement helps preserve impedance and reduces crosstalk as well.
Based on Construction and Design

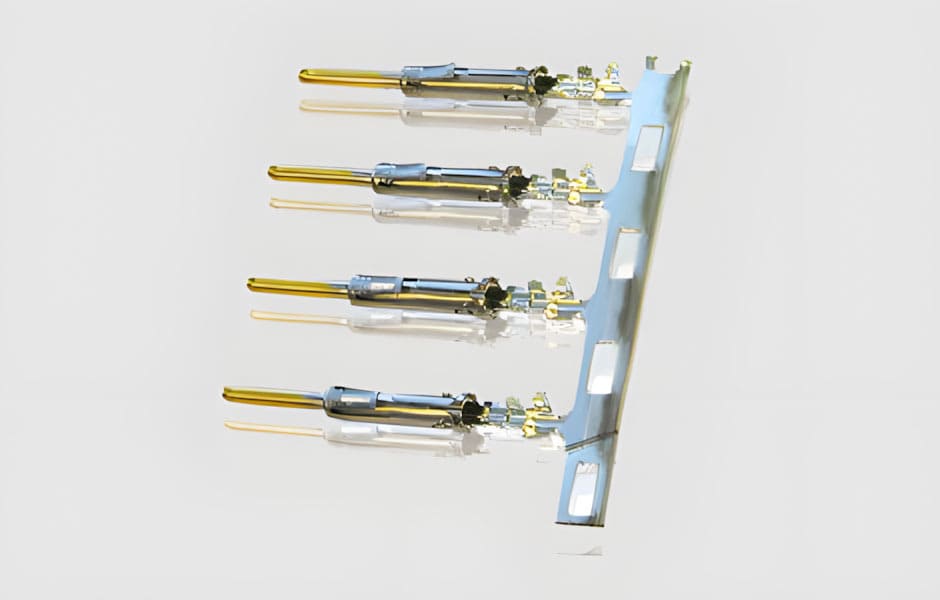

Formed and Stamped Pins
High-speed stamping presses manufacture formed & stamped pins. This is a low cost manufacturing method for bulk production. These pins do not have the accuracy of machined pins; but still they provide considerable flexibility in design. For this reason a number of consumer electronics depend on these pins.

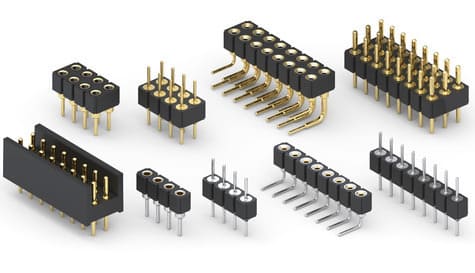

Machined Pins
Engineers produce machined pins through cutting them from solid metal rods. This procedure results in tight tolerances, high dependability and low contact resistance. They can withstand currents up to 5 amperes. Narrow pitch spacing – occasionally as small as 1 millimetre – can be achieved using machined pins.
Based on Practical Uses
Crimp Pins

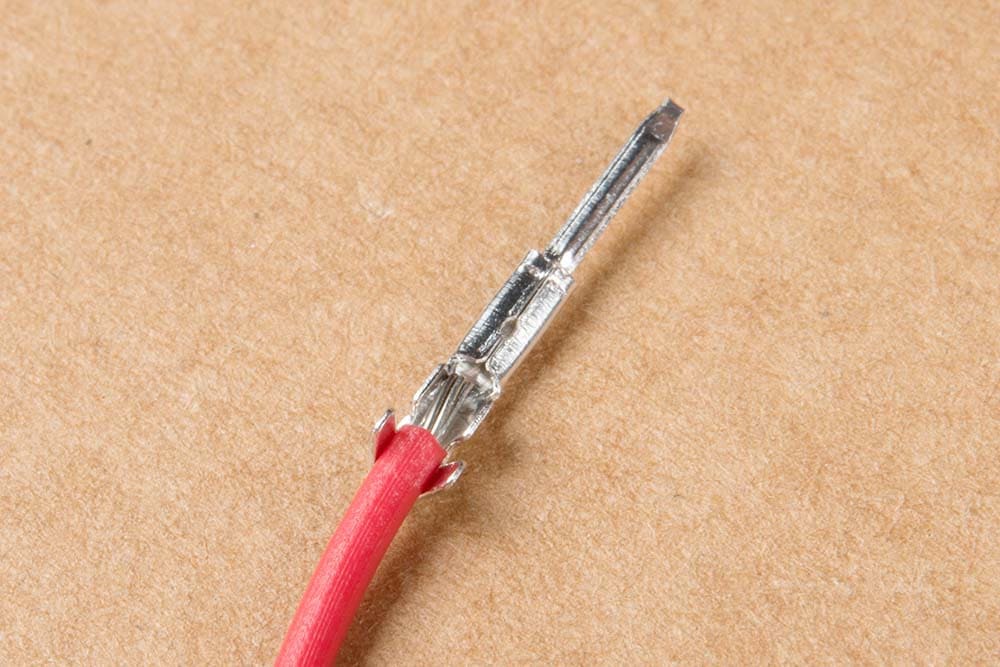

Crimp pins permit wire termination with no requirement of soldering. Engineers prefer them for reliable and fast connections in high‐volume assembly lines as well as automotive wiring systems. These pins are suitable for various wire gauges and also facilitate mass manufacturing.

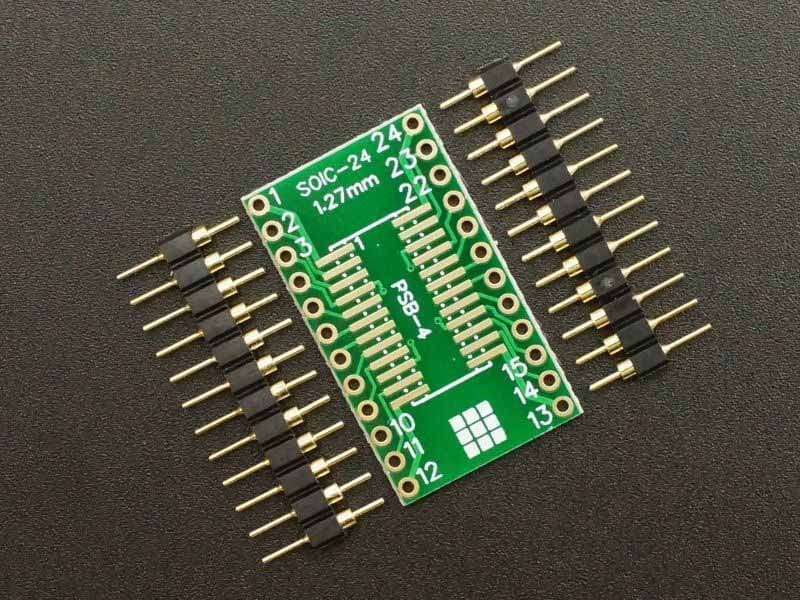

PCB Pins
PCB pins work as connectors for sensors, microcontrollers and modules on printed circuit boards. Devices such as smart accessories & smartphones usually utilize them. Their diameters ranges from 0.5 millimetre to 2.54 millimetre are great for high‐density configuration.
Solder Pins

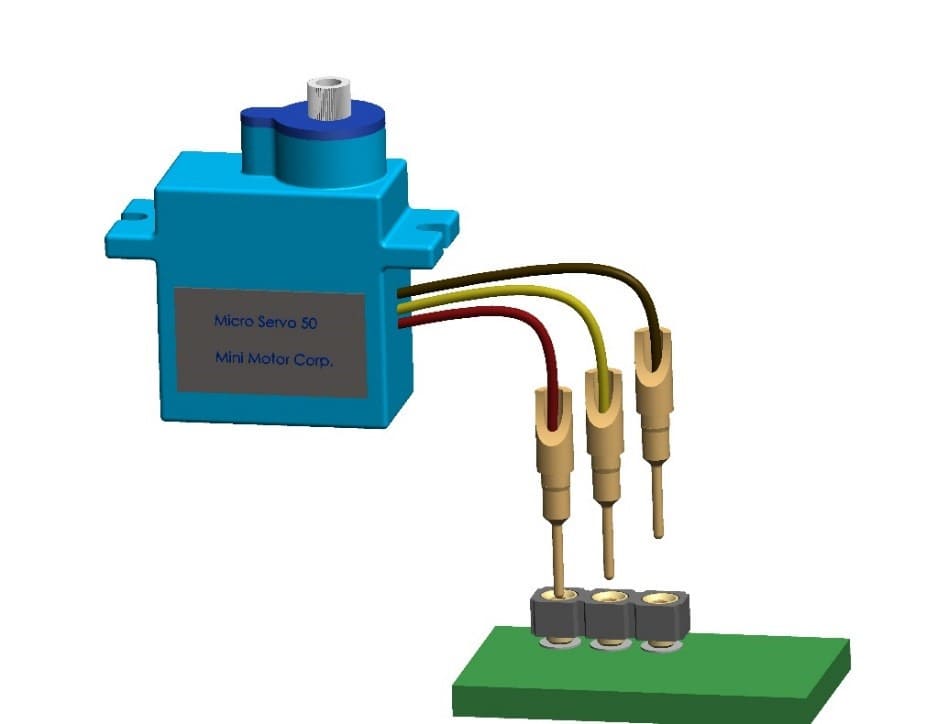

Solder pins which comprise pins with solder cups – produce vibration‐resistant and long-lasting connections. Aerospace-grade electronics and avionics usually need these dependability. These pins create firm, corrosion‐resistant connections that preserve their efficiency during exposure to extreme settings.
Special Types
Press‐Fit Pins

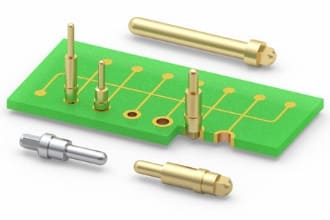

Press‐fit pins connect to PCBs without solder. They elastically distort inside the PCB hole which creates a strong, gas‐tight seal. This approach lets you change connectors up to 3 times and also guarantees reliable current flow.
Pogo Pins

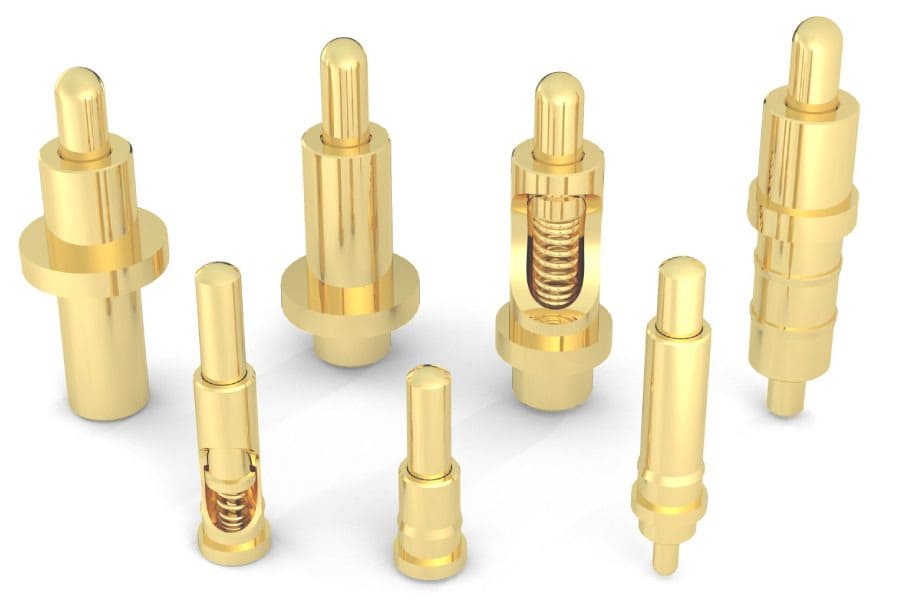

Pogo pins utilize a barrel, plunger and internal spring to make a spring‐loaded connector. This structure resists shock & vibration and guarantees durability. The consistent contact force of these pins facilitates repeat connections.
Also See: A Complete Guide on Pogo Pins
Common Uses of Connector Pins
Automotive Industry
Connector pins offer strong connections for infotainment, engine control units and safety sensors in vehicles. Manufacturers build these pins to withstand temperature fluctuations, vibration and humidity. Both high‐voltage & low‐voltage car systems use them to preserve reliable performance.
Consumer Electronics
Tablets, smartphones as well as wearables rely on connector pins for critical functions. These pins provide concentrated, high‐density connections for charging, data and audio. Their precise design guarantees dependable efficiency of devices particularly when engineers need to decrease weight and save space.
Medical Devices
Connector pins are extremely important in medical devices, for instance, CT scanners, X‐ray and MRI machines. High‐conductivity gold plating & copper alloy are used in the production of these pins for dependable connections. They facilitate patient monitoring systems, blood analyzers and cardiopulmonary support devices.
Industrial Equipment
Actuators, sensors and robotics in industrial automation depend on connector pins. These pins guarantee the safe transmission of power & signals in CNC machines, production lines and control panels. Their robust construction provides protection against vibration, electrical noise & extreme environments.
Defense and Aerospace
In aerospace applications, flight control systems, navigation instruments, self‐dimming windows and light sensors use connector pins. Military-grade connectors must meet stringent standards to withstand vibration, provide EMI shielding and operate well at great altitudes.
Main Advantages of Using Connector Pins
Flexibility
Engineers make connector pins in different shapes, sizes and settings. This range allows manufacturers to align pins to rugged industrial units or miniature medical equipment. Due to this flexibility connector pins can fulfill changing design requirements and are suitable for a variety of use cases.
Dependability
Connector pins offer electrical connections that are low & steady in resistance. These connections remain intact even during shock, vibration or recurring mating cycles. Spring-loaded properties and gold plating help resist corrosion. They also maintain a stable contact pressure which makes them more dependable.
Easier Maintenance
Connector pins make troubleshooting & repairs easier. You can rapidly change damaged components without having to disassemble intricate assemblies or solid rings. A number of connector pin designs feature self‐cleaning functions. These functions reduce maintenance and minimize downtime as well.
Scalability
Connector pins make it very easy to expand or modify systems. Their modular design permits for rapid changes and also enables systematic growth. Engineers can calibrate machines to meet demands without having to redesign or rewire intricate configurations.
Minimal Expense
Connector pins assist in reducing expense through reducing assembly time, simplifying installation as well as minimizing maintenance. Their optimized and modular structure reduces unit & life cycle expenses. They are an excellent option for projects with limited budgets and mass production.
Commercial clients working with high‐volume suppliers like RICHCONN can reduce pin expenses by 30 to 40%. They obtain such savings by automated CNC production line and efficient material utilization.

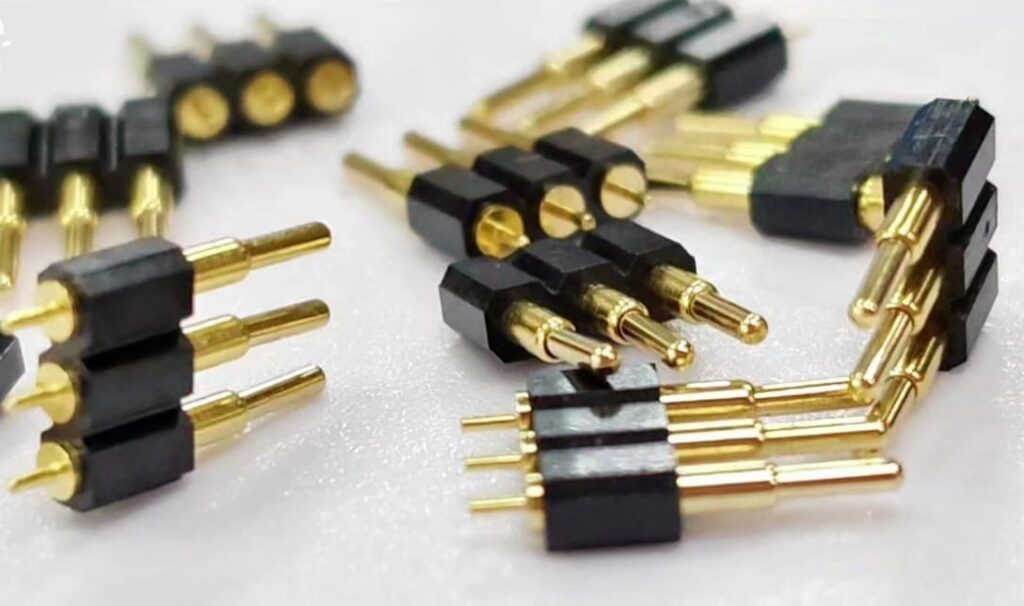

Choosing Factors for Connector Pins
Mechanical Aspects
Consider the force required for insertion or extraction, the number of mating cycles and the shock & vibration resistance of the pins. Dependable pins should be able to endure 500 – 1000 mating cycles. They should maintain electrical continuity even during mechanical load.
Electrical Needs
When picking connector pins, always assess the pin spacing, voltage & current ratings and insulation material type. For example a pin with a 2.54 millimetre pitch can handle up to 3 amperes at 250 volts. If you require pins for high‐power use cases then choose pins with stronger insulation and wider spacing.
Compliance and Standards
Make sure the connector pins have certifications such as UL, IEC, RoHS or ISO 9001. Following these standards guarantees efficiency, risk mitigation and fulfillment of application-specific & global regulations. This is particularly essential for export purposes.
Partnering with ISO 9001‐certified suppliers like RICHCONN helps you in fulfilling these requirements and also makes compliance easier in fields such as medical & aerospace.
Environmental Considerations
Evaluate the working atmosphere for moisture, temperature fluctuations, chemicals and dust. Choose pins with corrosion resistance plating and high IP ratings. Materials designed for distinct or extreme settings will help guarantee the pins’ long‐term durability & performance.
To Sum Up
Connector pins have a very important part in making reliable electrical connections in a number of sectors. They manage each and everything from signal transmission to power transfer. Their robustness, versatility as well as cost‐effectiveness make them very important in now‐a‐days electronics．
If you need custom connector pins manufactured, then Richconn is your best option. You can contact us at any time.
Related Questions
What materials are commonly used to produce connector pins?
Engineers typically use brass or copper as the base material. They are usually plated with tin, gold or tin-lead alloy to protect against corrosion, increase conductivity & make them more durable.
How do the sockets & connector pins in a connector assembly differ?
Connector pins are outwardly protruding contacts that make an electrical connection whereas sockets are inwardly concave and are created to accept these pins.
Are connector pin sizes regulated?
Yes, there are standard sizes of connector pins. Most standard connectors are suitable for wires up to 2.0 millimetre and accommodate cable diameters up to 8.0 millimetre.
What types of defects are normal in connector pins?
Connector pins are usually damaged due to rust, wear caused by repeated connections & disconnections, structural breakage caused by misuse or stress or contamination causing poor contact.
Can connector pins be reused after disconnecting?
Yes, if the connector pins are not damaged and preserve their base form then they can be reused. This specifically applies to connectors that are designed for re‐crimping & de‐pinning.
