Fixture plates are the backbone of modern manufacturing. They hold workpieces in place securely and precisely during machining. By using fixture plates, you can cut setup times, improve accuracy and get consistent results.
In this blog post we will cover what fixture plates are, their types, design features, benefits & setup. We will also see how different industries use them.
What are Fixture Plates?
In simple terms fixture plates are flat metal plates with carefully spaced threaded holes. Manufacturers bolt these plates onto CNC machine tables to secure workpieces. Unlike traditional T‐slot systems, fixture plates are faster to set up and more repeatable.
Types of Fixture Plates and Systems
You can choose from several fixture plate designs to suit different machining tasks and production goals. Knowing the options will help you choose the right system for you.
1. Standard vs Modular
Standard fixture plates are built for a specific job. They have fixed whole patterns and are best for repeated production runs. Modular fixture plates have a grid of threaded holes so you can attach and move locators, clamps and other accessories as needed. This lets you switch between projects quickly without having to make a new plate every time.
Modular systems are the top choice for prototyping and short runs because you can reuse the same plate for many setups. This saves both time & money.
2. Specialized Systems
Some fixture plates are designed for special purposes. For example duplex fixtures let your machine two parts at once so they are great for high volume production.
Trunnion tables can rotate so you can machine several sides of a part. This is useful for complicated automotive or aerospace parts.
Similarly, pallet fixtures allow for fast changeovers. You can load a pallet at the same time when another is being machined. This helps busy shops reduce their downtime.
Design and Construction of Fixture Plates
Designers and manufacturers focus on accuracy, strength and long term reliability when building fixture plates for machining. This section explains the main elements that shape their structure and performance.
Materials and Durability
Manufacturers usually select cast iron, steel or stress relieved aluminum alloys like ATP‐5 or Mic‐6 for fixture plates. These materials provide the necessary wear resistance and rigidity needed in harsh shop conditions. Surface treatments like anodizing, grinding or black oxide coating add more durability and protect the plates from corrosion.
Plate Types and Sizes
Fixture plates are available as solid plates which cover the entire machine table or as modular systems that encourage flexible setups. Standard thickness is between 28 and 50 mm. Different sizes are made to fit common CNC machines or custom needs. Precision machined edges and alignment features assure stable performance and repeatable placement.
Thread Specs and Hole Patterns
A precise grid of holes, usually 25mm apart, is what sets fixture plates apart. Threaded holes (like M6, M8 or 3/8-16) are for clamping and reamed holes are for dowel pins. They encourage accurate and repeatable setups. Moreover engraved markings and countersunk mounting holes are for easier installation and use.
Also See: Threaded Holes Machining
Benefits of Fixture Plates in Machining
1. Setup Time
Fixture plates make setups much faster. The grid of pre‐threaded holes lets you attach vises or clamps in minutes. Quick changeovers become easy so switching between jobs is fast. These are perfect for shops that do many different but low volume jobs.
2. Repeatability and Precision
These plates are repeatable. After you dial in a setup you can remove it and put it back within a few thousandths of an inch accuracy. That kind of consistency means every part meets tight tolerances even across multiple batches.
3. Protection and Maintenance
Fixture plates protect the machine table from damage and accidental tool contact. Hole grid also helps with cleanup. Chips and coolant can escape easily so downtime is reduced and the workspace stays clean.
4. Scalability
Fixture plates grow with your production needs. Modular systems allow you to add or change setups for new parts and you don’t have to buy new hardware. This saves cost and lets your shop be ready for your next project.
RICHCONN helps manufacturers scale by creating modular plates for prototypes and full production runs.
Setup and Installation
Proper setup and installation of a fixture plate is key to assuring repeatability & precision in machining.
Steps to Follow
First make sure the machine table is clean. Remove chips and debris from the surface. Use a stone to smooth out any nicks you find. After cleaning, spray that table with a rust preventative. This step prevents rust and also allows the fixture plate to slide in more easily.
Mounting Procedure
Slide the fixture plate onto the table. If you need to install locating keys, first slide it in upside down. Align the plate with the T‐slots and put T‐slot nuts in the right spot. Turn the plate right side up and check that the edges are flush with the table.
Use a drift to line up the T‐slot nuts with the holes in the plate. Tighten the nuts by hand first then use a hex key to secure the cap screws. This whole process takes about 15 to 20 minutes. Accurate alignment at each step is important to get the best results.
Also See: How to Choose the Right CNC Fixture
CNC Programming Integration
CNC programming works great with modern fixture plates. These plates make setups quicker and more reliable for each job.
Work Offsets
Fixture plates simplify and standardize work offsets. Each grid hole has a known location. You can assign work offsets, such as G54 to G59, to specific fixture spots ahead of time. For example G54 can be the left vise and G55 the right. Once you’ve set those then you don’t have to measure again.
Placing the fixture in the same holes lets the CNC locate your part immediately. This saves setup time and reduces mistakes which is especially helpful for jobs with many part types or repeats.
G code Strategies
Fixture plates allow you to write simpler G codes by using fixed reference points. You can use G10 commands in your program to set or change work offsets. For example if a vise’s jaw always sits at X20.0 Y11.733 then you can program the offset automatically.
This method not only eliminates manual data entry but keeps results consistent between operators and shifts too. When running multiple parts at once, you can use sequential offsets like G54 & G55. This lets you machine several parts in one cycle and keep the spindle running longer.
Automation Potential
Fixture plates work well with CNC automation. Their repeatable setups let pallet changers or robots load & unload parts with minimal human intervention. Modular plates also make it easy to change setups fast which is important for shops that run many part types in small batches.
By combining fixture plates with smart programming you can increase spindle uptime and keep production steady.
Design Considerations of Fixture Plates
Good fixture plate design starts with planning. This approach helps control costs and improves safety & performance.
Material Selection
Choose a material that fits your application. Steel and cast iron are better for heavy duty or high precision jobs and will last longer. Aluminum is good for quick setups because it’s light and easy to machine. Use a material that’s both strong and light in weight as it makes handling easier and reduces operator fatigue.
If you need help in selecting the right material for your tolerances and production volume, RICHCONN’s engineering team can help you find the most affordable & suitable option.

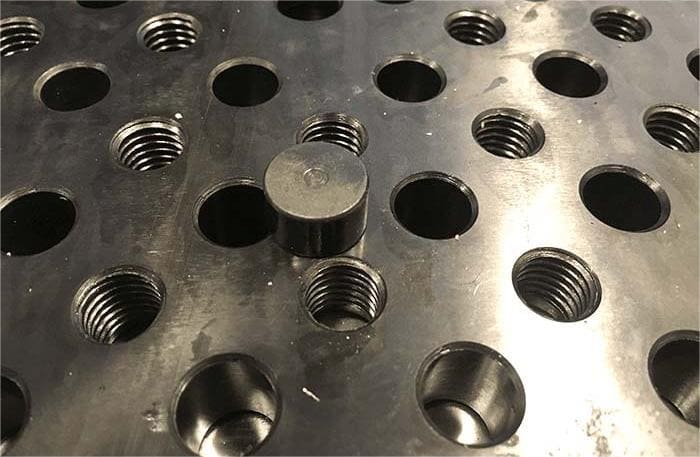

Grid Density and Hole Pattern
Select a grid pattern that offers strength and flexibility. Many plates use M8 holes having 22.5 mm space apart but you can change this to match your part sizes and how you will clamp them. A tighter grid gives more mounting options but a grid that’s too dense can weaken the plate.
Locating Methods
Choose accurate locating features like tooling balls or dowel pins to place parts in the same spot every time. The 3‐2‐1 principle uses six points to lock all movement which keeps parts steady and precise during machining.
Clamping Strategies
Choose clamps that hold the workpiece firmly but don’t bend or deform it. Toggle or quick action clamps speed up setups while custom clamps may be needed for parts with unusual shapes. Don’t use too much force as this can harm the fixture and part.
Ergonomics/ Safety
Design the plate to be safe and comfortable for the operator. Modular or adjustable plates fit different setups and operator heights which reduces strain. Features like clear markings, rounded edges and simple clamps reduce mistakes and improve the work environment.
Consider these steps to design fixture plates that boost accuracy, productivity as well as worker health.
Uses in Different Industries
Aerospace
Fixture plates are key in aerospace manufacturing. They support the machining of complicated parts like landing gear and turbine blades. By using fixture plates, manufacturers get the tight tolerances and repeatable accuracy needed for both safety and performance.
Automotive
Automotive production uses fixture plates to machine cylinder heads, engine blocks as well as transmission components with consistency. These plates keep parts stable during drilling, milling and assembly. This stability assures every part meets strict quality requirements.
Fixture plates also help lower defect rates and increase production speed which is crucial for making cars in large volumes.
Medical
Fixture plates are essential in the medical field for making surgical instruments, implants and diagnostic devices. Their high precision is necessary because many medical products must meet strict safety & quality rules.
Some custom fixtures also allow machining of delicate or complicated items like custom implants and orthopedic plates. RICHCONN’s ISO certified procedures assure that these fixtures meet the toughest medical standards.
To Sum Up
Modern machining relies on fixture plates for accuracy, speed and adaptability. They make repeatable results possible. Moreover these plates help reduce setup times and protect your machine from damage. Choose a right fixture plate to tackle complicated tasks and increase your production.
If you need any kind of custom fixture plates or CNC machining services then Richconn is your best option. You can contact us anytime.
Related Questions
Can I customize fixture plates for unique parts?
Yes you can customize fixture plates for specific parts. They have flexible grid layouts and can be adjusted to fit different projects. This makes setups repeatable and efficient.
How do I clean and maintain a fixture plate?
Clean fixture plates daily with soft brushes and distilled or deionized water. Do not use tap water or alcohol. For removing debris, ultrasonic baths with deionized water are most effective.
Do fixture plates work with 3-axis and 5-axis CNC machines?
Yes fixture plates work with 3‐axis and 5‐axis CNC machines. Their precise grid systems support different multi axis tasks which increases their usefulness in different machining jobs.
Do fixture plates prolong tool life?
Fixture plates do prolong tool life. They provide a stable and flat base which reduces misalignment and vibration. This means less tool wear and better machining results.
Why is surface flatness important for fixture plates?
Surface flatness is important because it keeps machining accurate and results repeatable. If the plate is not flat, parts can misalign and plate structure can weaken.
