Liquid cooling couplings are small connectors that enable quick and leak-free connections or disconnections of fluid lines. They help safely handle flowing coolant, even while equipment is running. You’ll find them in CNC machines, laser systems, power electronics, semiconductor tools, EV batteries, and even server cooling setups. These systems all rely on steady, clean liquid flow to maintain control over heat.
In today’s high-performance machines, traditional air cooling no longer suffices in dense setups. As ASME explains, advanced tools generate more heat than fans can handle, so systems require precise cooling hardware, which includes the couplings. Without the right ones, you risk leaks, flow issues, or downtime.
In this article, we’ll break down how liquid cooling couplings work, the types available, their applications, and how to choose the right one.
How Liquid Cooling Couplings Work in a Closed-Loop System
Liquid cooling couplings play a crucial role in maintaining the seal, stability, and leak-free operation of a closed-loop system. These systems constantly circulate coolant, usually water, glycol, or a dielectric liquid through tubing or channels to remove heat from sensitive components, such as motors, CPUs, or laser heads. The coupling allows for the connection or disconnection of these lines without losing fluid or allowing air to enter.
Flow Control and Internal Mechanism
Inside each coupling, there’s a well-designed flow path that allows liquid to pass through with minimal resistance. Most use a valve-based system, either spring-loaded or flat-faced, to manage this flow. When connected, the valves inside both ends open, allowing coolant to flow through.
When disconnected, they snap shut to seal the fluid in place. This prevents leaks and keeps the system closed, even during maintenance or machine changeovers. Some couplings also feature pressure seals, which maintain a tight connection even under high pressure or temperature changes. These seals are critical in preventing flow disruption and wear over time.
What Happens During Connection and Disconnection
Couplings must be able to connect and disconnect easily, even when the system is under pressure. That’s where their engineering matters. When you snap the two ends together, the internal valves open simultaneously.
Disconnecting works the same way in reverse. As soon as the couplings come apart, each valve closes instantly to trap the liquid on both sides. Well-made couplings achieve this without spilling coolant or allowing air to enter, even in tight setups or high-pressure systems.

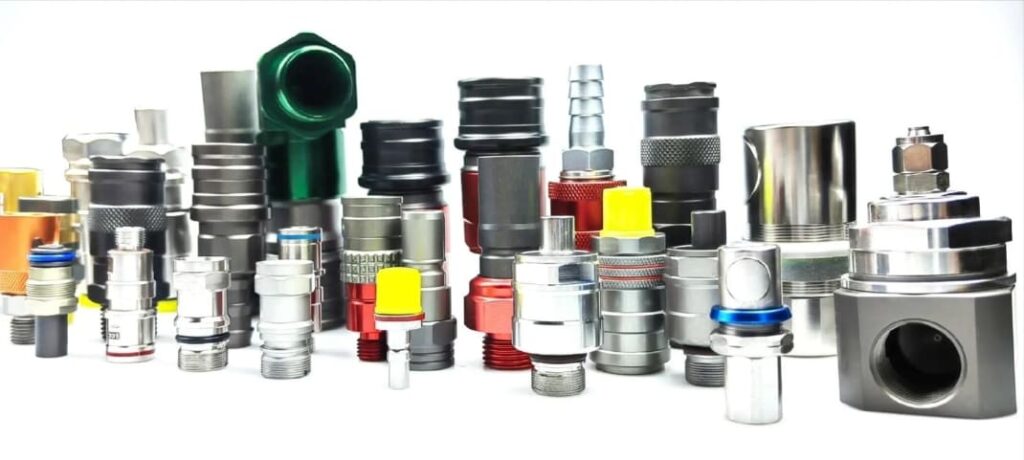

Types of Liquid Cooling Couplings and When to Use Them
Liquid cooling couplings are available in various designs, each suited for a specific application. Whether you’re working with CNC machines, power electronics, or semiconductor tools, choosing the right type helps you avoid leaks, improve performance, and cut downtime.
1. Quick Disconnect (QD) Couplings
These are the most common. They allow for fast connection and disconnection without the need for tools. Basically, these connectors allow you to join or separate gas or fluid lines in just a few seconds. Most QD couplings come with shut-off valves to stop fluid from spilling when you disconnect. They’re a good fit for general industrial systems, laboratory equipment, and CNC setups where speed and convenience are required.
You’ll often find these made from brass or stainless steel, depending on the fluid and pressure needs. Brass is a cost-effective material, but it corrodes over time when exposed to aggressive fluids. Stainless steel lasts longer and handles harsher environments. For a better understanding, read our guide on Quick Disconnect Couplings (QD).
2. Dry-Break or Non-Spill Couplings
Dry-break couplings go a step further. They’re built to prevent almost all fluid loss during disconnection. They also stop air from entering the system. Use these in systems with sensitive electronics, high-purity coolant, or where spills could cause contamination or damage. They’re ideal for medical equipment, data centers, and semiconductor cooling lines.
These couplings often utilize engineered polymers, such as PPSU or PEEK, for cleanroom applications, or anodised aluminium to reduce weight without compromising strength. When considering these materials, take into account the effects of thermal expansion and long-term wear and tear.
3. Single Shut-Off vs Double Shut-Off
Single shut-off
One side of the coupling has a shut-off valve, while the other side remains open. These are fine when only one side of the system needs sealing.
Double shut-off
Both sides close instantly when disconnected. This design gives full fluid containment and is better for high-value or high-risk systems.
In both cases, seals are critical. You’ll find various options, including EPDM for water-based coolants, FKM (Viton) for chemical resistance, silicone for flexibility, and FFKM for extreme temperatures or exposure to aggressive fluids. These seals wear out over time, so it’s essential to keep an eye on replacement intervals, especially in high-cycle systems.
4. Push-to-Connect Couplings
These are quick to use. You push the male and female ends together, and they snap into place. No twisting or screwing needed. They’re great for tight spaces, fast-paced environments, or tools that require regular coolant line changes. Many also come with locking clips to prevent accidental disconnection. These types often pair plastic or aluminum bodies with EPDM or silicone seals, which are lighter but may not handle as much pressure or heat as steel options.
5. Threaded or Twist-Lock Couplings
These require you to twist and lock the connector to secure it in place. They’re slower to use but more secure in high-pressure or high-vibration environments, such as mobile equipment or heavy CNC machines. If the system handles tough fluids or high temperatures, opt for stainless steel housings and FKM or FFKM seals for enhanced resistance and durability.

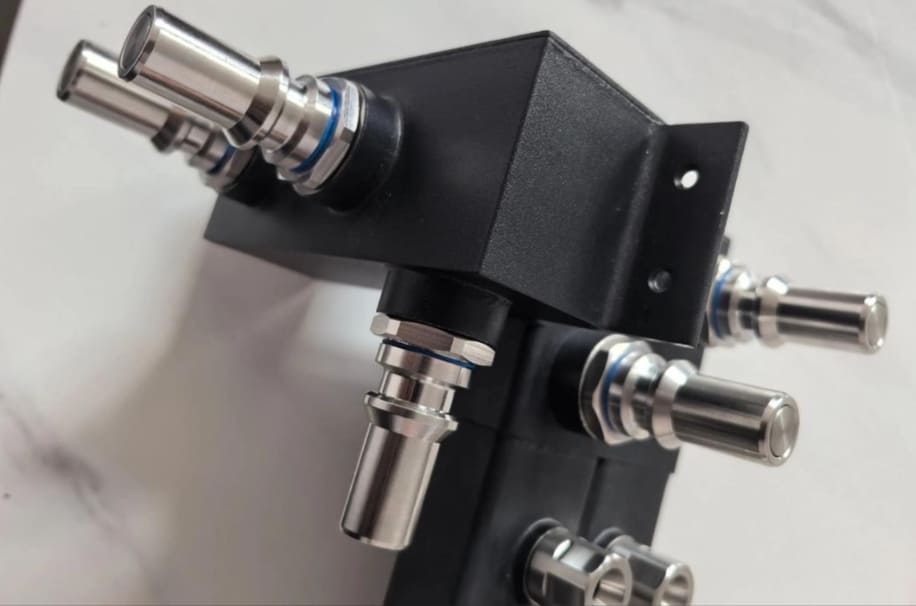

Applications of Liquid Cooling Couplings
Liquid cooling couplings are used in areas where heat builds up rapidly and needs to be removed. They keep systems running cool, safe, and stable. Below are some of the most common application areas, each with its own set of performance demands.
CNC Machines and Spindle Cooling
In high-speed CNC machining, particularly with multi-axis or heavy-duty setups, heat rapidly accumulates in spindles and motor drives. Liquid-cooled spindles rely on closed-loop systems to prevent overheating and thermal drift. Couplings make it easy to disconnect lines during tool changes or maintenance without draining the entire system.
They’re usually metal-bodied, double-shutoff couplings that resist vibration and pressure spikes. If air gets into the spindle coolant line, it can affect machining accuracy and reduce tool life, so air-tight sealing is essential.
Laser Systems
High-powered industrial lasers (used for cutting, engraving, or marking) generate a lot of heat in both the laser head and power supply. These systems often use dry-break couplings to avoid leaks near sensitive optics and electronics. Cooling lines run to chillers or radiators, and any air trapped in the loop can degrade laser performance or trigger shutdowns. Here, non-spill couplings maintain the system’s seal, even when the system is swapped during servicing.
Power Electronics and EV Battery Cooling
Electric vehicles and battery storage systems use liquid cooling to keep components within safe operating temperatures. ScienceDirect points out that battery packs, inverters, and onboard chargers generate heat under load, especially during fast charging. Liquid cooling couplings in these setups must withstand vibration, handle temperature swings, and resist coolant breakdown.
Semiconductor Equipment
Semiconductor tools (like lithography machines, etchers, or deposition systems) operate in cleanrooms and need ultra-precise thermal control. Many components, such as process chambers, RF generators, and chillers, utilise liquid cooling lines equipped with cleanroom-grade couplings made from high-purity plastics or anodised aluminium. These systems demand non-spill, low-particulate, and chemically compatible couplings to avoid cross-contamination or damage to wafers.
Medical Equipment
Imaging systems, such as MRI and CT scanners, generate intense, focused heat. They often use closed-loop liquid cooling with deionized water or glycol-based mixtures. Here, leak prevention is critical, since exposure to sensitive circuits can cause failures or downtime. Non-spill couplings with chemical-resistant seals are commonly used in these setups, particularly those rated for sterile or low-particle environments.
Comparison Table: Liquid Cooling Coupling Types and Applications
To make selection easier, here’s a quick comparison of the most common coupling types, their materials, seal options, and where they’re typically used.
| Coupling Type | Feature | Common Materials | Typical Seals | Application |
|---|---|---|---|---|
| Quick Disconnect (QD) | Offers fast connection and disconnection without tools. | Brass, stainless steel | EPDM, FKM | General machinery, CNC systems |
| Dry-Break/ Non-Spill | Prevents fluid leaks and keeps air out during disconnection. | PPSU, aluminum, stainless | EPDM, silicone, FFKM | Medical, electronics, and semiconductor tools |
| Push-to-Connect | Connects instantly by snapping into place with no threading. | Nylon, aluminum | EPDM, silicone | Compact setups, handheld tools |
| Threaded/ Twist-Lock | Locks securely with a twist, minimizing accidental disconnects. | Stainless steel, brass | FKM, FFKM | High-vibration or high-pressure environments |
| Single Shut-Off | Seals off one side only when disconnected | Brass, polymer | EPDM, silicone | Systems where one side stays open |
| Double Shut-Off | Seals both sides instantly to avoid leaks or contamination. | Stainless steel, PPSU | EPDM, FKM, FFKM | Cleanrooms, EV battery cooling, fluid-sensitive systems |
How to Choose the Right Liquid Cooling Coupling
Choosing the proper liquid cooling coupling provides perfect fit for the system, encompassing fluid type, temperature, pressure, and everything in between. Here’s what engineers and equipment managers look at before placing an order.
1. Know Your Fluid and Check Compatibility
First, match the coupling material and seal type to the fluid you’ll be using. If you’re running deionized water, propylene glycol, or fluorinated dielectric fluids, not every material will hold up.
- Use EPDM seals for most water-based coolants
- Use FKM (Viton) or FFKM for aggressive chemicals or oils
- Use PPSU or PEEK polymer housings if you’re avoiding metal in sensitive areas
A helpful reference to check just before buying is this chemical compatibility database by Cole-Parmer. It’s often used in lab and industrial settings.
2. Valve Design: Poppet vs. Flush-Face
There are two common valve types inside couplings:
- Poppet-style valves: These open and close like a plunger. They’re common, durable, and work well in basic systems, but may trap a small amount of fluid when disconnected.
- Flush-face valves: These sit flat and close tightly, leaving almost no space for fluid to escape. They’re ideal for non-spill or cleanroom environments where even a single drop matters.
Both styles have their place. It depends on how clean, dry, and safe your disconnection needs to be.
3. Match Pressure and Temperature Ratings
Ensure the coupling can withstand the system’s operating pressure and any anticipated pressure spikes. Most cooling loops operate under 30–100 psi, but startup surges can reach higher pressures. Also, check the max fluid temperature. If your coolant can reach 80°C or higher, verify that the coupling’s housing and seals will not soften, swell, or crack under thermal load.
4. Consider Size and Installation Constraints
In tight spaces, such as inside server racks or compact CNC enclosures, smaller couplings are particularly helpful. Some push-to-connect styles or low-profile designs are made specifically for space-limited setups. Additionally, consider how easily the coupling can be accessed, locked, or unlocked during routine maintenance.
5. Get the Flow Rate Right
You don’t want your coupling to choke the system. Electronics Cooling explains how choosing the proper quick-disconnect coupling impacts thermal system performance, flow, leak resistance, and durability under stress. Look at the flow coefficient (Cv) or pressure drop rating for each size. A higher Cv indicates better flow with less resistance. If your system needs rapid coolant circulation (like in high-power lasers or fast-spinning spindles), avoid couplings with narrow flow paths or sharp turns inside.
6. Consider Cleanliness and Spill Risk
In cleanrooms, electronics, or medical setups, even a few drops of spilled coolant or a small air bubble can cause significant problems. Select dry-break or flush-face couplings that prevent spills or air trapping during disconnection. For less sensitive setups, standard poppet-style QD couplings may be fine and cheaper.
7. Look out for Cycle Life
Look for units rated for 10,000+ cycles or more. Low-cycle models may wear faster or develop leaks. This is especially important in production settings, automated test setups, or mobile systems that are frequently reconfigured.
8. Watch for OEM Requirements
Some equipment manufacturers (especially in semiconductors and medical) require specific coupling brands, materials, or certifications. Always double-check that your chosen coupling meets the specified requirements to avoid warranty issues or failed inspections.
Conclusion
Liquid cooling couplings may appear small, but they’re essential for keeping systems sealed, cool, and running reliably. The right choice depends on factors such as fluid type, pressure range, connection method, and the frequency of connection and disconnection. Material and seal compatibility also matter, especially in high-performance or sensitive environments where leaks and downtime aren’t an option.
At Richconn, we understand the importance of precision and reliability in liquid cooling components. Whether you require high-performance couplings or custom-machined parts for your cooling system, our team is committed to delivering top-quality service. Contact us today, we’re ready to bring your project to life with speed and accuracy.
FAQs
How can I test a coupling for leaks or flow issues?
You can test a coupling by performing a pressure hold test or visual inspection under flow. Pressurize the system with the intended fluid or air, then monitor for pressure drops or visible leaks at the connection point. For flow issues, check the system’s flow rate with and without the coupling installed. Any significant drop could point to internal blockages or valve malfunctions.
Can I use standard fluid connectors instead of liquid cooling couplings to cut costs?
No, standard fluid connectors aren’t built to handle the demands of active cooling systems. They usually lack shut-off valves, leak protection, and air-tight seals. Using them in place of proper liquid cooling couplings can lead to fluid loss, trapped air, or even damage to the equipment. It might save money upfront, but it risks bigger failures down the line.
Can I mix couplings from different manufacturers?
It’s not recommended. Even if sizes match, differences in sealing surfaces or internal valve designs can lead to leaks or connection issues. Stick with matched components from the same brand or system series.
How do quick disconnect couplings behave in vacuum or low-pressure environments?
Most standard couplings are designed for pressurized systems. In vacuum or low-pressure setups, special seals and venting designs are required to ensure reliable connection and valve operation.
Can liquid cooling couplings affect flow turbulence or system efficiency?
Yes. Poorly designed or mismatched couplings can cause turbulence, pressure drops, or uneven flow, especially in high-performance cooling loops. Choosing low-profile, high-flow designs helps maintain system efficiency.
