Are you looking for custom parts that fit your specific engineering needs? Non-standard precision parts give solutions where industry‐standard parts may not fit．
In this blogpost we will highlight all important information about these custom parts. We will also see how they are manufactured and where they get used.

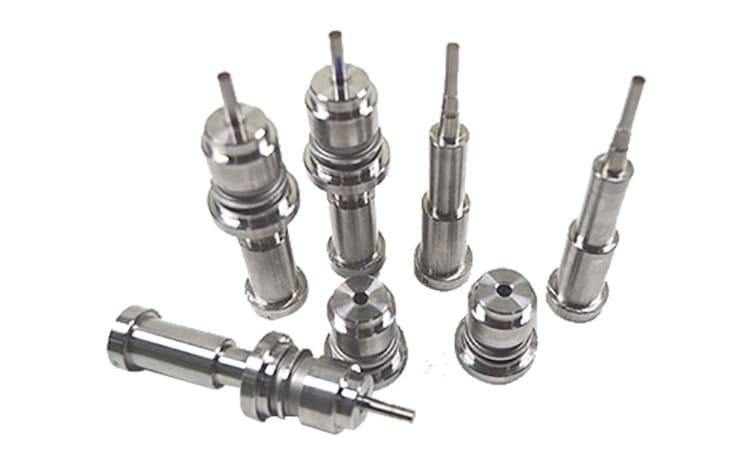

What are Non-Standard Precision Parts?
Manufacturers produce non-standard precision parts to meet needs that standard parts cannot meet. These personalized parts do not adhere to industry standards. Mainly they are made according to customer drawings which makes sure that each and every component is exactly suited to its intended use.
Characteristics
Non-standard precision parts obtain highly fine tolerances, in certain cases reaching ±0.001 mm. Manufacturing is often done in small batches. These parts mostly require intricate shapes or cutting‐edge materials. Each project has its own finish, design and quality standards so these parts provide greater adaptability. This personalization makes production more costly and difficult.
Non-Standard vs. Standard Precision Parts
In precision manufacturing it is necessary to understand the difference between non-standard & standard parts. This knowledge will help you make better decisions purchasing, design and production. The below given table outlines some of the key differences.
| Criteria | Non-Standard Precision Parts | Standard Precision Parts |
|---|---|---|
| Design parameters | Personalized‐designs that depend on particular functional demands; no predetermined standards. | Complies with industry protocols (DIN, ISO, ANSI); predetermined tolerances & dimensions. |
| Lead Time & Availability | Prolonged lead times; needs prototyping, design & custom production. | Short buying times; easily available since mass‐produced. |
| Manufacturing Complexity | Intricate procedures that need accurate engineering & special tooling. | Basic, large‐scale production procedures; lower production intricacy. |
| Application Specificity | Important for advanced sectors (medical devices, aerospace & automotive). | Works well for common‐purpose industrial uses. |
| Cost Implications | Greater manufacturing expense justified by real‐life needs & efficiency. | Less unit cost because of economies of scale; budget‐friendly for common use. |
Manufacturing Process of Non-Standard Precision Parts

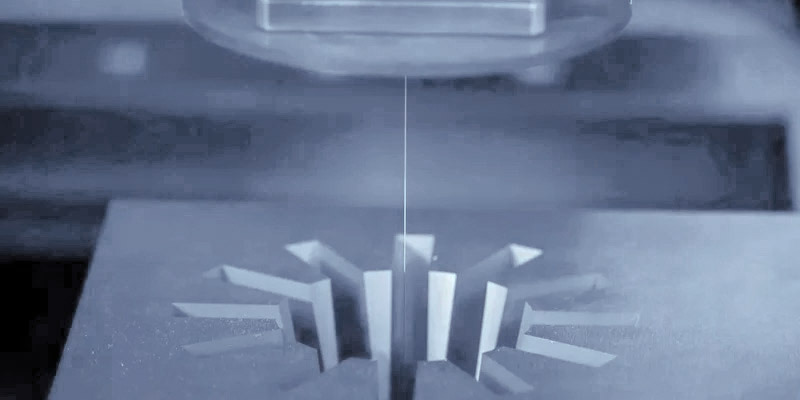

EDM (Electrical Discharge Machining)
EDM manufactures fine internal features and sharp corners in non-standard parts that conventional machining cannot create. This procedure typically obtains tolerances ranging from ±0.005 mm to ±0.0025 mm. Under certain conditions EDM can achieve even tighter tolerances; this depends on material and intricacy of the part.
See Also: Wire EDM Machining
CNC Machining
In CNC machining, computer‐controlled cutting tools form custom precision parts. This approach obtains tolerances of up to ±0.0025 mm for non-standard parts. Advanced CNC systems – i.e. RICHCONN’s 5‐axis machining centers – can create intricate geometries with multiple curved surfaces. These systems also produce precision molds for the production of custom components.
Also See: What is CNC Precision Machining
Additive Manufacturing
Additive manufacturing – also called 3D printing – creates non-standard parts by adding material layer by layer. This method is suitable for small‐scale manufacturing and fast prototyping of non-standard parts. Accuracy depends on the technology that is being utilized but tolerances of ±0.1 mm are common. Some modern systems can obtain even stricter tolerances.
Quality Control
Engineers use stringent standards as well as modern inspection equipment to guarantee quality control for non-standard precision parts. Coordinate Measuring Machines (CMM) verify dimensions with micron‐level accuracy which confirms that each feature is according to the design.
Optical process or profilometers evaluate surface finish where roughness values as low as Ra 0.1 μm are specified for difficult use cases. These detailed checks ensure that each component complies with the rigorous specifications and performs well in its intended use.
At RICHCONN, our ISO 9001:2015-certified quality system utilizes high-tech optical measurement systems, CMMs and materials testing to confirm every surface detail and dimension before shipment.
Also See: A Complete Guide to CMM Inspection
Uses of Non-Standard Precision Parts
Industries depend greatly on non-standard precision parts when standard parts cannot meet particular performance or design needs. These components are used in multiple industries:

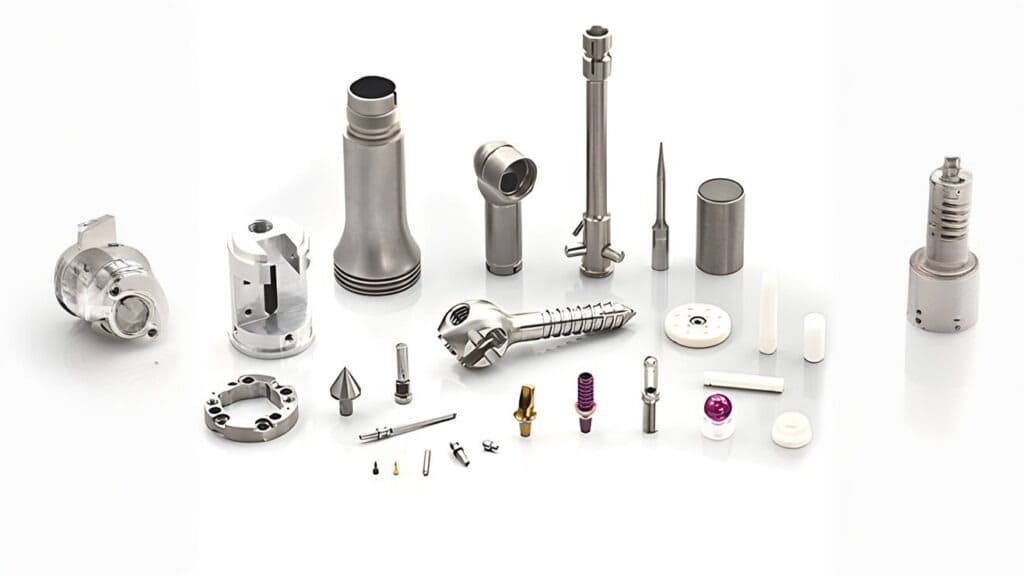

Medical Field
In medical field, precision‐machined components are critical. They are used in ear implants, artificial joints, small screws and pacemaker parts. These components must withstand cleaning chemicals and meet strict biocompatibility standards.

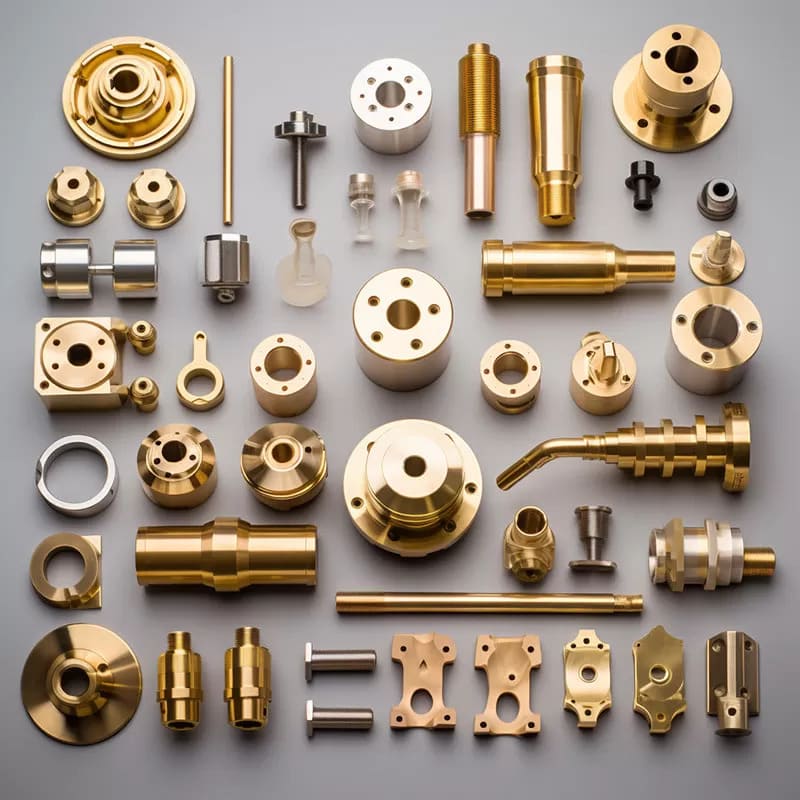

Aerospace
Non-standard precision parts play a very important part in aerospace for both spacecraft & aircraft. They are useful in producing landing gear parts, personalized turbine blades and intricate engine components built to withstand high loads and temperatures.

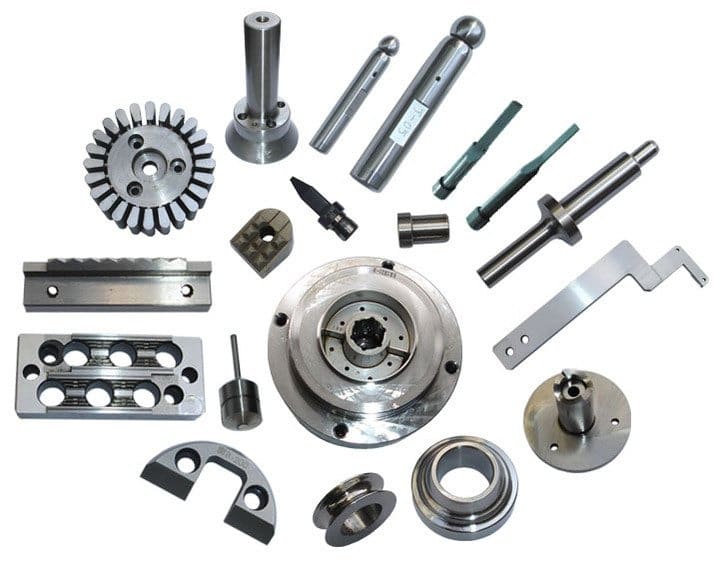

Industrial Machinery
Special tooling, robotic arms, fixtures as well as intricate assembly systems in industrial units rely on non-standard parts. These parts increase reliability & efficiency which assist engineers to rapidly adapt to changing manufacturing needs and make their products unique.

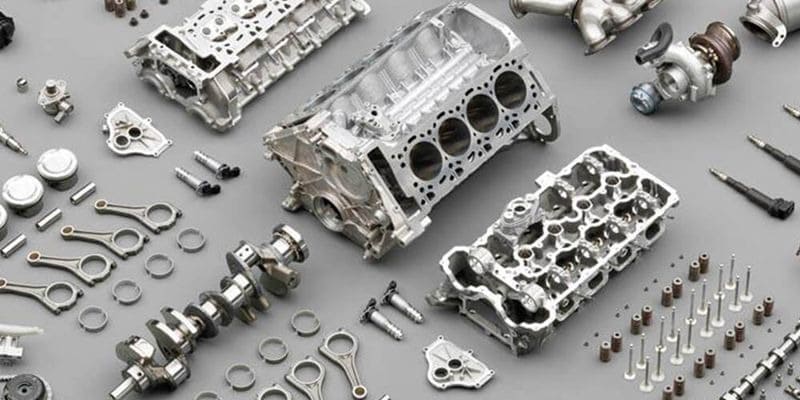

Automotive
Non-standard precision manufacturing is usually essential for custom suspension systems, prototype components for testing & special engine parts. These components permit manufacturers to assess new designs and also evaluate advancements before large‐scale manufacturing.
Real-World Examples
Example‐1: Building a special bracket for medical imaging equipment
A medical equipment engineer needed a lightweight, corrosion‐resistant bracket for a critical imaging device. Our team picked titanium & used modern CNC methods to achieve strict tolerances of ±0.02 mm. The custom‐made component reduced the weight of equipment & preserved structural durability at the same time.
Example‐2: Construction of a custom gear for a high performance engine
An automotive customer needed a gear with special tooth geometry for his racing engine. We employed CNC machining to obtain ±0.01mm accuracy and minimized the weight of the gear by 15%. This improved gear enhanced torque delivery and tolerated high RPMs. This increased the efficiency & reliability of customer’s engine.
Limitations & Considerations
Design Complexity
Experienced labor and modern manufacturing procedures are necessary to handle complex geometries with walls less than 0.8 millimeter thick or deep cavities. Designs with such intricacies usually require EDM or multi‐axis machining which increases both manufacturing time & technical specifications.
Cost Implications
Small manufacturing batches, custom materials and strict tolerances usually make custom components more expensive as compared to standard parts. Extra finishing procedures – like obtaining single‐digit Ra surface finishes – further increase expense. RICHCONN solves this problem by thoughtfully picking materials & by optimizing production methods to deliver quality while managing costs.
Lead Times
Custom parts take more time to manufacture as compared to standard components. The special nature of non-standard parts required additional material sourcing, design collaboration and thorough quality control. Guaranteeing uniform quality during manufacturing also adds to the lead time.
RICHCONN minimizes these slowdowns through detail‐oriented project management and just‐in‐time production which reduces lead times by up to 30% in contrast to certified standards.
Picking a Supplier for Custom Precision Components
Important Things to Think About
Keep the following aspects in mind when picking supplier for non-standard precision parts:
- Availability of modern in‐house tools along with capability to apply several procedures like EDM, CNC & 3D printing.
- Skill in creating intricate components with strict tolerances like ±0.001 mm.
- Proficiency in working with different types of materials which includes plastics, metals & composites.
- Strong quality control mechanisms with industry certifications such as ISO 13485, ISO 9001 & AS9100.
- Proven record of versatile manufacturing abilities and on‐time delivery.
- Responsive & clear communication with detail‐oriented project management.
- Thorough documentation and straightforward pricing structure.
Important Questions to Ask
Can you give case studies or references?
A reliable supplier will give feedback from customers and detailed case studies that show well-executed projects.
How much expertise do you have in these types of projects?
Ask for at least five years of relevant expertise and also examples of custom precision parts they have manufactured.
What quality control protocols do you apply?
At Richconn we apply surface finish verification & CMM inspections. Moreover we use ISO certified quality management systems.
By picking a partner who complies with these criteria you can guarantee that your non-standard precision components are capable of meeting your particular demands.
Get Best Non-Standard Precision Parts at Richconn
Richconn produces best non-standard precision parts by employing modern manufacturing technologies. Our experts complete manufacturing 30% faster in contrast to industry average and continuously obtain a 99.8% accuracy match rate. We employ modern 3D printing, CNC machining and comply with stringent ISO 9001:2015 quality control protocols to make sure that each & every part is built to exact standards. Contact us today to turn your challenging designs into reality.
To Sum Up
Non-standard precision parts perform a very important role in facilitating advancement in the medical, aerospace as well as automotive industries. Their personalized nature needs strict quality control and latest manufacturing procedures. Partnering with professionals such as Richconn ensures best and premium‐quality personalized components for your particular demands.
Related Questions
What are the dangers of not purchasing non-standard components from certified manufacturers?
Choosing a non-certified manufacturer may cause possible financial or legal issues due to malfunctions or accidents, unexpected product failure or insufficient traceability.
Does producing non-standard precision components need custom tooling?
Personalized tooling is usually required to get the exact geometries, tolerances as well as surface finishes needed for non-standard precision parts.
How does digital manufacturing (such as Industry 4.0) help in manufacturing personalized parts?
Industry 4.0 helps in large‐scale customization by utilizing technologies such as IoT sensors, smart factories, 3D printing and real‐time data interpretation. These technologies allow engineers to create personalized components very easily with lower expense & better versatility.
