Pogo Pins are very important for industries like healthcare and electronics. These compact connectors are used in many products due to their features such as mechanical stability, optimal space utilization and durability.
In this blog post we will cover what pogo pins are and their types. We will also see advantages, applications and selection criteria of pogo pins.
What are Pogo Pins?
In simple terms pogo pins are specialized electrical connectors which are cylindrical in shape. These spring loaded components are used to make reliable connections, both permanent and temporary. They have the distinctive property of maintaining reliable electrical connection even during movement or vibration. Many electronic applications use these connectors to transmit signals, power or data.
Also See: 27 Types Of Pins ─ A Complete Guide
Components of Pogo Pins

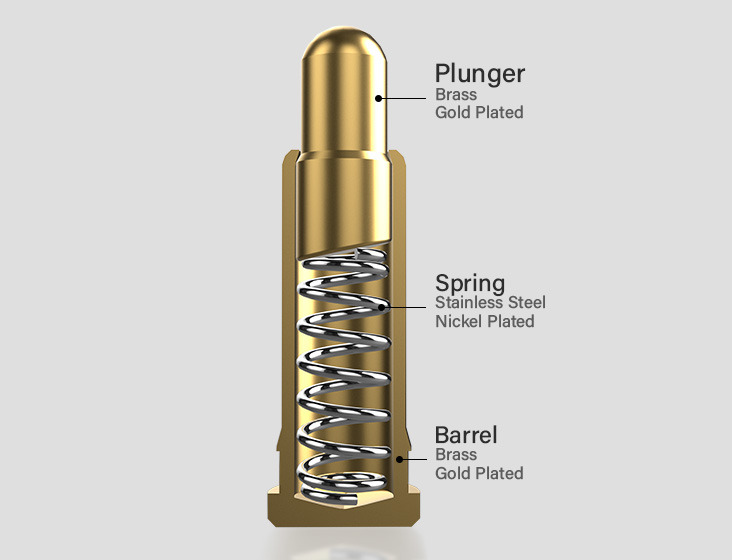

Pogo pins are constructed from three main components which are a barrel, plunger and a spring. Each component performs an important part to ensure reliability and accuracy.
Plunger
Plunger is made of gold plated brass or similar conductive material. When force is applied, it moves into the barrel. Its design creates a reliable electrical connection and ensures minimum resistance.
Barrel
Barrel serves as main housing unit. To achieve maximum durability, manufacturers make it from stainless steel or brass. It houses both spring and the plunger. Barrel is designed in such a way that it prevents the plunger from pushing out during non-engagement.
Spring
Spring gives constant compression force to establish a reliable electrical connection. To maintain the elasticity of these springs, manufacturers make them from stainless steel & beryllium copper. These springs are capable of withstanding thousands of connection cycles without failure.
The Working Principle of Pogo Pin
Pogo pins go through four different stages during operation. These stages combine electrical and mechanical functions to provide reliable connectivity:
Initial State
When pin is at rest, the spring is fully extended. This position keeps the plunger secure inside the barrel. Such arrangement prevents unwanted electrical connections.
Engagement
The plunger moves inward when external force acts on pin’s tip. During this action, spring inside the barrel is compressed. Potential energy is stored during this compression which results in safe connection.
Generally a force of 1 newton is needed to make good contact with minimum wear.
Electrical Connection
A safe electrical pathway is formed when plunger contacts the mating surface. The presence of gold plated components in plunger reduces resistance & increases conductivity as well. Moreover constant pressure of spring maintains a stable current or signal flow.
Detachment
Spring releases its stored energy as outside force is removed. During this process plunger returns to its starting position. Such controlled retraction proves very helpful in preventing component damage & short circuit.

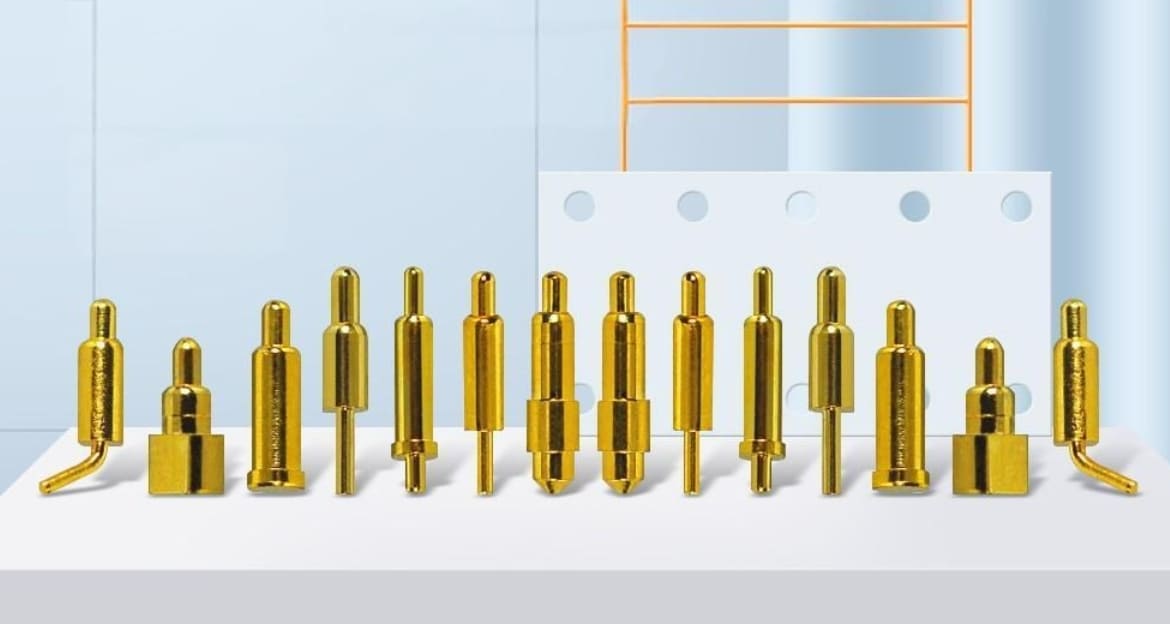

Main Types of Pogo Pins
High Frequency Pogo Pins
These pins function at frequencies up to many gigahertz. They are designed to reduce interference and signal loss through low contact resistance. These pins are largely used in applications such as 5G devices, RF communication systems as well as in applications which need high speed data transfer.

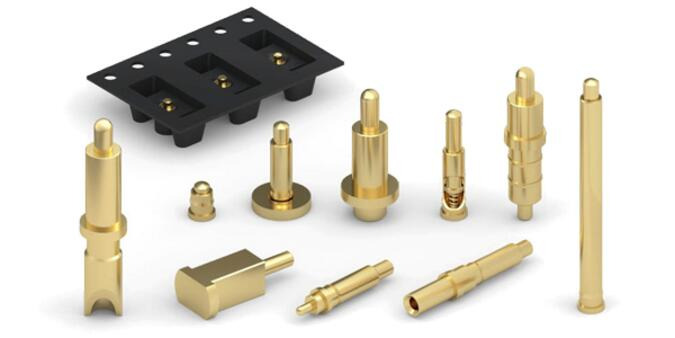

Standard Pogo Pins
In industrial applications, standard pogo pins are the most common choice. They have a spring loaded mechanism that provides constant contact pressure. These pins are well suited for general purposes applications such as device charging and PCB testing. To get better conductivity & corrosion resistance, manufacturers construct them from copper alloy or gold plated brass.

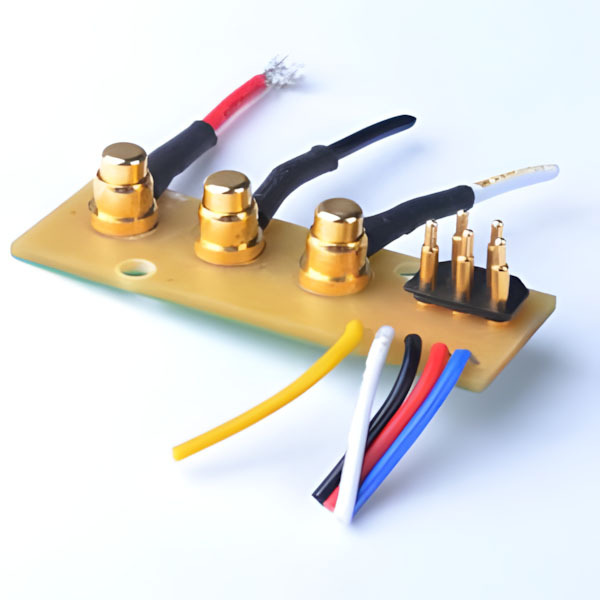

High Current Pogo Pins
These pins can handle currents from 3A to 1200A. Manufacturers construct them from beryllium copper and gold plated materials. Due to these materials they have a long operating life reaching five thousand cycles. Industrial equipment & electric vehicle charging systems mostly use these pins.

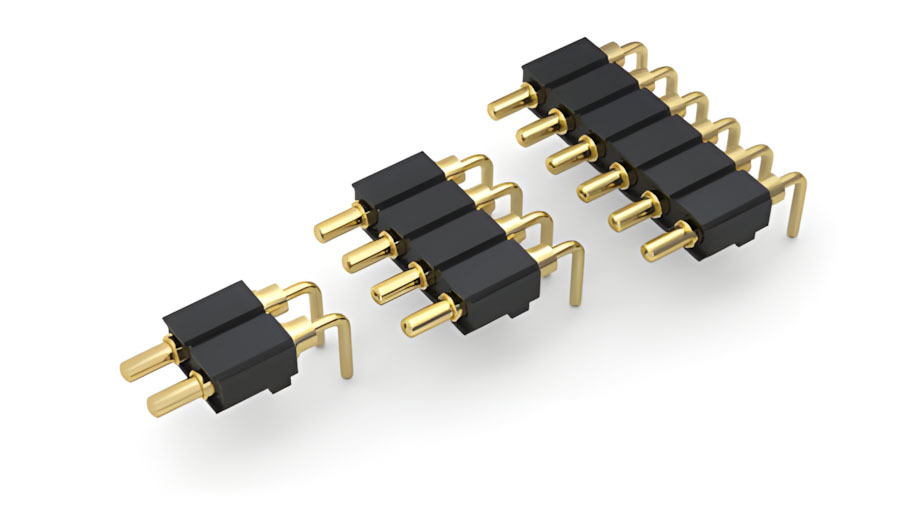

Right Angle Pogo Pins
Right angle pogo pins are used for connections in tight spaces due to their L shape. These pins are mostly used in spaces where straight pins cannot be installed. Automotive systems, compact consumer electronics, robotics & smart home devices are their common applications.
Ball Pogo Pins
These pins are differentiated from other types by their rounded tip. Both contact surface & pin remain protected from damage due to their design. Testing fixtures generally use these pins because they are suitable for repeated connections.

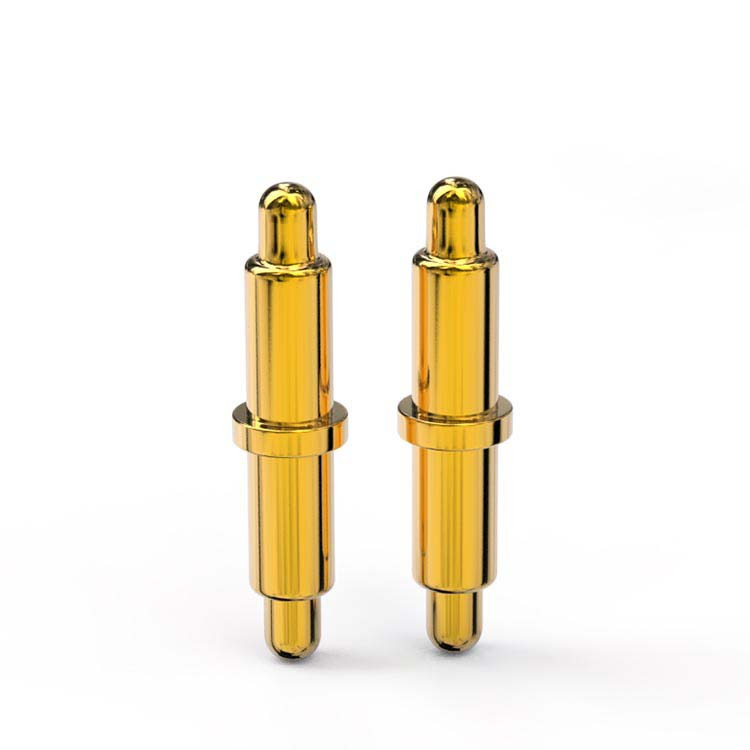

Double Ended Pogo Pins
These pins support two way electrical connections because they have contact points at both ends. They support high current applications as well as high frequency operation. Automated testing equipment and board to board connections mostly use these customizable & durable pins.
Main Applications of Pogo Pins
Programming and Testing

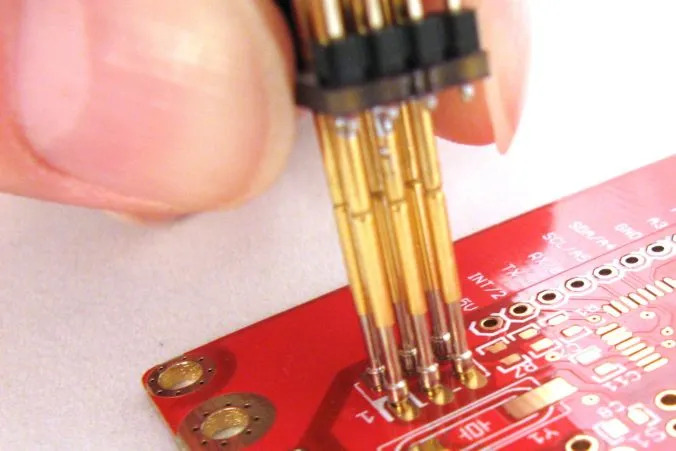

Manufacturing facilities use pogo pins to test chipsets, PCBs & integrated circuits. The spring loaded mechanism in them provides fast connection and disconnection capabilities which increases production speed. These pins are used to make reliable temporary connections for quality checks as well as for debugging.
Industrial Applications

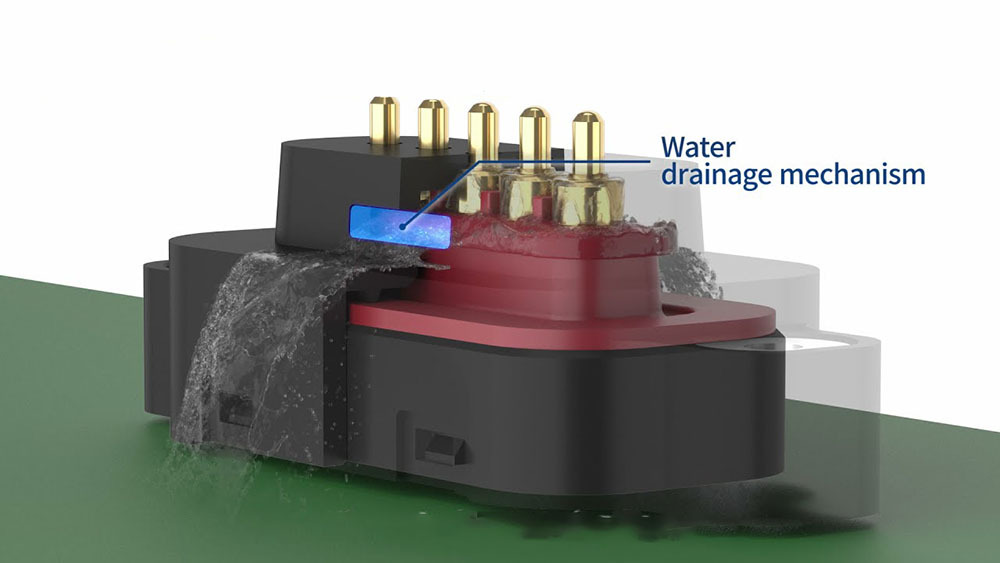

Many industries depend on pogo pins for their sensor & large machinery connections. These pins are capable of withstanding extreme conditions. Robotics, automation systems and liquid container connections mostly use these components.
Consumer Electronics

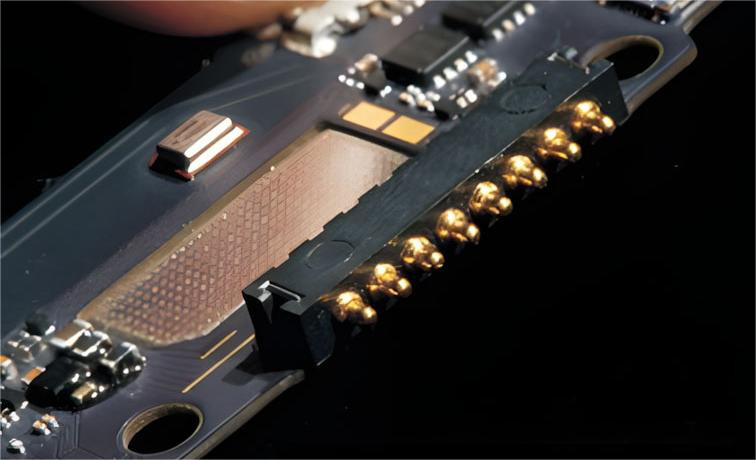

Pogo pins are largely used in consumer electronics such as laptops, smartphones, tablets and wearables. These connectors facilitate data transmission and battery connections. Due to their small size they offer high speed data transfer as well as fast charging.
Medical Equipments
Medical facilities use non magnetic pogo pins in their medical settings to perform accurate operations. These pins guarantee uninterrupted signal flow. Wearable health monitors, diagnostic tools & implantable devices mostly use these pins due to their reliable performance.
Advantages of Pogo Pins
Space Optimization
Pogo pins are very useful for small devices due to their compact design. By using them engineers can secure strong connections in medical implants, wearables and IoT devices. These pins get the best out of PCB layouts despite space constraints.
Durability
The spring loaded structure and high quality materials like beryllium copper or gold plated brass enable pogo pins to withstand millions of contact iterations. Due to their durable nature they perform consistently in high demand applications.
Flexible designs
Due to their flexible nature engineers can adjust pogo pins specifications to meet specific requirements. Available modifications include different pin lengths, spring forces & mounting styles. They can be further customized for specific applications by choosing different platings such as nickel or gold.
Mechanical Stability
These pins give strong protection against vibration and movement due to their spring loaded mechanism. They maintain reliable electrical contacts even in tough conditions due to their self-aligning feature. Due to this stability they are very important for industrial tools as well as for portable electronics.
Considerations for Choosing Pogo Pins
To get best performance in your use case it is important to carefully evaluate several factors when selecting pogo pins.
Mechanical Requirements
There are three main elements to consider when it comes to the mechanical aspect of pogo pins:
- Spring force should range from 10 and 60 g. However higher forces (30 to 60 g) are needed for applications with debris or surface oxidation.
- Stroke length should vary between 0.5 to 2.2 mm.
- You should align these specifications with the geometry & thickness of your board.
Electrical Specifications
When determining the specifications of appropriate pogo pins, consider the electrical requirements of your application. Current ratings vary depending on the size of pin— 2 mm diameter pins can handle up to 6 A of current & similarly 1 mm pins can handle up to 2 to 3 A. Make sure to check voltage requirements, current rating as well as signal integrity before making your selection.
Compatibility
Select pins based on the design parameters of your device. Features which need special attention include height limitations, available board space & expected operational lifetime. Make sure the electrical characteristics of pins match your application requirements. Choose a suitable plating material such as gold as it resists corrosion & also gives outstanding conductivity.
Environmental Considerations
Operating environment performs an important part in pin selection. Many environmental factors such as humidity levels, temperature changes & exposure to corrosive substances greatly affect the performance of a pin. To ensure reliable operation in intense environments you may need conformal coating as well as sealed connectors.
To Sum Up
In short, pogo pins are used as efficient connectors in many applications. They are ideal for testing equipment, consumer electronics as well as for industrial applications due to their characteristics like space efficiency, durability & mechanical stability.
