If your measurements change every time you reconnect a cable, the connector could be your culprit. For this purpose, precision RF connectors are used as they can help maintain stable signal dimensions and can give consistent impedance. This stability leads to accurate and repeatable results. In this blog post you’ll learn what makes these connectors unique, why they matter and how to choose the right one for your needs.
What are Precision RF Connectors
Precision RF connectors are special connectors that are designed to handle high frequency signals and they keep signal loss very low. They have a vital role in applications that demand high performance such as equipment testing and calibration.
These connectors differ from standard types as they use better materials and hold tighter tolerances. As a result they deliver steady performance even at frequencies above 100 GHz.
Key Features & Performance Metrics
Several important features set precision RF connectors apart. Their design and build quality let them perform reliably and accurately in high frequency environments.
1. Mechanical/ Dimensional Tolerance
Precision RF connectors rely on tight mechanical tolerances to achieve a perfect fit. This reduces signal reflections and keeps impedance steady. For example a precision connector may have a tolerance of only 0.003 inches while a standard connector might allow up to 0.010 inches. Even a small change in tolerance can affect impedance and create reflection.
That’s why at RICHCONN we use precision CNC equipment and in‐process inspection to keep connector bodies and threads perfectly concentric.
2. Material & Construction
Manufacturers use high quality materials to build these connectors to assure strong performance. Instead of nickel‐plated brass, you’ll see passivated stainless steel and gold‐plated beryllium copper. Their insulators are also better because they use engineering plastics like PEEK or Ultem.
3. Electrical Performance
Precision connectors can work perfectly at very high frequencies; often above 40 GHz and sometimes reaching 110 GHz. They keep signal reflection (VSWR) low and insertion loss minimal. Most models hold a steady 50 Ω impedance which helps transmit signals cleanly.
4. Durability & Reliability
Manufacturers design precision connectors for repeated use. These connectors can go through thousands of mating cycles and still perform well. This reliability is vital in lab testing and other situations where frequent connections and disconnections happen.
5. Inter-Mateability & Standardisation
Strict industry standards, such as IEEE Std. 287.1-2021, guide the design of precision connectors. Following these standards assures compatibility. For example connector families like 3.5mm and 2.92mm can connect with each other which benefits mixed‐system setups.
6. Environmental/ Mechanical Features
Many precision RF connectors can handle demanding environments. They resist vibrations, extreme temperatures as well as moisture. Because of these features, they work well both in the field and in controlled lab settings.
Common Uses & Applications
1. Test & Measurement/ Calibration Labs
Test and measurement labs require high accuracy. Precision RF connectors have a key role in calibration setups and high performance devices such as network analyzers. They provide stable and reliable connections; and this assures precise & repeatable measurements with little signal loss.
2. High Frequency Communications & Mm Wave Systems
Modern high speed communication systems depend on these connectors. They appear in 5G networks, Wi‐Fi equipment as well as in satellite communication systems. Their ability to handle millimeter‐wave (mm Wave) signals keeps data transmission clear and fast with minimal interference.
3. Aerospace, Defense & Military Systems
Aerospace and defense systems use precision RF connectors for critical tasks. These connectors are used in radar, navigation and military communication equipment. Their strong construction lets them endure harsh conditions such as strong vibrations and extreme temperatures.
4. Semiconductor Test/ High Speed Digital Interfaces
Testing semiconductors needs precise signal management. These connectors help check chip performance and test high speed digital circuits. They also help maintain strong signal integrity which is necessary for building fast and reliable electronic devices.
5. Industrial, Automotive, IoT & Other Specialized Environments
Precision RF connectors support communication in many settings. Smart factories and modern vehicles are also one of them. They are found in automotive systems, industrial robots and a range of IoT devices. Their sturdy construction allows dependable data transfer, even in harsh or demanding environments.

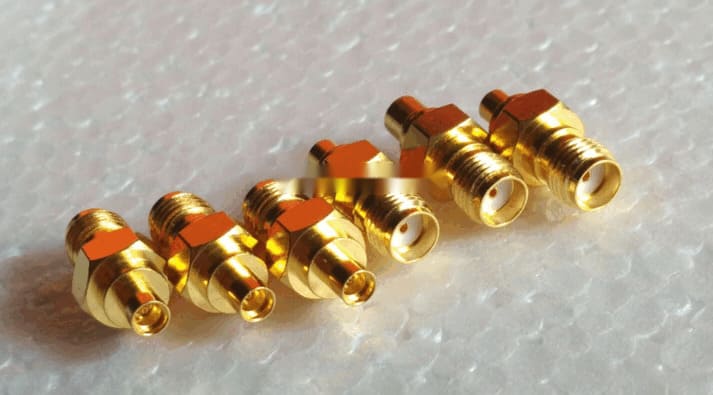

When to Choose a Precision RF Connector
Select a precision connector in the following situations
- When your application involves high frequency signals—normally from 40 GHz up to more than 100 GHz.
- If your design needs a very low Voltage Standing Wave Ratio (VSWR) to reduce signal reflections.
- For use cases that demand extraordinary repeatability through many mating cycles.
- In test and calibration labs where you need precise measurements.
Trade‐Offs of Choosing RF Connector
Cost is the main drawback. Precision connectors cost more because they use premium materials—such as passivated stainless steel— and must meet stricter tolerances. Moreover they need careful handling to prevent damage.
Making the Right Decision
Let your application’s requirements determine your choice. Use a precision connector if you work in a calibration lab and need top accuracy. For standard cable connections, a regular connector is more suitable. Always weigh your performance needs against your budget before deciding.

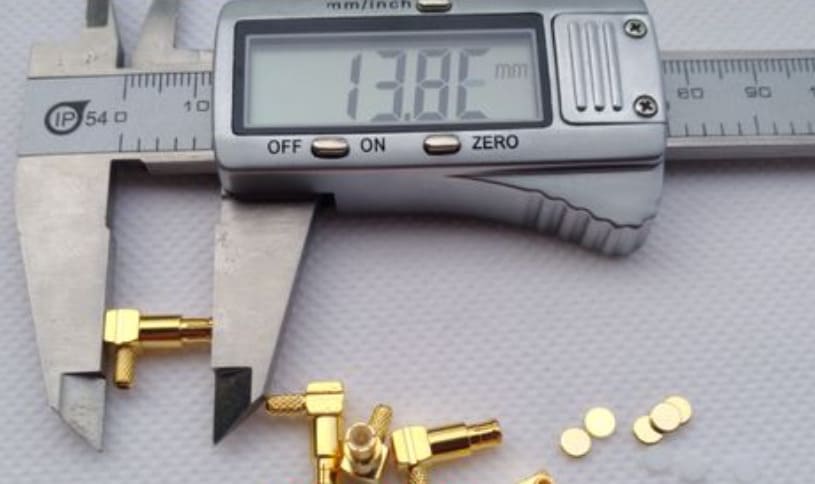

Selection Tips: How to Choose the Right Precision RF Connector
Selection of the correct precision RF connector is fundamental for achieving top performance. Use these steps to identify the best component for your high frequency needs.
Define Your Application Requirements
Start by identifying your project’s exact requirements. Check the operating frequency range, the power levels involved as well as the environment where the connector will operate. By clarifying these factors, you can choose a connector that works reliably.
Before finalizing drawings, RICHCONN’s engineers can review your materials, finish specifications and mechanical limits to make sure your connector design will perform consistently.
Match Impedance & Interface Type
Check that the connector’s impedance, normally 50 or 75 ohms, matches your system. This prevents signal reflection and loss. Pick the right interface type, such as SMA or N‐Type, to assure it fits with your other components.
Material & Mechanical Considerations
Look closely at the connector’s construction. Stainless steel provides strong durability while gold plating offers high conductivity. Also review the mating cycle rating to know how many times you can connect and disconnect the part.
Connector Performance Metrics
Evaluate important performance numbers. A low Voltage Standing Wave Ratio (VSWR) and low insertion loss both help reduce signal degradation. These values show the connector’s electrical quality and efficiency.
Standardization & Compatibility
Select connectors that meet industry standards like MIL‐SPEC. This assures they will work with other standard equipment and components. Using standardized connectors also makes system design and future upgrades easier and more dependable.
Practical Installation & Maintenance Tips
Install connectors carefully to maintain performance. Use the correct tools and tighten them to the recommended torque. Also clean and inspect connectors regularly to keep connections reliable and free from dirt or damage.
Cost vs Value
Precision connectors are priced at two to five times more than standard options. However they deliver greater durability and higher performance. Consider both your budget and the long term value these connectors provide for your application.
Below is a table that outlines important criteria to select precision RF connectors:
| Criteria | Key Considerations |
| Frequency Range | Confirm that the connector supports your operating band—up to 110 GHz for precision types. |
| Impedance | Make sure the connector matches 50 Ω or 75 Ω system requirements. |
| Interface Type | Select the right connector family such as SMA, 3.5 mm or 2.92 mm. |
| Material | Use gold, stainless steel or PEEK/ Ultem for durability & corrosion resistance. |
| Mechanical | Check mating cycle ratings and resistance to vibration or shock. |
| Performance | Look for VSWR below 1.2, low insertion loss and reliable repeatability. |
| Standards | Assure compliance with IEEE or MIL specifications and confirm intermateability. |
| Maintenance | Apply correct torque, keep connectors clean and use dust caps. |
| Cost vs Value | Weigh the price against the required performance and expected lifespan. |
Also See: A Complete Guide on Connector Manufacturing
To Sum Up
High frequency systems rely on precision RF connectors. Their advanced design maintains signal integrity where standard connectors cannot. Because of this they have a key role in test setups, aerospace equipment and in 5G technology. For custom, high precision connector components you can trust RICHCONN for expert CNC machining services. Feel free to contact us at any time.
Related Questions
A precision RF connector uses stricter mechanical tolerances and higher quality materials. It is built to deliver reliable, repeatable performance at high frequencies particularly in test environments.
Precision connector series mostly have 3.5 mm, 2.92 mm (K), 2.4 mm, 1.85 mm (V), 1.35 mm, 1.0 mm and the older APC‐7 (7 mm) type.
Some types such as 3.5 mm and 2.92 mm are made to fit with standard SMA connectors. However this practice is not always recommended.
Choose connectors with passivated stainless steel or gold‐plated beryllium copper bodies, precision BeCu contacts and high performance dielectrics like PEEK or Ultem.
Yes precision RF connectors are more expensive. Higher cost comes from tighter tolerances, superior materials and the complicated processes needed for high frequency performance.
