Do you often experience setup limitations, slow manufacturing or a need to reposition components? 4‐axis CNC machining offers a solution to all these issues as it can manage detailed cuts with fewer setups．
In this guide we will look at how a four-axis machine works and what the workflow is. Along with this we will also look at its advantages in terms of accuracy & cost as well as its applications in different industries.
What Is 4-Axis CNC Machining?
Basically 4-axis machining is a type of cnc machining, in which there is an extra ”A-axis” in addition to the normal three axes (i.e X, Y and Z). The A‐axis allows material blocks to rotate around the X‐axis. The machine moves on the X, Y & Z axes while also rotating the component. This setup supports multi‐face machining and the creation of highly detailed shapes without having to move the part to a different position.
Main Types of 4-Axis CNC Machining
Engineers use multiple types of 4‐axis CNC machines to meet various manufacturing requirements. Each configuration will give you different benefits depending on workpiece shape and specific use case.
3+1 Axis CNC Machine
A 3+1 axis machine moves three linear axes at all times. The fourth axis, which rotates, only positions or indexes the workpiece and does not rotate during cutting. It moves between programmed angles but remains stationary during machining. This makes it less expensive than fully coordinated 4‐axis systems and still gives users reach to different faces of a workpiece.
4-Axis Horizontal CNC Machining
Horizontal 4‐axis centers use a horizontally positioned spindle and add a B-axis for rotation. The cutting tool works from the side, not from above. This layout enhances rigidity and permits for faster material removal than vertical machines.
4-Axis Vertical CNC Machining
Vertical 4‐axis machines have a downward pointing spindle and an A‐axis rotating around the X‐axis. The workpiece sits on a tilting table and rotates as needed while spindle cuts from above.
4-Axis CNC Milling Machines
Conventional 3‐axis mills are converted into 4‐axis machines by incorporating an A‐axis that rotates around X‐axis. This additional axis gives machine the ability to cut both the back & front of the part. Engineers can create highly detailed shapes at multiple angles without having to move the part by hand.
Richconn’s multi‐axis milling employs a broad range of cutting tools. This functionality allows us to work on a variety of materials, i.e., from carbon fiber composites to titanium alloys.
4-Axis CNC Lathes
4‐axis lathes incorporate milling features to traditional turning machines through a power tool spindle. The C‐axis allows the component to rotate at particular angles; and live tooling allows for off‐center cuts to be made. These machines can make intricate objects such as cam profiles and gears in a single setup.
4-Axis CNC Routers
A 4‐axis CNC router can tilt the spindle up to ±90° which allows it to cut at different angles to make 3D shapes. These routers can work on foam, wood, plastic and soft metals. They are suitable for mold making, deep carving as well as sculpting. The working area usually ranges between 4×8 feet to 6×12 feet, and the Z‐axis can advance up to 600mm.
Procedure Workflow: From Designing Phase to Finished Component
Converting a digital design into a finished part needs multiple accurate steps. Every step relies on its prior step. This sequence maintains efficiency and quality in 4‐axis CNC machining.
Design Phase
Operators start by creating a 3D model of the part. They use Computer‐Aided Design (CAD) software such as AutoCAD or SolidWorks to define the dimensions, geometry and features. This digital blueprint includes all details required for production. It creates the basis for every step that comes after.
CAM Programming
After designing, the CAD model is loaded into Computer‐Aided Manufacturing (CAM) software. The CAM program translates the design into G-code instructions. These instructions manage the spindle speeds, tool paths and rotary motions of 4‐axis machines.
Setting up Machine
Engineers set up 4‐axis machine before machining starts. They attach material block, install cutting tools and synchronize coordinate system. Calibration of 4th axis needs a high level of precision, for which laser alignment tools or dial indicators are usually used. Tool diameters & lengths must be measured to within 0.0001″ to preserve strict tolerances.
At Richconn our technicians use calibration tools as well as custom fixtures for setup. This method provides great results for all materials, e.g., reinforced plastics and aluminum.
Machining & Supervising
Once setup is complete, the 4‐axis CNC machine starts cutting according to programmed G-code. The rotary axis and spindle work together to shape component. Engineers supervise spindle loads, precision and temperature through real‐time sensors.
Post-processing
After machining is complete the parts are deburred to correct surface imperfections and polishes away sharp edges. This is followed by quality inspection in which dimensions are checked using optical scanners or coordinate measuring machines. The procedure finishes with final cleaning and packaging before the parts are shipped to clients.

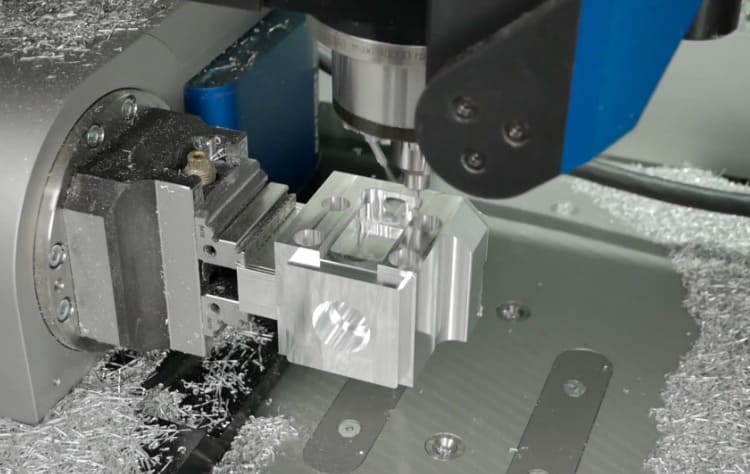

Benefits of 4-Axis CNC Machining
Improved Tolerance & Precision
Errors are reduced due to the need for fewer setups. 4‐axis systems can achieve tolerances of up to ±0.005 mm. This level of accuracy guarantees that parts will be consistent and precise. Manufacturing quality is increased and scrap rates are decreased.
Single-setup Machining
A 4‐axis CNC machine can work on multiple sides of a part in a single setup. This method decreases manufacturing time by 40%. Fewer setups also means that there will be less probability of human errors. No matter how intricate the parts are, the workflow stays consistent.
Functionality to Create Angled Features
The fourth axis lets the machine cut bevels, holes or slots at various angles. It becomes very easy to make features at 45°, 60° or custom angles. This functionality is specifically beneficial for medical & aerospace components with intricate shapes.
Adaptability in Different Sectors
Different sectors such as automotive, aerospace, jewelry and medical employ 4‐axis CNC machines. These machines can easily cut turbine blades, bone plates, gearbox housings and decorative rings. They can work on a variety of materials, i.e., from aluminum to titanium.
Cost-efficiency in Comparison to 3-axis & 5-axis
4‐axis CNC machining provides a balance between intricacy and cost for mass production. It runs faster as compared to 3-axis machines. At the same time it is more economical than majority of 5‐axis solutions for several industrial operations.
Richconn’s 4‐axis machining services offer clients with this budget‐friendly choice. Moderate‐to‐complex components can be manufactured without paying expensive price of 5‐axis machining.
Challenges and Limitations
Even though 4‐axis CNC machining gives multiple benefits, it also has many limitations that engineers must think about before investing.
Increased Machine & Setup Expenses
The choice of a fourth axis raises investment expenses by approximately 25% to 35% in contrast to comparable 3‐axis centers. The requirement for additional rotary tables, fixtures and CAM post‐processors when needed, raises tooling expenses.
Geometric Parameters
A‐axis allows for rotation in one plane. For this reason components that need two coordinated tilts, such as parts with compound curves or overhangs, still require 5‐axis machine. Pockets or deep undercuts, deeper than 180°, cannot be made with a 4‐axis setup.
Advanced Programming and Need for Expertise
The addition of a rotary axis multiplies the number of tool‐path variables. Tuning of CAM software, safe‐start blocks as well as post‐processors becomes more challenging. Several shops have to send their staff for five‐day external training or they have to hire expert programmers which can increase labor expenses by 15% to 20%.
Still not as Adaptable as 5-axis
The A‐axis can only rotate the workpiece but it cannot tilt the tool itself. Making undercuts longer than the length of cutter or making sculpted impeller blades still demand simultaneous B‐axis or C‐axis movement. In these scenarios true 5‐axis machines are better as they remove one or two additional setups.
4-Axis vs 3-Axis & 5-Axis: A Comparative Summary
Analyzing 3‐axis, 4‐axis & 5‐axis CNC machining facilitates operators to pick the most suitable technology for their requirements. This summary identifies the main aspects that impact operation results as well as the choice of machine.
| Feature | 3-Axis | 4-Axis | 5-Axis |
|---|---|---|---|
| Component intricacy | Manages basic prismatic shapes | Machines moderate curves & angled faces | Machines undercuts and finely sculpted 3‐D forms |
| Axes of movement | X, Y, Z | X, Y, Z, one rotary axis (A/B) | X, Y, Z, two rotary axes (A/B, C) |
| Obtainable tolerance | ±0.05 mm usual | ±0.01 mm common by decreasing setups | ±0.005 mm or stricter on main parts |
| Setup demands | Needs multiple re‐clamps | Usually one setup for four sides | Single clamp for almost every part detail |
| Coding | Straightforward, easy to learn | Normal, rotary axis requires skill | Difficult, complex toolpaths |
| Use cases | Basic brackets, jigs, plates | Manifolds, gears, multi-side housings | Medical implants, aerospace blisks, impellers |
| Price | Lowest ($20k to $70k) | Middle ($50k to $200k) | Highest (more than $200k) |

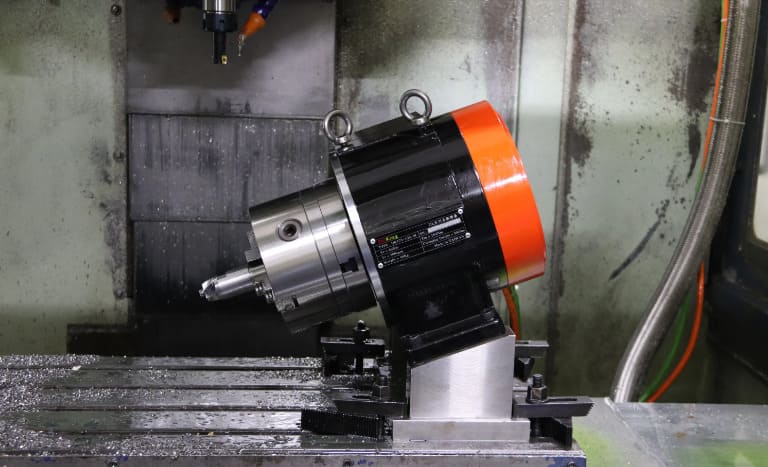

Common Use Cases in Multiple Industries
Cam Profiles & Gears
4‐axis machining can easily manage intricate cam profiles & gear teeth. The rotating axis allows machines to cut complex helical patterns and tooth shapes that 3‐axis machines cannot create. Automotive companies use this approach to produce differential components, transmission gears as well as timing mechanisms.
Cylindrical/drum-shaped Components
Engineers employ 4‐axis machines to produce cylindrical components that need features along the curved faces. The A‐axis rotates which makes it possible to machine sleeves, shafts and drum‐shaped parts without stopping. This method is broadly used for making turbine rotors, engine camshafts and hydraulic cylinders.
Low-volume & Fast prototyping
4‐axis CNC machining works great for short production runs and fast prototyping which can range between 10 to 10,000 pieces. This approach reduces expenses which provides flexibility and permits rapid design adjustments. It also works great for market launches, medical trials and new product designs into industry.
Industrial Parts
Several industrial fields depend on 4‐axis machining for parts such as valves, brackets and structural features. The oil & gas industries need accurate pipeline fittings and valve bodies that must comply with stringent standards. Medical device manufacturers also employ 4-axis machines to make implants, surgical tools and prosthetic parts.
High-accuracy Runs
Engineers pick 4‐axis machines for high‐accuracy work that requires strict tolerances on many surfaces. Medical device manufacturing can reach precision levels of ±0.0001″ for orthopedic implants & surgical tools. Optical components as well as electronics housings can also benefit from it because single‐setup machining decreases handling mistakes.
To Sum Up
4‐axis CNC machining provides manufacturers the best combination of affordable cost and premium features. This approach decreases setup time, boosts accuracy and also manages part shapes that 3‐axis machines cannot produce. Meanwhile it is more affordable than 5-axis models.
If you need any kind of CNC Machining services – 3, 4 or even 5‐axis – then richconn is your best option. You can contact us anytime.
Related Questions
Picking 4‐axis machining system can reduce expenses by 30% to 50% in comparison to 5‐axis machines. They provide appropriate level of detail for many tasks, require less maintenance and demand less coding which makes them a lot easier to utilize.
In indexing 4‐axis machining, A‐axis rotates at a certain angle and then locks before cutting begins. Whereas continuous 4‐axis machining permits all four axes to move at the same time when performing a task.
In vertical 4‐axis machining setups, spindle operates from above and A‐axis rotates around X‐axis. Whereas in horizontal 4‐axis machining setups, spindle operates from the side which facilitates clear chips quicker and permits for a higher rate of material machining.
4‐axis machines are typically 40% to 60% more expensive than comparable 3‐axis models. However they increase precision, decrease setup time and reduce the requirement for many fixtures which makes them a wise investment for highly detailed components.
Yes, 4‐axis CNC machines provide comparatively great precision. They demand fewer setups, obtain stringent tolerances and decrease errors on components with multiple sides.
No, not every 4‐axis CNC machine can control all axes at the same time. Only continuous 4‐axis models provide this feature. In indexing type it is necessary to stop rotational axis before cutting.
