A coupling is a mechanical component that links two shafts together in order to transfer energy from one shaft to other. It is an important part of rotating systems to transmit torque and motion while protecting the connected parts. During power transmission, couplings can absorb shock, vibration and heat due to which they are important in many mechanical applications.
8 Types of Couplings
Different types of couplings are designed to meet different industrial needs. Every type has its own characteristics suited for particular use. In mechanical devices, following are the usual coupling types which are used.

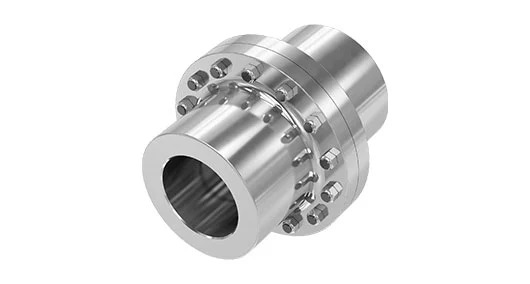

1. Rigid Couplings
A rigid coupling is used to join two shafts together where there is no room for movement. Apart from precision and perfect torque transmission, these couplings are good for applications where the alignment of shafts is perfect. Sleeve (muff) and flange are classical examples of these couplings. Despite being cheap and easy to design, rigid couplings need perfect alignment and cannot absorb vibrations or deal with misalignment.

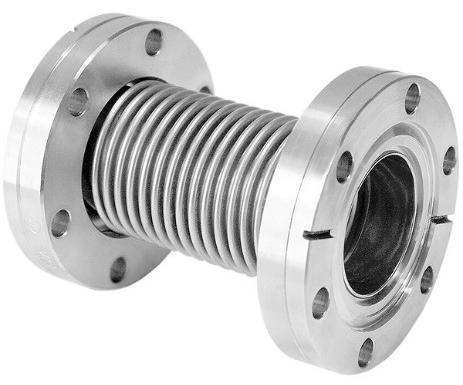

2. Flexible Couplings
Flexible couplings are made to transfer torque even if different types of misalignment of the shafts are present. They can be divided into two groups: metallic ones and those with flexible elements. These types of couplings can deal with parallel, axial, and angular misalignment while at the same time minimizing the vibrations and shock loads. They usually have less torque transfer than rigid couplings but their flexibility allows them to absorb the displacement which makes them good for applications where perfect alignment is not too easy to maintain.

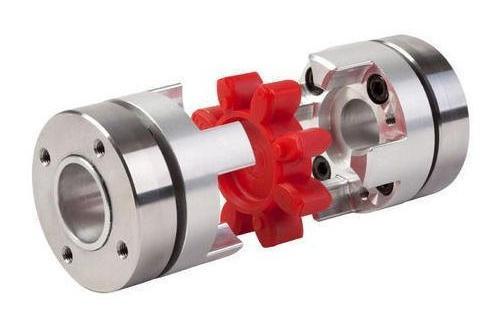

3. Jaw Couplings
Jaw couplings are composed of two metallic hubs and an elastomer insert called a “spider.” It transmits torque while dampening system vibrations and handling misalignment. The spider can be made of different materials with different hardness to suit particular use cases. A notable advantage of these couplings is their fail safe nature. Because in case the elastomer fails, even then the jaw coupling hubs will mesh and transmit torque.

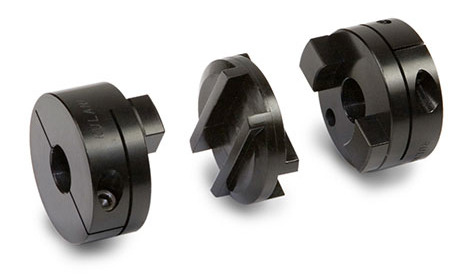

4. Oldham Couplings
Oldham couplings have a three piece design: two hubs made of aluminum or stainless steel and a center disk. These couplings are designed for applications that require precise motion control and zero backlash. Their operation is based on sliding motion between the center disk and hubs, so they are ideal for managing parallel misalignment. Their compact size and the possibility of electrical isolation through the plastic center disk make them popular in servo driven systems.

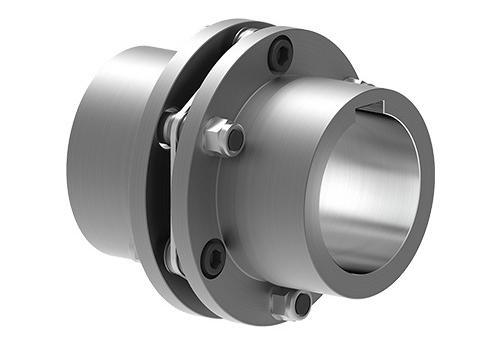

5. Disc Couplings
Disk couplings consist of thin, flexible metal discs to transmit torque between two shafts. They are made up of two hubs and stainless steel disk packs that are linked through the use of several bolts around a common circle. These couplings are really the best for high performance use cases and can reach speeds up to 10,000 RPM. Their maintenance is also easy as they don’t require lubrication and can be inspected without disassembly. Industrial machines like blowers, pumps and compressors mostly use disc couplings where precise motion control is important.

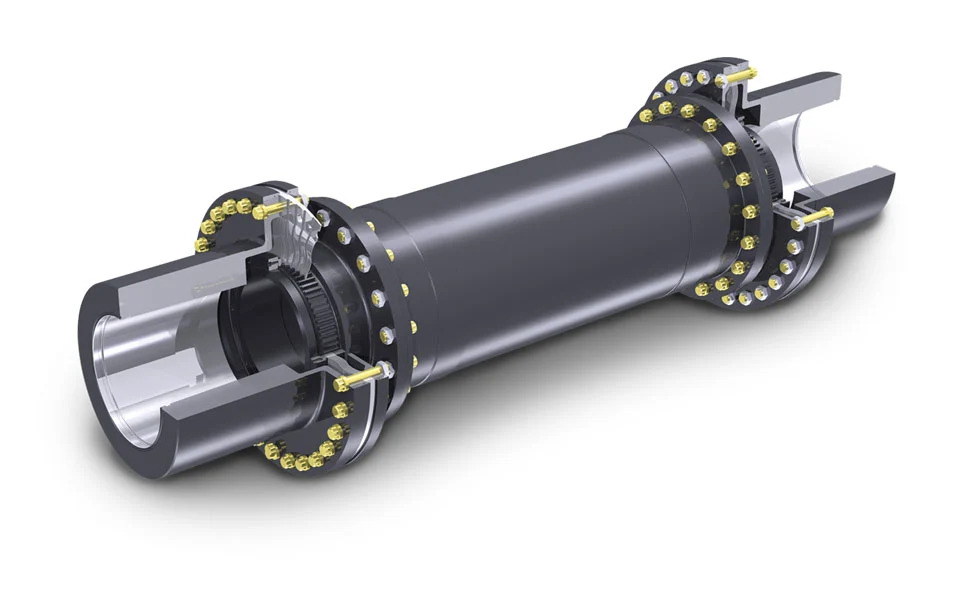

6. Diaphragm Couplings
A conical metal diaphragm is the main component in diaphragm couplings which connect the driving and driven shafts. They give high torsional stiffness and no backlash. This makes them suitable for high precision applications. The diaphragm’s design is such that it can move and absorb misalignment while still assuring regular torque transmission. They are normally used in aerospace, high-speed turbomachinery and precision equipment that require faultless performance.

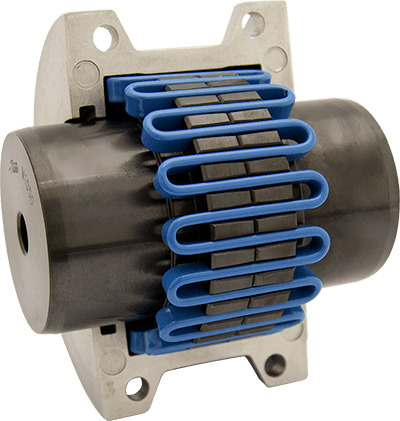

7. Grid Couplings
Grid couplings have a flexible spring steel grid element which is positioned between the teeth of two hubs. These couplings decrease vibration by up to 30% and cushion shock loads successfully. The grid spring element works by spreading the impact energy over time so the peak loads are reduced by gradual contact between the grid and hub teeth. Grid couplings are good for torque transmission and vibration damping but have limited misalignment capability and require regular lubrication.

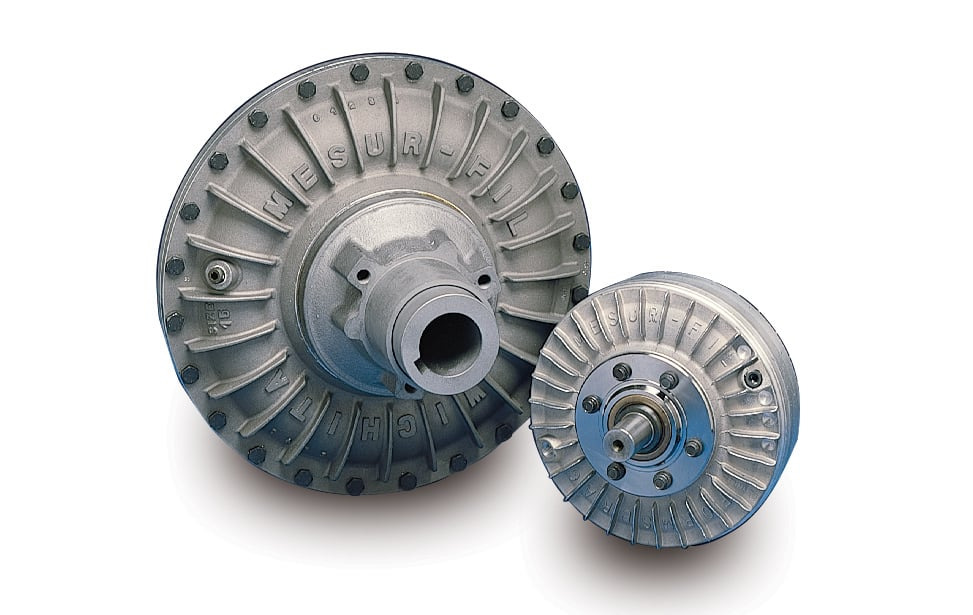

8. Fluid Couplings
Also known as hydraulic couplings, fluid couplings transmit power through a liquid medium between an input impeller and output turbine. They provide smooth power transmission without direct mechanical contact, so they are suitable for applications that need soft starts and controlled acceleration. Heavy machinery like crushers, conveyors and pumps mostly use these couplings to protect the equipment from shock loads and to provide overload protection. Fluid couplings can handle high torque loads while permitting controlled slip between input and output shafts.
Importance of Couplings in Mechanical Systems
Couplings perform many primary functions in the mechanical system which is why they are so important. In this section, we will cover the main purposes of coupling.
Power Transmission
Couplings transmit power and torque between connected shafts. They assure energy flows smoothly from driving units like motors to driven components like compressors or pumps. This smooth transmission maintains constant rotation speed and operation proficiency.
Accommodation of Misalignment
Couplings are capable of dealing with the different kinds of shaft misalignment like axial, parallel and angular. The fact that it can handle this is very important because, in reality, it is not always possible to achieve the ideal shaft alignment. Therefore, couplings can be used to guarantee that bearings and other components are not subjected to excessive wear.
Vibration Damping and Shock Absorption
Advanced coupling designs can dampen system vibrations and spread the impact energy over time. This protects the connected machinery from sudden load changes and decreases noise which improves performance and increases equipment life.
Protection Against Overloads
Some couplings have built in safety features that act as a mechanical fuse for the system. These designs allow the coupling to slip or disconnect when torque exceeds safe limits. This protection saves the expensive equipment from damage during overload conditions.
Ease of Maintenance and Assembly
Couplings make shaft connection and disconnection easy by simplifying maintenance and repair. Many designs allow inspection without disassembly which decreases downtime and maintenance costs in industrial applications.
Common Uses of Couplings
Couplings are used in many industries to connect different parts of mechanical systems. Let’s see how they are used in these sectors.
Industrial Machinery

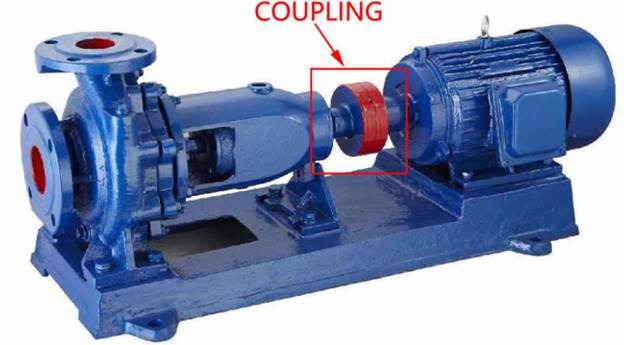

In manufacturing plants, the motors are connected to different types of equipment like pumps, compressors, and conveyor systems by means of couplings. They promote constant power flow and protect the costly equipment from vibrational damage and misalignment. Besides that, these couplings are even more valuable in processing operations where very stable work is the main requirement.

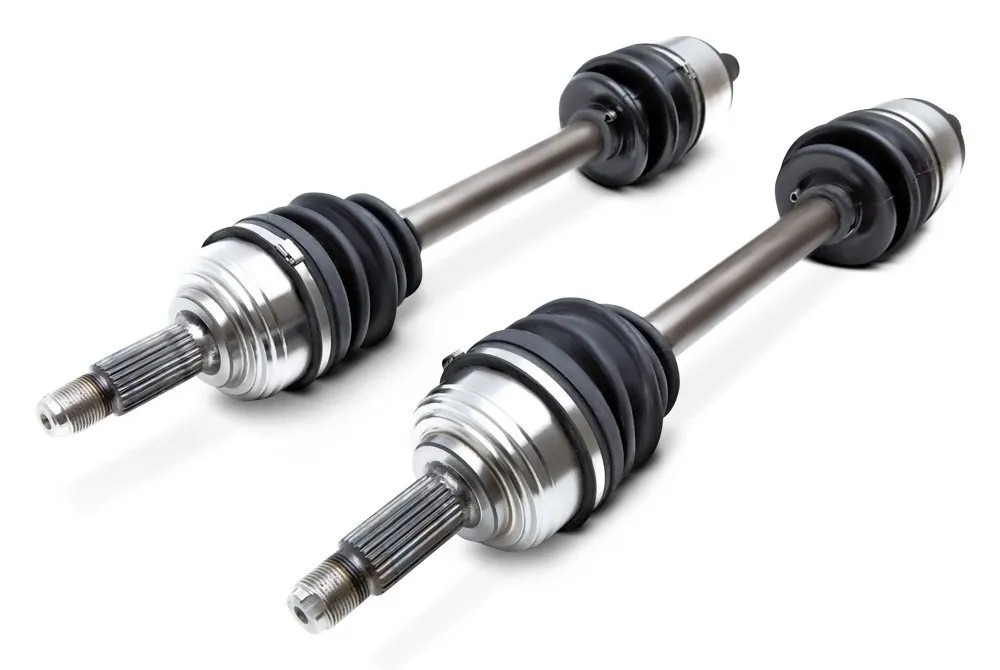

Automotive Industry
Cars and trucks use couplings in driveshafts, steering systems and transmissions. They transfer power smoothly from the engine to the wheels and decrease road shock and vibration. This gives better vehicle performance and long lasting components.

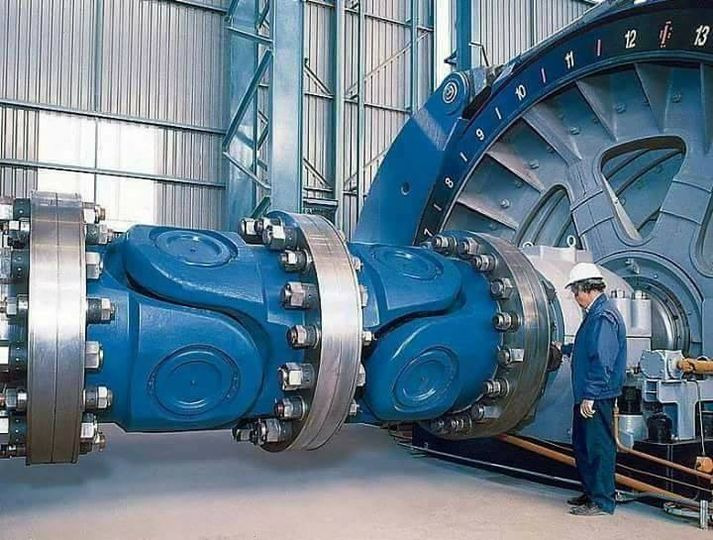

Power Generation
Couplings are used in power plants to connect turbines, generators and other equipment. They link power sources to generators and can handle high torque loads. Wind turbines in particular need couplings to transfer energy from the spinning blades to the generator.
Marine Applications
Marine propulsion systems attach the engines to the propellers using special couplings. These are customized with the intention of withstanding the harsh ocean conditions while transferring power successfully. Their designs incorporate corrosion-resistant materials such as stainless steel which assures long-lasting operations in saltwater environments.

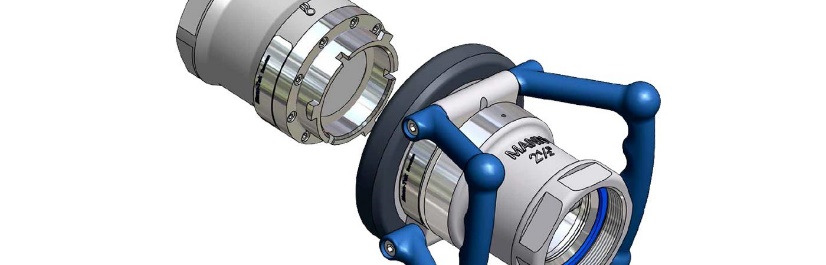

Aerospace Industry
In aircraft and spacecraft, couplings link or connect the different systems such as the engines to the gearboxes. These couplings have to be high-precision ones in order to maintain accurate alignment. The aerospace industry uses couplings for both power transmission and synchronizing systems.
How to Choose the Right Coupling?
Picking the right couplings needs that you think about some important things. First, find the motor’s horsepower and RPM at the coupling point. Then, look at the operating environment, such as chemical exposure possibility and temperature conditions.
The area for the installation and the type of misalignment system can experience should also be a deciding factors. Check the shaft sizes and the space between them to make sure they are of the proper size.
Last step is to analyze the application’s particular needs, for example, whether the operation will be continuous or intermittent and any special operating conditions that could impact the working. These things together will give you the needed information to select the most appropriate coupling.
To Sum Up
Couplings play an important role in the manufacturing, automotive and many other industries as they decrease vibration, transmit power and protect devices from overload. There are many types available, therefore it is necessary that you pick the correct one so that your machine can work as intended. Contact RICHCONN for advice on the right coupling for you.
FAQs
Can coupling handle misalignment between shafts?
Yes, many couplings, particularly flexible ones, can handle different kinds of misalignment between shafts.
Which materials are used to make couplings?
Couplings are made from different things like, plastics, steel, aluminum and brass. Their selection is done according to the needs of the application.
What is the difference between a coupling and clutch?
A coupling permanently connects shafts while a clutch is the device which only permits temporary engagement or disengagement of the power transmission system.
How routinely should couplings be inspected and maintained?
Couplings should be checked every two or three months and fully inspected once a year. The regular maintenance, that includes the cleaning and lubricating of the couplings, depends on the working conditions.
What are some signs of coupling failure?
Look for unusual noises, excessive vibration, oil leaks and visible damage to coupling parts.
