How do manufacturers in the semiconductor industry assure that every chip fulfills strict quality standards prior to packaging? Test probes are important at the wafer test stage. They help identify defects early and only move forward with functioning dies. In this blogpost you will learn how test probes contribute to semiconductor manufacturing’s excellence.

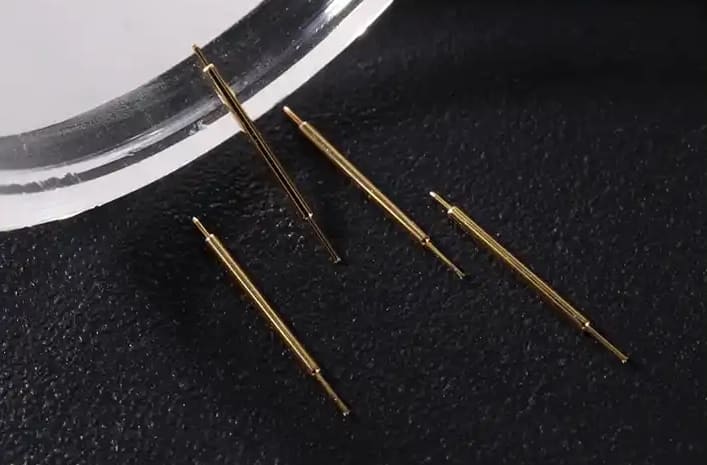

What are Test Probes?
Test probes are tiny devices which temporarily connect to semiconductor wafers. They send electrical signals to the device under test (DUT). After this they measure and record DUT’s response for analysis. Moreover automated test equipment (ATE) also uses these probes to simplify testing.
Types of Test Probes Used in Semiconductor Manufacturing
In semiconductor testing different probe types are needed based on device structure and testing needs. Every probe type, from conventional needle probes to modern MEMS probes, has its own benefits for semiconductor manufacturing.

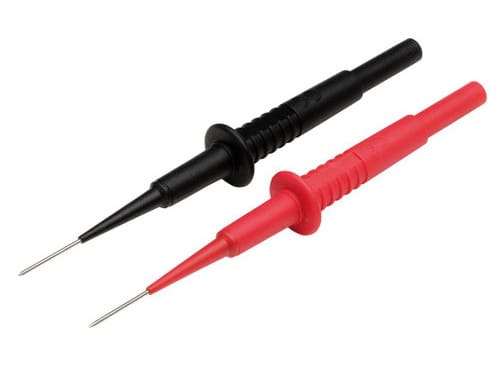

1. Needle Probes
Needle probes are conventional contact probes with fine beryllium or tungsten tips. They make physical contact with wafer pads to send and receive electrical signals. These probes are affordable and used in low frequency tests. However repeated use can damage wafer pads.

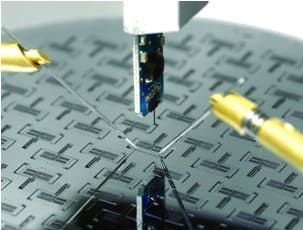

2. MEMS Probes
Micro‐Electro‐Mechanical Systems (MEMS) probes are precision manufactured using semiconductor fabrication methods. They give high accuracy and consistency. MEMS probes are best for advanced fine pitch probing applications. Also these probes are durable and give high repeatability in testing.

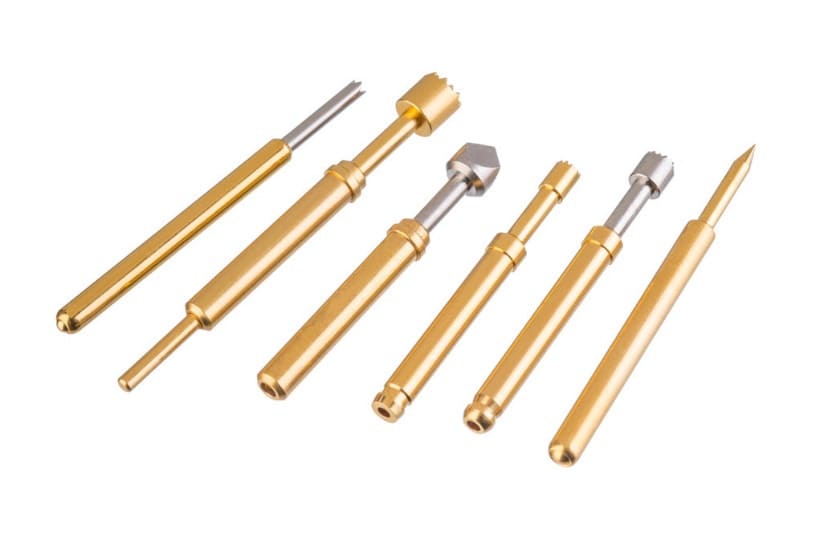

3. Vertical Probes
Vertical probes are designed for fine pitch and high pin count applications. They form perpendicular contact with wafer surface which reduces signal loss and contact resistance. These probes are used for memory and high density system‐on‐chip (SoC) testing. They assure higher stability and accuracy during tests.

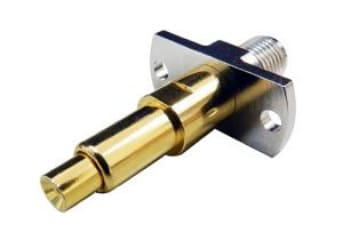

4. RF Probes
RF probes are designed to test high frequency signals for microwave and RF applications. They minimize signal distortion which is important for testing wireless communication chips. RF probes can work up to 220 GHz which makes them necessary for 5G and future applications.

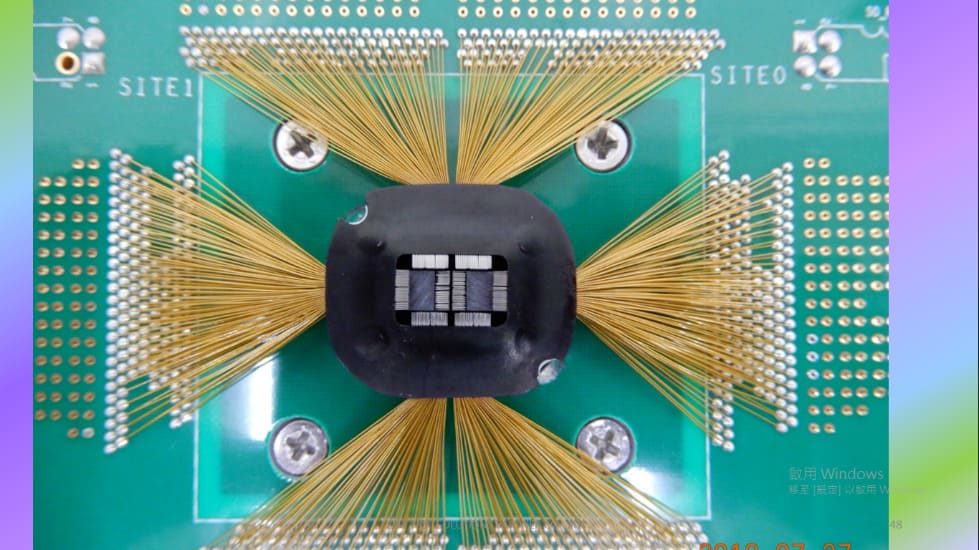

5. Cantilever Probes
Cantilever probes are horizontal probes which contact wafers at an angle. They are perfect for probing small and delicate semiconductor parts. These are mostly used in wafer level testing particularly on fragile semiconductor surfaces.
6. U Probes
U Probes have U shaped contacts which assure gentle and homogenous wafer surface contact. Since they are non destructive you can use them to test delicate medical electronics or fragile wafers. Stable quality of contact provided by U Probes give you better accuracy in test results.

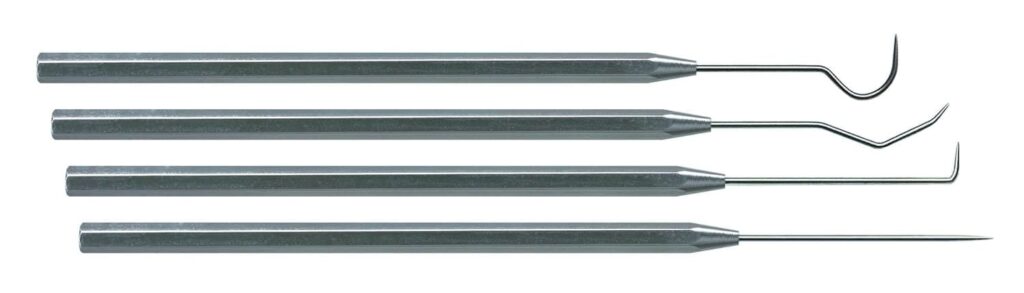

7. SP Probes
Manufacturers design Special Precision (SP) probes for those measurements which need high sensitivity and accuracy. You can use these probes for applications which need precision like automotive sensor testing. These probes have contacts which are durable and flexible; thus you can test for hours without sacrificing accuracy.

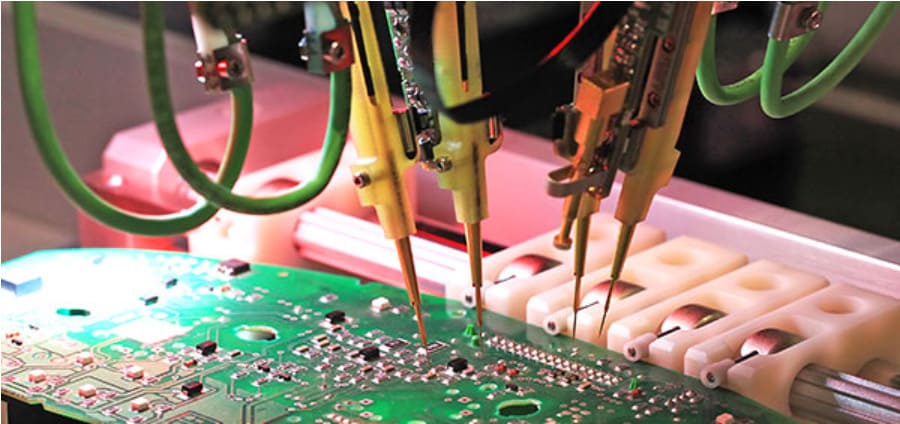

8. PCB Probes
PCB (Printed Circuit Board) probes are used to make electrical connections with the test points on PCB. These are an economical solution and keep stable signals during standard testing. You will find PCB probe cards used for mass produced semiconductor devices particularly in consumer electronics.

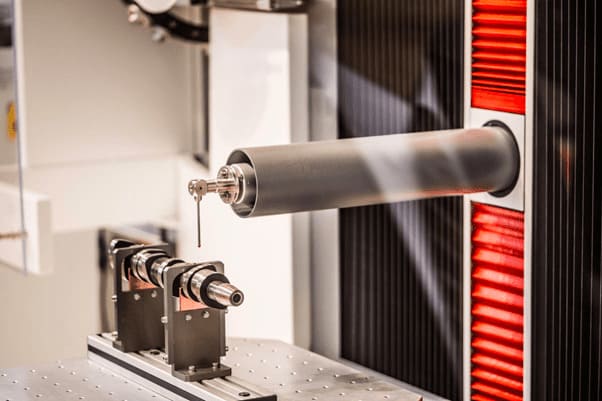

9. Non Contact Probes
Non contact probes communicate wirelessly with the device under test using miniature RF antennas. They don’t make physical contact at all which helps you prevent damage and contamination. Plus they can transmit data faster. You can use them to test devices which are sensitive to contamination or mechanical stress.
Testing frequency, device architecture and contact needs are some main things to keep in mind when you have to choose a probe type because every probe type contributes to your testing yield and accuracy as well.
Use of Test Probes in Wafer Testing
Wafer testing is an important step in semiconductor manufacturing as it is the first time devices are verified. Test probes are key during wafer testing. They not only encourage accurate signal transmission but you can detect defects early on.
Test probes do a number of roles like:
Electrical Interface
They connect every die on the wafer electrically to the automated test equipment (ATE).
Defect Identification
These electrical responses will guide you to find out defective dies early in the manufacturing cycle.
Signal Transmission
Test probes send test signals to the device under test (DUT) and capture response signals for functionality evaluation.
Data Collection
Test probes support the collection of functionality data which you can use for process monitoring and continuous improvement.
Yield Increment
Detecting faults at this early stage not only lets you remove defective chips before packaging but increases yield too.
Quality Assurance
Only fully functional dies move forward to packaging so you can make high quality products.
Integration with ATE
Test probes integrate with ATE systems to automate your testing process for proficiency and stability.
Parts used in Probe Testing
Probe testing needs a number of parts and every part has a particular function in the testing process.
Probe Cards
These assemblies have multiple test probes. They connect to ATE systems and help with signal transmission.
Load Boards and DUT Boards
These additional parts increase signal integrity. They condition signals between tester and probe card.
Wafer Probes
These robotic platforms move and align wafers. They assure precise contact between wafers and probes during testing.
Micro manipulators
These instruments adjust the position of probes. Precise alignment with tiny contact pads depends on these devices.
Chucks
These platforms don’t let your wafer move during testing. Moreover they mostly have a temperature control system for thermal testing.
Why Test Probes Matter in Semiconductor Industry
Test probes do many important things in semiconductor manufacturing:
Early Failure Diagnosis
Test probes detect faulty dies early in the wafer test. This not only blocks defective chips from going into the package but saves resources too.
Cost Savings
Early fault detection saves the cost of assembling and prevents packaging faulty or damaged parts. That’s a big cost savings.
Data for Process Improvement
Test probes collect test data and manufacturers use this data to refine quality control and maximize the fabrication process.
Quality Assurance
Test probes assure only good chips make it to final production. This keeps your product reliability and quality high.
Adaptable to New Technologies
As semiconductor technologies advance, test probes advance too. They now support testing of fine pitch and high frequency devices.
Challenges and Considerations in Probe Technology
Probe Tip Wear and Contamination
Probe tips wear out and get contaminated with use so appropriate maintenance is needed to keep testing accurate.
Testing Modern Nodes
Devices are getting smaller so testing higher density circuits and smaller geometries is getting harder.
Contact Accuracy and Alignment
Accurate alignment is necessary as misalignment can damage the probe or wafer and compromise test results.
Testing Time and Throughput
You have to balance testing with production cycles. This needs a proficient testing strategy and probe design as well.
RF and Thermal Constraints
Probes should be able to work at high temperatures. They must give clean signals even at GHz frequencies.
To Sum Up
In semiconductor manufacturing test probes are fundamental to verify device’s dependability and functionality. Devices nowadays are getting smaller and more complicated so probe technology must have to move with the industry’s demands. To assure high quality semiconductor production you need to invest in modern probing solutions．
If you are a manufacturer who values reliability & precision, Richconn gives CNC machined semiconductor parts customized according to your applications. You can contact us anytime.
Related Questions
How do test probes affect time to market for semiconductor products?
Test probes speed up wafer level testing. They identify functional dies quickly so you don’t need to test after packaging. This means your production cycle is faster and you can launch products quicker and respond to market needs sooner.
How do test probes save cost in semiconductor manufacturing?
Test probes detect faulty dies early in manufacturing. Early detection stops unnecessary assembly and packaging of defective parts. You not only save on labor and material costs but get higher yield and total cost savings too.
How can test probe maintenance influence long term testing reliability?
Recommended maintenance like regular inspection and cleaning prevents test probes from wear and contamination. Without maintenance, probes can produce incorrect readings & can even damage the device being tested. Schedule maintenance assures stable functioning and increases life of your probing tools.
How do test probes support testing of emerging semiconductor devices?
Emerging semiconductor devices are getting more complicated and smaller which need advanced test probe technology. Advanced probe developments like MEMS based probes and non contact probing methods can test 3D device structures and modern nodes as well. These developments assure functionality and quality of your next generation semiconductor applications.
