Pneumatic & hydraulic installations often encounter stubborn control and performance limitations. Valve spools address these challenges by providing flexible flow control and precise switching. In this article we will explain how spool design shapes machine efficiency, boosts reliability and supports smart integration in mobile equipment and modern factories.
What Exactly Is a Valve Spool
A valve spool is a cylinder-shaped part that sits inside a valve body. It directs fluid flow in pneumatic or hydraulic systems. The spool slides or rotates within its housing. By moving, it opens or closes ports and thereby manages the fluid’s route.
Construction & Main Components of a Valve Spool
Several main parts make up a valve spool. Each one has a specific job to ensure reliable and accurate fluid control.
Valve Body & Housing
The valve body forms the main shell and it is the component that holds all the internal parts and guides fluid through different chambers and ports. The moving spool sits inside a central bore.
The Spool Itself
The spool is the main moving piece and has a cylindrical shape. Raised lands on its surface block fluid flow whereas the intervening grooves permit fluid to pass whenever alignment allows.
Sealing Mechanisms
Seals keep the valve from leaking both inside and out. These may be soft O-rings or very precise metal-to-metal fits. At RICHCONN we get this level of precision by using surface finishing options such as grinding and polishing. These processes help create tight fits, smooth sealing lands and reliable, leak-free valve spools.
Actuation & Drive Mechanisms
An actuator moves the spool. This can be a manual lever, a push button or an automated device like a solenoid.
Symbolism & Diagram
In hydraulic diagrams, specific symbols depict spool valves. Each box corresponds to one spool position and arrows within those boxes illustrate the associated flow paths.
Working Principle – How a Valve Spool Operates
The first step was recognizing each component inside a spool valve. Next, we will examine how those parts interact to direct fluid throughout the system.
Basic Principle
Inside the valve body, the spool slides back and forth to steer fluid. During that movement it opens certain ports while closing others. By altering these connections, the spool channels the fluid toward the required pathway.
Description of Motion
The spool can occupy a neutral (or rest state), plus one or more actuated positions. While it sits in neutral, nothing inside the valve moves. When activated, the spool moves to a working position and changes the fluid’s path.

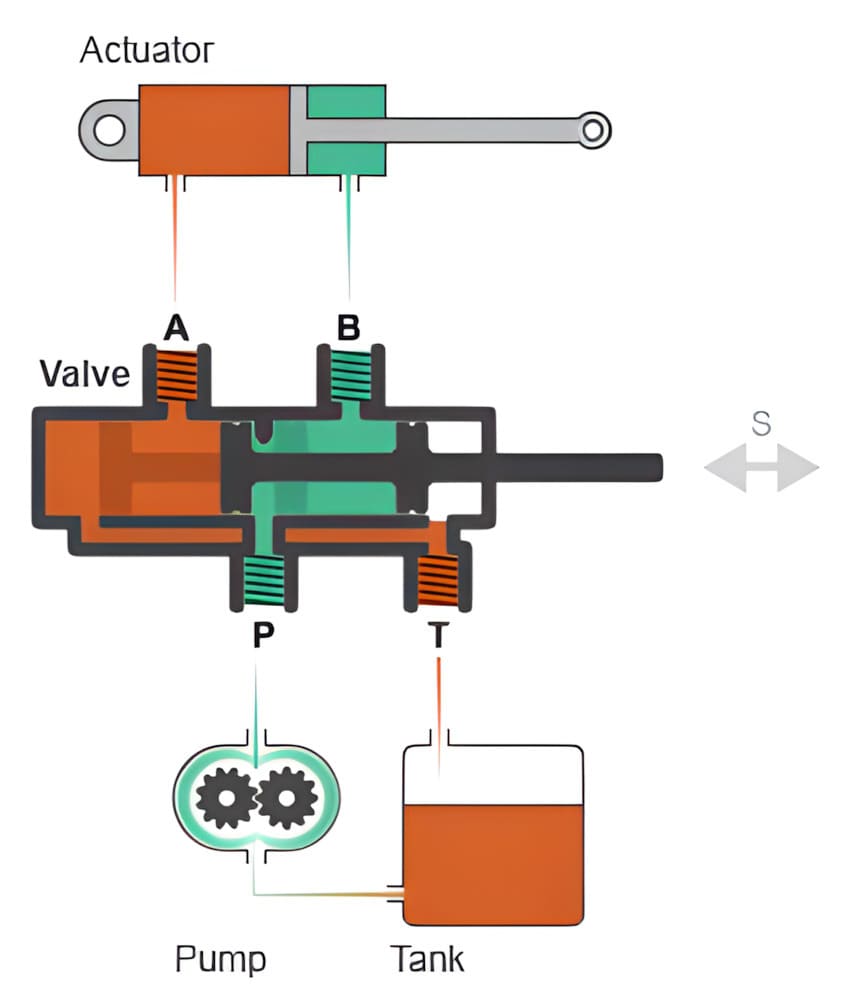

Explanation of Flow Paths
Hydraulic systems assign standard letters to valve ports. The ‘P’ port receives pressure from the pump. The ‘T’ port returns fluid to the tank. And similarly the ‘A’ and ‘B’ ports connect to actuators such as cylinders.In a 4/2 valve, moving the spool links ‘P’ to ‘A’ and ‘B’ to ‘T’ or it can switch to link ‘P’ to ‘B’ and ‘A’ to ‘T’, depending on the spool’s position.
Center Position Configurations & How They Affect Neutral State
How the spool sits in neutral largely determines system behavior during idle periods.
- With a closed-center design, every port is blocked so the actuator cannot move.
- In contrast an open-center valve joins pump and tank in neutral, unloading the pump and conserving energy.
- A tandem-center achieves the same pump unloading yet keeps the work ports closed, thereby holding the actuator.
Example of Working Sequence
Shifting the spool immediately alters which ports communicate. Consider a 4/2 directional valve. In its first position, P joins A while B returns to T. Moving the spool to the opposite position flips those links, driving fluid into the opposite actuator chamber and reversing motion without delay.
Main Performance Considerations
A valve’s performance relies on the exact fit between the bore and the spool. In hydraulic systems, radial clearances are usually less than 0.02 mm. These small tolerances help prevent leakage, keep pressure steady and provide reliable control. The flow forces that act on the spool also affect how much force is needed to move it and how stable the valve remains.
Also See: Mastering Tolerance Press Fit
Types & Configurations of Valve Spool
Valve spools exist in many forms, each designed for a particular function. Knowing these types makes it easier to choose the correct valve.
Classification by Spool Actuation / Motion
Spools may be grouped by how they move inside the body. For sliding spool valves, the cylindrical element travels linearly along its axis; this style dominates most installations.
By contrast, rotary spool valves work by turning the spool to line up internal passages and change the direction of fluid flow.
Classification by Number of Ports & Positions
Valves can also be grouped by how many ports and positions they have.
- A 4/2 valve includes four ports and two positions and is often used with double-acting cylinders.
- A 4/3 valve features a third, center position so it has three possible states.
- A 5/3 valve provides five ports and three positions which is useful when double-acting cylinders need separate exhaust routes.

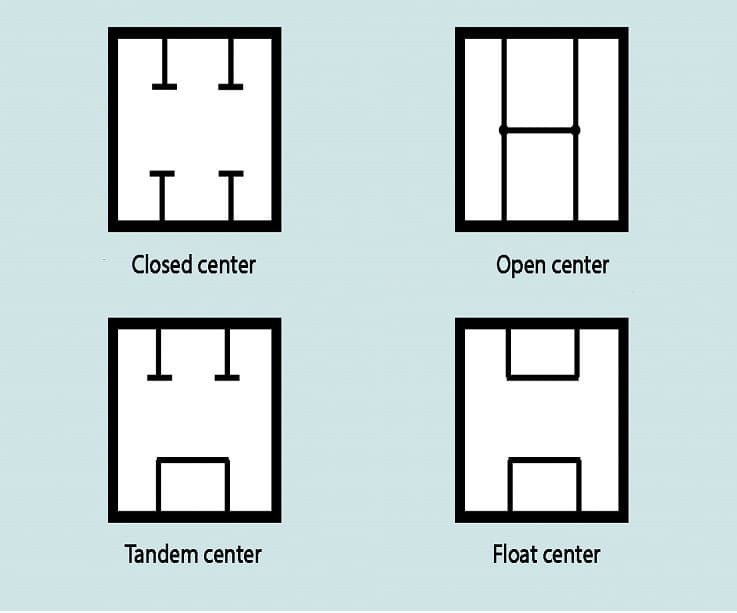

Classification by Centre Position / Neutral State
Spool valves are often sorted by their center or neutral position—which determines fluid flow and actuator response:
- Closed-center – all ports are blocked so actuators stay in place.
- Open-center – the pump connects to the tank, allowing low pressure and free actuator movement.
- Tandem-center – the pump is unloaded but actuators remain locked.
- Float-center – outputs connect to the tank so actuators can “float”; this is common in mobile or farm equipment.
Other Variant Classifications
Spools can also be sorted by actuation method— solenoids, manual levers or pilot signals.
A further distinction involves balanced versus unbalanced layouts: balanced spools offset pressure forces and perform well in high-pressure settings.
Finally, sealing style matters; soft seals limit leakage whereas hard seals withstand higher temperatures and contamination.
When a project calls for unique spool features—custom-balanced profiles, intricate geometries or soft-seal options—RICHCONN’s CNC and 5-axis machining services deliver the precise shapes and reliable sealing.
Applications of Valve Spools
Industrial Machinery & Manufacturing Automation
Factories use spool valves to operate industrial machinery and support automation. Injection molding machines, hydraulic presses and automated assembly lines all include these valves. They deliver the precise control needed for repetitive processes which helps maintain product quality and boosts overall manufacturing throughput.
Mobile Hydraulic Systems (Construction, Agriculture & Forestry)
Mobile hydraulic circuits rely heavily on spool valves.
Construction machines—cranes, excavators, and similar equipment—use them to manage boom, bucket and winch functions.
In agriculture, tractors and harvesters depend on them to switch or blend hydraulic flows for steering, lifting and implementing control.Forestry machinery likewise counts on spool valves to position booms and power cutting tools with high accuracy.
Directional Control of Hydraulic Motors & Actuators
Spool valves perform an important part in managing hydraulic actuators and motors. By directing fluid flow, they control when an actuator extends, retracts or stops. This level of control is crucial for machines that need accurate movement such as robotic arms.
Process, Gas & Oil and Marine Hydraulic Systems
In process plants as well as in oil and gas fields, spool valves control manifold blocks, wellhead panels and similar assemblies.
Marine installations also adopt them for stabilizer fins, steering gears and ballast management.Harsh service conditions favor spool valves because their compact design combines reliability with versatile porting options.
Pneumatic Systems & Air-Driven Actuators
Pneumatic systems and air-driven actuators also use valve spools. These valves work well with compressed air and manage quick, repeated motions. Similarly material handling equipment, packaging machines and assembly lines often include them to provide lightweight and responsive control.
Advantages & Disadvantages of Valve Spool
Advantages
Spool valves bring important benefits to fluid control systems.
- Versatile Operation: These valves can handle a wide range of flow paths. You can use them as selector valves for high, low or vacuum pressures which makes them highly adaptable.
- Efficient & Cost Effective: Spool valves use less energy because moving the spool requires little power. Manufacturers can use a single valve body for different functions which helps reduce production costs.
- Low Actuation Force: The balanced design of spool valves keeps fluid pressure from affecting spool movement. As a result only a small force is needed to shift the spool between positions.
Disadvantages
Spool valves also have some limitations which users should consider.
- Contamination sensitivity: These valves need very clean fluid to work reliably. Even tiny particles, as small as 3-5 microns, can damage the close tolerances and cause the valve to jam or fail.
- Wear & Tear: As the spool moves back and forth, its seals experience wear. This wear can shorten the valve’s service life and increase internal leakage which means maintenance may be needed more often.
- Potential for Leakage: Tight clearances are necessary for spool valves but this design makes some internal leakage almost certain—particularly in models without seals. Such leakage can cause cylinder drift and lower the hydraulic system’s efficiency.
Selection & Design Considerations for Valve Spools
Choosing the correct spool valve is very important for obtaining the best results in pneumatic or hydraulic systems. To make the right choice, you need to evaluate many important factors.
Main Parameters to Consider
The selection process starts with defining how many ports and positions—such as 4/3—the valve must provide. Next match the valve’s center behavior (e.g open-center or closed-center) with the system requirements. Finally, verify that pressure rating, flow capacity, actuation method and material compatibility align with the application.
Importance of Land & Groove Design
Close attention must be given to the geometry of lands and grooves on the spool. That geometry forms proper flow paths and keeps internal leakage low. Accurate control of fluid direction and pressure becomes possible only when these features are machined precisely.
Actuation Force & Pilot Design
Decide between direct-acting and pilot-operated valves based on the actuation force needed. Direct-acting types use a solenoid to shift the spool without assistance. For higher flows, pilot-operated valves use system pressure to help move the spool which allows for smaller solenoids and lowers power use.
Consider the Dynamic Behavior
The way a spool valve responds during operation affects system performance. The mass of the spool and switch-over speed can change how quickly the valve reacts. In high-flow systems, flow-force compensation might be required so the spool can move smoothly without being slowed by fluid forces.
Maintenance & Serviceability
Long-term reliability hinges on understanding maintenance requirements. Because the spool fits tightly in its bore, only clean fluid prevents premature wear. Moreover always plan for readily available spares—spools, seals and similar items—since routine servicing safeguards performance and avoids expensive downtime.
If you need custom replacements or accurately machined spare spools, RICHCONN provides quick CNC production and reverse-engineering services to help your system stay dependable.
To Sum Up
Valve spools perform an important part in controlling fluids accurately within pneumatic and hydraulic systems. By knowing how their parts work and understanding their operation, you can choose the best design for top performance. If you need custom valve components with high precision then RICHCONN is your best option. You can contact us anytime.
Related Questions
Spool valves move a sliding element to direct fluid through complex paths. In contrast poppet valves use a disk or cone to seal tightly and respond quickly.
Yes they can. Many spool designs accommodate up to 1200 litres per minute, giving reliable control in heavy-duty industrial equipment.
If a spool sticks, the valve loses directional control and the system may get damaged. Similarly, leaks lower pressure and efficiency, often caused by contamination or wear.
A very small clearance—usually 0.0002″ to 0.0006″—keeps fluid from leaking past the lands. This tight fit guarantees precise control and lets the spool move smoothly inside the valve.
The leading digit indicates the number of ports and the second digit shows the available spool positions. A 4/2 valve for instance, contains four ports and two positions.
