Every engine depends on an important part that converts generated power into motion; that is engine shaft. This part keeps different engine components stable, aligned and functioning together as a single unit. In this blog post you will learn what an engine shaft is, how manufacturers create it and why it is such a necessary tool to improve an engine’s reliability and efficiency.
What is an Engine Shaft
An engine shaft is a strong, round rod designed to rotate and transfer power within the engine. It connects moving elements like gears and pistons which enables the smooth transfer of torque and rotation.Engine shafts are normally manufactured in diameters ranging from 20 mm to more than 100 mm; the exact diameter depends on the engine’s requirements. This component assures that all engine parts operate in perfect coordination.
Importance of Engine Shafts
Engine shafts perform different key functions
- They act as the main pathway to transfer torque and rotational energy.
- Shafts keep piston movement and valve timing synchronized which is very important for proper engine operation.
- They keep rotating parts aligned and supported which reduces vibration and assures smoother performance.
- When shafts function correctly, they reduce wear, improve fuel efficiency as well as extend the engine’s lifespan.
Types of Engine Shafts & Their Roles
Engine shafts come in different types and every type has a particular role in engine operation.
Crankshaft
The crankshaft is the engine’s primary structural element. It converts the pistons’ linear motion into rotational power. This rotation is what propels the vehicle forward.

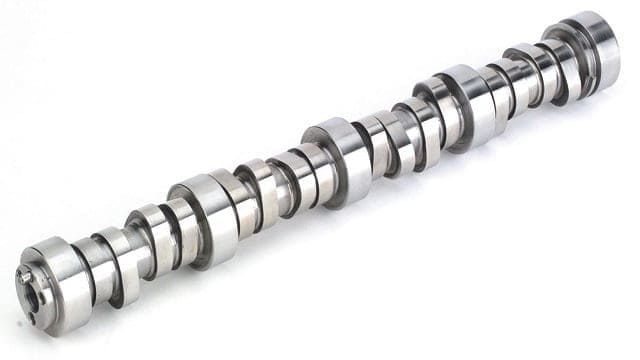

Camshaft
Camshaft controls how the engine draws in air and expels exhaust gases. It rotates to open and close the intake and exhaust valves at the correct time. In 4‐stroke engines, the camshaft rotates at half the speed of the crankshaft.
Also See: A Complete Guide on Machining Camshaft
Output or Transmission Shafts
Through these shafts, the engine’s power reaches the gearbox and then all the way to the wheels. They handle the final stage of torque transfer that moves the vehicle.
Auxiliary or Balance Shafts
Balance shafts help reduce engine vibrations. By rotating in a particular pattern, they counteract unbalanced forces. This lets the engine run more smoothly with minimized vibration.
Key Design & Construction Aspects
Designing and constructing an engine shaft needs highly precise engineering. Every small detail matters to get reliability and performance—whether it’s choosing the right materials or achieving proper balance.
Materials Used
Selection of the right material is extremely important for the shaft’s performance. Forged steel and certain alloys are commonly used because they can withstand high stress and resist wear. The chosen material should also offer a balanced combination of strength, weight and cost to meet engine requirements.
If you’re unsure which material to choose, contact Richconn. Our engineers can help you select the best and most affordable material for your shaft’s particular application.
Geometric Features & Dimensions
Engineers design the geometry of every shaft according to its purpose. Ensuring accurate dimensions and tight tolerances for pins, journals as well as lobes is essential to assure proper fit and function. Also adding fillets or rounded corners reduces stress on sharp edges and prevents fatigue cracks.

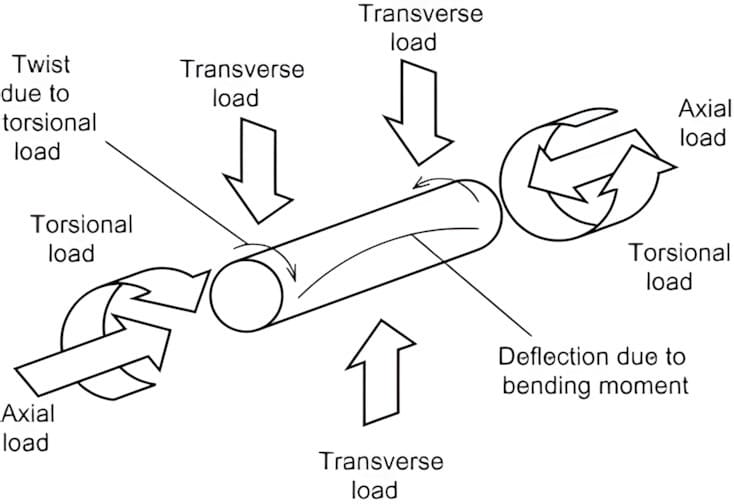

Loads & Stresses
During engine operation, shafts are exposed to significant forces. The design must consider twisting (torsion), bending caused by combustion and axial forces acting along the shaft’s length. By taking these stresses into account, engineers assure the shaft stays strong and avoids failure under load.
Manufacturing & Machining Aspects
Production of an engine shaft needs multiple precise steps to assure maximum reliability.
Forging/ Casting
Manufacturers use casting or forging to create the basic shape of the shaft. High performance shafts mostly depend on forging which aligns the metal grain structure and increases overall strength.
Also See: Forging vs Casting vs CNC Machining
Rough Machining
After forging is complete, rough machining begins. CNC lathes and similar tools remove excess material and bring the shaft closer to its final shape. This step prepares the shaft for finishing.
Finishing
Finishing processes like polishing create a smooth surface. A smooth finish reduces wear and friction. Proper finishing increases the shaft’s fatigue life and boosts overall efficiency.
Richconn offers a complete range of surface treatments—including coating, polishing and grinding—to meet the demanding needs of different shaft applications.

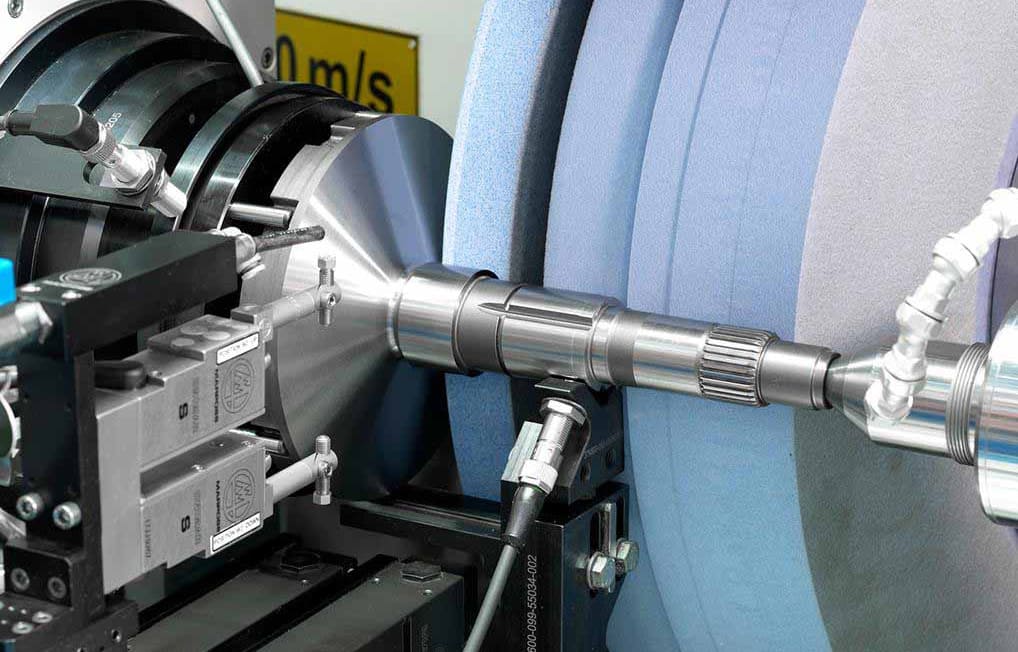

Grinding
Manufacturers use precision grinding to achieve final dimensions and tight tolerances. This step is very important as it assures the shaft fits perfectly with bearings and other engine components and this allows smooth operation.
Balancing
Final step is dynamic balancing. Technicians adjust counterweights to eliminate vibrations. When a shaft is properly balanced, it rotates smoothly at high speeds. This protects the engine and also maintains stable performance.
Design Considerations
Designers follow different key principles to create an effective shaft design.
- Smaller shafts are mostly preferred because they are stiffer and they bend less.
- Stress concentrating features are kept away from high load areas.
- Designers also ensure easy assembly, disassembly and maintenance.
At RICHCONN, we frequently work with designers during early development stages. This provides practical feedback to optimize shaft geometry and tolerances—resulting in stronger and more affordable assemblies.
Engine Operation & Their Functionality
Engine shafts have a key role in how engines operate. They perform different fundamental tasks that help transmit power and also keep the engine stable.
Power Transmission within Engine
Rotational power moves through the engine via shafts. Crankshaft converts the pistons’ up-and-down motion into torque. Other shafts then carry this torque towards different parts of the vehicle.
Interaction with Other Parts
Shafts connect with bearings, couplings and gears. These connections help transfer motion smoothly between mechanical parts.
Balance, Alignment & Smooth Operation
Keeping the shafts properly aligned is crucial for proficient and smooth engine function. Good alignment prevents harmful vibrations and also reduces wear on bearings and seals. This practice helps the machine run longer and it remain more reliable.
Thermal & Dynamic Effects
Engine heat causes shafts to expand which can change their alignment. Vibration and other dynamic forces also place stress on engine parts. Therefore it is very important to control all these effects to improve engine performance and prevent breakdowns.
Common Issues, Failure Modes & Troubleshooting
Even though engine shafts are built for strength, they can still fail.
Typical Failure Modes
Engine shafts can degrade in different ways. Fatigue is the most common issue and the reason is that repeated stress creates cracks. Corrosion from harsh environments and friction based wear are other common problems. Moreover excessive force can also overload the shaft and cause a sudden snap.
Symptoms & Indicators
Early signs of a failing shaft are often easy to recognize. Vibrations under the vehicle normally indicate a problem. Strange noises, such as clunking or squeaking, may also appear. Additionally steering issues, such as difficulty turning, are another warning sign.
Root Causes
Incorrect installation and placing too much load on the shaft are well known causes of failure. Operating equipment beyond its design limits and not maintaining lubrication also lead to problems.
Maintenance & Inspection Strategies
Routine inspections help prevent failures and extend the life of shafts. These checks include maintaining proper lubrication, looking for cracks, verifying alignment as well as using tests such as magnetic particle inspection.
Role of Engine Shaft in Different Applications
Automotive Engines
In vehicles, shafts have a crucial role as they transfer power from the engine to the wheels. Crankshaft converts the pistons’ up-and-down motion into rotational motion. Drive shafts then carry this rotation to the front or rear axles. This process lets the vehicle move.
Heavy Duty & Industrial Engines
In heavy duty and industrial environments, engines depend on strong shafts to handle large amounts of force. These shafts convert the energy produced by combustion into mechanical work. Their construction lets them withstand high stress in equipment such as compressors and pumps.
Marine/ Propulsion Engines
In marine vessels, the engine shaft directly connects the engine to the propeller. It carries the engine’s rotational force through the hull to the propeller. As the propeller rotates, it pushes water backward and creates thrust that moves the vessel forward.
Emerging Applications
Engine shafts now appear in newer technologies as their use continues to grow. Hybrid vehicles and advanced power generation systems need shafts that can adapt to changing demands. These modern designs aim to reduce weight and increase efficiency while still delivering the power needed for these applications.
To Sum Up
Engine shafts have a central role in every engine. They convert motion into usable power and help the engine operate smoothly. Type of material used, the shaft’s design and the quality of its maintenance all influence its efficiency and reliability.
If you need custom shafts tailored to your needs, Richconn is an extraordinary choice. You can contact us anytime for precise CNC machining services.
FAQ’s
A crankshaft converts the pistons’ vertical movement into rotation while a camshaft controls when the engine’s valves open and close.
Check engine shaft alignment during major maintenance or at least once a year. For critical equipment, consider checking every three to six months.
Engine shafts are mostly made from carbon steel. However stainless steel is also used for resistance against corrosion while alloy steel is usually chosen for higher strength.
If you feel vibrations, hear grinding or knocking sounds or notice oil leaks, the engine shaft may be failing. Loss of power or difficulty turning are also warning signs.
Some shafts can be repaired if the damage is minor. But if the shaft is severely damaged, replacement is normally necessary to keep the engine safe & reliable.
