Machining precise angles on a part can be a real challenge. Standard setups mostly take extra time and can lead to mistakes. Angle milling offers a better way. It uses special tools and methods to cut features with great accuracy. This blog post explains how angle milling works, its benefits, where it is used as well as some tips for doing it correctly.
What is Angle Milling
Angle milling is a machining method that creates surfaces at angles other than 90° to the cutter’s axis. Machinists use it to make features like chamfers, beveled edges as well as V‐grooves. They achieve this by tilting the workpiece, changing the spindle’s position or by using angled cutters designed for the job.
Types of Angle Milling Tools / Cutters
Selection of the right tool is key for successful angle milling. There are several cutters and accessories that are designed to make angular features accurately & efficiently.

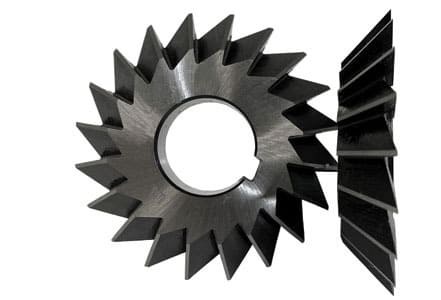

1. Single Angle Cutters
Single angle cutters have cutting edges on just one conical side. They mostly come in standard angles like 30°, 45° and 60°. Machinists depend on them to create clean chamfers, single sided bevels and simple dovetail shapes on parts.

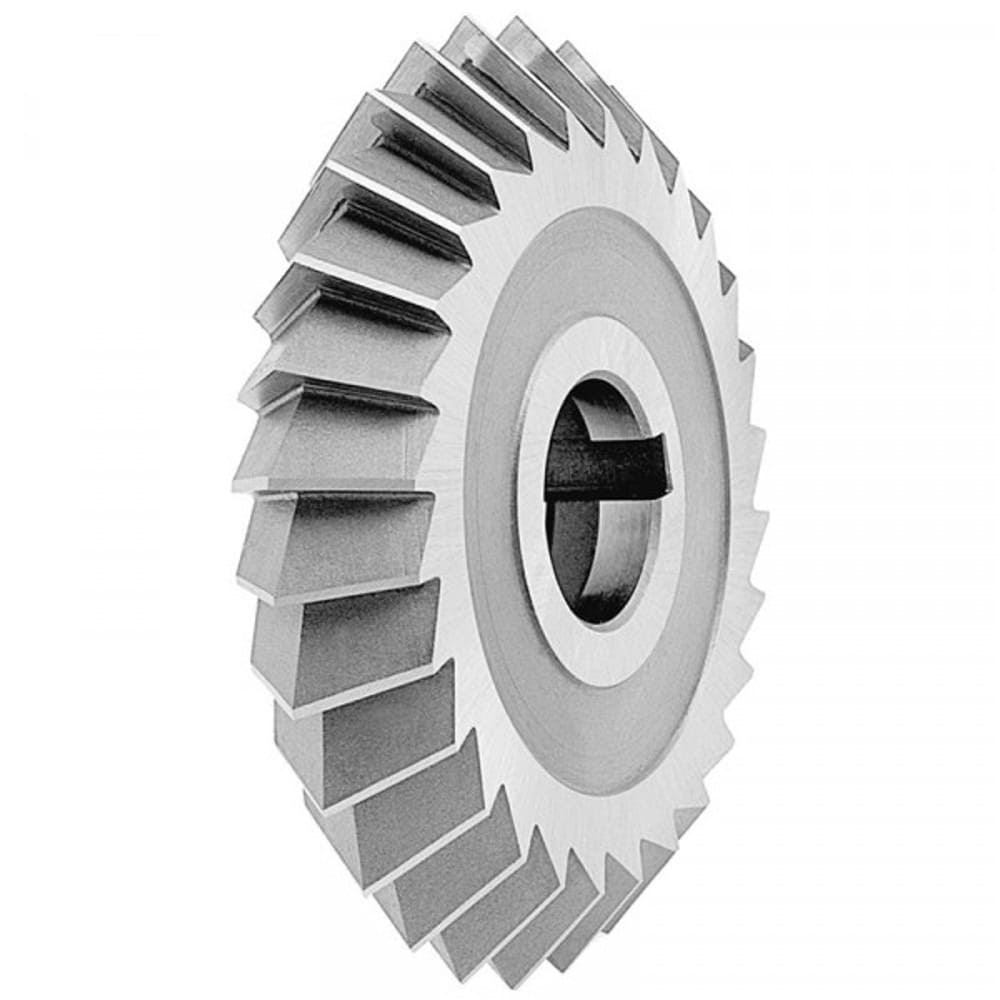

2. Double Angle Cutters
Double angle cutters have two matching cutting faces that form a clear V shape. This design lets them cut full V‐grooves and serrations in one pass. The most common included angles are 45°, 60° or 90°.
3. Chamfer Mills, Dovetail Cutters, Tapered Cutters
Some tools are made for particular tasks.
- Chamfer mills create angled edges for deburring or for preparing weld seams.
- Dovetail cutters are essential for making strong, interlocking joints in fixtures.
- Tapered end mills are used to cut angled slots or to shape complicated, contoured surfaces in three dimensions.
4. Angle Heads / Tilted Heads & Fixtures

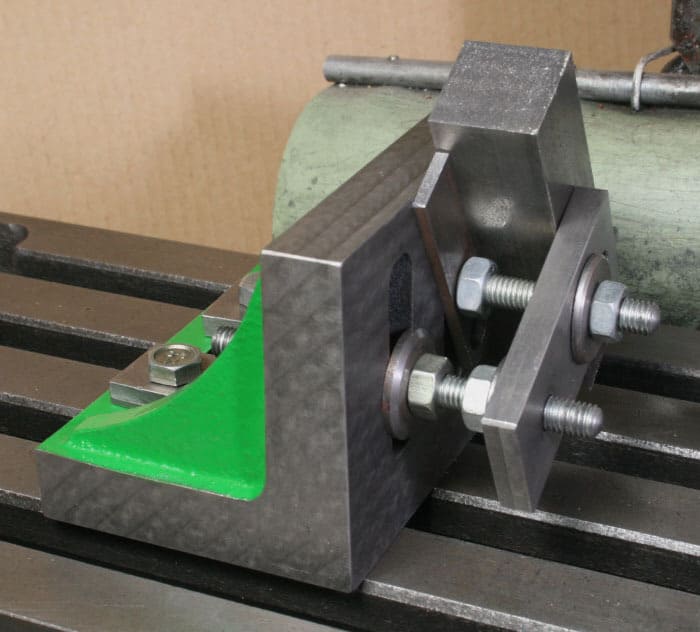

Instead of using special cutters, machinists can also adjust the machine setup to create an angled surface. Angle heads are spindle attachments that can tilt, and this lets standard tools perform angled machining. Similarly, fixtures like angle plates or sine bars can hold the workpiece at the needed angle.
Workpiece Materials & Cutter Materials
The cutter material must match the workpiece. High Speed Steel (HSS) works well with softer metals such as aluminum. For harder materials like stainless steel or titanium, machinists must use tougher carbide or coated tools to resist wear and handle higher temperatures.
Angle Milling Process: Step by Step
Machining of an accurate angular cut has several defined steps. It starts with design and ends with inspection. Each phase has a vital role in meeting the required accuracy and surface quality.
Planning & Design Stage
Begin the operation by creating a detailed plan. Review the design drawings to identify the needed angles, tolerances and surface finish. Select the right cutter geometry, angle as well as material, such as HSS or carbide, to match the job’s needs.
Machine & Setup Preparation
Prepare the milling machine for the task. Hold the workpiece securely using a vise, clamps or special fixtures. If the machine has a tiltable head, adjust it to the needed angle. If not, use tools like angle plates or a sine bar to set the workpiece at the correct position.
Parameter Selection
With the setup complete, choose the machining parameters. Start with lower spindle speeds and feed rates to avoid tool deflection and overheating, particularly with hard materials. Run trial cuts on scrap pieces to fine‐tune these settings and to keep the tool within safe limits.
Machining / Cutting Operation
Now, use the milling tool to cut the workpiece and create the angled surface. Keep the coolant flowing to manage heat and remove chips. For deep angles, take several lighter passes instead of a single heavy cut. This approach reduces tool wear and gives a better surface finish.
Inspection & Finishing
Inspect the finished part to check if it meets all specifications. Use angle gauges, digital protractors or a Coordinate Measuring Machine (CMM) for accurate measurement. Confirm the angle stays within the required tolerance, mostly as tight as ±0.1°. Complete the process by polishing or deburring as needed.
At RICHCONN, CMMs verify every angular feature and customers can request full inspection reports or material certificates if needed.
Advantages & Limitations of Angle Milling
Angle milling has clear benefits when making complicated parts. But at the same time, it also brings particular challenges that need careful management. Therefore understanding both sides helps you decide if this process fits your project needs.
Advantages
- Complex Geometry Creation: This method works well for building intricate features. It can easily create chamfers, V‐grooves as well as dovetails. These detailed shapes can improve both the strength and function of a part.
- Precision in Angular Features: With the right setup, angle milling can reach very tight tolerances. It can achieve angle accuracy down to ±0.1° or better. This level of precision is particularly important in aerospace & medical fields.
- Improved Accessibility: Angle heads or tilted spindles make it possible to reach areas that standard tools cannot. This advantage is useful for machining deep cavities as well as machining inside complicated molds. You do not need to reposition the workpiece.
- Reduced Setups and Operations: Many features can be finished in just one setup. This removes the need to move the workpiece multiple times. As a result, total production time drops and alignment errors between steps are less likely.
- Time and Cost Savings: Fewer setups mean shorter production cycles and lower labor costs. The high accuracy of angle milling also cuts down on material waste. This leads to more efficient and affordable manufacturing.
Limitations
- Tool Wear & Increased Stress: When the cutter meets the workpiece at an angle, friction and stress both rise. This leads to faster tool wear – particularly with hard materials like titanium.
- Machine Rigidity & Deflection Concerns: Angle milling creates cutting forces that can cause vibration. Machines and setups must be very rigid to stop tool deflection. Any lack of stability can harm both surface finish and dimensional accuracy.
- Increased Cost for Tooling & Fixtures: Specialized equipment is often needed for this process. Angle heads, rotary tables or custom fixtures can push up initial tooling costs. Complicated setups also need skilled workers which adds to expenses.
Best Practices & Tips for Successful Angle Milling
Production of accurate angled features requires careful planning. Use these tips to improve results and prevent issues.
Choose the Right Cutter / Geometry
Select a cutter with an included angle that matches your design. For tough materials like stainless steel, use carbide or coated cutters.
Rigidity in Setup & Fixturing
Make sure the workpiece and cutting tool are held firmly in place. Use strong clamps and fixtures to stop movement or vibration because these can reduce both dimensional accuracy and surface quality.
Optimize Machining Parameters
Start with low spindle speeds and feed rates when setting up. Raise these values slowly while checking for chatter or vibration. This helps you find the best cutting conditions.
Coolant and Lubrication Strategy
Use flood coolant when your machine hard alloys. This approach lowers thermal loading and helps remove chips. For softer materials, choose a fine mist or a focused air blast. These techniques control chips well and help prevent surface flaws.
Step-by-Step / Multi‐Pass Approach
Make several shallow passes instead of one deep cut when you need deep angle cuts or steep profiles. This technique puts less strain on both the cutter and the workpiece. You will also achieve a smoother finish this way.
Regular Inspection during Machining
Check the machined angle and related dimensions at intervals during the process. Do not wait until the last pass to verify accuracy. Early measurements help you find and fix any errors right away.
Tool Maintenance & Monitoring
Look at cutting tools often to spot signs of wear such as edge rounding or chipping. Keeping tools sharp and in good condition is necessary for making precise angled features.
Program and Path Planning
Before you start cutting with CNC machines, run a tool path simulation. This step helps you avoid collisions and gouges. It also assures the machining sequence is efficient.
Safety Considerations
Wear the right personal protective equipment (PPE) such as safety glasses at all times. Also set up machine guards to catch flying chips. These actions will keep the milling area safe throughout the operation.
Uses & Industry Use Cases
Angle milling has a key role in machining to create precise angular surfaces. Many industries rely on this process to manufacture complicated assemblies & components.
Aerospace
Aerospace manufacturers depend on angle milling to make aircraft parts that are both strong and lightweight. This process shapes aerodynamic surfaces on turbine blades. It also removes extra material from structural brackets which lowers weight and improves stress distribution at critical points.
Automotive
Automotive production uses angle milling for high performance engine and transmission parts. This process shapes gear tooth angles with precision. It also machines chamfers on engine blocks and creates tapered features for camshafts and other components.
Mold & Die Making
Mold and die makers use angle milling as a core process. It forms accurate draft angles needed for part ejection. This method also creates deep cavities and cuts complicated shapes like dovetails in injection molds.
Welding & structural applications
In structural work, angle milling prepares metal edges before welding. This process creates clean beveled grooves. These grooves help achieve deep weld penetration and form strong & reliable joints that improve assembly fit and strength.
To Sum Up
Angle milling has a key role in the production of precise angled features. This process lets manufacturers create complicated parts with high accuracy & efficiency. To master angle milling, you need the right tools, careful planning as well as expert knowledge.
When your project demands angle milling, Richconn’s precision machining services can deliver the accuracy your parts need. You can contact us anytime.
Related Questions
A skilled operator can perform angle milling on a manual mill. However, CNC machines provide better accuracy, consistency and repeatability for jobs that need tight tolerances.
Most people use these terms interchangeably. Still, “angular milling” sometimes refers to machining several or more complicated angled surfaces while “angle milling” mostly means producing a single angle.
Yes. By producing accurate angled features with a good surface finish in one operation, angle milling often reduces or eliminates the need for extra steps such as grinding or deburring.
Angle milling can boost productivity, reduce material waste as well as lower costs. When you use optimized methods, you may also use fewer tools and spend less time machining which further cuts total expenses.
Yes you can automate angle milling with CNC machines and special fixtures. This makes it efficient and practical for producing large quantities of parts with angled features.
