Carburizing remains the most used surface hardening method in modern manufacturing. It improves fatigue strength and wear resistance in common steel grades by modifying surface carbon content. In this blog post we will examine the different carburizing methods, the key process steps and how this heat treatment compares with other surface hardening options.

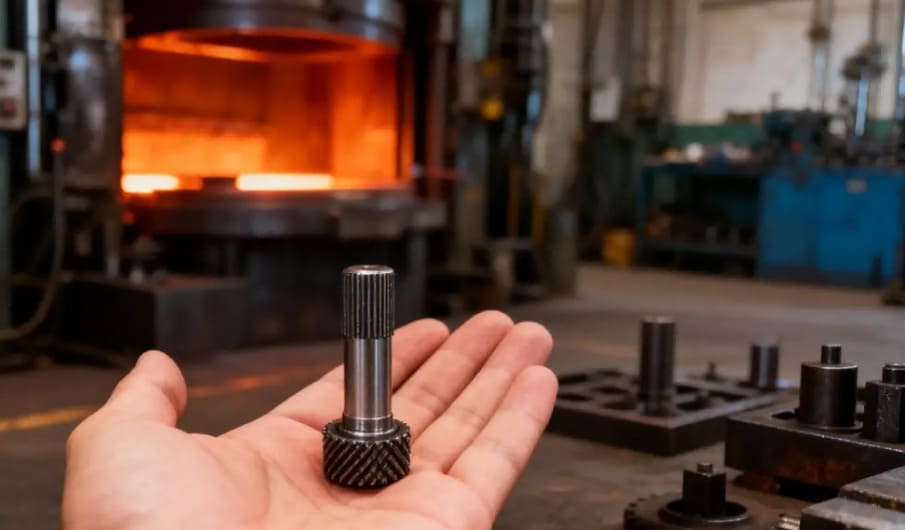

What is Heat Treatment
Heat treatment is a controlled process of heating and cooling metals to change their properties. This alters the metal’s internal structure which increases features like strength and hardness. This process makes materials more durable without changing their shape.
Also See: What is the Difference Between Strength vs Hardness vs Stiffness
What is Carburizing
Carburizing is a type of heat treatment that enriches a steel surface with carbon. It usually heats low‐carbon steels to about 900 to 950°C in a carbon‐rich atmosphere to add carbon atoms to the outer layer. This forms a hard, high‐carbon case around a tough, ductile core.
What are the Benefits of Carburizing
Carburizing brings major benefits for parts that need durability and strength. Let’s explore some of the top advantages.
Increased Surface Hardness
Carburizing achieves a rock‐hard surface, normally reaching 55 to 65 HRC while retaining a tough core. This dual structure prevents brittle failure even under heavy impact loads.
Improved Fatigue Resistance
This process improves the fatigue limit of steel by up to 30%. It induces surface compressive stresses that prevent cracks from forming under cyclical loads and this extends component life.
Wear & Corrosion Resistance
A hardened outer layer provides extraordinary protection against abrasive wear and seizing in friction‐heavy environments. It also increases surface durability against degradation compared to untreated steel.
Affordable for Low-Carbon Steels
Carburizing enables the use of inexpensive low-carbon steels like 1018 or 8620 instead of costly high-alloy alternatives. Manufacturers achieve tool-steel-like surface hardness without paying premium material prices.
Compatibility with Complex Shapes & Mass Production
This process easily scales for high volume batches and effectively treats parts with intricate geometries or blind holes. Methods like gas carburizing ensure uniform coverage even on irregularly shaped components.
Minimal Dimensional Distortion
Compared to other methods, carburizing causes minimal dimensional changes. This is ideal for precision parts and reduces the need for post-treatment machining.
Types of Carburizing Processes
Carburizing is performed using several methods. The best choice depends on the part’s requirements, production volume as well as cost. Every method uses a different medium to introduce carbon into the steel.
Gas Carburizing
This is a widely used and highly controlled method. Parts are heated between 900°C & 950°C in a sealed furnace. A carbon-rich gas, like natural gas or propane, is introduced. It allows for precise control over case depth and carbon content.
Pack (Solid) Carburizing
This traditional method involves packing parts in a steel box with solid carbonaceous materials like charcoal. This box is heated to between 900°C and 950°C. It is a simple process but offers less control and uniformity as compared to gas carburizing.

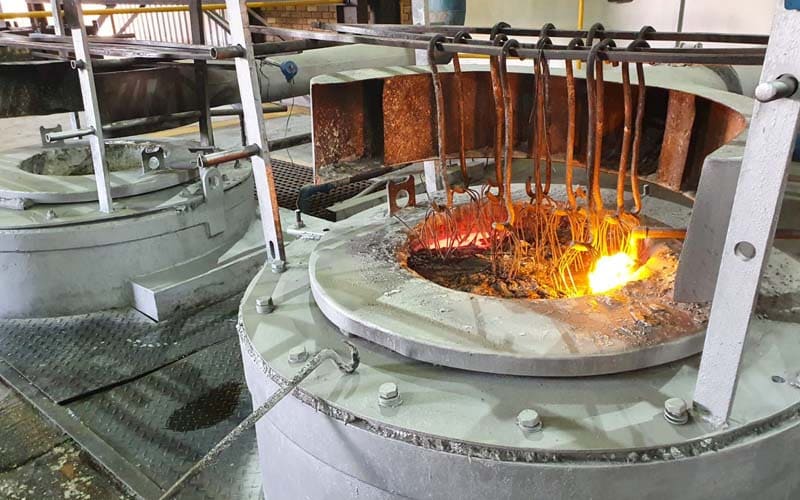

Liquid (Salt Bath) Carburizing
In this method, parts are submerged in a molten salt bath at 850 to 950°C. This bath, normally a cyanide‐chloride mixture, rapidly transfers carbon to the steel surface. While fast, it produces toxic waste and thus poses environmental concerns.

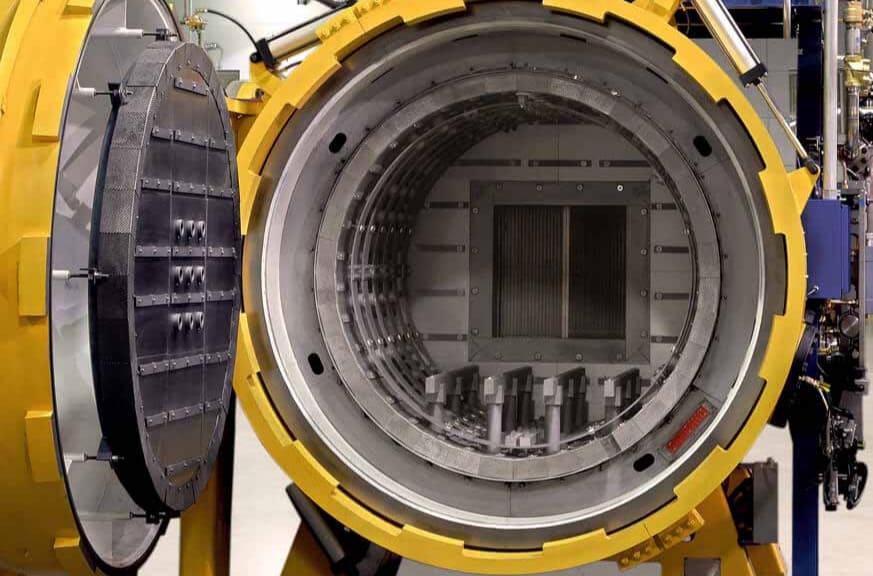

Vacuum Carburizing (Low Pressure Carburizing)
This modern process heats parts in a vacuum before introducing a carburizing gas like acetylene. It offers extraordinary uniformity and minimal part distortion. The clean, controlled environment prevents surface oxidation and improves fatigue strength.
Plasma (Ion) Carburizing
This advanced method uses a high voltage electrical field in a vacuum to create a plasma. Carbon ions from this plasma bombard the part’s surface which allows for fast treatment at lower temperatures. It provides excellent uniformity on complicated shapes.
Carburizing Process-Step by Step
Carburizing is a precise sequence of operations controlled to achieve particular metallurgical goals. Each stage has a critical role in determining the final quality, depth as well as hardness of the case layer.
1. Preparing the Workpiece
First, the workpiece is thoroughly cleaned to remove contaminants like dirt, oil and rust. Some areas may be masked with a special paint or copper plating to prevent them from being carburized. This ensures uniform carbon absorption only on desired surfaces.
2. Heating & Carbon Introduction
The clean part is then heated in a furnace to the austenitizing temperature, typically 900 to 950°C. At this temperature, the steel’s crystal structure changes. A carbon‐rich medium is then introduced. This allows carbon atoms to diffuse into the steel’s surface.
3. Soaking & Diffusion Stage
After introducing carbon, the part is soaked at the carburizing temperature. This lets carbon diffuse deeper into the surface and this creates the case. The soaking time, from hours to days, determines the final case depth—which is often around 1.5 mm.
4. Quenching (Rapid Cooling)
Immediately after soaking, the hot part is rapidly cooled by plunging it into brine, oil or water. This quenching process traps carbon atoms in the steel’s structure, forming martensite. This new microstructure is extremely hard and is responsible for the case‐hardened properties.
5. Tempering
Quenching makes the surface hard but also brittle. To improve toughness, the part is tempered by reheating it to a low temperature, typically 150 to 200°C. This process relieves internal stresses from quenching while retaining most of the surface hardness.
6. Quality Control/ Case Depth Measurement
The final step is to verify the results. This includes testing the surface hardness using methods like the Rockwell scale. Technicians also measure the case depth by microscopically examining a cross‐section of a sample to assure it meets design specifications.
At RICHCONN, we apply similar rigorous quality protocols, verifying dimensions and material hardness before any part leaves our facility.
Materials Suitable for Carburizing
Carburizing works best on low-carbon steels (typically 0.1% to 0.3% carbon). Since these materials originally lack sufficient carbon to harden during quenching, carburizing adds the necessary surface carbon while retaining a tough, ductile core. High-carbon steels are generally unsuitable because they are already hard and brittle, risking fracture if further enriched.
Commonly carburized grades are:
- Plain Carbon Steels (e.g., 1018, 1020): Ideal for simple, low-cost parts that require wear resistance but moderate core strength.
- Alloy Steels (e.g., 8620, 9310, 4320): Widely used in automotive gears for their excellent balance of toughness and hardenability.
If you are unsure which grade suits your project, RICHCONN’s engineering team can help you select the ideal low-carbon or alloy steel for optimal carburizing results.
Applications of Carburizing
Automotive Industry
This sector heavily relies on carburizing for transmission parts like camshafts, gears and differential pinions. These components endure repetitive high‐impact loads and friction which requires the hard, wear‐resistant surface that carburizing provides to prevent premature failure.
Aerospace Components
Safety‐critical aerospace parts like landing gear components and jet engine shafts need a superior strength‐to‐weight ratio that carburizing provides. Vacuum carburizing is especially favored here to produce precise, high‐fatigue‐resistant parts that can withstand extreme takeoff and landing loads.
Heavy Machinery/ Industrial Tools
In heavy machinery, carburizing is used for parts like large gears in mining and construction equipment. Industrial tools such as forging dies and punches are also hardened this way. This provides extreme surface hardness for wear resistance under high impact.
Power Transmission Systems
Industrial gearboxes and drive shafts depend on carburizing to handle high torque and continuous loads. By creating a hard‐wearing surface, this process lets transmission components transmit power efficiently over long service lives without succumbing to fatigue or contact stress.
Consumer Equipment & Precision Instruments
Even everyday items like lawnmower blades, power tool gears as well as high quality bicycle chains rely on carburizing. In precision instruments, carburizing maintains the accuracy of micrometers and gauges by preventing surface wear that would otherwise alter critical measurement dimensions over time.
Carburizing Compared with Other Surface Hardening Processes
| Feature | Carburizing | Nitriding | Induction Hardening |
|---|---|---|---|
| Case Depth | Deep (0.5 to 3.0 mm) | Shallow (<0.5 mm) | Medium to Deep |
| Process Temp | High (850 to 950°C) | Low (500 to 600°C) | High (Localized) |
| Distortion | Moderate | Very Low | Low |
| Best Application | Heavy loads, deep wear | Precision parts, corrosion | Simple shapes, speed |
Carburizing excels where parts need deep, load‐bearing cases to withstand heavy impact, unlike nitriding which offers superior precision but shallower hardness. Similarly induction hardening is faster but limited to simpler geometries compared to carburizing’s ability to treat complex shapes uniformly.
Because each application has different load, wear and geometry demands, we at Richconn review your part details and help choose the process—carburizing, nitriding or induction hardening—that best matches your durability targets and budget.
To Sum Up
Carburizing is a powerful heat treatment that gives steel parts a hard, wear‐resistant surface while keeping a tough core. It is widely used in aerospace, automotive and heavy machinery for long-lasting, high-performance parts. For high-quality carburizing and heat treatment services, trust Richconn’s expertise in precision metal processing. You can contact us anytime.
Related Questions
Low-carbon steels (0.10 to 0.25% C) like 1018 and alloy steels such as 8620, 9310 and 4320 are ideal; as they allow surface hardening while retaining core toughness.
The main difference is the carbon source. Gas carburizing uses carbon‐rich gases, liquid uses a molten salt bath while pack carburizing uses solid charcoal or coke.
It diffuses carbon atoms into the steel’s surface lattice. Upon quenching, this high‐carbon layer transforms into martensite, a super‐hard crystalline structure, which resists deformation and wear.
Quenching rapidly cools the hot, carbon‐enriched part to “freeze” its structure into hard martensite. Without this sudden cooling, carbon would not form the necessary hard phase.
Case depths typically range from 0.5 mm to 2.5 mm (0.020‐‐0.100 inches), depending on time and temperature; though heavy‐duty parts can reach up to 6 mm.
Yes. Alloy steels like 8620 and 9310 are excellent candidates. Alloying elements like nickel and chromium enhance core strength, toughness and hardenability compared to plain carbon steels.
