Modern manufacturing depends on CNC precision machining to make complex parts. This technology has different benefits such as consistent results, automated production and outstanding quality control. Let’s see the main aspects of CNC machining, its processes, uses and industry challenges.

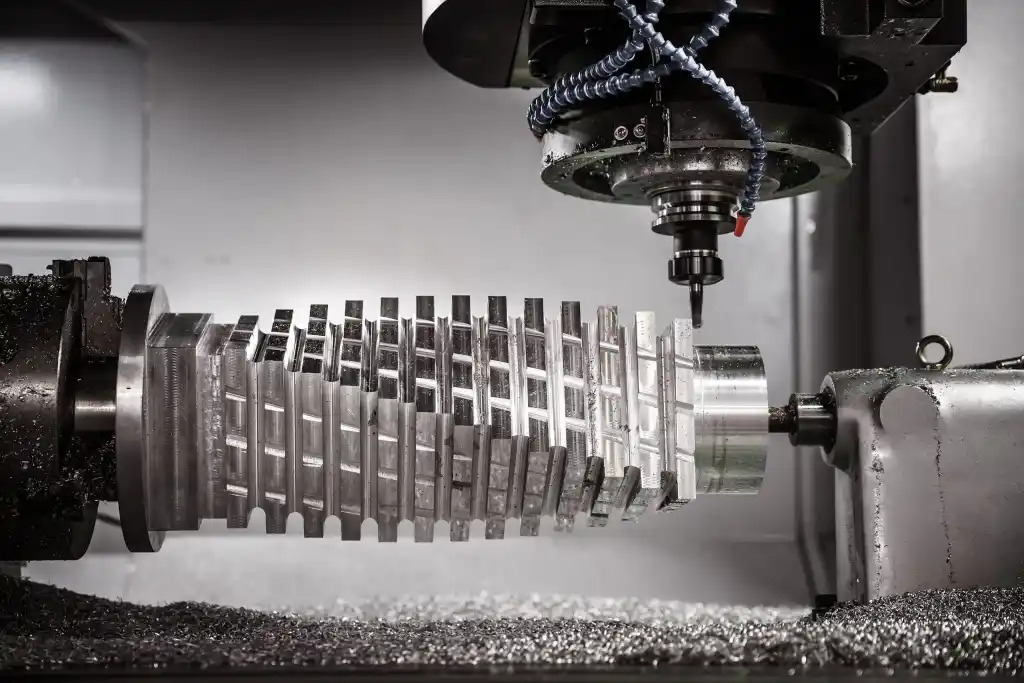

What is CNC Precision Machining?
CNC precision machining uses computer control to make precise parts from raw material and this process can get incredibly fine tolerances of ±0.00254 mm. This method combines Computer Aided Manufacturing (CAM) and Computer Aided Design (CAD) software to direct cutting tools. Many industries like medical device makers, aerospace companies and defense contractors use this technology because it delivers consistent and high quality parts every time.
CNC Precision Machining Process
CNC machining follows a step by step process and every step is important to make accurate and repeatable parts.

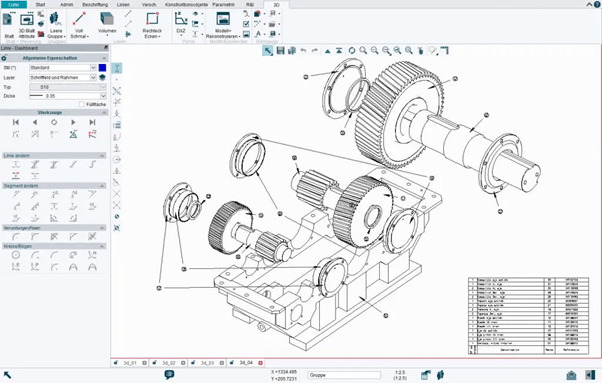

1. CAD Modeling and Design
First, precise 3D models are created in CAD software to start everything. Engineers input particular tolerances, dimensions and material requirements. They also use Design For Manufacturing (DFM) principles to assure every part design works well in production.
2. CNC Programming and CAM
Next step converts CAD models into such instructions which a machine can understand. CAM software creates M-code and G-code which controls everything from tool movements to cutting speeds. Before actual production begins, the software runs simulations to check for potential problems and verify tool paths.

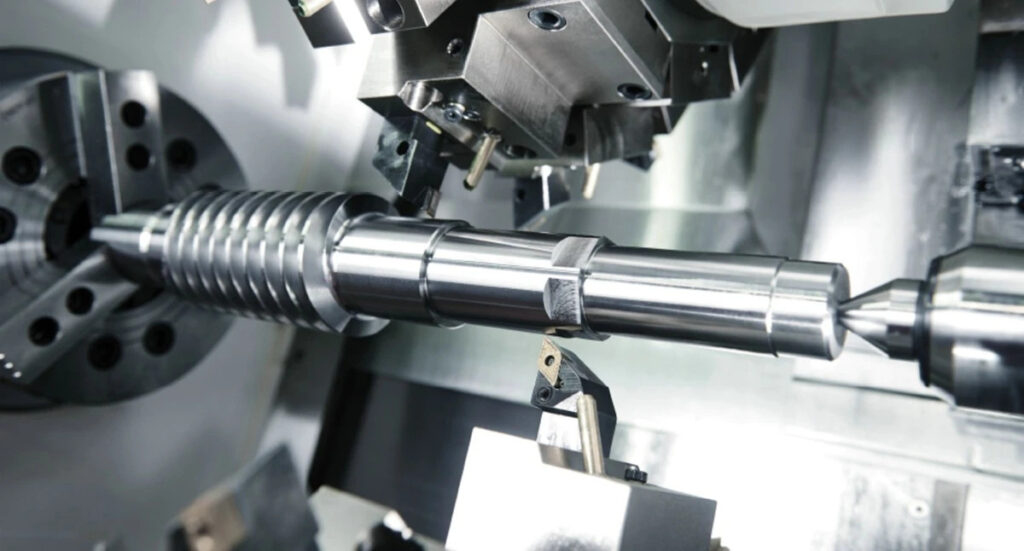

3. Machine Setup
Cutting tools are loaded into the carousel of the machine in this step. Operators set tool length offsets and establish workpiece reference points. They also check air pressure, coolant levels and power systems before starting production. Final step is setting the right feed rates and spindle speeds for each material.

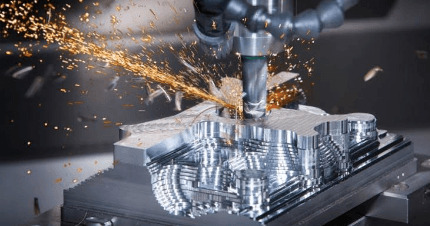

4. Machining Operations
The CNC machine precisely follows its programmed instructions and uses drilling, milling, turning and grinding to create the needed part. Modern monitoring systems track every dimension to assure accuracy.
5. Finishing and Post Processing
It is the final stage. It increases part quality through different treatments. Surface finishings such as anodizing, bead blasting and polishing can reach roughness values from 3.2 to 0.8 μm Ra. Other processes like powder coating, heat treating or electroplating add particular properties like increased durability and corrosion protection.
Types of CNC Precision Machining Techniques
CNC machining has many specialized methods and every method has particular manufacturing needs and delivers notable advantages. Some of the main machining approaches used in modern manufacturing are:

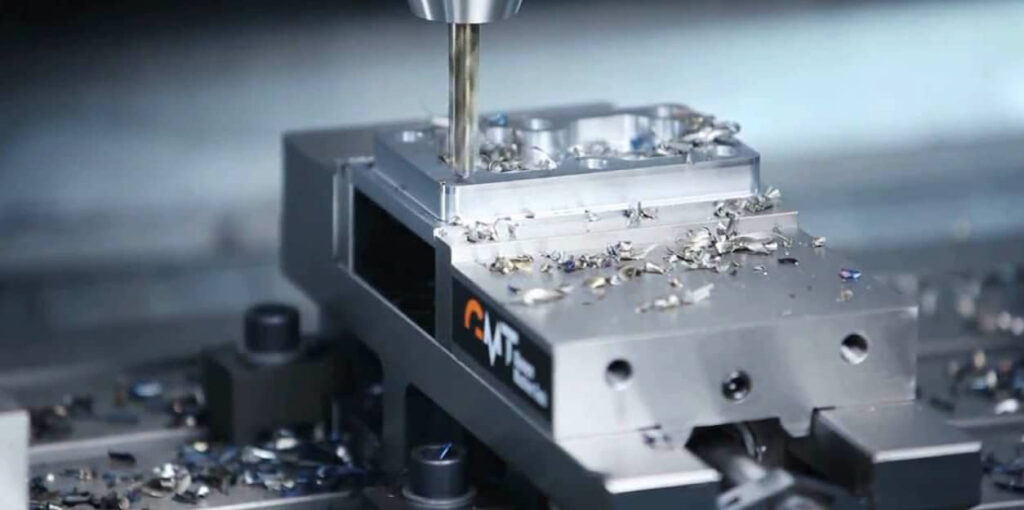

CNC Milling
A CNC milling machine uses rotating cutting tools with multiple points to shape materials. Workpiece is fixed on the machine table while the cutting tool moves to create the desired shape. This method handles different operations like end milling, face milling and profile milling. The multifunctional nature of CNC milling allows manufacturers to make difficult shapes and detailed designs with high precision.
CNC Turning
In CNC turning, the workpiece spins at high speeds in a chuck. This method works best to make cylindrical parts. Modern CNC lathes can do many operations such as taper turning, straight turning and external grooving. Internal and external threading, shaping contoured surfaces and creating slots are also part of this method.
Electrical Discharge Machining (EDM)
EDM uses controlled electrical sparks to shape materials through thermal erosion. This process takes place in a special fluid called a dielectric bath. EDM comes in two main types known as die sinking EDM, which creates complex cavity shapes, and wire EDM which performs precise cutting operations. This technique works well for intricate designs and hard materials as it does not need physical contact with the workpiece.
Engraving and Laser Cutting
This cutting type uses focused laser beams to mark or cut materials. This process works through thermal vaporization with compressed gas which removes the vaporized material. Three main types of lasers used for different purposes are CO2 lasers (best for non metals), crystal lasers (appropriate for thick materials) and fiber lasers (useful for thin materials and metals). Computer controlled laser heads assure detailed surface markings and precise cuts.
Materials Appropriate for CNC Precision Machining
It is important to pick the right material for successful CNC machining. Here are the materials that are mostly used:
Plastics
Engineering plastics are the best choices for CNC machining. Delrin (POM) gives natural stability and lubricity. PEEK provides high strength and heat resistance. Polycarbonate combines impact resistance with optical clarity. These materials can bear temperature changes, chemicals and preserve tight tolerances.
Composites
Modern composites blend different materials to get outstanding properties like Metal Matrix Composites (MMC) which combines metal toughness with ceramic hardness. Carbon Fiber Reinforced Polymers (CFRP) deliver high strength at low weight and Ceramic Matrix Composites (CMC) are best for extreme temperatures. Careful machining and special tools are required to prevent layer separation.
Metals
CNC machines works well with different metals. Stainless steel, aluminum alloys etc. Stainless steel provides corrosion protection and strength. Aluminum alloys give easy machining and are light in weight. Titanium can bear high stress while brass delivers remarkable electrical conductivity.
Advantages of CNC Precision Machining
CNC machining gives different benefits. Some of them are as follows:
Speed and Productivity
Today’s CNC machines move fast with feed rates reaching 20 to 30 meters per minute and cutting speeds of 500 to 2000 SFM for aluminum milling. These machines can run around the clock with minimal oversight and this cuts production times by up to 85%.
Repeatability and High Accuracy
CNC systems get remarkable precision through closed loop feedback control. It gives nearly identical parts every time with variation coefficients staying below 0.1% according to statistical process control (SPC) data.
Multifunctionality in Design
Modern CAM/CAD software lets engineers quickly adjust designs and create complex shapes down to 0.1 mm detail. CNC machines can cut deep pockets, create intricate 3D contours and angled features and hold an accuracy of about ±0.00254 mm in design changes.
Cost Effectiveness
Automation in CNC machining cuts labor costs by 50%. These machines run 24/7 and use materials proficiently through controlled cutting paths. Initial setup costs exist, but the lower operating costs and increased output make CNC machining cost effective for medium to large production runs.
Uses of CNC Precision Machining
CNC precision machining is used in many industries to meet their particular needs.
Aerospace Industry
CNC machining is used to make landing gear, turbine blades and engine housings of the planes. These parts must meet strict aerospace safety standards, must be lightweight and able to withstand harsh conditions.
Medical Devices
The medical industry uses CNC machining to create different healthcare parts such as diagnostic devices, surgical tools and implants made from biocompatible materials like PEEK and titanium. CNC machines can give the FDA-required surface finish of 0.8 μm Ra and this makes them perfect to produce robotic surgical parts and microfluidic devices.
Military and Defense
The defense sector uses CNC machining to produce radar tools, weapons and armored transport. Modern multi-axis machines work with special alloys and composite materials to create parts for aircraft carriers and submarines. All these parts must meet strict ITAR compliance standards.
Electronics
CNC machining helps to make precise parts needed in electronic devices. It can produce heat sinks, detailed circuit boards and device casings. These machines are used to make PCBs and semiconductor parts which need accurate measurements. The process also makes long lasting aluminum housings for everyday devices like smartphones and laptops.
Automotive Sector
For sensitive powertrain parts of cars, these machines are used. They help to produce cylinder heads, engine blocks and transmission systems with precise quality. CNC machines can make starter motors and complex internal panels for modern cars with tight tolerances.
Challenges in CNC Precision Machining
It is true that CNC precision machining has many benefits but it also has some challenges as well. Some geometries such as internal corners and undercuts are fairly difficult to machine. Also CNC machines need maintenance on regular basis to manage tool wear and operators must carefully monitor quality to keep low tolerances. To solve these issues, manufacturers use strict quality checking methods and modern CAM/CAD software.
Conclusion
CNC precision machining outshines at producing top quality parts also reduces production costs as it uses computers to automate almost everything. And as it uses CAM and CAD systems, it can create fairly complicated shapes easily.
If you need an expert at CNC machining then RICHCONN is the best option. You can contact us at anytime.
FAQ’s
How does CNC precision machining get tight tolerances and high accuracy while producing parts?
Operations controlled with the help of computers form the backbone of CNC precision machining. The system uses automated calibration to preserve precision and linear encoders to track and position cars. Carefully selected machining parameters, modern cutting tools and controlled environmental conditions work together to deliver steady precise parts.
How does the use of advanced tech increase CNC precision machining abilities?
Modern CNC machines use IoT and AI technologies to monitor live operations. These systems collect and analyze operational data and this allows machines to automatically manage feed rates and cutting paths. Machine learning algorithms process sensor feedback to increase productivity continuously.
How does CNC precision machining assure consistency and repeatability in mass production?
Computer control removes human error in CNC operations. The system constantly monitors production parameters and follows standardized toolpaths. This combination of quality monitoring and automated control assures every part matches the given specifications throughout the production run.
What are the environmental impacts of CNC precision machining and how can they be mitigated?
Wastage of material and intense power usage are the main environmental challenges in CNC machining. They are normally solved by using machines that take less energy and by recycling as much waste as possible.
