CNC routing can be used to complete fabrication work with a high degree of accuracy and use of automation. Some of the advantages are costs, speed and applicability throughout different fields. In this blog post, we will talk about the world of CNC routing, its components, types, materials it comprises and advantages of the process.
What is CNC Routing?
In simple words, it is a computer controlled technology of cutting material by using a rotating tool. This device works according to the given digital instructions, known as G-code, to mark and shape different materials such as wood, metal or plastic. This automated system gives better accuracy and quality of results than can be obtained manually.

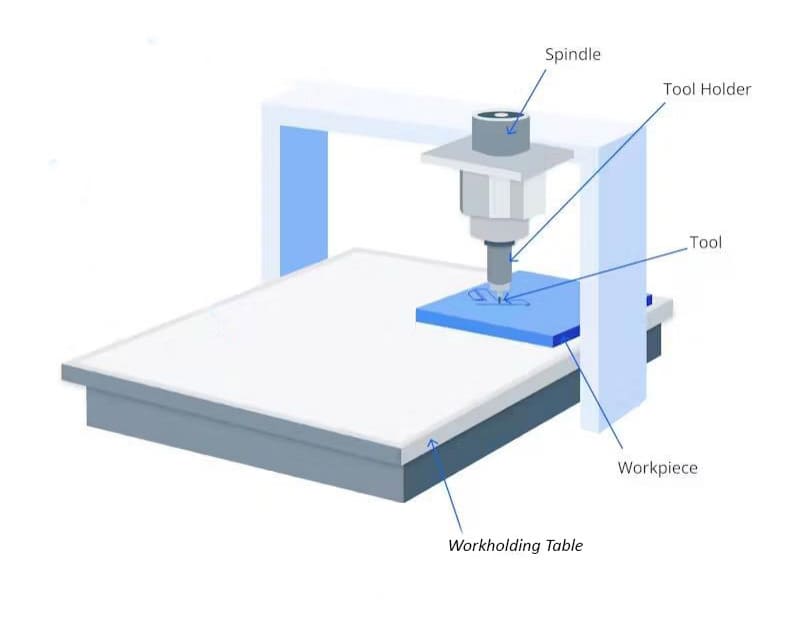

Main parts of a CNC Router
Functionality of a CNC router relies on many necessary parts working together in harmony. Some of its main components are given as.
Body or Frame
At the core of a CNC router is its frame. It’s made of strong materials such as aluminum or steel and gives needed stability and support to workpiece. It guarantees exact cutting by decreasing vibrations.
Controller
The controller is the main controller system to CNC router; it transmits Gcode to the machine and controls all mechanical parts. It controls cutting speeds, tool positions and depths to obtain accurate machining results.
Drives and Motors
CNC routers use servo or stepper motors for movement. Stepper motors provide incremental motion without feedback while servo motors give increased accuracy through position feedback systems.
Linear Guides and Rails
Smooth tool movement with the axes of a machine is supported by linear rails and guides. They use machined surfaces and bearings to assure lowest friction and accurate tool placement.
Spindle
Spindle is another part that rotates and protects a cutting tool. It is powered by a motor and works on different speeds. The speed and quality of cuts directly depend on spindle’s quality.
Collet or Tool Holder
Assuring firm attachment of cutting tools to the spindle is the job of tool holder. This part stops unwanted movement during operations which is necessary for obtaining accurate results.
Workholding System or Vacuum Table
Material stability during cutting is preserved by a vacuum table. This setup uses suction with adjustable zones and an MDF spoilboard to spread vacuum pressure evenly in the workpiece.
Limit Switches
To stop the machine from crossing its operational range, limit switches are used. These protection devices work as origin points and they automatically halt movement when machine reaches its boundaries.
Cooling System
Overheating of cutting tools and the spindle is stopped by the cooling mechanism. This system helps keep steady cutting quality and extends the lifespan of tools.
User Interface and Software
CNC routers rely on control software to convert designs into machine instructions. GRBL and Fusion 360 are user friendly interfaces which help operators to monitor machine operations and program cutting paths.
Types of CNC Routers
CNC routers are available in many configurations and all are designed according to particular manufacturing requirements.

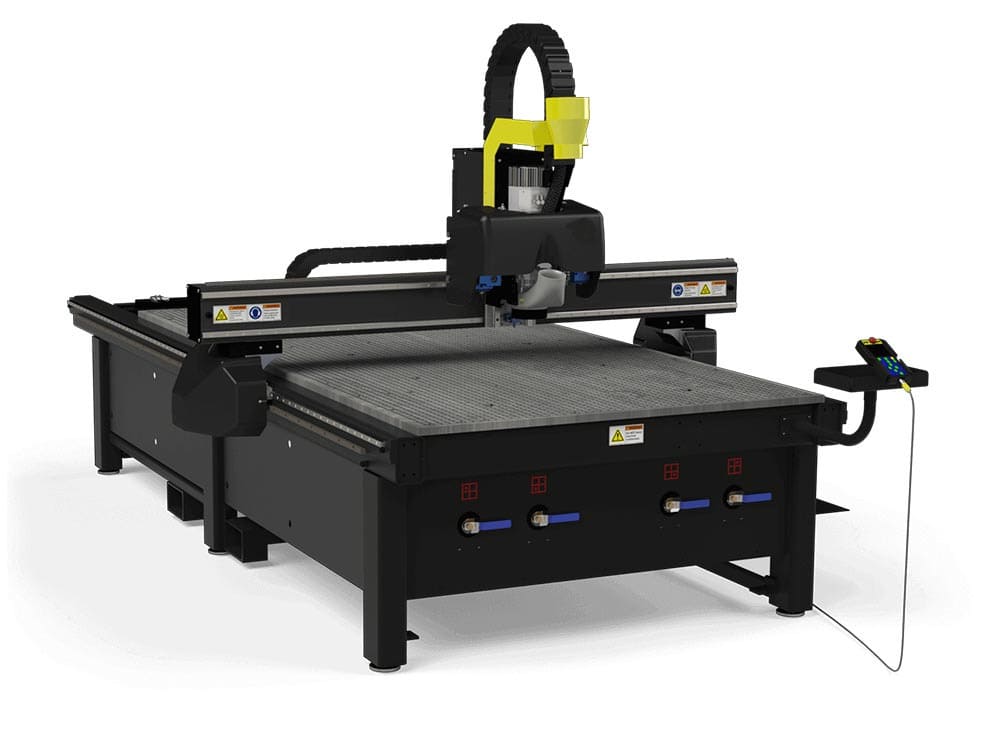

Flatbed CNC Routers
Featuring a horizontal work surface, flatbed routers allow materials to lie flat during processing. Their stable and large bed design makes them best for handling panels and sheets. Sign making, processing of large sheets and cabinet manufacturing are main uses for these machines.

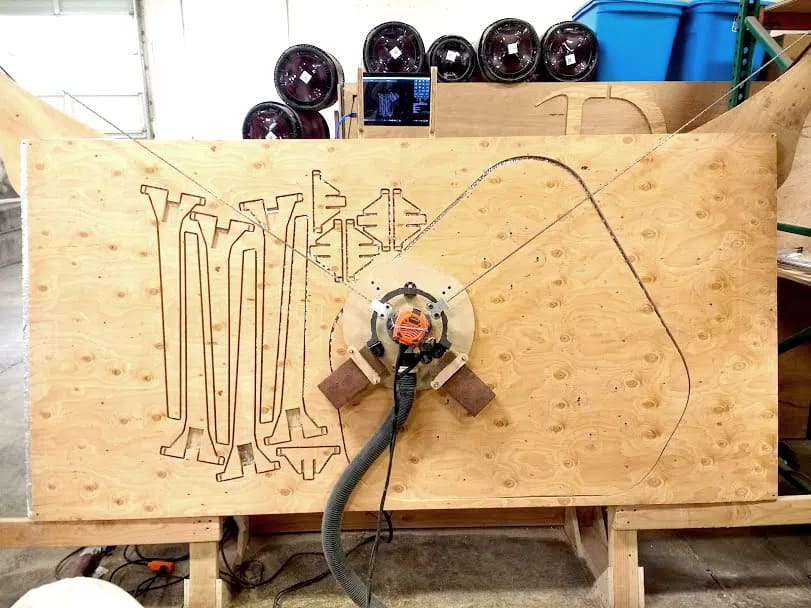

Vertical CNC Routers
In contrast to flatbed models, vertical routers position materials upright against a vertical work surface. This design is necessary for workshops with limited floor space. Vertical routers are outstanding for processing doors, cabinet parts and tall panels.

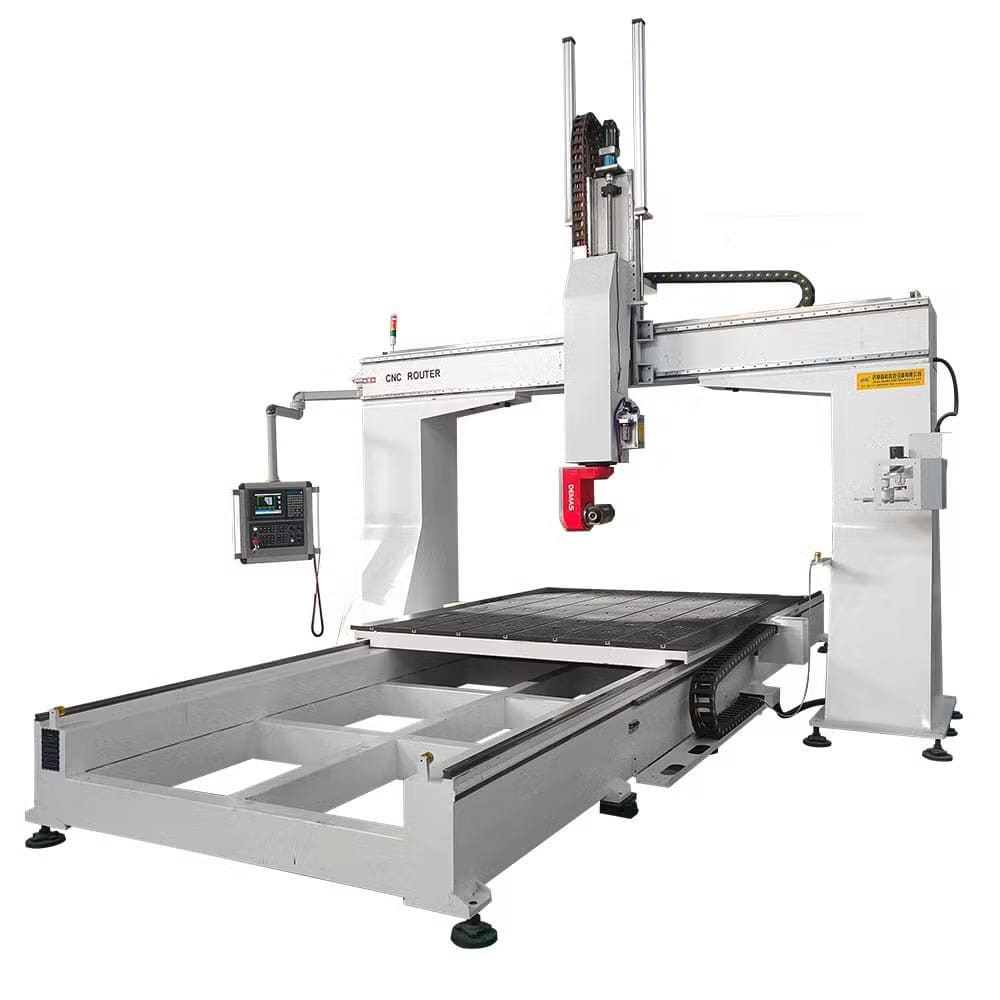

Gantry CNC Routers
Gantry routers use an overhead beam system that moves in a stationary table. The robust design of these machines makes sure of extraordinary accuracy and stability for heavy duty cutting tasks. Their ability to obtain high cutting speeds while keeping accuracy makes them perfect for different industrial uses.

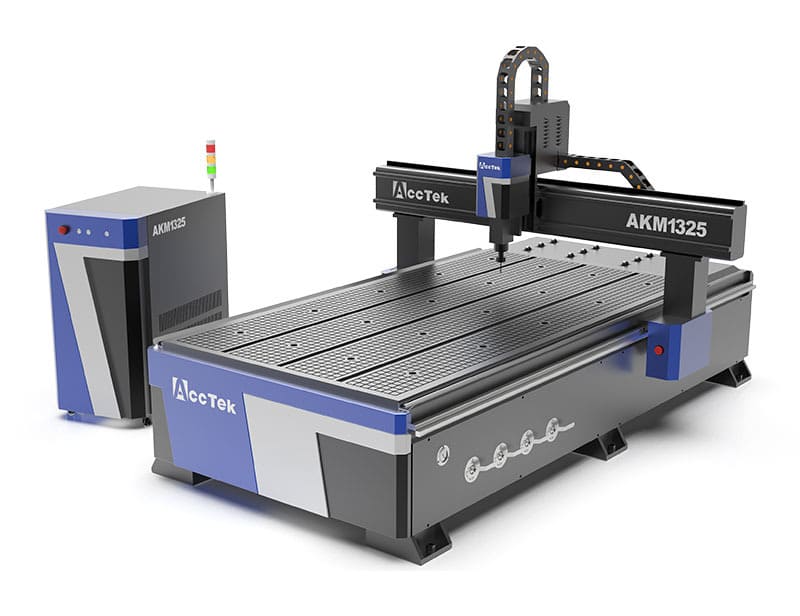

3-Axis CNC Routers
They are the most popular type of router and work along 3 axes: X (length), Y (width) and Z (height). They can do most standard cutting operations, 2D and basic 3D. They normally do engraving, surface profiling and cutting.

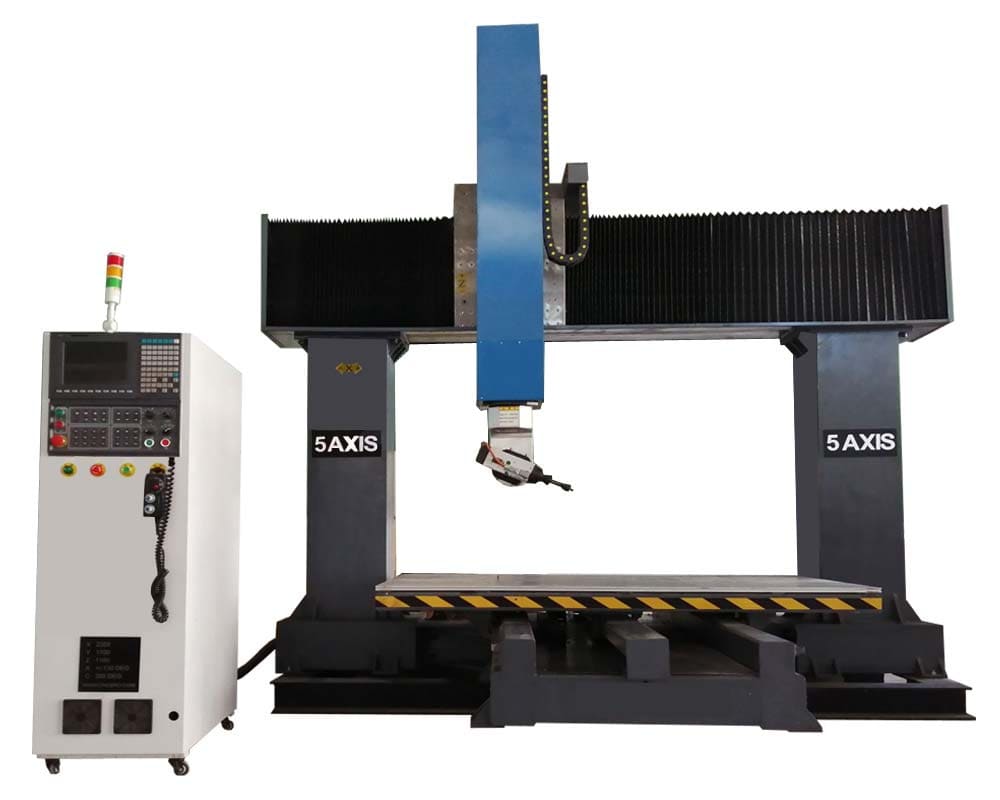

5-Axis CNC Routers
These machines add 2 more rotational movements to the basic 3 axes. They can approach workpieces from any angle, so they can do complex 3D undercuts and shapes. This is necessary for aerospace components, industrial parts and complicated architectural elements. They can make full 3D objects with almost no setup changes.

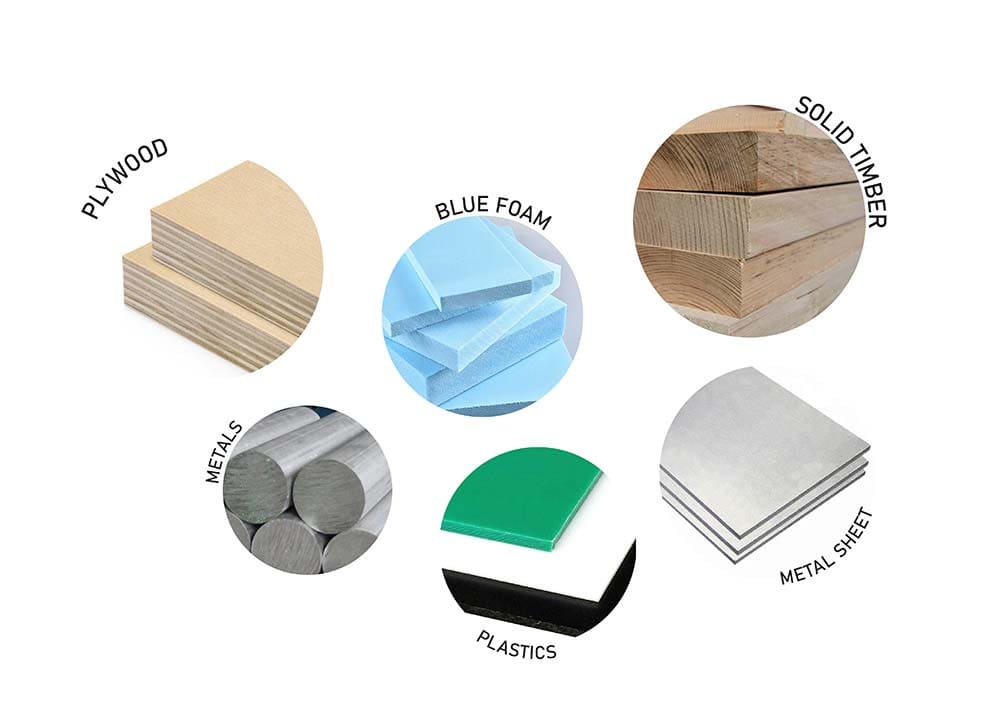

Materials Used for CNC Routing
The CNC routers process different multiple materials for different manufacturing requirements. PVC and acrylic are mostly used to make displays and signage. Wood materials such as hardwoods, MDF and plywood, remain the most common choice for cabinetry and furniture.
Soft metals such as brass and aluminum can be machined with proper speed settings and specific cutting tools. Composite materials and high density foams work perfectly for molds and prototypes. The choice of material is based on the end use, durability needs and required finish of a project.
Step by Step Process of CNC Routing
1. Designing the Part (CAD Design)
The process starts by the production of a 3D model using Computer Aided Design software. This necessary stage lays the groundwork for the quality and accuracy of final product. The design must encompass all specifications, required tolerances and features to guarantee exact production.
2. Converting the Design into G-code (CAM)
Next CAM software takes center stage. It converts 3D model to G-code instructions which contain machining information about toolpaths, feed rates and cutting depths. The CAM software converts the design into machine language.
3. Preparing the CNC Router and Workpiece
This critical step includes choosing right cutter for the cutting operation and fixing the workpiece. The material should be tightly clamped or held using some other gripping technology. Tool selection depends on certain parameters, for instance material type, the finishing of the cut and the level of cut complexity.
4. Starting the CNC Router
The operator starts the controller, the remote control and the dust collector systems. Collet is connected to the cutting tool and workpiece is placed on the table. The router bit is put at its starting point or 0, 0, 0 and the CAD/CAM file is fed into the controller.
5. The Actual Routing Operation
In the process of machining a workpiece, the spindle spins at 10,000 – 20,000 rpm while following programmed toolpaths.
A CNC router can do many operations like:
- Cutting: to make accurate cuts on the workpiece
- Milling: removes material from workpiece and makes pockets and 3D shapes.
- Engraving: is used to carve texts and designs
- Contouring: is best to make specific profiles by cutting around the corners
- Drilling: creates different sized holes
6. Post-Processing
After the completion of routing process, the workpiece is taken for finishing. The surface may be further finished through deburring, brushing and sand blasting to meet that desired appearance and functionality. The main purpose is to refine the end surface finish and eradicate any vestiges of the manufacturing process.
7. Inspection and Quality Assurance
The last process is to do a close survey of completed piece to check for any flaws. Measurements are compared to the original design and roughness of the surfaces is checked. This will guarantee that it passes through all quality checks and meets all requirements of the buyer.
The Uses of CNC Routing
With its ability to cut and shape in many ways, CNC routing technology is used in different industries.

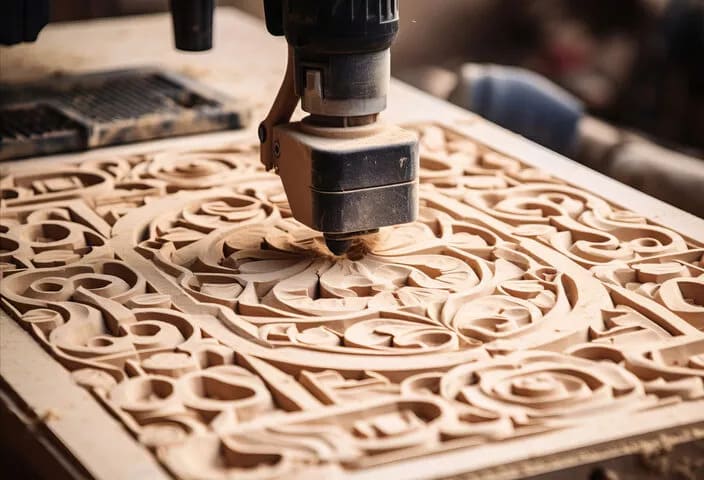

Woodworking and Furniture Manufacturing
CNC routers are used by furniture industry for intricate wooden components manufacturing. They are great machines for producing cabinet parts, decorative panels and custom furniture pieces because they provide consistent quality. Complete wooden designs which by hand would take days can be completed within a few minutes with modern CNC routers.

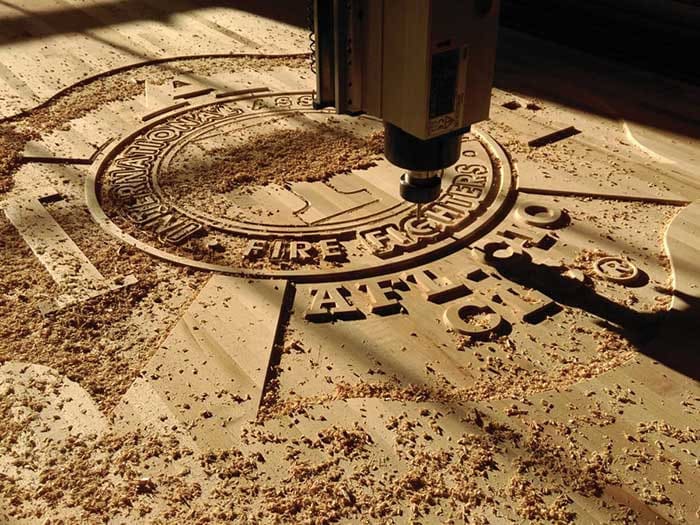

Signage and Graphics
The sign making industry uses CNC routers. Events and businesses hire them to produce 3D signage, engraved plaques and dimensional letters. These machines work on different materials such as wood, HDU foam and acrylic to make eye catching displays.

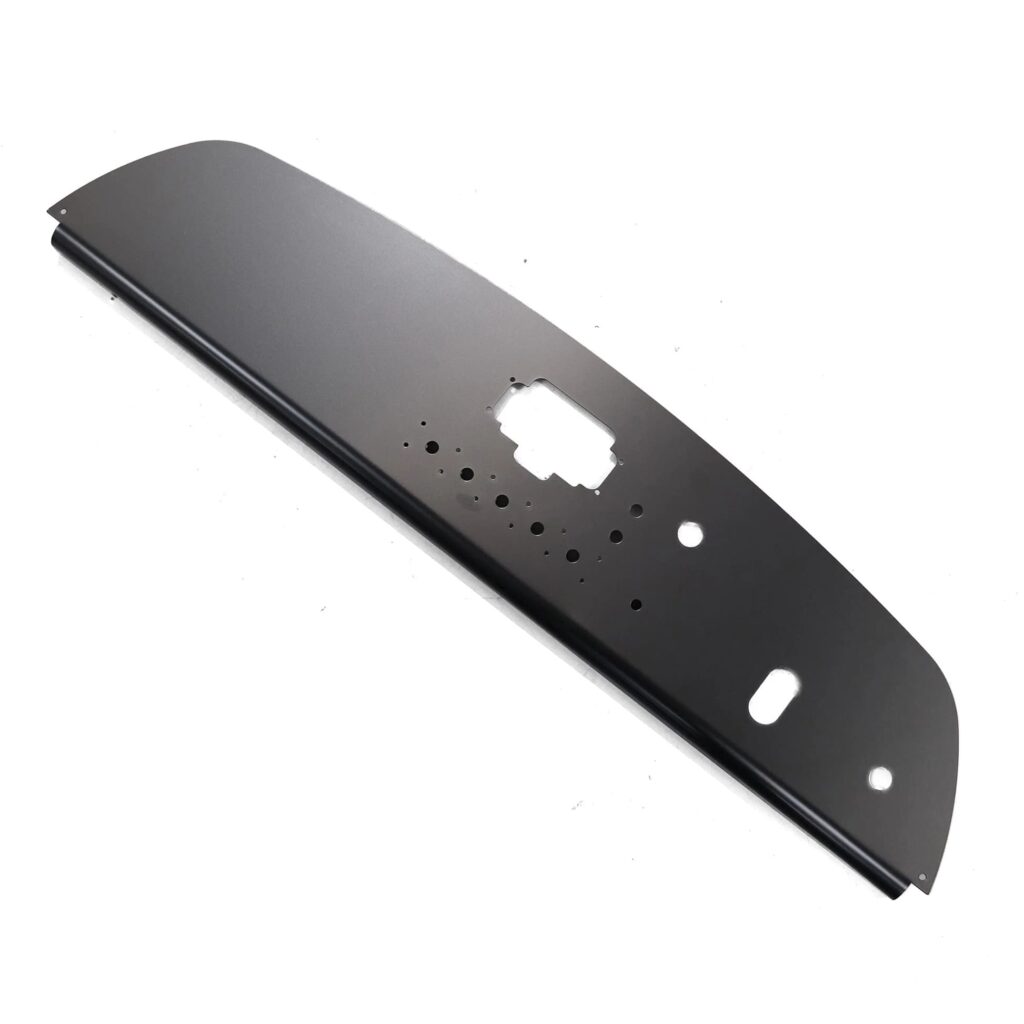

Aerospace and Automotive Industry
Though not very common but CNC routers are used to make some aluminium parts in automobiles like dashboards and panel. They are the machines that guarantee exact specifications for vehicle parts and aircraft panels by making accurate molds for these parts’ manufacturing.

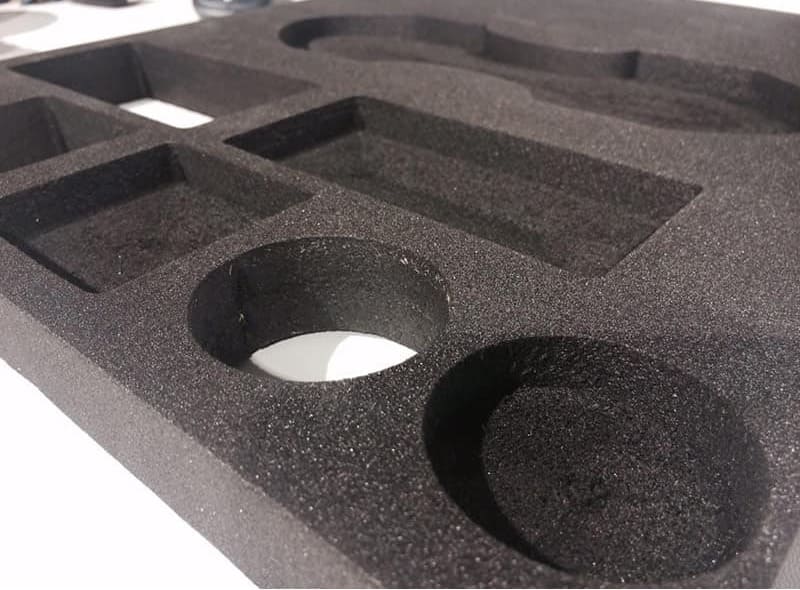

Plastic and Foam Cutting
Foams and plastics are effectively shaped for many applications by CNC routers. They make custom packaging, protective cases and display materials. It allows cutting different densities of materials without damage.

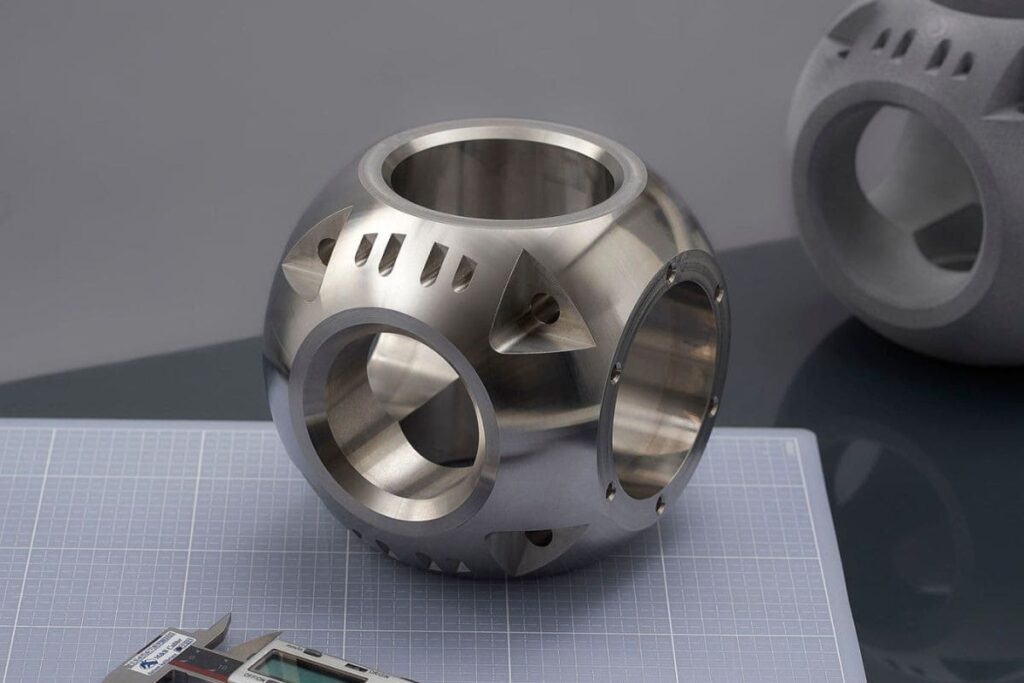

Modeling and Prototyping
CNC routing is very beneficial for fast prototyping. These machines are used by engineers for making accurate product model and test piece before full production. It is important for design confirmation and right development of product.

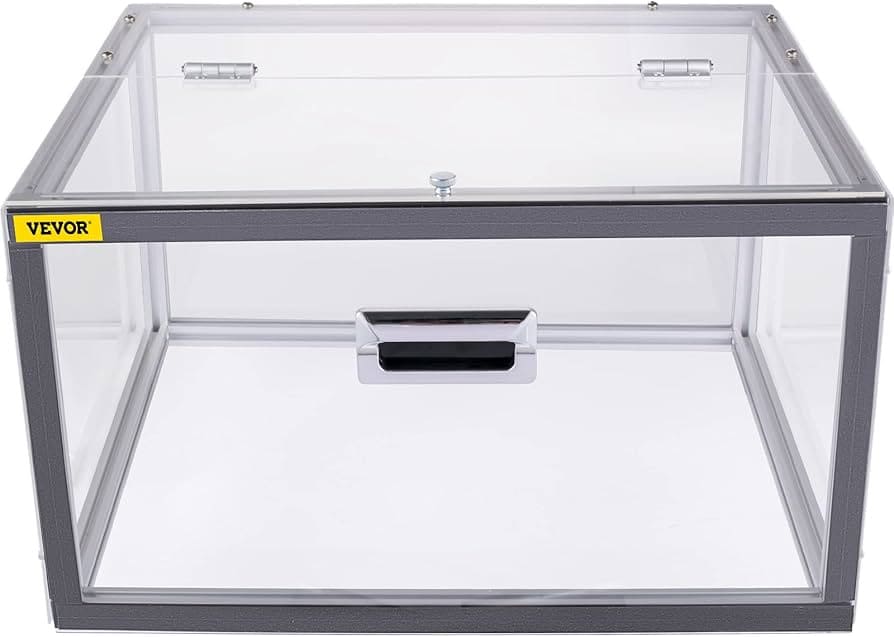

Enclosures for Electronics and Electricity
CNC routers are used in electronics industry to manufacture device enclosures and PCB boards. These make accurate cutouts for vents and connectors and mounting points in many materials to guarantee correct fit and function.
Benefits of CNC Routing
Saves Cost in Long Term
Although CNC routing is more expensive to set up, it is cheaper to produce. It reduces material waste because it does precise cutting and it does not require many operators to operate machines. Thus it usually recovers the equipment costs through savings.
Gives More Production
CNC routing is significantly faster in an automatic way. These machines run continuously and can make several same parts in a single setup.
More Accuracy
CNC routers with tolerances as strict as ±0.0025mm, give extraordinary accuracy. And because production is controlled by a computer, all produced parts are of same quality and there is no human error.
More Flexible
CNC routers can be used to work on many materials and can make complex designs with a single set up. The machines change from one project to another easily, by just loading new program files and that’s why are broadly used for large and small productions.
Complexity
CNC router shines at generating complicated shapes or designs which are difficult to build by hand. They are able to consistently produce detailed patterns and have high quality between multiple production runs.
Lower Labor Cost and Better Safety
Multiple CNC routers can be handled by one skilled operator at a time which reduces need of many labors. By its automated nature, workers are kept far away from cutting tools which reduce workplace accidents greatly. Both equipment and operators are protected by these safety features.
CNC Routing vs Traditional Ways of Routing
CNC Routing vs Manual Routing
The operation of traditional machining depends largely on operator skill and experience to provide desired results. This method also needs longer production time and quite often results in inconsistent quality of different products.
On the other side CNC routing boasts automated precision with virtually little to no human intervention which results into less errors and increased production speed. Further, handheld routing demands training for operators and CNC routers only require basic software knowledge.
CNC Routing vs CNC Milling
CNC routing and CNC milling serves different manufacturing purposes. The routers run at higher speed and with less cutting force, which makes them good for wood, soft metals and plastic. Milling machines are rigid than routing machines, and can machine harder materials with higher cutting forces.
Routers are better for large scale projects with less complicated geometries but milling machines are more suited to more complex and detailed work that need adherence to stricter tolerances.
The selection between these methods is based on particular project requirements. CNC routing is faster and more cost effective solution for softer materials whereas milling gives better precision for complex metal components.
Conclusion
To put it simply, CNC routing is precision, efficiency and versatility in a short description. Its accuracy is computer controlled, it can produce parts rapidly and work with many different materials.
Do you need any kind of CNC routing services? Richconn can make top quality parts machined to your exact needs.
FAQs
In how much time can a CNC router be set up?
Setup time depends on type of project as well as tooling used in the project. For small tasks 1 hour is more than enough but large tasks can take hours or even days of work.
How much accurate is CNC routing?
CNC routers can deliver great precision to an accuracy of ±0.0025mm.
Can a CNC router cut metals?
The fact is CNC routers can cut soft metals like aluminum and brass along with hardened materials, but they are most suitable for workpiece materials like wood, composites and plastics.
What must I do to keep a CNC router in its best shape?
Maintenance needed are washing off debris, examination of the condition of tools and greasing of moving parts.
What makes CNC routers different than Laser cutting?
CNC routers can handle more materials and are better at cutting thicker substrates. Whereas laser cutting gives more clean finish but for less dense materials only (it can’t cut thick ones).
