Have you ever wondered how these highly precise cylindrical parts are made? The only answer is CNC turning. This procedure uses computer control to make cylindrical components such as medical devices and car shafts. In this blog post you will learn about the turning procedure, types of operations, machines involved and where CNC turning is used.
What is CNC Turning?
CNC turning uses computer control to shape parts. The process spins the workpiece at high speed and a cutting tool removes material. Manufacturers use CNC turning to make conical or cylindrical parts with high precision.
Also See: What is CNC Precision Machining
CNC Turning Process
There are many steps involved during the CNC turning process. Now let’s look at these steps one by one.
1. CAD/CAM Programming
Turning process starts with a design in CAD software. A CAM software then uses that design to generate the exact tool paths for the machine. These digital instructions control every cut.
At RICHCONN we adjust these paths to increase speed and accuracy for each customer’s parts.
2. Machine Setup
In the next step the operator sets up the machine. They install the tools, clamp the workpiece in chuck and set the machine parameters. All this setup is critical for precision.
3. Execution
Once setup is complete CNC lathe spins the workpiece at up to 4,000 RPM. The cutting tool follows the programmed path. It removes material in stages i.e layer by layer.
4. Monitoring and Finish
The operator monitors quality throughout the procedure. Final inspections and adjustments are then done to assure every part meets its respective specifications.
Basic CNC Turning Operations
CNC turning uses several specialized methods to make cylindrical parts. Every method has its own purpose and it needs particular tools & cutting settings.
Straight (Rough/ Finish) Turning
In straight turning the tool removes material along the length of the workpiece. This produces a rough or smooth cylindrical surface. It is good for making rods and shafts.
Taper Turning
Taper turning shapes the workpiece into a cone by reducing the diameter in stages along its length. It is used to make pipe fittings and shafts.

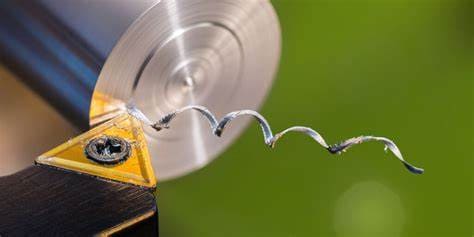

Facing
Facing cuts across the end of the workpiece. The result is a flat surface that sits exactly perpendicular to the axis. This assures that the part is of correct length.
Grooving/ Parting
Grooving creates channels or grooves on the surface which can hold O rings or they may only be decorative. Parting, in contrast, separates finished parts from raw material.
Threading
Threading creates accurate screw threads for nuts, bolts and other threaded parts. Some specialized tools can create internal and external threads.
Also See: A Complete Guide to Thread Machining
Knurling (Textured Grip Patterns)
Knurling presses patterns into the surface to improve grip. Knobs & handles often use this feature. These patterns can be diamond, straight or cross‐hatched.

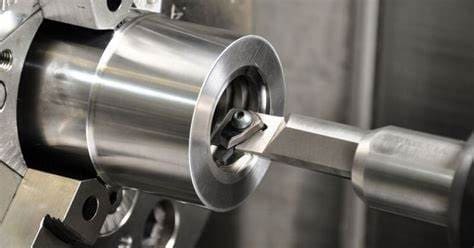

Boring
Boring enlarges existing holes and improves their surface finish and roundness. This operation is critical for parts like bearing housings and bushings where internal dimensions are critical.
Machines Used in CNC Turning
Horizontal CNC Lathes
Most CNC turning operations are done on horizontal lathes. These machines can do boring, turning as well as threading. They are best for medium size parts.
Vertical Turning Centers
Vertical turning centers support heavy and large parts by holding them upright. This vertical orientation uses gravity for stability. But removing chips can be harder with this setup.
CNC Turning Centers (Mill Turn Hybrids)
Mill turn hybrid machines combine both milling and turning in one setup. They do several operations without moving the workpiece. This design speeds up production and increases accuracy for complicated parts.
Automatic/ Multi spindle Lathes
Machines with 5 to 8 spindles can make several parts at once. They are best for high volume production. These lathes have fast cycle times and precise results.
Tools Used in CNC Turning
Choice of right tools is key to good results in CNC turning. Each tool has its advantages for the process.
Single Point Turning Tools
Single point tools come in various shapes like relief, rake and nose radius. These shapes help achieve accurate cuts & smooth finishes.
Tipped (Insert) Tools
CBN, Carbide and PCD inserts are common because they last longer. Operators can quickly replace these indexable tips to maintain sharp cutting edges.

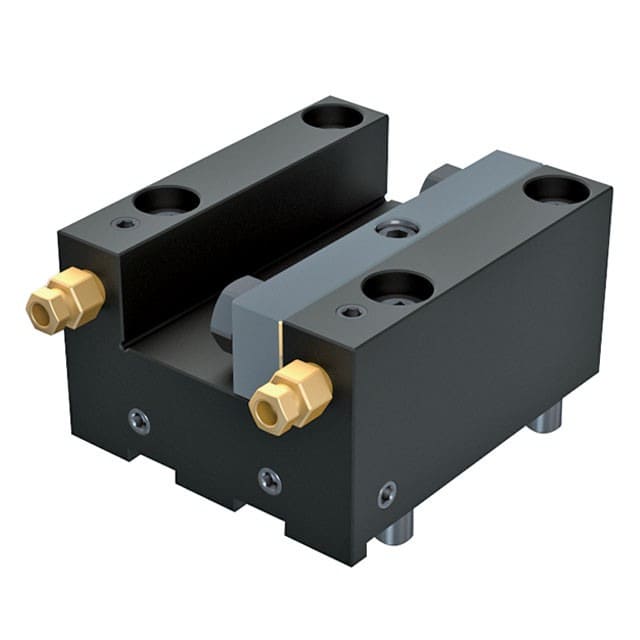

Tool Holders
Tool holders are attached to the turret of machine. They keep each tool steady and in the correct position for turning.
Feed Rate and Speed for CNC Turning
Choice of right speed and feed rate is important in CNC turning. These settings affect tool life, surface finish and production efficiency.
1. Cutting Speed
You can calculate cutting speed (Vc) with the formula Vc = π·D·RPM/1000. Cutting speed affects tool wear and heat generation. Lower speeds protect tools when working with hard materials.
2. Feed Rate
You can measure feed rate in mm/rev. For roughing, set the feed rate between 0.1 to 0.3 mm/rev. For finishing reduce it to 0.01 to 0.05 mm/rev. When machining plastics adjust the feed rate to avoid chip buildup or melting.
3. Recommended Speed & Feed Rate for CNC Turning Metals & Plastics
| Material | Cutting Speed (Vc) | Spindle Speed(RPM)¹ | Feed Rate(mm/rev)² | |
| Metals | Mild Steel (e.g. AISI 1040) | 120 – 200 m/min | ~2,300 – 3,800 (Ø100 mm) | Rough: 0.15 – 0.30 Finish: 0.05 – 0.10 |
| Alloy Steel (e.g. AISI 4140) | 100 – 180 m/min | ~1,900 – 3,400 (Ø100 mm) | Rough: 0.12 – 0.25 Finish: 0.04 – 0.08 | |
| Stainless Steel (304/316) | 70 – 120 m/min | ~1,300 – 2,200 (Ø100 mm) | Rough: 0.10 – 0.20 Finish: 0.03 – 0.06 | |
| Aluminum (6061-T6) | 300 – 500 m/min | ~5,000 – 8,400 (Ø100 mm) | Rough: 0.20 – 0.40 Finish: 0.08 – 0.15 | |
| Brass (e.g. C36000) | 250 – 400 m/min | ~4,200 – 6,700 (Ø100 mm) | 0.15 – 0.30 consistently | |
| Titanium (Ti-6Al-4V) | 40 – 80 m/min | ~670 – 1,300 (Ø100 mm) | Rough: 0.08 – 0.15 Finish: 0.02 – 0.05 | |
| Plastics | Acetal / PC / PMMA / Nylon | 300 – 500 m/min | ~9,500 – 16,000 RPM (Ø100 mm) | Rough: 0.10 – 0.25 Finish: 0.05 – 0.15 |
| UHMW / HDPE | 280 – 450 m/min | ~8,500 – 14,000 RPM (Ø100 mm) | 0.12 – 0.30 consistently | |
| PTFE (Teflon) | 150 – 300 m/min | ~4,800 – 9,500 RPM (Ø100 mm) | 0.10 – 0.25 consistently | |
| PEEK | 250 – 500 m/min | ~8,000 – 16,000 RPM (Ø100 mm) | 0.05 – 0.20 consistently | |
- Use RPM = (Vc × 1000) / (π × D) for calculations, based on a 100 mm (~4″) diameter part.
- These feed rates balance chip load & surface finish. Treat all values as starting points; actual settings depend on machine rigidity, tooling and coolant.
Note: You may need to change these values to fit your particular needs.
At RICHCONN our engineers work closely with clients to optimize cutting parameters and select the right materials. This assures every part meets your project’s requirements for finish and durability. Whether you need titanium, aluminum or engineering plastics, we have the expertise to deliver consistent results.
4. CNC Turning Considerations
Balance Feed and Speed
If cutting speed is too high, the tool heats up and wears out faster through abrasion or crater formation. Similarly a feed rate that is too high puts extra mechanical stress on the tool which can cause flank wear or edge chipping.
To keep tool life long and part quality high, you need to balance heat and load by finding the right combination of speed and feed.
Minimize Vibration and Chatter
Flexible setups with high feeds or speeds can cause vibration or chatter. These problems harm surface finish and may break tools. To prevent this, use rigid tool holders and set correct spindle speeds to avoid resonance. And for critical work choose damped tooling.
RICHCONN’s engineers monitor vibration in real time to control chatter – in particular when working on thin walled or high precision parts.
Tool Material and Coating
Carbide and coated inserts can handle higher speeds and feeds as compared to HSS tools. The type of tool you select determines the cutting parameters you can use. Always follow the manufacturer’s recommended feed & speed settings for each tool material and grade to prevent overheating or early wear.
Calibrate and Test in Real‐world
Start with feeds and speeds from calculators or reference tables. Then adjust these values based on how rigid the machine is, the actual cutting conditions and what you see during machining. Watch tool temperature, check chip formation, listen for unusual sounds and pay attention to surface finish. Change the parameters if you see burning, overloading or chatter.
CNC Turning Pros and Cons
CNC turning offers both high precision and high productivity. Before you choose this for a project, consider both the advantages & disadvantages.
CNC Turning Advantages
Extraordinary Precision
These machines can hold tolerances as tight as ±0.0001 inches. Parts meet strict quality standards every time.
High Productivity
Automated systems keep production moving fast. Machines can run 24/7 which shorten lead times for any batch size.
Consistent Quality
Once programmed, CNC lathes produce identical parts from batch to batch. This reduces the chance of defects or human error.
Flexibility
CNC turning can work with a broad range of materials such as plastics, metals & many others. This makes it useful for multiple purposes in different industries.
Increased Safety
Operators are protected from moving parts & debris as the process is automated and enclosed.
CNC Turning Limitations
Only for Cylindrical Shapes
Only works for round & symmetrical parts. Milling or other methods are needed for complicated shapes that don’t rotate.
Material Waste
CNC turning removes material from solid bars. This leaves a lot of waste.
High Setup and Maintenance Costs
Initially buying machines, programming them and maintaining equipment is expensive. It is not economical for small runs.
Uses of CNC Turning
Automotive
Automotive industry relies on CNC turning. This process creates bushings, shafts, hubs and crankshafts with tight tolerances. So engines can run smoothly in vehicles.
Aerospace and Defense

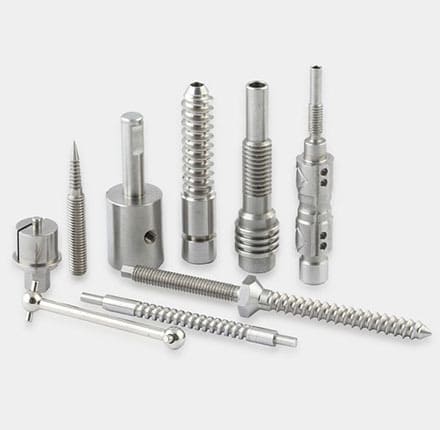

CNC turned parts are critical for aircrafts. Fasteners, landing gear, manifolds and hydraulic system components all require this technology. Only CNC turning can handle the advanced materials and complicated shapes which these parts need.
Medical Devices
CNC turning provides the accuracy and surface finish needed for medical tools, implants and bone screws. Swiss type CNC lathes can achieve tolerances as close as ±0.001 mm. It is suitable for small & critical medical components.
Oil and Gas
Oil rigs & pipelines use fittings, valves and downhole tools made with CNC turning. These parts must withstand corrosion and high pressure. CNC turning delivers the exact dimensions and strength needed for safe use in harsh conditions.
Electronics/ Consumer Products
CNC turning manufactures connector pins and housings for smartphones and other gadgets with great precision. Due to this every part fits and works as intended.
CNC Turning vs CNC Milling– A Quick Comparison
CNC milling and CNC turning both offer precision machining but work differently and for different applications. The table below is a quick guide to help you choose the best process for your use case:
| Feature | CNC Turning | CNC Milling |
|---|---|---|
| Workpiece motion | Rotates workpiece | Rotates cutting tool |
| Shapes produced | Cylinders, threads, cones | Flats, pockets, slots, freeform shapes |
| Speed & efficiency | Fast for round parts | Better for complex, non rotational geometry |
| Tooling | Single point/ insert tools | End mills, drills, form tools |
| Limitations | Generally cylindrical only | Need complicated toolpaths & fixturing |
Also See: What are the Main Difference Between CNC Milling and Turning
Get Best CNC Turned Parts from Richconn
Richconn offers CNC turning with tolerances as tight as ±0.001mm. Our modern multi axis lathes can work with plastics, metals and parts that have complex shapes. We are ISO 9001 certified so your every order gets quick delivery & strict quality assurance.
To Sum Up
CNC turning provides repeatability, precision and efficiency for cylindrical components. Fast operation and CAD/CAM integration helps companies reduce human error, launch products faster and improve workplace safety. Although setup costs are high and the process is limited to radial shapes but CNC turning is still a must for industries that require reliable & high quality parts.
You can trust Richconn for consistent top grade CNC turned parts. Contact us for a quote today.
Related Questions
What part shapes work with CNC turning?
CNC turning is best for parts with rotational symmetry; for example conical, cylindrical, threaded and grooved components. It can also produce some polygonal shapes by using synchronized polygonal turning.
Why does chatter happen in CNC turning and how to stop it?
Chatter is caused by vibrations between the tool & workpiece. To avoid it select proper feeds and speeds, use rigid setups, choose damped tooling and avoid such spindle speeds that can create resonance.
How precise can CNC turning tolerances be?
Typical CNC turning has tolerances of ±0.127mm (0.005″). However high precision machines can have tolerances as close as ±0.001mm (0.00005″).
What should a B2B CNC turning provider offer?
Look for providers with advanced CNC lathes that support live tooling and multi axis work, have experience with various materials, can hold tight tolerances and are quality certified like ISO 9001. For professional CNC turning solutions you can contact us today.
