CNC parts often fail from rust and uneven paint, especially on complicated shapes. This costs time and money. E-coating solves this issue by applying a uniform, protective layer everywhere. In this blog post we will explain how the E-coating process works and how it can benefit your manufacturing needs.

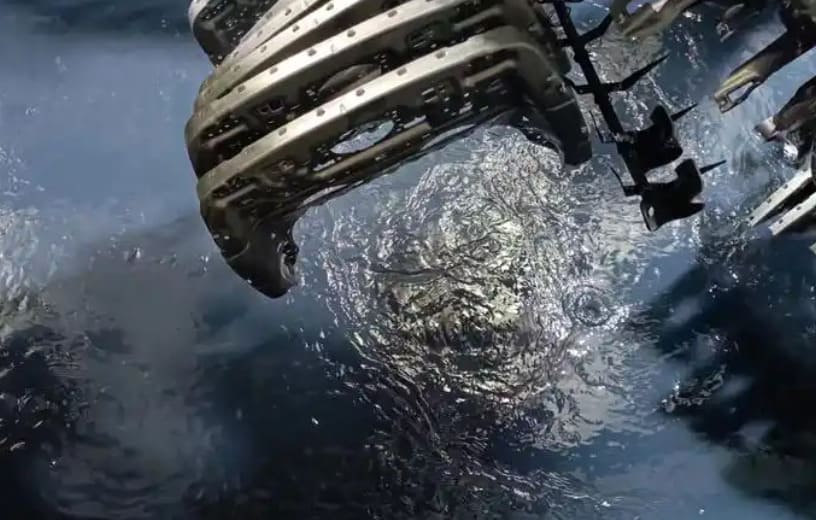

What Exactly is E-Coating in CNC Manufacturing
E‐coating is a high‐tech finishing process that uses an electrical current to apply a protective layer onto metal parts. It involves submerging a CNC part in a paint bath and applying a charge which draws paint particles to the surface. This method creates a highly uniform, durable as well as corrosion resistant finish.
How E-Coating Works_ Step-by-Step Process for CNC Parts
E‐coating process is a systematic, multi‐stage method that ensures a high quality finish. Each step has a critical role in the coating’s durability and uniform application.

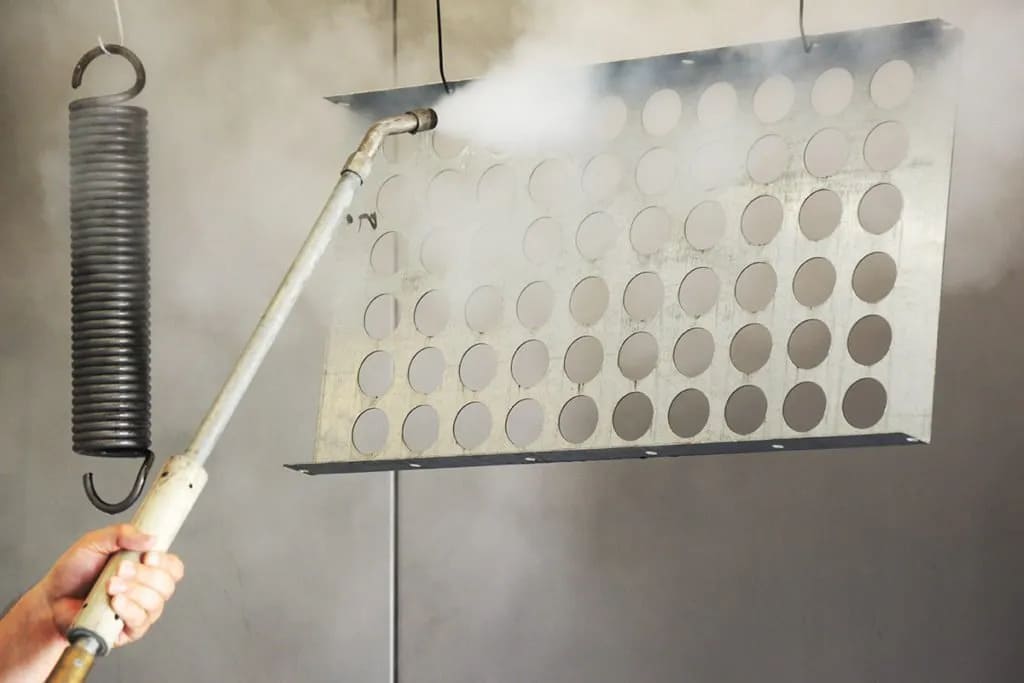

Cleaning & Pretreatment
First, parts are thoroughly cleaned to remove all oils and contaminants from the CNC machining process. An optional zinc phosphate conversion coating can be applied. This step prepares the metal surface which significantly boosts adhesion and increases overall corrosion resistance.

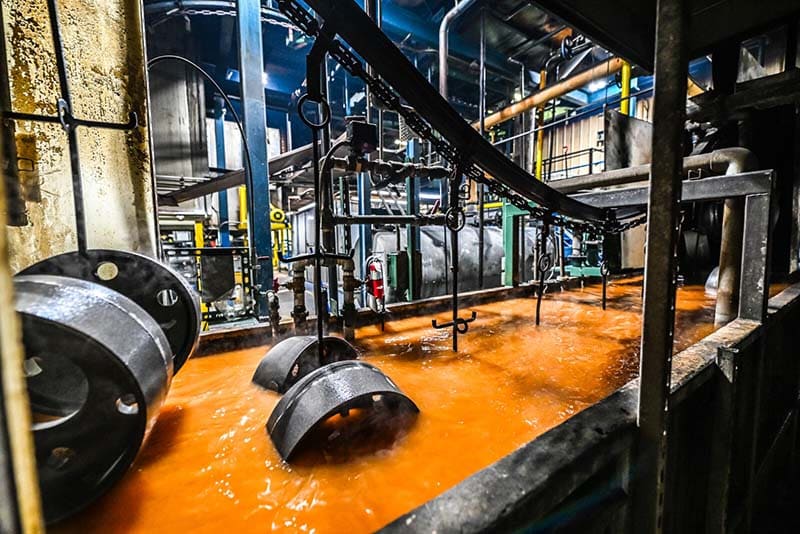

E-Coat Bath Immersion
Next, the cleaned parts are submerged in a specialized tank. This bath contains a solution of 80 to 90% deionized water and 10 to 20% paint solids. These solids include epoxy or acrylic resins plus pigments which form the protective coating layer on the part.

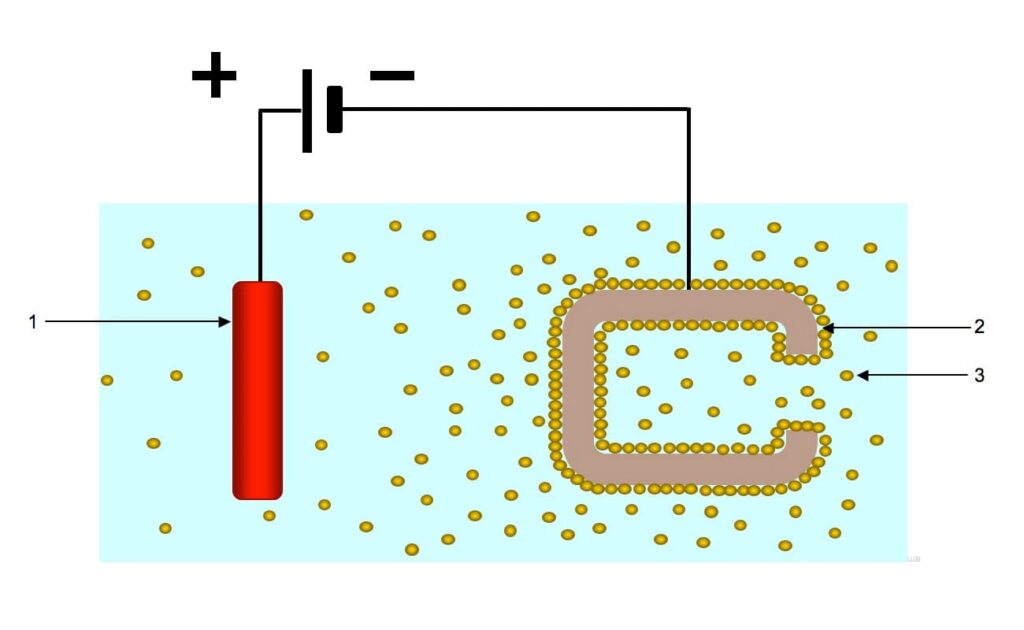

Electrodeposition (Electrophoresis)
With the part submerged, a DC electric current is applied to the bath. This causes oppositely charged paint particles to migrate and deposit onto the part’s entire surface. This method has extraordinary “throwing power”, that lets it reliably coat complex internal areas.
Post-Rinsing
After leaving the bath, parts are rinsed to remove excess, unbonded paint known as “drag‐out”. This step improves the final appearance and allows the recovered paint solids to be recycled back into the tank. This boosts material utilization to over 95%.

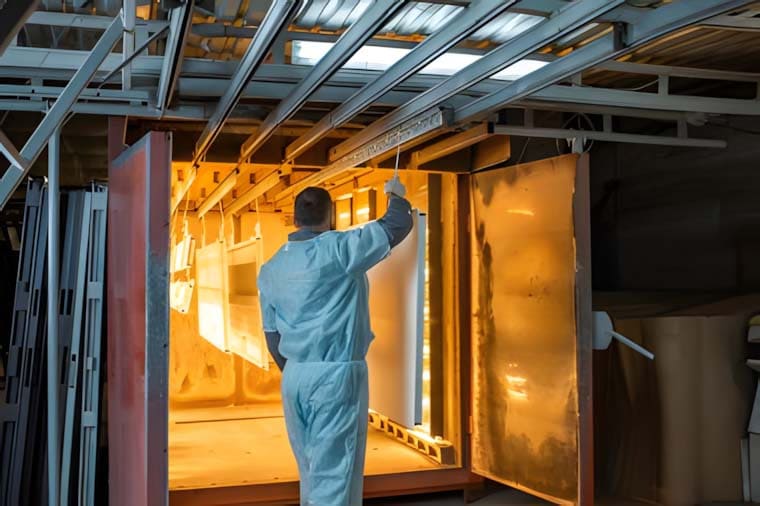

Curing/ Baking
In the final step, parts are moved into a curing oven. They are baked for at least 20 minutes at temperatures around 175‐200°C. This heat triggers crosslinking in the resin which permanently bonds the paint. This process creates an extremely hard, durable and corrosion resistant finish.
At RICHCONN, our finishing experts manage this entire workflow which ensures quality control from the moment a part leaves our CNC machines to its final cure.
Types of E-Coating Used on CNC Machined Parts
E‐coating is not a one‐size‐fits‐all process. Coatings are primarily distinguished by their electrical polarity and the type of resin used and these differences directly affect performance, durability as well as appearance of CNC parts.

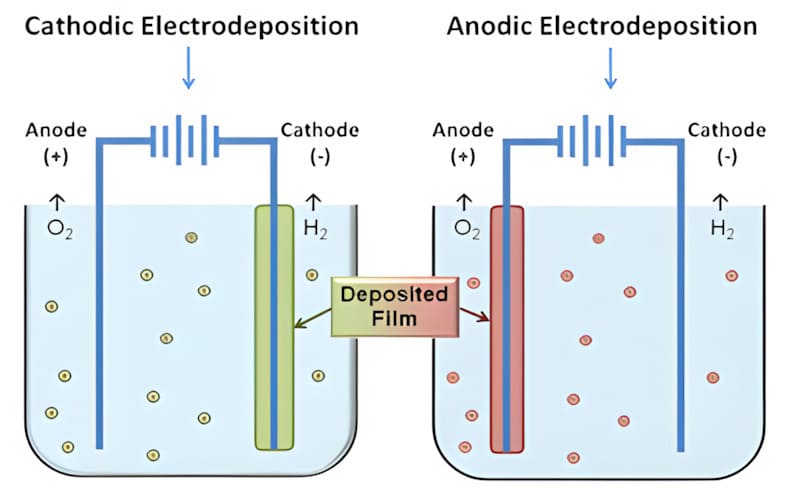

1. Anodic vs Cathodic E-Coating
Anodic E-Coating
In anodic E‐coating, the CNC part is the anode and attracts negatively charged paint particles. It offers good appearance and basic corrosion protection, often on indoor or lower demand parts. However metal ions can migrate into the film therefore its protection is usually lower than cathodic systems.
Cathodic E-Coating (CED)
Here, the workpiece is the negative electrode (cathode) which prevents metal oxidation. This results in a more durable and much denser finish with superior corrosion resistance. Moreover cathodic E‐coating is the modern standard used in over 95% of automotive and other industrial applications today.
2. Resin Systems_ Epoxy vs Acrylic
Cathodic Epoxy E-Coating
Cathodic epoxy E‐coats deliver exceptional chemical and corrosion resistance. This makes them the go‐to primer for structural and underbody CNC parts. However they have poor UV stability and can “chalk” with sun exposure. Therefore they need a topcoat for outdoor‐facing applications.
Cathodic Acrylic E-Coating
Valued for its extraordinary UV resistance and color retention, acrylic e‐coat is perfect for topcoats. It provides a durable, attractive finish on visible components that must withstand sunlight such as agricultural equipment or appliances. It offers a great balance of corrosion resistance and exterior durability.
Our engineering team at RICHCONN helps customers choose between cathodic epoxy for protection or acrylic for UV stability. This ensures the finish matches the part’s end‐use environment.
Key Benefits of E-Coating for CNC Machined Components
Uniform Coverage on Complex Geometries
E‐coating provides a perfectly consistent film even on complicated parts. Because the part is fully immersed, the electrical current ensures even paint deposition on internal cavities, sharp edges as well as threaded areas that spray methods often miss.
Excellent Corrosion & Wear Resistance
E‐coating forms a dense, non‐porous barrier against salt and moisture. This finish delivers superior protection, often exceeding 1,000 hours in salt spray tests. This helps extend the part’s service life in harsh industrial or outdoor environments.
Thin, Controlled Coating for Tight Tolerances
E‐coating provides excellent control over film thickness—normally applying between 15 to 35 microns. This precision is vital for CNC parts. It ensures critical dimensions are maintained which allows for the proper assembly of threaded and close‐tolerance components after coating.
Also See: What is Tolerance in CNC Machining
High Transfer Efficiency & Lower Waste
This process is highly efficient and achieves over 95% paint utilization. A closed‐loop system recaptures and reuses excess paint solids from the rinse stages. This significantly reduces waste and material costs compared to traditional spray application methods.
Environment Friendly Process
E‐coating is a green technology because it uses water‐based solutions with very low volatile organic compounds (VOCs). This process produces minimal hazardous waste which helps companies meet strict environmental regulations with ease.
Scalability for High Volume CNC Production
E‐coating lines are highly automated and ensure every part receives a consistent finish with excellent repeatability. This makes the process ideal for high volume runs of identical components which meet the demanding needs of automotive and industrial manufacturing with high efficiency.
Limitations of E-Coating You Should Know Before Specifying It
While E‐coating has major advantages, it’s not suitable for every project. Engineers must weigh its limitations before specifying it for a CNC part.
Material & Conductivity Constraints
The E‐coating process relies on an electrical charge so it only works on conductive metal parts like aluminum, steel as well as zinc alloys. Non‐conductive materials like composites or plastics cannot be e‐coated unless they are first treated with a special conductive primer.
UV Resistance & Outdoor Use
Many standard epoxy‐based e‐coats have poor resistance to ultraviolet (UV) light. When exposed to direct sunlight, these coatings can degrade and this leads to chalking and discoloration. For outdoor parts, an additional UV‐stable topcoat is often required for long‐term durability.
Color Flexibility
Custom colors are a significant challenge for E‐coating. Every color needs its own dedicated tank system which makes color changes impractical and expensive. As a result most suppliers offer a very limited palette with black being the most common and affordable option.
Line & Part Size Limitations
The physical size of the E‐coat tanks restricts the maximum dimensions of any part that can be coated. Furthermore the process is optimized for high volumes. Therefore it becomes uneconomical for prototypes or very small production runs unless they can be batched with other jobs.
Common CNC Applications for E‐Coated Parts
Transportation & Automotive Components
The automotive industry is the largest user of E‐coating. It provides essential corrosion protection for machined chassis parts, brake calipers, suspension components as well as fasteners. The durable finish withstands road salt & moisture and this ensures vehicle safety and longevity.
Industrial Machinery & Heavy Equipment
E‐coating is also common on CNC‐machined housings, gear covers as well as structural frames used in construction, agricultural and material‐handling equipment. These parts face chemicals, mud and high humidity therefore a uniform E‐coat layer helps them survive years of outdoor service.
Electronics & Electrical Hardware
E‐coating provides thin, uniform protection for machined enclosures, connectors and heat sinks. This coating helps with EMI shielding while maintaining dimensional tolerances. Its minimal impact on thermal conductivity makes it suitable for cooling components in electronic devices.
Medical & Laboratory Equipment
In the medical field, E‐coating is applied to equipment housings, carts and bed components. The non‐porous finish withstands harsh chemical cleaners and frequent sterilization cycles. This ensures that surfaces remain durable, corrosion‐free as well as easy to keep sanitary.
E-Coating vs Other CNC Surface Finishes
Choice of the right finish is critical for part performance. While the E‐coat is a versatile option, it’s important to see how it stacks up against other common finishes.
E-Coating vs Powder Coating
E‐coat provides a thinner, more uniform film (15 to 30 μm). It excels at covering complicated internal geometries where powder can’t reach. Powder coating, on the other hand, is much thicker (>60 μm) and provides superior impact resistance but can struggle with the Faraday cage effect in recessed areas.
Also See: Powder coating vs Anodizing
E-Coating vs Anodizing (for CNC Aluminum Parts)
E‐coating adds a protective paint layer which offers superior chemical and corrosion resistance. Anodizing, however, converts the aluminum surface into a hard, wear‐resistant ceramic layer that won’t chip but can be less protective in harsh chemical environments.
E-Coating vs Traditional Wet Paint & Electroplating
E‐coating offers much higher transfer efficiency (over 95%) and lower VOC emissions compared to traditional wet paint which has a transfer efficiency of around 30 to 35%. While electroplating provides a true metallic layer for hardness, e‐coating delivers a more uniform paint film for corrosion protection on complex shapes.
At RICHCONN, we offer all these options—E‐coating, powder coating and anodizing—therefore we can help you compare them honestly to find the best fit for your part’s function and budget.
How to Choose an E-Coating Partner for CNC Manufacturing
Selection of the right finishing partner is just as important as choosing the right coating. A capable supplier ensures quality, consistency as well as reliability for your CNC parts.
Technical Capabilities to Check
Ensure the supplier’s tanks can accommodate your largest parts and that they offer the right e‐coat chemistry for your needs such as epoxy for corrosion resistance or acrylic for UV stability. Also confirm their ability to mask critical areas and maintain tight control over film thickness to preserve part tolerances.
Quality Systems & Certifications
Look for suppliers with ISO 9001 & IATF 16949 certifications which demonstrate a commitment to quality and process control. Moreover don’t hesitate to ask for performance data, such as salt spray testing (ASTM B117), to verify corrosion resistance and adhesion test results to confirm coating durability.
Integration with CNC Suppliers
Consider a CNC shop that offers in‐house e‐coating or has a tightly integrated finishing partner. This one‐stop‐shop approach streamlines your supply chain which significantly reduces lead times and logistical costs. It also ensures single‐source accountability as one supplier owns the final part quality.
Conclusion
E-coating has revolutionized CNC manufacturing with uniform coverage, superior corrosion protection and efficiency for complicated parts. Despite limitations like color options, its precision and scalability make it best for demanding applications. Contact Richconn today for expert CNC machining and integrated finishing services that elevate your product quality.
Related Questions
Most CNC parts use E‐coat films around 15 to 30 µm thick. However some specialized systems use coatings between 12–40 µm depending on how much corrosion protection or visual quality is needed.
Yes. Aluminum is an excellent candidate for e‐coating. This process often includes a pretreatment, like a phosphate conversion coating to assure strong adhesion and increase corrosion resistance.
It depends on your needs. E‐coating is better for complex parts that require uniform coverage and corrosion resistance. Powder coating offers more colors and a thicker, more durable finish.
Yes. Many automotive and heavy‐equipment parts use E‐coat as a corrosion resistant primer, then add a powder topcoat for extra durability and cosmetic color or gloss in one duplex system.
Yes. E‐coating has excellent “throwing power” so the electric field drives paint into cavities, bores and threads. This gives relatively uniform coverage compared with spray‐applied coatings.
Durability varies by environment but E‐coating offers excellent long‐term protection. It can withstand over 1,000 hours of salt spray testing which proves its high resistance to corrosion.
Provide part material, desired thickness, color and any areas needing to be masked. Also specify performance requirements like corrosion resistance standards (e.g., salt spray hours).
