What Is End Milling? Types, Process and Applications

Efficiency, accuracy and flexibility sit at the heart of modern manufacturing, making end milling an excellent machining option. If you are just starting with machining or looking to deepen your abilities, this guide will help. It covers what end milling is, how the process works, what tool types exist and when to use each type.

What Is End Milling?

In end milling, CNC machines use rotating cylindrical cutters called end mills. Cutting edges are present on the tool’s sides as well as its tip so that material can be removed both laterally and axially. Surface finishes of Ra 0.8 µm and tolerances down to ±0.002 mm are possible with end mills.

How It Stands Apart from Other Machining Methods

Unique cutting action and tool geometry set end milling apart from other machining processes.

• Face mills remove metal mostly with their sides whereas end mills use both sides and ends to cut in many directions.
• Drill bits move straight down axially to create holes; end mills, by contrast, machine pockets, slots and complex 3D shapes.
• Conventional milling forms chips that go from thick to thin. In comparison, end milling can use climb milling which lowers cutting forces and gives smoother surfaces.

End Milling Process

An organized workflow drives end milling, turning digital ideas into precise machined parts.

1. Part Design & CAM Programming

Engineers first open CAD software and create 3D models with precise dimensions. Once complete, the file moves to CAM software which calculates toolpaths. During this stage, programmers rely on the formula: feed rate = spindle speed × chip load × flute count.

The resulting toolpaths define pockets, profiles and contours. The system then simulates and checks these paths before converting them into G-code for the CNC machine.

At Richconn, our team assists clients through expert machine setup and tailored CAM programming so production flows smoothly from the initial design.

2. Machine Setup

Machine setup begins with the operator placing the chosen end mill in a balanced holder and clamping the workpiece with a vise. Using either a touch probe or manual edge finding, the operator zeros the machine axes to set the coordinate origin. Next they adjust spindle speed (usually 8,000 to 20,000 rpm) and coolant flow feed rate based on the tool and material.

3. Execution of Milling

With the G-code loaded, the machine starts the cycle and spins the end mill up to 8,000 to 20,000 rpm. The cutter then traces the programmed paths and removes material in layers. Real-time control loops adjust speed and feed to keep tolerances tight and vibration sensors ensure that the resulting surface finish meets Ra 0.8 microns.

4. Finishing Touches & Final Inspection

Once milling ends, the part goes to inspection where a CMM checks dimensions within 0.01 mm. Technicians deburr any remaining edges during finishing, then use profilometers to confirm the required Ra value. These quality checks ensure the part is perfect for moving forward.

Technical Specifications to Consider

For reliable performance in end milling, machinists must control many key variables.

• When the tool extension goes beyond three times the tool diameter, tool deflection can occur, so pay special attention to it.
• Pay special attention to the clamping of parts with thin walls as they tend to shake and vibrate more which can harm the surface finish.
• Proper coolant flow is necessary to manage heat; at least 4 liters per minute per kilowatt is needed.
• Speed, feed and depth must balance material removal rate with tool life. This balance helps keep tolerances within ±0.05 mm.

Main Types of End Mills

End mills are produced in different shapes suited to specific machining tasks and materials. By understanding each design’s unique strengths, machinists can match the tool to the job.

Ball nose end mills

Ball nose end mills have tips shaped like a hemisphere. This design helps create smooth 3D contouring and finishing of complex surfaces the rounded end cuts material from any direction and spreads forces along the curved profile. Machinists use ball noses for mold finishing, 3D contours and other complex shapes. Because their spherical tip allows gradual depth changes, the resulting surface quality is very good.

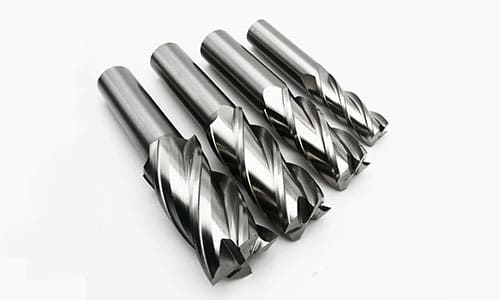

Square (flat) end mills

A square end mill has a flat bottom and sharp corners at 90 degrees. That geometry fits clean shoulders, flat faces and accurately squared edges alike. Slotting, face milling and side milling often use this versatile cutter. A 35-degree helix angle is typically chosen to speed chip evacuation.

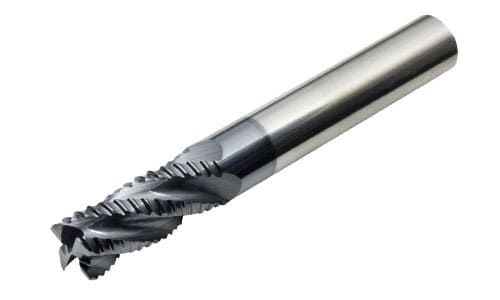

Roughing end mills

Roughing end mills have teeth with a wavy or scalloped shape that breaks chips into smaller pieces This rough design removes large amounts of stock quickly. Many refer to them as “hog mills” because of their aggressive action. They have a coarse design and fewer flutes. The serrated teeth reduce cutting pressure and allow for higher feed rates.

Finishing end mills

To achieve excellent surface finishes, finishing end mills rely on sharp cutting edges and many flutes. They run at lower feed rates yet still maintain smooth results and tight tolerances. After roughing operations have cleared most of the stock, machinists switch to these tools for the final passes.

Also See: CNC Roughing vs Finishing

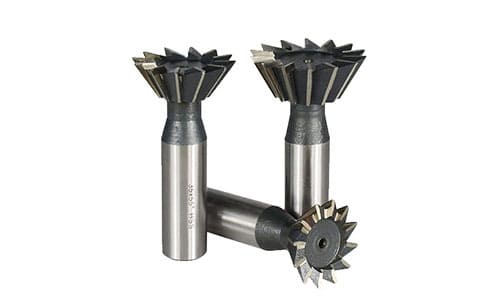

Dovetail mills

Machinists choose dovetail mills for precise angular cuts that form machine ways and dovetail slots. Standard versions give 45° or 60° included angles while special options offer up to 17 different angles. The cutters create interlocking joints for fixtures, jigs and machine-tool tables. Because of the angled profile, the resulting connections resist pull-out forces and stay strong.

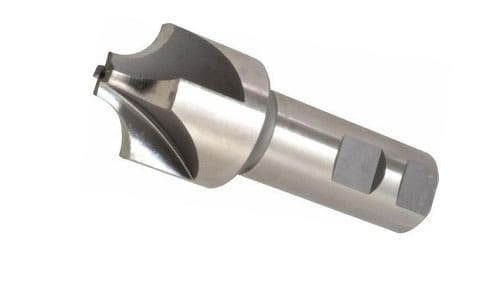

Corner rounding end mills

Corner rounding end mills create smooth, rounded edges and remove sharp corners from parts.  These tools, also called radius cutters, usually have four flutes and provide radii from 1/32″ to 3/4″. Using them eliminates later filing or belt sanding. Tight spaces and deep pockets are easier to mill with these cutters.

V-bit end mills

V-bit end mills have a conical tip and work well for carving, engraving and chamfering. They come in common included angles such as 60° and 90° and allow the formation of accurate V-shaped grooves. These cutters are widely used in sign-making and whenever precise decorative features or chamfers must be added to part edges.

Materials and Tool Matching

Matching the cutter with the workpiece material is key for consistent end milling results:

• Aluminum: Aluminum need HSS or carbide end mills with 2 to 3 flutes. Coatings like TiAlN or DLC on these mills help stop chips from sticking and further boost performance.
• Plastics: To mill plastics, select well-sharpened, smooth helical cutters of carbide or HSS. Moreover use fewer flutes to manage heat levels and protect against melting.
• Composites: Use diamond-coated carbide cutters for composites.
• Steel: For end milling steel, opt for carbide or cobalt cutters having at least 4 flutes. TiAlN or AlTiN layers on these tools increase their heat resistance and guard the edge.

Advantages of End Mill

Superior Surface Finish

Special flute shapes, combined with modern coatings allow finishing tools to achieve Ra values between 0.8 µm and 0.4 µm on parts. And because burrs are reduced and edges stay sharp, most parts need little or no secondary polishing.

Versatility

With a single setup, an end mill can rough, semi-finish & finish contours, slots, pockets, profiles and complex 3D features. Accuracy down to ±0.05 mm is regularly attained on many materials.

Flexibility and Adaptability

Changing from steel to aluminum or shifting from prototype runs to full production usually involves nothing more than adjusting programmed settings. Adaptive software even lets only one cutter manage deep cuts, slotting, pocketing and final surfacing all without removal from the machine.

Efficiency and Speed

End mills remove material quickly and keep cycle times short. When operators pair carbide tooling with CAM-optimized toolpaths and higher feeds, output often increases 30 to 40 percent as compared to other common methods while precision remains intact.

High Tolerances and Precision

With modern carbide build, today’s end mills hold key features within ±0.01 mm. AlTiN coatings cut edge wear, letting dimensions stay within spec during long runs. Using the cutters with stiff holders gives jig-bore accuracy that repeats across the whole production line.

Complex 3D Machining

Tapered and Ball-nose end mills trace free form curves to shape dies and molds. They reach scallop heights below 0.02 mm. Moreover multi-axis toolpaths allow one cutter to create complex surfaces and deep cavities without manual finishing.

Industrial Applications

Aerospace

In aerospace plants, end mills shape wing ribs, turbine disks and engine brackets. These parts, cut from hard superalloys like titanium and Inconel, need very tight tolerances which end milling achieve.

Medical Devices

Medical manufacturers use end milling to make surgical tools, implants and diagnostic equipment. The process machines biocompatible metals such as stainless steel and titanium with high accuracy. As a result smooth finishes and complex shapes result for custom implants and orthopedic screws.

Automotive Parts

Automotive factories use end mills for creating  transmission cases, engine blocks and cylinder heads. Moreover end mills process motor parts, battery trays and drivetrain pieces on electric vehicle lines.

General-purpose job shops

In machine shop applications, end mills create housings, brackets and numerous custom parts. Tool-and-die shops use them for production tooling and precision molds. Moreover electronics firms mill PCB details, aluminum enclosures and cooling parts with an end mill.

Prototyping and Custom builds

For rapid prototypes and custom work, end milling is very essential. Engineers can machine and test a new design in a single day. End mills also work well for making unique jigs, fixtures and single-run components.

Challenges and Considerations

Although end milling provides many benefits, several day-to-day issues still need close watching:

• Tool wear and breakage: Carbide end mills cost three to five times more than HSS options. And when they machine materials above 45 HRC they wear quickly. This early failure can push production tooling costs sharply upward.
• Setup complexity:  Programming toolpaths, designing fixtures and choosing parameters all call for experienced operators which together with expensive tooling can drive up overall end milling cost.
• Chatter & vibration: A lack of rigidity often creates chatter, causing dimensional errors and poor surfaces. Vibration from the machine also reduce tool life by up to 50%.

At RICHCONN, our engineers help clients address these problems. We provide process advice and setup optimization which usually shortens development time by 30 to 40%.

Tips for Selecting the Right End Mill

Choosing the right end mill means looking at several key factors that improve performance and increase tool life:

• Start with your material: Begin with the workpiece material and pair the cutter accordingly. Soft alloys like aluminum work best with 2- or 3-flute end mills for better chip removal. On the other hand hardened steels work well with carbide tools having four or more flutes.
• Match geometry to the feature: Match the tool profile with the feature. Square end mills suit flat pockets and walls. When you want 3-D contours or intricate curves, choose a ball-nose end mill instead.
• Optimize tool geometry: For best rigidity, limit the length-to-diameter ratio to 4:1 or less and keep the cutter diameter within 75 % of the spindle taper capacity. Using corner-radius end mills also helps cut down on chipping.

If you are unsure about the best cutter or method for your next job, RICHCONN’s experienced team can suggest the right end mill, material and surface finish. Our advice comes from decades of custom manufacturing expertise.

To Sum Up

From delicate prototypes to tough aerospace parts, manufacturers rely on end milling for speed, accuracy and design freedom. High quality, reliable results follow when teams understand both proper tool choice and each process step.

If you need any kind of CNC milling services then Richconn is your best option. You can contact us anytime.
