If you regularly work with electronic components or metal parts, you’d have probably noticed how slow or limiting traditional cutting methods can be. Laser cutting addresses these challenges by delivering accurate & clean cuts at high speed. In this blog post you will learn what laser cutting is, how it operates, the main types available and the best uses for each type.
What Is Laser Cutting?
Basically laser cutting is a thermal cutting process that uses a focused laser beam, often less than 0.2 mm in diameter, to melt or vaporize material along a programmed path. Unlike mechanical cutting, the beam never touches the workpiece; therefore there is almost no tool wear and very low cutting force on the part. As a result it can produce narrow kerf widths of about 0.08 to 1 mm and highly accurate 2D profiles in plastics, metals and other sheets.
How Laser Cutting Works?
The Laser Cutting Process
Laser cutting turns a digital concept into a physical part through a series of precise steps.
- Design & Setup: A CAD design is converted into a machine-readable format. The operator then secures the material onto the cutting bed and calibrates settings like the focal point.
- Beam Focusing: A high-powered laser beam is generated and guided through mirrors before a lens focuses its energy onto a precise spot on the material’s surface.
- Piercing & Cutting: The beam’s intense heat melts or vaporizes the material to create an initial hole. A CNC system then guides the laser along the design path to cut out the shape.
- Gas-Assisted Ejection: During the cut, a high-pressure assist gas like nitrogen blows away molten material. This ensures a smooth and clean edge finish.
- Part Removal: Once cutting is complete, the finished part is separated from the stock material, ready for the next production step.
How the Beam is Generated, Focused & Positioned for Cutting?
The beam generation process begins when an energy source excites a medium—fiber, crystal and gas—to emit a monochromatic beam. Fibers or mirrors guide this light to the cutting head, focusing it to a spot as small as 0.004 inches. This concentrated energy melts or vaporizes the material while servo motors provide micrometer-level positioning.
The Concept of Piercing and Lead-Ins in Laser Cutting
The cutting phase begins by piercing a small hole in the scrap area just outside the part’s boundary. A “lead-in” path is cut from this hole to the part’s outline. The laser then traces the complete design path to cut out the part. Finally a “lead-out” path guides the laser away from the finished edge, ensuring a blemish-free finish.
The Role of CNC, CAD & G-Code
The entire operation is automated by Computer Numerical Control (CNC). CAD software creates vector designs (e.g. DXF files) which CAM software converts into G-code. The CNC controller then reads the G-code and matches the laser’s pulsing frequency to the speed of the motion system. This coordination produces sharp corners and maintains consistent edge quality.
Main Types of Laser Cutters & Their Uses
Laser cutters are categorized by their laser source, with each type excelling in specific applications.
Fiber Lasers
Fiber lasers are solid-state systems that are highly efficient for processing metals. Their wavelength, about 1.06 micrometers, is easily absorbed by metals. This property allows for fast and precise cutting, even on reflective materials like copper and brass. Due to their high power density and excellent beam quality, they are the go-to choice for thin to medium-gauge sheet metal fabrication.
CO2 Lasers
CO2 lasers use a gas mixture to produce a beam with a longer wavelength, typically 10.6 micrometers. This wavelength is highly absorbed by organic materials. This makes these lasers versatile for cutting plastics, wood, leather and fabrics. While they can cut thin metals, their primary strength is cutting and engraving non-metallic substrates with great detail.
Nd:YAG And Other Solid-State Variants
Neodymium-doped yttrium aluminum garnet (Nd:YAG) lasers are another solid-state variant. These lasers can process both metals and non-metals. They deliver strong power pulses; therefore they are suitable for demanding tasks such as thicker material cutting, welding and drilling.
How To Choose The Right Laser Type For Your Material?
Choosing the right laser depends on the material’s ability to absorb a specific wavelength. Fiber lasers are standard for metals due to their shorter, easily absorbed wavelength. Conversely the longer wavelength of CO2 lasers is better for organic materials. Material thickness and desired cutting speed also influence the final choice.
If you’re not sure which laser fits your needs, our team at RICHCONN can review your material, its thickness and the tolerances you need. We can recommend a CO₂ system, a fiber laser or another process like CNC machining to balance accuracy, cost and speed.
Laser Cutting Methods & Cutting Modes
The way a laser removes material defines the cutting method, with each approach offering distinct advantages.
Fusion Cutting
Fusion cutting melts the material with a high-energy laser beam and an inert gas like nitrogen blows away the molten pool. It produces a clean, oxide-free edge that requires no secondary processing. Fusion cutting is ideal for aluminum and stainless steel where a high-quality finish is crucial for subsequent coating or welding.
Reactive Cutting
Reactive cutting employs oxygen as an assist gas which creates an exothermic reaction with the workpiece. This additional energy significantly increases cutting speeds—particularly in thick carbon steel. This method is best when production speed is the priority and a light oxide layer on the cut edge is acceptable.
Vaporization Cutting
In this mode, the laser’s energy rapidly heats the material to its boiling point and instantly turns it to vapor. Vaporization cutting is used for materials that do not melt easily like acrylics, wood and certain polymers. It produces a smooth edge but is generally slower and more energy-intensive.
Thermal Stress Cracking & Scribing
This method uses focused heat to generate controlled tensile stress; this opens a crack along the beam’s path in brittle materials like ceramics and glass. The process produces smooth, crack-free edges and keeps the heat-affected zone small. It is ideal for wafers, display glass and precision optics where avoiding micro-cracks is important.
Main Laser Cutting Parameters That Control Quality
To achieve precise and clean cuts, operators must carefully adjust several important machine settings.
Laser Power & Energy Density
Laser power sets the amount of energy delivered to the material. This directly affects how fast the laser can cut and how thick the material can be. Higher power enables faster cuts on thick materials whereas lower power is suited for thinner or delicate work. For example a 12kW fiber laser cuts 20mm carbon steel efficiently while a 2kW unit struggles. However excessive power can char or burn the material’s edge.
Cutting Speed & Feed Strategy
Cutting speed must be synchronized with laser power and material. Moving too slowly causes overheating while excessive speed results in an incomplete cut. Softer metals like aluminum allow for faster speeds than hard alloys. An 1000W fiber laser for example, can cut 5mm thick carbon steel at speeds up to 5 m/min.
Focus Position, Spot Size & Standoff Distance
The beam’s focus position determines the cut width (kerf). The standoff distance—meaning nozzle-to-workpiece gap (typically 0.5 mm to 1.5 mm)—is also very important. This gap stabilizes the assist gas jet which is critical for removing molten material cleanly and achieving a smooth edge.
Assist Gas Type & Gas Pressure
Assist gases like oxygen for carbon steel or nitrogen for stainless steel are crucial for clearing molten material from the kerf.
The correct gas pressure is also vital. If the pressure is too low, removal is poor. If it is too high, turbulence can occur and the cut edge may become rough. For example, nitrogen cutting often uses pressures up to 25 bar.
Nozzle Condition & Alignment
A worn or misaligned nozzle disrupts uniform gas flow. This causes inconsistent cuts, increased burring and poor dross removal. For optimal performance, the nozzle must be perfectly centered with the laser beam to ensure a stable, coaxial gas jet.
Materials Laser Cutting Can Handle
Laser cutting is a versatile process that works with a vast selection of materials.
Common Materials
Metals
Lasers can cut various metals which include stainless steel, mild steel and aluminum. Fiber lasers are generally the best choice for metals, particularly reflective ones like brass and copper.
Plastics and Polymers
Many plastics are compatible with laser cutting, with acrylic (PMMA) being one of the most popular because it produces a clean, flame-polished edge. Other plastics like Mylar and POM (Delrin) also cut well. However some plastics require caution due to the fumes they release.
Paper, Wood & Organic Materials
CO2 lasers are excellent for processing organic materials like MDF, wood cardboard, paper, leather and textiles. The cutting process results in a distinct, darkened edge from carbonization which can be a desirable aesthetic feature for many projects.
Coated, Painted & Reflective Materials Considerations
Highly reflective materials can be challenging. This is because they may reflect the laser beam which can damage the machine’s optics. Similarly cutting coated or painted materials can be hazardous because the surface layers might release toxic fumes when vaporized by the laser.
Materials to Avoid or Use with Extra Caution
Certain materials should never be laser cut due to the hazardous gases they produce.
Cutting PVC releases toxic chlorine gas while heating ABS can produce hydrogen cyanide. Other materials to avoid include those containing epoxy, halogens or phenolic resins because they create dangerous dust and fumes. Fiberglass is also unsuitable because it releases harmful airborne particles.

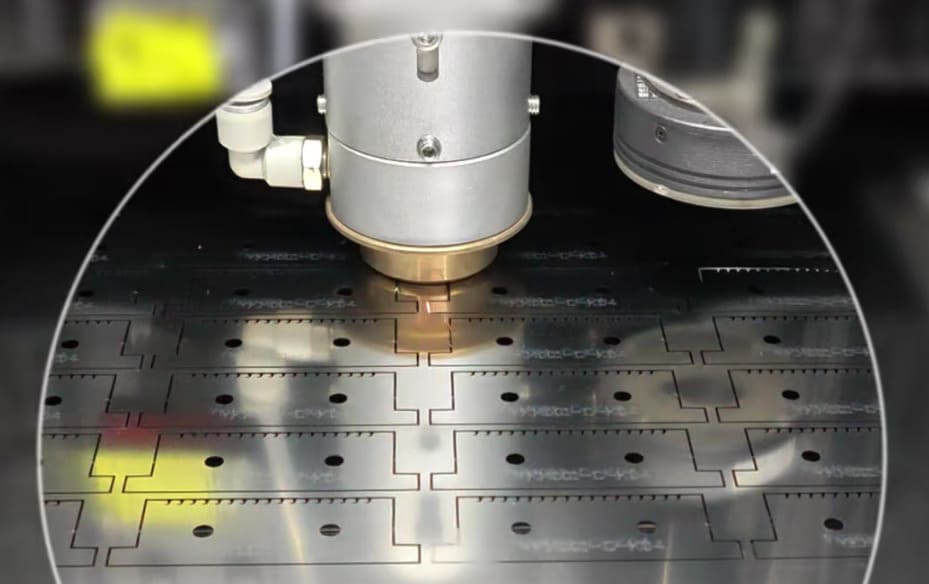

Cut Quality Metrics & Common Laser Cutting Defects
To achieve precise cuts and high-quality parts, it is important to understand quality metrics and recognize common defects.
Kerf Width, Taper & Dimensional Accuracy
Kerf is the width of material the laser removes; it typically ranges from 0.1 mm to 0.5 mm. This width can vary slightly from the top to the bottom of the material, which creates a taper. A high-quality cut has a near-zero taper for a straight edge. Managing kerf and taper is crucial for achieving dimensional accuracy, often within ±0.1 mm. This level of precision ensures that parts will fit together as intended.
Heat-Affected Zone & Thermal Distortion
The Heat-Affected Zone (HAZ) is where heat alters material properties without melting. Although laser cutting creates a smaller HAZ than plasma or oxy-fuel methods, minimizing it preserves material strength. Excessive heat can also cause thermal distortion (warping), particularly in thin sheets because rapid heating and cooling induce internal stresses.
Dross, Striations & Edge Roughness
Dross is excess molten material that solidifies on the bottom edge of the cut, often caused by incorrect gas pressure or speed.
Striations are horizontal lines on the cut surface that affect its smoothness and are influenced by factors like power and speed stability.
Both dross and striations increase edge roughness which is an important measure of cut quality.
Burn Marks, Discoloration & Oxidation
Charring and burn marks are common on organic materials like plastic or wood. They usually result from excessive heat or slow cutting speeds.
On metals, high heat can cause discoloration or oxidation which appears as a colored layer on the cut edge. Using an inert gas like nitrogen instead of oxygen prevents oxidation and helps produce a cleaner, uncolored finish.
Main Benefits of Laser Cutting
Laser cutting provides several advantages that make it a leading choice in modern manufacturing.

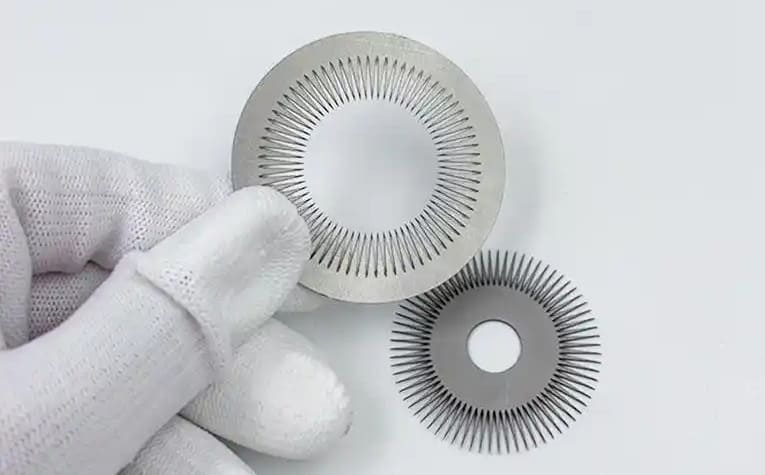

Precision & Repeatability
Laser cutting is renowned for exceptional accuracy; it is capable of achieving tolerances as tight as ±0.1 mm. Because the system is computer-controlled, it can produce thousands of identical parts with near-perfect repeatability. This consistency is very important for industries that require high-precision components such as electronics and aerospace.
Speed for 2D Profiles & Sheet Work
Lasers cut 2D shapes from sheet materials much faster than older methods. This speed helps manufacturers finish jobs sooner and boost total output. As a result production lead times go down and efficiency goes up.
Low Mechanical Force & Minimal Tool Wear
Laser cutting is a non-contact process so no physical force is applied to the material. This prevents damage and distortion which is vital for delicate parts. It also means no cutting bits or blades wear out which in turn decreases maintenance and tool replacement costs.
Flexible Prototyping & Easy Design Changes
Laser cutting works well for rapid prototyping. Engineers can create parts straight from a CAD file in just a few hours. If a design needs changes, they can update it in the software without making new physical tools. This process allows quick and affordable testing and improvement of designs. As a result product development moves faster and costs less.
Limitations & When Laser Cutting Is Not The Best Choice
Laser cutting works for many applications but some projects require other methods due to its limitations.
Limitations
Thickness Limits & Material Constraints
Laser cutting is less effective on thick metals (over 25 mm steel) often creating a slight taper on the cut edge. The process is also unsuitable for hazardous materials like PVC and can struggle with highly reflective metals.
Power Consumption & Operating Cost Considerations
Running a laser cutter is expensive due to high energy demands. Industrial lasers typically consume between 1.5 kW and 10 kW. The cost increases further with the need for assist gases such as nitrogen and regular upkeep. These high operational costs can make it less economical for low-value or extremely high-volume simple parts compared to stamping.
Fumes, Ventilation & Post-Processing Needs
The process vaporizes material and creates hazardous fumes. Therefore robust ventilation is needed to protect both equipment and operators. Additionally cut edges on thicker metals often need post-processing like deburring to remove dross.
When Waterjet, Plasma or CNC machining Makes More Sense?
For very thick metal, heat-sensitive laminates, glass or stone, abrasive waterjet often delivers better results with no heat-affected zone.
For heavy structural steel where fine detail is less important, plasma cutting can be faster and cheaper, particularly above 25 mm.
And when you need tight tolerances in threads, 3D features or critical surfaces, traditional CNC machining still outperforms laser cutting on surface finish and accuracy.
This is where partnering with a shop like Richconn can help. We offer laser cutting alongside CNC machining, 3D printing, sheet metal fabrication under one roof. Therefore we can better compare these options and guide you toward the process that fits your specific needs.
Also See: Laser vs Waterjet vs Plasma Cutting
Laser Cutting Applications By Industry
The versatility and precision of laser cutting make it indispensable across many modern industries.
Sheet Metal Fabrication & General Manufacturing
Laser cutting is the go-to process for accurately cutting aluminum, steel and alloy sheets into enclosures, brackets and structural parts. It provides high-speed production for everything from HVAC ductwork to appliance panels without expensive custom tooling.
Aerospace & Automotive Components
Laser cutting performs an important part in producing parts for the aerospace and automotive sectors. In car manufacturing, it shapes hydroformed chassis parts and body panels. Aerospace engineers use it to cut lightweight, strong alloys for frames and detailed turbine engine components. High accuracy is always required in these applications.
Electronics, Enclosures & Precision Parts
The electronics industry uses laser cutting for its extreme precision in small-scale applications. This includes depaneling printed circuit boards (PCBs) and creating fine stencils for applying solder paste. It is also perfect for manufacturing custom enclosures that protect sensitive electronic components.
Medical Devices & High-Cleanliness Workflows
Due to its non-contact nature, laser cutting is ideal for manufacturing sterile medical devices. It is used to produce cardiovascular stents, surgical instruments and implants from materials like titanium and stainless steel. The process creates clean, burr-free edges which is essential for patient safety.
Architecture, Signage Art & Custom Products
Laser cutting allows for immense creative freedom in design-focused industries. It is used to create decorative panels for architecture, intricate logos for signage and detailed patterns in jewelry and custom art pieces. The ability to cut diverse materials like wood, acrylic and metal makes laser cutting highly versatile.
Safety, Compliance & Best Practices
Operating a laser cutter requires strict adherence to safety protocols to prevent injury. Following best practices is very important for protecting operators and to ensure a safe working environment.
Laser Hazards & Why Enclosures Matter
High-power laser beams can cause serious burns and start fires. Full enclosures are essential because they block the laser beam, prevent stray reflections and contain sparks.
Eye Protection, Interlocks & Safe Operating Procedures
Operators must wear safety glasses rated for the specific laser wavelength to prevent permanent eye damage. Additionally safety interlocks that automatically shut off the laser if a door is opened should never be bypassed.
Fume Extraction & Material Off-Gassing
Laser cutting generates hazardous fumes and particles from vaporized material. Therefore a capable fume extraction system is mandatory to capture these emissions at the source and maintain safe air quality.
Safety Standards & Workplace Compliance Basics
Workplaces must follow established safety standards like ANSI Z136.1 and OSHA regulations to ensure compliance and worker safety.
How To Get Better Results?
To produce high-quality parts with a laser cutter, start with a well-thought-out design and set up the machine correctly. These few important steps can make a big difference in your results.
Design Rules for Laser Cutting Files
For best results, prepare your designs as clean vector files (e.g. DWG, DXF or AI). Ensure cutting paths are continuous, closed shapes and remove duplicate lines to prevent the laser from re-cutting an area. It is also critical to convert text into outlines or paths to ensure it cuts correctly.
If you are not sure whether your file is ready, Richconn’s engineers can quickly review your drawings and (if needed) suggest small design tweaks that improve cut quality and reduce cost.
Tolerances, Tabs & Part Spacing
Maintain a distance between parts that is at least equal to the material’s thickness to prevent warping. For tiny parts, add tabs to hold them in place so they do not fall through the cutting bed. Always design with the machine’s standard tolerance in mind—usually around (+/– 0.25 mm). This ensures parts fit together as planned and avoids extra adjustments later.
Choosing Assist Gas for Edge Finish Goals
Assist gas selection directly impacts edge quality. Oxygen is common for carbon steel to speed up cutting, though it leaves an oxidized edge. However if a clean, weld-ready finish is needed for stainless steel or aluminum, use nitrogen to prevent oxidation.
Troubleshooting Checklist for Rough Edges or Heavy Dross
When you encounter poor edge quality or heavy dross, use this checklist to find the root cause.
Checklist
- Cutting Speed: Is your speed too slow? This can increase the heat-affected zone and cause dross. Try increasing it in small increments.
- Focus Position: A misplaced focal point leads to rough edges. Make sure the laser beam focuses exactly on the material’s surface.
- Assist Gas Pressure: Too little pressure will not remove molten metal while too much can cool the cut too quickly. Therefore adjust the pressure to the correct level.
- Nozzle Condition: Check for a damaged, worn or off-center nozzle. A faulty nozzle disrupts the gas jet and causes poor quality.
Simple Maintenance Habits That Protect Cut Quality
- Clean the optics often. A dirty mirror or lens scatters the beam and weakens cutting power and quality.
- Inspect the nozzle daily and replace it if clogged or worn.
- Make sure the beam path is aligned from time to time. Proper alignment helps you get clean and straight cuts.
To Sum Up
Laser cutting stands out as a technology that delivers high speed and precise results for many industries. When you understand how to control its parameters, you can produce excellent results from initial prototypes to full-scale production.
If you need laser cutting or sheet metal fabrication services then Richconn is your best option. You can contact us anytime.
Related Questions
Laser cutting slices completely through a material to create a shape. In contrast laser engraving only removes the surface layer to create images or text, without cutting all the way through.
Laser cutting is extremely precise, with some machines achieving an accuracy of ±0.05mm. This high precision ensures detailed designs and clean cuts.
Laser cutting prices can differ widely. Machines range from a few hundred to several hundred thousand dollars. The final cost for a cutting job depends on the material, how complex the design is and the number of parts needed.
Kerf is the small amount of material that is burned away or removed by the laser beam during the cutting process. The width of the kerf depends on the laser’s settings and the material.
