If you want exact copies or need parts in large numbers, mold making is the best method to use. This industrial process lets you replicate objects accurately by using different materials and techniques. No matter whether you are working on a small DIY project or managing high volume manufacturing, this blog post will show you the main materials, methods as well as steps for successful mold creation.
What is Mold Making
Mold making means building special tools called molds which are then used to shape materials into particular forms. The mold making process involves designing & creating negative cavities that serve as templates. These molds help manufacturers produce identical parts with consistent accuracy and detailed features.
Materials Used in Mold Making
1. Flexible Mold Materials
Flexible molds are needed when you want the mold to bend and use it more than once. Silicone rubbers are the most common choice here, as they can stretch up to 450%.
Addition‐cure silicones last longer and have tear strengths up to 9.8 kN/m. Condensation‐cure types, on the other hand, are simpler to use. Natural latex and polyurethane can stretch up to 830% but they do not handle heat as well.

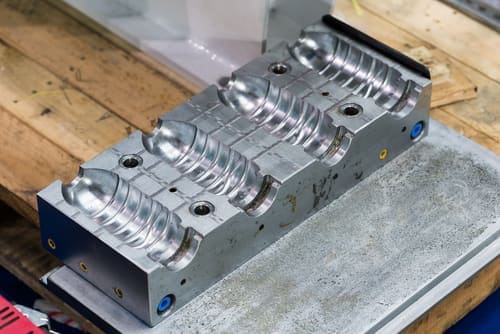

2. Rigid Mold Materials
Metals like aluminum or steel, hard plastics & ceramics are used to make rigid molds. Steel molds can produce more than one million parts and still keep their accuracy. Aluminum molds cool faster but mostly last for about 10,000 cycles before wearing out.
3. Composite Materials
Composite molds use resin matrices combined with reinforcements such as carbon or glass fibers. This combination increases strength, extends lifespan and boosts heat resistance. Additives and fillers can make the material stiffer and can also reduce costs.
Mold Making Techniques/ Methods
Manual/ Traditional Methods
Manual methods include brush-on molds, block molds and plaster casting. These are best for art projects and small-scale manufacturing. This process involves building mold boxes, applying release agents and mixing materials by hand. Brush-on methods build up mold thickness in several layers. These techniques need only simple tools and give extraordinary control for detailed work.

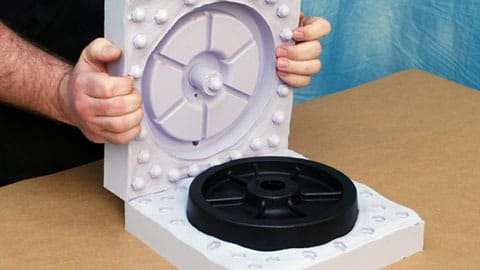

Casting Molds
Silicone & resin casting is widely used in modern mold making. Two‐part silicone molds can capture complicated shapes and fine details. In this method liquid silicone is poured over a master pattern and is allowed to cure fully. Similarly resin casting creates strong molds that can be reused many times.

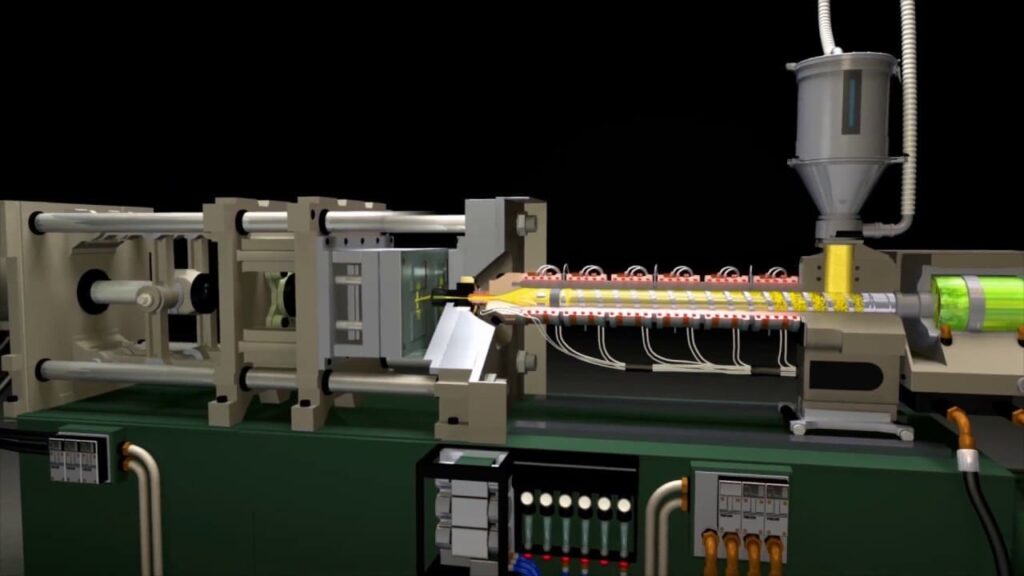

Injection Molding
Injection molding follows six main steps; clamping, injection, dwelling, cooling, opening and ejection. Plastic pellets are melted at controlled temperatures and then injected at high pressure. Cooling takes the most time in the cycle because plastic is a bad heat conductor.
Machined Molds/ CNC Molds
Machined molds rely on CNC (Computer Numerical Control) technology for top precision. This subtractive process shapes solid metal blocks such as aluminum or steel according to digital designs. The result is highly accurate and durable molds that meet industrial standards.

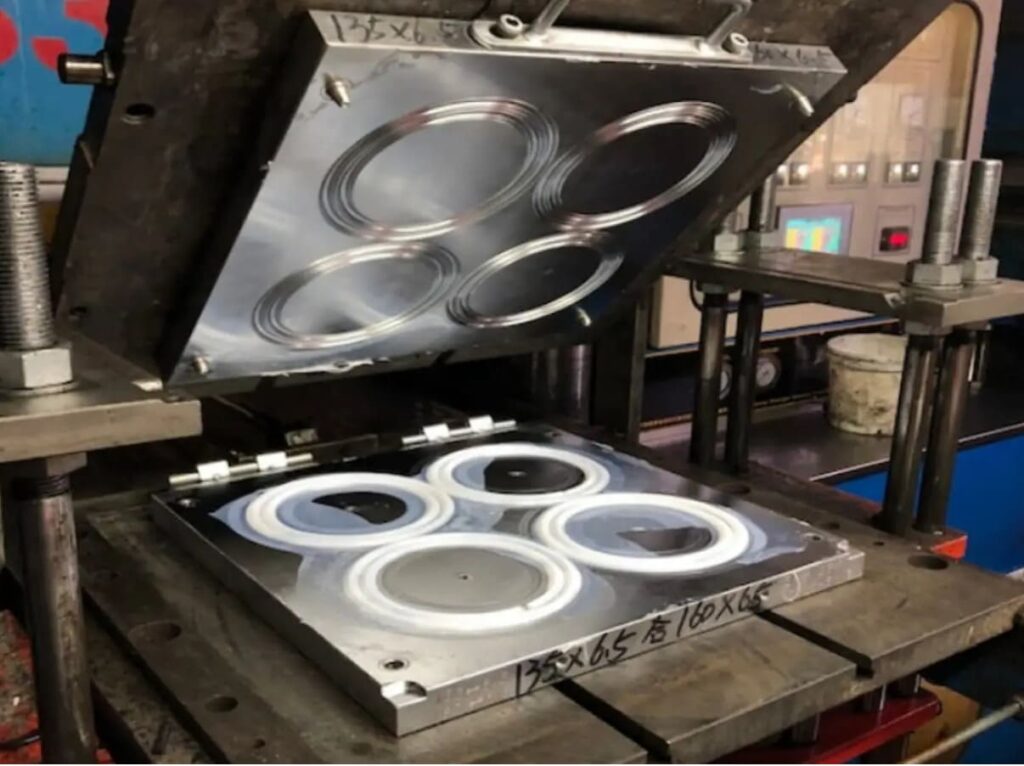

Compression Molding
Compression molding shapes material by pressing a measured amount of that material into a heated, two‐part mold. Manufacturers mostly use thermoset plastics or composites for this process. They place the material in the mold cavity and then close the mold with a force of 300 to 400 tons. This method works best for making large, mostly flat parts like automotive gaskets.

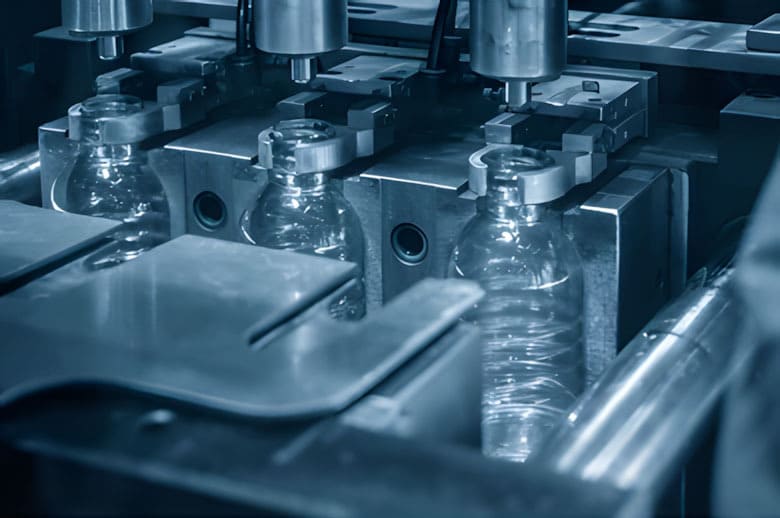

Blow Molding and Thermoforming
Blow molding and thermoforming both create hollow or thin‐walled plastic products. In blow molding, a heated plastic tube expands inside a mold and this forms items such as bottles & tanks. Thermoforming, on the other hand, heats a plastic sheet until it softens and then shapes it over a mold. This technique is especially useful for packaging.
Sand Casting
Sand casting uses refractory sand mixed with clay binders to build molds. This process follows eight main steps; preparation of sand, making the pattern, molding, melting, pouring, removal of sand, grinding and inspecting the part. This traditional method is effective for the production of large components as well as shapes with complicated internal channels.
Rapid Prototyping / 3D Printing in Mold Making
3D printing now plays a major role in mold manufacturing. This technology creates patterns, prototypes or even finished molds quickly from a digital CAD file. Production time drops from weeks to just hours which makes it ideal for short runs and fast design checks.
At RICHCONN, we often use 3D printing to make low cost prototype molds. This helps our clients review designs quickly before committing to metal tooling.
Mold Making Process: Step-by-Step
Building molds needs a careful sequence that starts with the initial idea and ends with the finished tool. Every step builds on the last and this assures precision and quality throughout the process.
1. Planning & Design
Your project’s success depends on this stage. Engineers look at the product’s shape and set draft angles, mostly of 0.5 to 3 degrees, to make part removal easier. They also account for material shrinkage which ranges between 0.3% & 2%.
2. Making a Master / Pattern
Master pattern forms the foundation for accurate mold creation. For custom art, it might be sculpted by hand. For precise parts, CNC‐machined aluminum is common. Rapid prototypes, on the other hand, mostly use 3D‐printed patterns from CAD designs.
3. Mold Preparation
After finishing the master pattern, the next step is to prepare the mold. This involves building a mold box or frame to contain the molding material. A release agent coats the surfaces to help with easy removal. For complicated shapes, parting lines are set so the mold can split into sections.
4. Material Mixing / Tool Preparation
Start by measuring the molding material with care. Mix silicone, resin or metal as the supplier instructs – mostly using ratios like 1:1 or 10:1. Use clean tools and stir the mixture well. For silicone or resin, vacuum degassing removes trapped air. This step keeps the mold solid and free from voids or weak spots.
5. Pouring / Forming Mold
Begin pouring the mixed material slowly and evenly. This helps prevent air bubbles from forming. Always follow the material’s working time which is usually between 15 and 30 minutes. If the mold has several sections, let the first layer set for at least one hour before adding more material.
6. Curing / Hardening / Cooling
Set the mold to cure at the recommended temperature and for the specified amount of time. Most systems need temperatures from 20°C to 80°C and curing can take from 15 minutes up to several hours. Some molds need heat curing in an oven. Let the mold harden fully and cool down slowly. This approach keeps details sharp and helps avoid cracks or warping.
7. Demolding
Once curing is complete, remove the mold from the prototype gently and at a steady pace. Use ejector pins or air jets to help with any areas that stick. Work carefully to avoid tearing soft molds or damaging hard ones.
8. Finishing / Post Processing
Trim away any extra material such as flash or gates with the help of precise tools. Smooth out rough edges and remove flaws by deburring or sanding. Apply coatings, paint or polish as needed for the final finish. Clean every surface thoroughly to get rid of dust & debris.
9. Testing & Quality Control

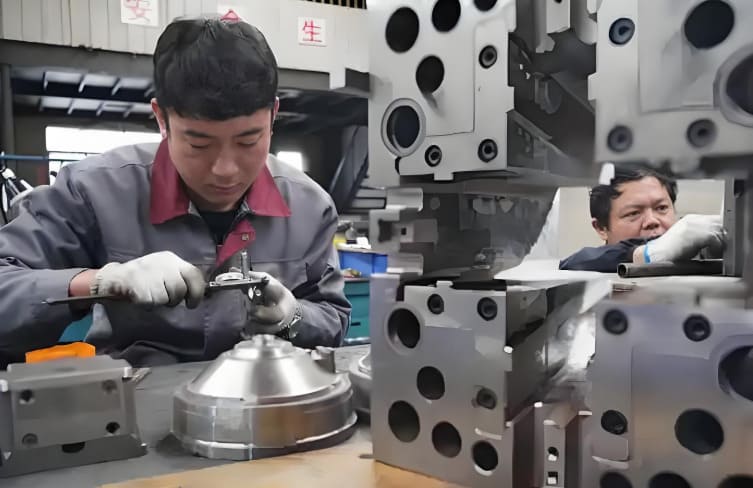

Last step is to test the mold thoroughly to make sure it meets all requirements. Inspectors check dimensions, tolerances and fit with gauges or metrology equipment. This quality check helps catch problems like warping or trapped air before starting production.
How to Choose a Technique & Material: Decision Criteria
To select the right mold making method you must weigh several factors against your project’s needs. Knowing these main criteria helps you find the most affordable solution.
Volume / Production Quantity
Number of parts you plan to produce affects both the mold’s durability and its cost. Low volume jobs such as batches up to 10,000 units work well with softer molds. Silicone or 3D printed molds offer a budget friendly option for these cases. If you need thousands or millions of parts, you must use steel molds.
Required Precision / Tolerance
The level of precision your part needs will set the standard for mold accuracy. Tight tolerances, mostly around ±0.1 mm, need molds that are made with precise methods like CNC machining. If your parts do not need such strict accuracy then you can use manual mold making techniques.
Material of the Final Product
The material you choose for your finished part affects the mold material as well. High temperature plastics or abrasive materials demand hardened steel molds. If you use softer materials, you can choose less durable molds like aluminum or non-metallic molds.
Budget and Cost of Tooling / Mold
Your available budget also has a major role in mold making decisions. Simple molds with a single cavity, made from aluminum, may cost only a few thousand dollars. These are a good fit for prototypes. If you need complicated molds with multiple cavities for high volume runs, cost can even rise above $100,000 depending on the complexity.
Lead Time
The timeline for your project matters a lot. Mold complexity has a big impact on lead times. You can get a simple 3D printed prototype mold in just 1 to 2 weeks. In contrast, fabricating, designing and testing a complicated production mold can take 6 to 12 weeks or even longer.
Life of Mold
How long a mold should last also affects the mold choice. For prototypes or low volume jobs under 500 cycles, aluminum or 3D printed molds are often enough. But if you need high volume output, hardened steel molds are the best choice.
Surface Finish & Aesthetics
The look of the finished part depends on the mold’s surface. A diamond polished steel mold is necessary for a high‐gloss, mirror‐like finish. If you want a textured surface for better grip or to hide small flaws, you can use sandblasting or other polishing methods.
RICHCONN gives clients many surface finish options, including coating, polishing and texturing. This lets you control both the function and appearance of every part right from the start.

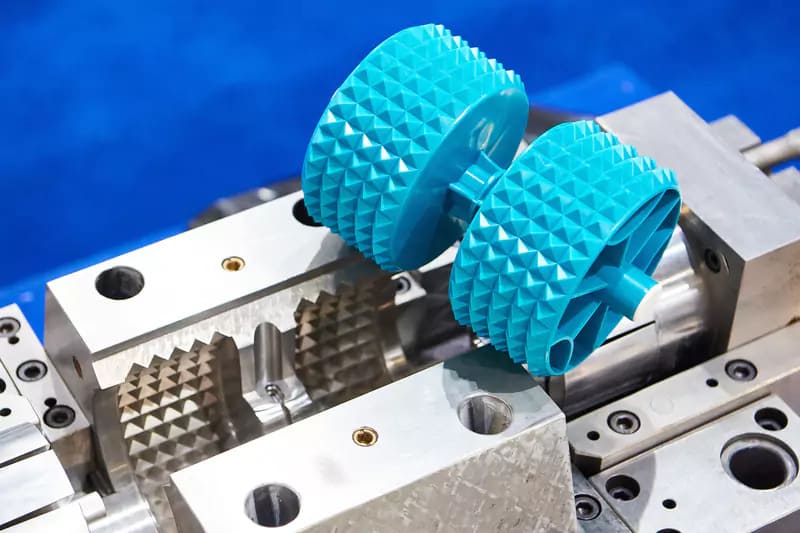

Applications of Mold Making
Industrial Manufacturing
Mass production in automotive & aerospace industries relies on mold making. Automotive plants use steel molds to create more than 1 million dashboards, bumpers as well as engine parts. In aerospace, precise molds help make lightweight composite panels and interior components.
Prototyping / Product Design
Soft molds or 3D printed tools make rapid prototyping possible. Designers can quickly test new ideas and produce sample parts. Prototype molds allow for making 10 to 1,000 parts which helps with prelaunch testing, design checks and lowering risks before full production.
RICHCONN supports fast prototype and custom mold projects. We offer 3D printing and low volume casting which are ideal for design trials or short production runs.
Arts / Sculpture / Restoration / Special Effects
Artists use mold making to duplicate sculptures, restore artifacts and build realistic props for theater or film. Silicone & plaster molds can record any detail or feature accurately. Studios use these techniques to copy statues, fix damaged pieces and make masks or special‐effects items.
Jewelry / Decorative Objects
Jewelers rely on precise molds made from silicone or metal to produce rings, necklaces and detailed charms. Custom molds shape original designs and create sharp edges in ceramics, resin or precious metals. Similarly decorative mold making lets designers create unique, repeatable pieces and custom gifts.
Food‐safe Molds
Chocolates, candies and artisan baked goods need food‐safe silicone and polycarbonate molds. These materials can handle temperatures between –40 °C & 230 °C. Bakers use food-safe molds to form striking shapes for cakes or sweets, both at home and in commercial kitchens.
To Sum Up
Mold making lets both industries and designers produce accurate, repeatable parts for any purpose. This includes prototyping, mass manufacturing, art and food production. Choice of the right material and method helps maintain efficiency and quality at every step. To get expert mold manufacturing and CNC services, RICHCONN is your best option. You can contact us anytime.
Related Questions
Mold making involves building the mold itself. Molding is the step where raw material fills the mold to create finished parts.
The mold’s life depends on its material. Steel molds can last for 100,000 to over 1,000,000 cycles. Aluminum molds usually handle 5,000 to 10,000 cycles. Silicone or resin molds often last from several hundred to a few thousand uses.
Yes. Flexible molds, particularly those made from silicone, can reproduce fine details, textures and undercuts with very high accuracy. Their elasticity and strength make this possible.
Prices can vary greatly. A simple 3D printed mold might cost around $100. A complicated steel injection mold with multiple cavities for large‐scale production can cost more than $100,000.
Beginners mostly start with silicone casting or 3D printed molds to learn the basics. Professionals, on the other hand, mostly use CNC machined steel molds for high volume jobs that need exact precision.
