Multi axis machining is now necessary for industries that require efficient and accurate production of complex parts. Its main advantage is its ability to handle complex geometries with maximum accuracy and minimum setup.
In this blog post we will cover different types and techniques of multi axis machining. We will also see its uses in variety of industries.
What is Multi-Axis Machining?
In simple terms it is an advanced manufacturing process which uses Computer Numerical Control (CNC) technology. In this process cutting tool moves in four or more directions simultaneously. This motion combines linear motion on X, Y and Z axes with rotational motion on A, B and C axes. These capabilities permit manufacturers to create components with great accuracy as well as complex geometries.
Types of Multi-Axis Machining

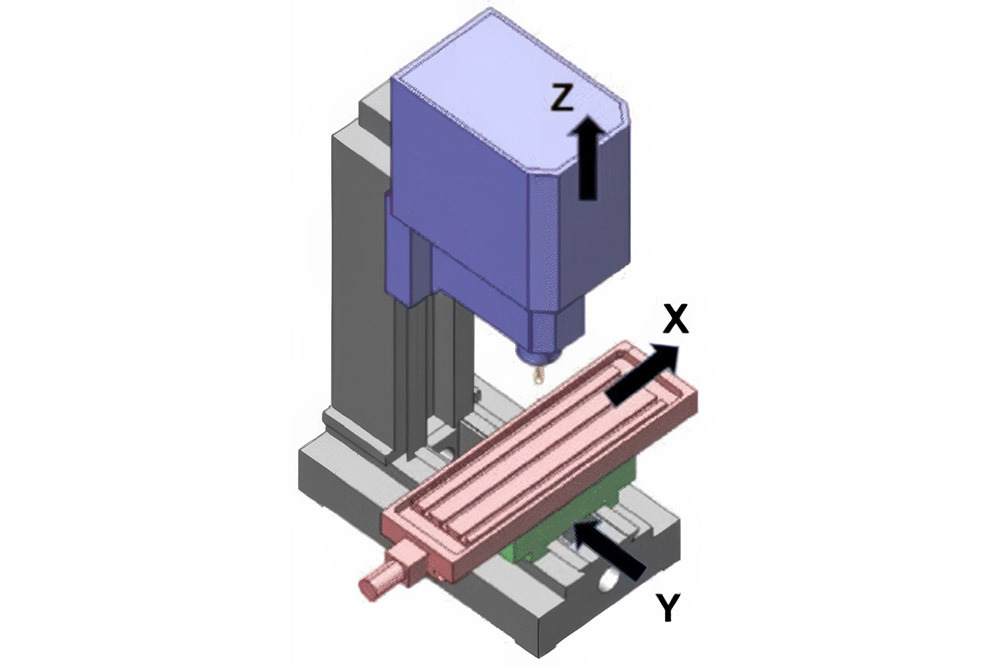

3-Axis Machining
Common 3-axis setting is basis of CNC operations but it does not qualify as true multi axis machining. It operates on 3 linear axes that are X, Y and Z. These axes permit forward-backward, left-right and up-down movements. This setup works perfect for flat surfaces and simple geometry. Although complex parts require multiple setups.

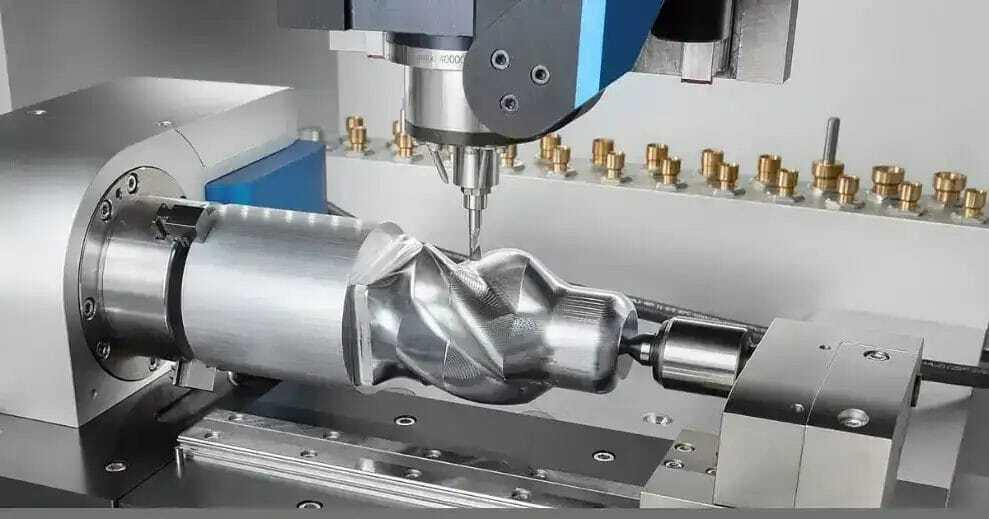

4-Axis Machining
4-axis system adds an A-axis rotation to standard 3 linear motion. This addition allows 360° rotation around X axis.
Manufacturers can produce helical features and complex geometries without mechanical repositioning of workpiece. This system is particularly beneficial for production of camshaft, turbine components and medical implants.
A-axis rotation increases dimensional accuracy for cylindrical components by continuously machining multiple surfaces.

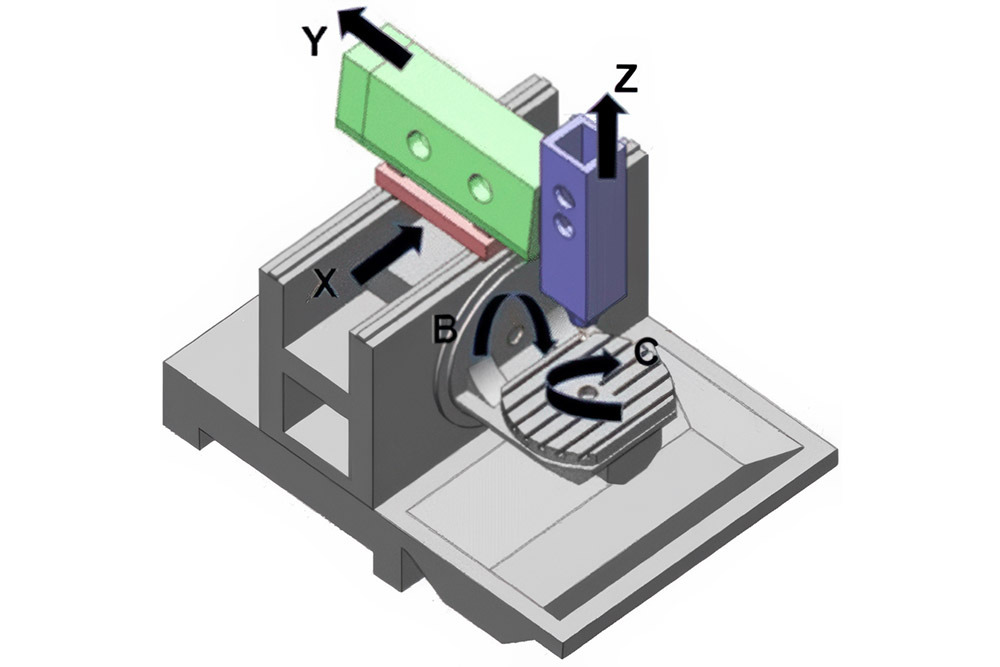

5-Axis Machining
5-axis configuration includes 2 rotary axes (A and B) and 3 linear axes (X, Y and Z). Tools move continuously at multiple angles while maintaining perpendicular contact with workpiece surface.
This setup guarantees excellent precision for automotive and aerospace parts. It creates better surface finish with smaller cutting tools & better tool paths. It also reduces setup time.

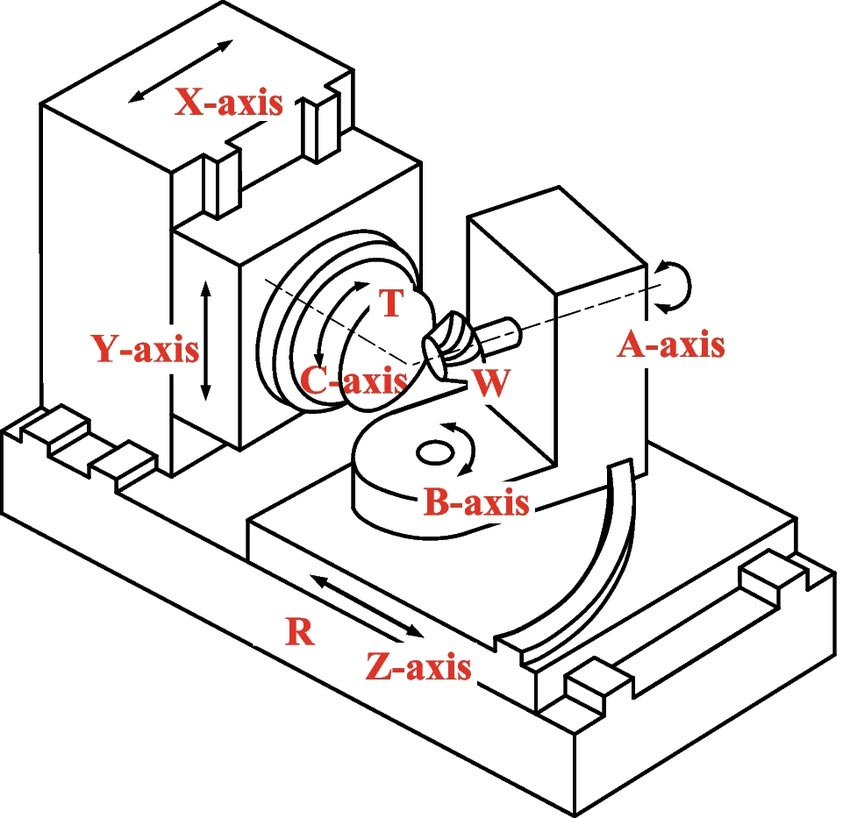

6-Axis and Further On
6 axis machining adds a 3rd rotary axis to 5 axis setup. This addition allows for full dimensional manipulation and control of complex contours through synchronized axis movements.
Advanced systems such as 7 axis and 9 axis configurations uses robotic arms & auxiliary spindles. This setup is best in manufacturing precision tooling components and orthopedic implants.
Different Techniques in Multi Axis Machining
Simultaneous Machining vs. Indexed Machining
In simultaneous machining, tool moves continuously on all axes during cutting operations. This movement maintains vertical contact with workpiece surface at all times. On the other hand index machining (also known as 2+3) works differently. It keeps rotational axes stable in specific orientations during cuts.
Each method works effectively for different purposes. For complex curved surfaces like turbine blades, simultaneous machining gives better surface finish. In contrast index machining works best for components such as housings and jigs.
Tool Path Generation
Advanced techniques drive tool path generation for multi axis machines. These include iso-planar, iso-parametric and point cloud modeling. Machining requirements and surface geometry determine cutting trajectories , tool orientations and positions. System calculates these parameters to efficiently remove material and achieve best surface quality.
Collision Detection and Avoidance
Safety is a main concern in multi axis machining. Advanced software runs real-time simulations to prevent workpiece and tool damage. System proactively monitors tool paths and identifies potential collisions. Then it makes quick adjustments to tool trajectory. GPU accelerations optimize processes that result in fast detections & real-time adjustments during machining.
Advantages of Multi-Axis Machining
- Multi axis machining combines multiple operations into one setup. This integrated process eliminates mechanical repositioning and reduces cycle time. That is why it results in more efficient tool paths, rapid production cycles and higher yields of complex parts.
- Optimum tool positioning and single setup operations results in excellent accuracy in multi axis machining. This technology achieves accuracy in range of ±0.001 inches. Errors are prevented by eliminating repositioning of workpieces.
- This technology is best in creating undercuts, complex geometries and freeform surfaces. Manufacturers can work efficiently on a variety of complex designs & materials. These capabilities make multi axis machining particularly valuable in automotive as well as medical fields.
- Using smaller cutting tools decreases high speed vibration. Tools move dynamically over multiple seals which reduces tool surface defects & marks.
Applications of Multi-Axis Machining

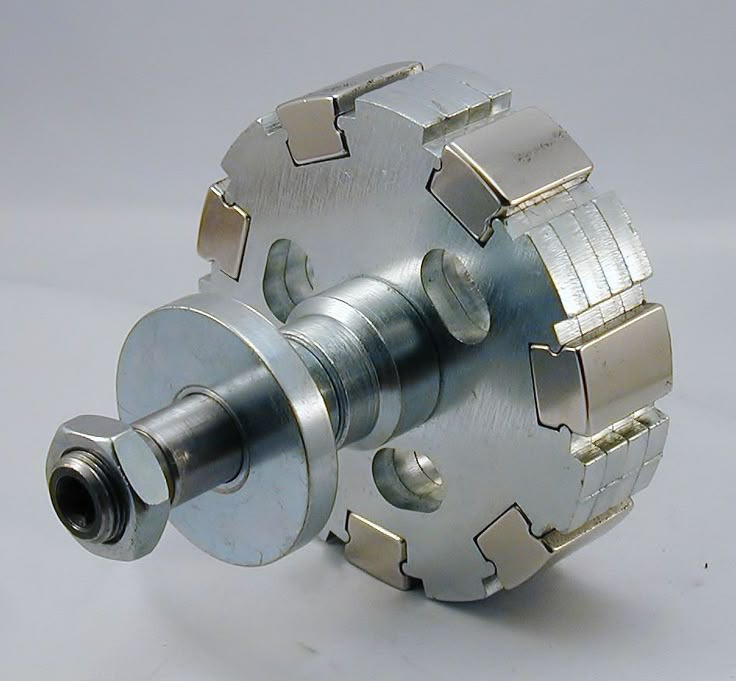

Energy Sector
Power generation instruments require parts that can withstand harsh conditions. Multi axis machining produces generator parts, high pressure heat exchanger plates and reactor vessel parts that resist corrosion at temperatures up to 1000°C. This technology achieves surface finish of 0.4 Ra and guarantees accurate coolant channel geometry for better heat transfer.

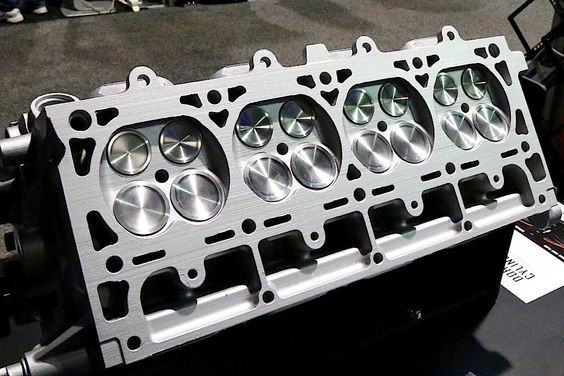

Automotive
Modern automotive manufacturing depends on multi axis machining to create gearboxes, engine blocks and personalized components. This technology achieves 0.001 inch accuracy in powertrain components. This accuracy contributes directly to durability & performance of modern automotive engines during mass production.

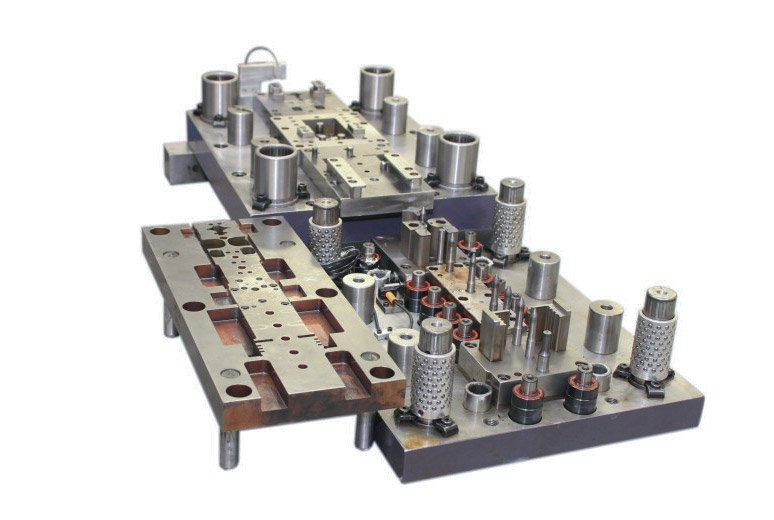

Tool & Die Making
Tool and die industry benefits from ability of multi axis machining to create complex dies and molds. These parts include complex cavities and precise contours with tolerances of ±0.0005 inches. Direct machining of hardened steel at 60 or above Rockwell hardness wipes out need for EDM operations in die manufacturing.

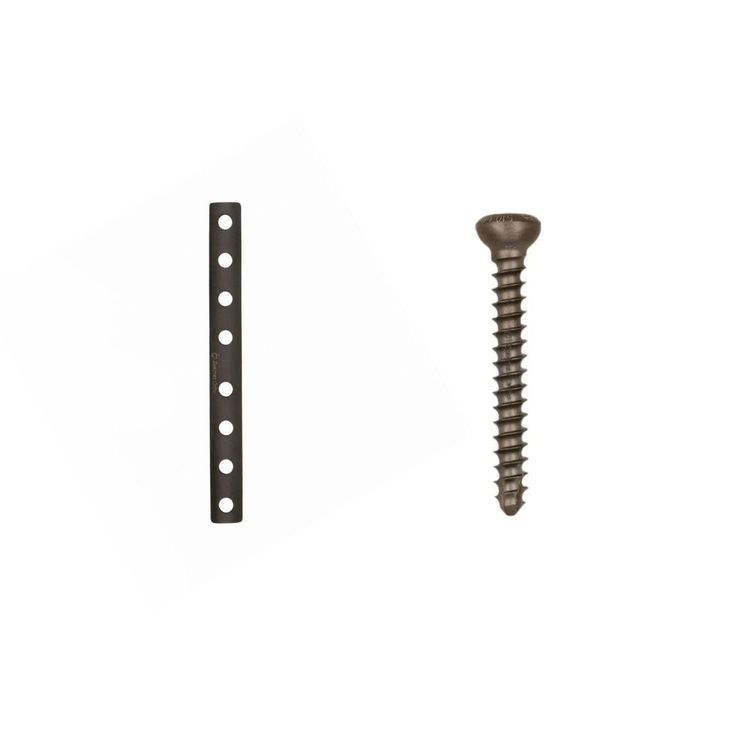

Medical Sector
Medical field uses multi axis machinery for manufacturing a variety of necessary components. These include orthopedic implements with patient specific contours, titanium bones screws with special thread patterns and precision engineered dental components. Precision of these components reduces post surgical complications and improves tissue integration as well.
Aerospace
Aerospace sector is very dependent on multi axis CNC machining for sensitive flight components. This technology produces landing gear parts, turbine blades and wing spars with outstanding accuracy. It is great in processing heat resistant superalloys and also gives aerodynamic precision needed for components that work in harsh conditions.
Problems in Multi Axis Machining
Tool Accessibility
Complex part geometry creates significant challenges for tool access. Interlocking features, deep cavities and limited tool access require careful planning. Operators must find correct tool orientation to maintain efficient cutting operations and avoid interference.
Advanced Programming
Coordinating multiple axes and generating accurate G-code presents great programming challenges. Tool path coordinates must be accurate. Even smallest programming errors can cause machine damage and production errors.
Higher Costs
Implementing multi axis machining requires big investment. Modern CAM software, machine purchases and regular maintenance accumulate costs. Additional operational costs include special tooling requirements and high energy consumption.
See Also: How to Calculate CNC Machining Costs
Collision Risks
Collision risk presents a constant challenge in multi axis machining. It can be caused by incorrect tool settings, programming errors or mechanical errors. To avoid production delays and costly machine damage, detailed simulation and verification is very important before each machining sequence.
To Sum Up
Manufacturing industry is very dependent on multi axis machining for its outstanding efficiency and accuracy. This technology has become indispensable for production of complex parts despite high initial investment and complex programming required. It gives excellent flexibility and surface finish to meet these challenges.
If you need any kind of CNC machining services – 3-axis, 4-axis, 5-axis etc – then RICHCONN is best option. You can contact us anytime.
Related Questions
What are some recent technological advancements in multi axis machining?
Recent innovations include better kinematic systems, AI powered tool path optimization and real time monitoring systems that guarantee efficiency as well as accuracy.
How does CAM software simplify multi axis machining operations?
CAM software handles complex geometric calculations and automatically creates optimized tool paths. This software includes simulation tools that detect potential collisions before actual production begins.
What is role of simulation in multi axis machining process’s planning and execution?
Simulation serves as an important tool for pre production. It permits operators to verify tool paths and identify potential problems before actual machining begins.
How multi axis machinery increases rapid prototyping potential?
This technology greatly speeds up prototyping process. Complex parts can be made in a single setup which decreases production time. This results in more accurate prototypes and shorter delivery times.
What safety measures should be observed while operating multi axis CNC machines?
Three important measures are consistent maintenance schedule, careful following of safety protocols and comprehensive operator training.
How multi axis machining improves manufacturing efficiency?
Manufacturing efficiency is improved through many important benefits. These include less setup requirements, better use of tooling and less operational steps. These improvements speed up overall production cycle.
