Many industries struggle with hidden defects in manufactured parts that compromise their quality as well as safety. Non Destructive Testing (NDT) performs an important part in identifying these issues quickly and with high precision. In this blogpost we will cover common NDT methods, their advantages and practical applications in different industries.
What is Non-Destructive Testing？
Non-destructive testing is an inspection process which is used to evaluate material properties, systems and components without damaging them. This approach not only assures safety and quality in different industries but also preserves the functionality of tested items.
Common Methods of Non-Destructive Testing
Visual Testing (VT)

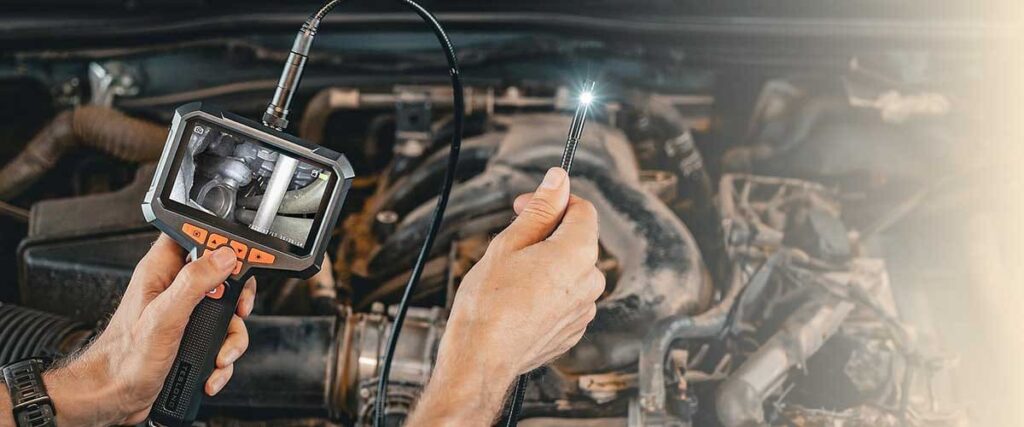

Visual testing is a basic NDT method that visually inspects the surface of a component for defects such as cracks, misalignments, corrosion etc. This process can be done visually as well as using tools like borescopes, cameras or magnifying glass. Additionally it requires extensive training of inspectors to accurately test defects.
Ultrasonic Testing (UT)

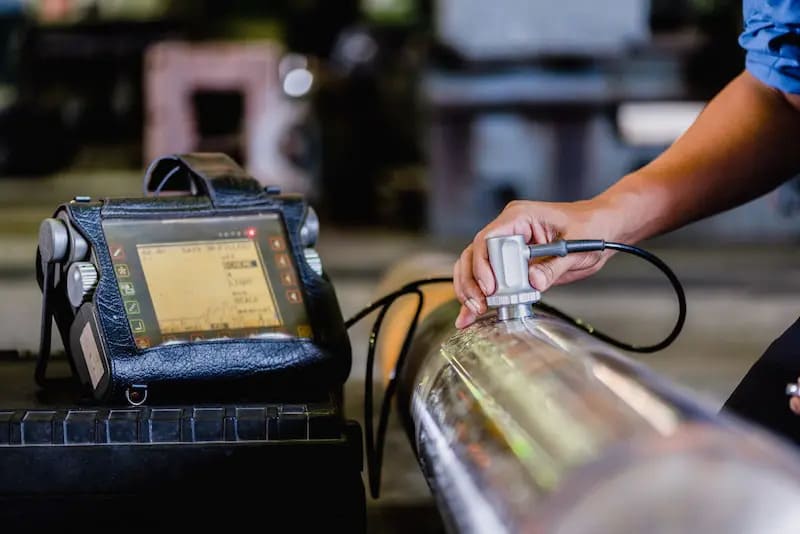

Ultrasonic testing involves non destructively inspecting materials using high frequency sound waves. It uses a transducer to transmit ultrasonic pulses inside the material to detect flaws. These waves collide with imperfection & reflect back. The transducer receives these reflected echoes and converts them into images for inspection. UT is particularly effective in identifying planar discontinuities.
Radiographic Testing (RT)

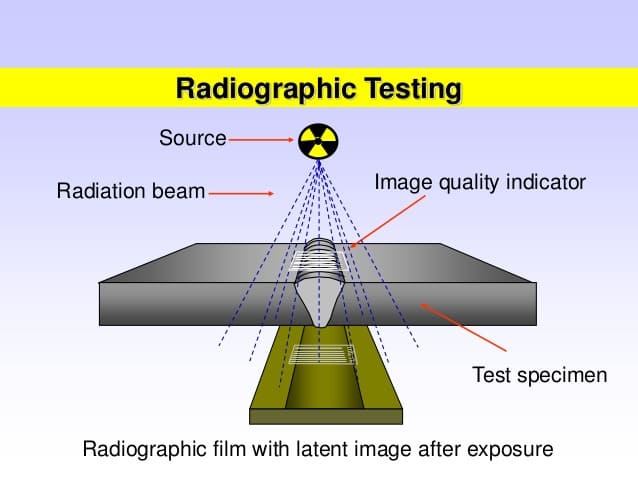

In radiographic testing gamma rays or x rays are penetrated into the material to check for internal defects. RT creates detailed shadowgraphs on digital detectors or film that show inclusions, density variations and flaws. This method is good for inspecting welds as well as complicated geometries and castings. RD gives a permanent record but requires tight protocols because of radiation hazards.
Magnetic Particle Testing (MT)

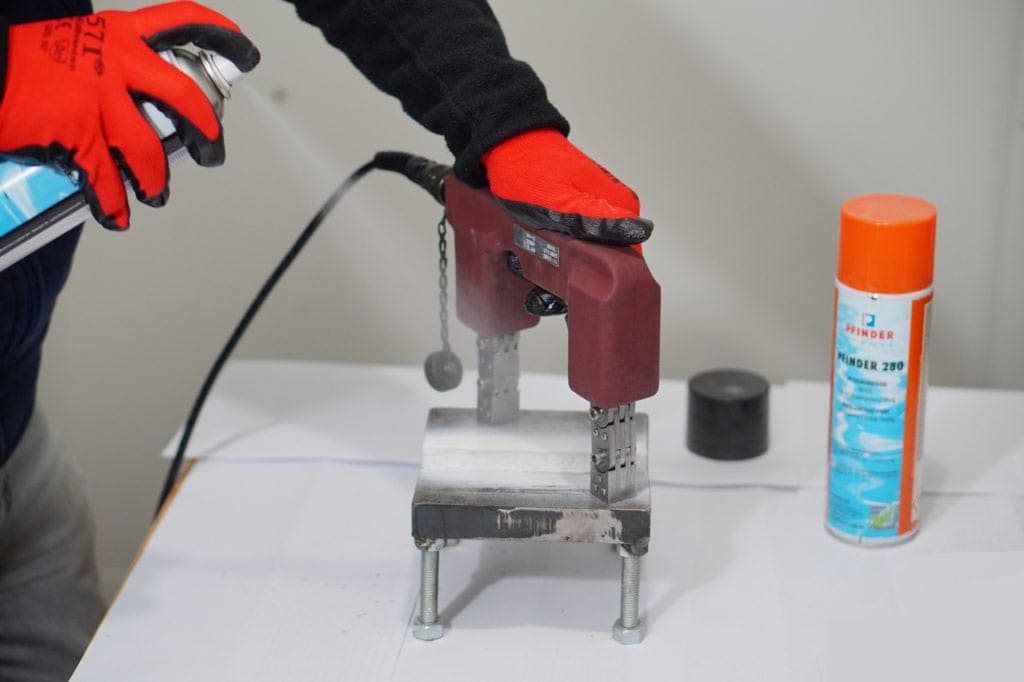

Magnetic particle testing is used to detect surface as well as subsurface defects in ferromagnetic materials. A magnetic field is created inside the material and then magnetic particles are applied to the surface. These particles accumulate around the flaws & make them visible for inspection. MT can detect fine, shallow cracks even through thin coatings.
Liquid Penetrant Testing (PT)

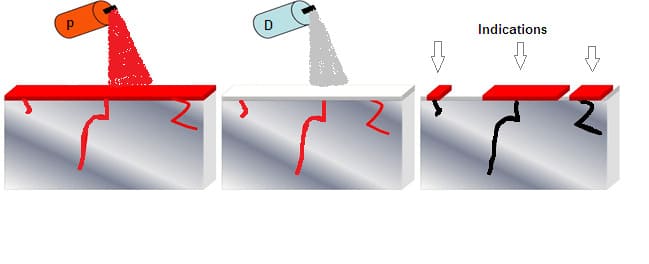

PT detects surface breaking flaws in non porous materials using liquid penetrant. The penetrant is applied to the surface and if there is a flaw present, it seeps into it. After that, a developer is applied to make defects visible. This process can easily identify cracks as small as 150nm.
Eddy Current Testing (ECT)
Eddy current testing identifies surface and near-surface defects in conductive materials by electromagnetic induction.

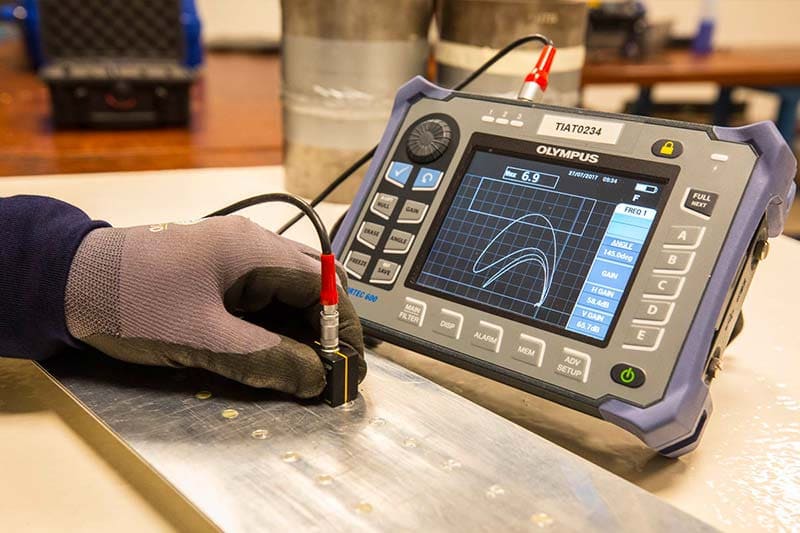

It produces eddy currents in test object. These currents are disrupted by defects which in turn alter the probe’s electromagnetic field. This change is measured & assessed to detect flaws. Furthermore this process permits non contact testing through insulation or coatings.
Acoustic Emission Testing (AE)
Acoustic Emission Testing detects transient elastic waves that are generated by rapid stress redistribution within the materials.

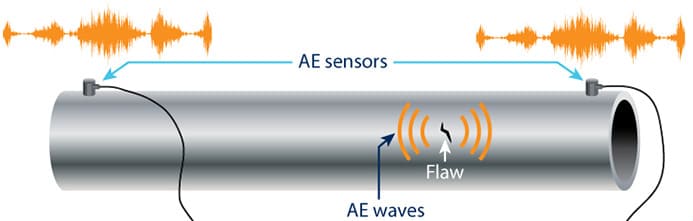

It uses piezoelectric sensors to detect high frequency stress waves which are emitted by growing defects. AET can even monitor structures in real time during normal operation to detect defects as they form or grow.
This technique is suitable for monitoring large structures such as pressure vessels & bridges.
See Also: Complete Guide to First Article Inspection in CNC Machining
Applications of Non-Destructive Testing
Aerospace Industry
NDT performs an important part in safety and reliability of aircraft. It inspects aircraft components, detects hidden defects and assures their structural integrity as well.
From fuselages to engine parts, NDT methods not only increase aircraft lifespan but maintain strict aviation safety standards too.
Oil & Gas Industry
In this sector NDT methods are applied to measure the condition of components under corrosive and high pressure environments. Such components are storage tanks, drilling equipment, pipelines etc. Routine NDT inspections are important to detect corrosion, structural weakness & leaks to avoid any environmental hazards.
Construction & Civil Engineering
NDT methods are used to analyze the structural integrity of bridges, buildings and other infrastructure. It helps to find internal flaws in steel, concrete and other materials that could compromise their stability & safety.
Power Generation
These methods are important to assure the integrity of equipment like turbines, boilers, generators etc. They help identify problems such as corrosion and cracks to avoid potential breakdowns and assure the proficient and safe operation of power plants.
Production & Manufacturing
In manufacturing and production, NDT assures process proficiency as well as product quality. It allows in line testing on production lines, quickly identifies defects to reduce waste and moreover, improves manufacturing processes. NDT assures compliance within industry standards so that faulty parts are not produced.
Advantages of Non-Destructive Testing
Preservation of Material Integrity
NDT inspects components without altering them which preserves the integrity of material and allows them to be used constantly after inspection. This is important in industries where functional & structural properties of vital parts must be maintained to guarantee operational reliability and safety.
Cost & Time Efficiency
NDT decreases costs by avoiding costly failures as well as reducing material waste. It allows rapid on site inspections without interrupting operations which greatly reduces downtime. Additionally it extends the life span of assets and helps avoid costly repairs by detecting defects early.
Improved Safety
These methods identify defects before any catastrophic failure occurs, thereby improving safety. In important components, it enables early identification of corrosion, material degradation and cracks. This proactive approach protects workers, prevents accidents and assures public safety as well.
Real-Time Results & Monitoring
NDT provides continuous monitoring capabilities & instant results. This immediate feedback helps in decision making which permits teams to take right steps without waiting for post production analysis or extended lab results.
Comprehensive Defect Detection
These techniques can identify broad range of defects from surface cracks to internal voids. This provides thorough assessment of material integrity. Furthermore this comprehensive detection ability guarantees that even smallest flaws can be identified. So that they can be repaired before they develop into major issues.
On-Site Application & Portability
Modern NDT devices are portable and compact which in turn permits on site inspections without disrupting operations. These handheld devices facilitate proficient testing in remote locations & confined spaces because they have long lasting batteries. Their portability minimizes downtime as well as improves inspection adaptability in different industrial settings.
Versatility across Materials
NDT methods can be used for large variety of materials like ceramics, polymers, composites, metals etc. This adaptability makes it the perfect method in different industries. This in turn permits it to inspect different components without the need for material special testing methods.
Challenges & Limitations of Non-Destructive Testing
Technical Limitations
Non destructive testing methods usually have to face technical limitations such as sensitivity & depth constraints. Some techniques find it difficult to detect defects in deep seated flaws or thick material. This might be important in industries such as oil and gas. Furthermore certain NDT methods have limited sensitivity which makes it difficult to detect small defects.
Operator Dependency
The success of NDT methods depends on the skill and experience of operator. Different operators may interpret the same results differently which can lead to problems such as false positives and undetected defects. This human factor can compromise repeatability and reliability of inspection results due to uncertainty and subjectivity.
Equipment & Technology Costs
NDT equipment costs vary greatly. For instance both handheld ultrasonic devices and advanced X ray systems cost around $1,000 and $30,000 respectively. Meanwhile automated setups can even cost more than $10,000. These greater initial costs combined with training & maintenance costs make NDT devices too expensive for small organizations which limits their use.
To Sum Up
In short NDT performs an important part in assuring safety across different industries. Its distinct methods provide outstanding defect detection capabilities and maintain the integrity of material too. NDT’s safety and proficiency make it ideal in different sectors to assure operational safety and product reliability despite challenges.
Related Questions
What is the difference between destructive and non-destructive testing?
Destructive testing damages or destroys samples to assess their properties. On the opposite, non destructive testing evaluates materials without causing harm.
Can NDT be applied to non-metallic materials?
Yes NDT can be used for testing polymers, composites and ceramics using techniques like ultrasonic testing, optical fiber NDT, infrared thermography etc.
Can NDT methods detect all types of defects?
No NDT cannot detect all defects. Each technique works for special types of materials and defects. In general, a combination of NDT methods is needed for a complete inspection.
What are the cost implications of implementing NDT in manufacturing?
Implementing NDT requires great initial investment in equipment, technology & training. But it provides better quality control and reduction in material waste which compensates for its high initial cost.
Can NDT be used to inspect underwater structures?
Yes NDT methods can be used to test underwater structures. Such methods are radiography testing, acoustic resonance technology & ultrasonic testing.
Can NDT be integrated into automated production lines?
Yes it can be integrated into automatic production lines. This integration improves accuracy and permits constant monitoring of product quality during process.
