Many essential products such as custom medical implants and aerospace parts rely on complicated curves and surfaces to function correctly. Profile milling makes it possible to manufacture these detailed & curved shapes.
In this blog post you will learn how profile milling works, discover its main applications as well as find out what factors help achieve perfect results.
Overview of Profile Milling
Profile milling is a specialized type of milling that is used to create contoured and complicated surfaces. CNC programming directs a rotating cutter along a set path to remove material from the workpiece. This approach shapes parts with accurate geometries and produces smooth, high quality finishes.
Profile Milling Core Process Flow
A clear sequence of steps turns a digital design into a finished part during profile milling. Following this process guarantees that each stage delivers precision, efficiency as well as reliable quality from beginning to end.
Stages of Profile Milling
- Roughing: Quickly removes up to 95% of the material and this leaves 1 to 3 mm for later steps.
- Semi‐Finishing: Uses finer tools to get closer to the final shape with 0.2 to 0.6 mm of stock left.
- Finishing: Reaches the required dimensions and surface quality.
- Super Finishing (optional): For parts that need very high precision, super finishing improves the surface even more.
CAD/CAM & Toolpath Generation
Software manages the entire profile milling process. Engineers first create a 3D model with Computer Aided Design (CAD). Next, Computer Aided Manufacturing (CAM) software changes this model into a toolpath using G code for the CNC machine. The G code controls every cutter movement which lets it machine complicated shapes with 4 or 5 axes.
At RICHCONN our engineers work directly with customer’s CAD files and provide Design for Manufacturability (DFM) advice. This support helps streamline the process and improve part quality without adding extra steps.
Tool Types Per Stage
Each stage uses particular tools to achieve the best results.
- For Roughing: Operators select strong tools like round insert cutters. These tools remove large amounts of material quickly.
- Semi Finishing & Finishing: Ball-nose cutters and end mills are used in these phases. They help create smooth and contoured surfaces.
- Super Finishing: Specialized heads are chosen for this step. They produce mirror‐like finishes when needed.

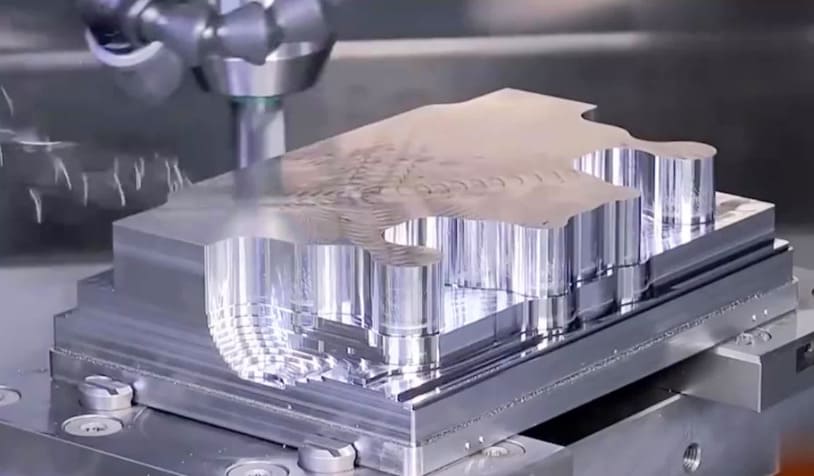

Types of Profile Milling
Profile milling falls into several categories and this depends on the job’s requirements.
1. By Process Stage
Roughing and Semi Roughing
This first step removes most of the excess material at a fast rate. The depth of cut is mostly aggressive; it is often set to about half the tool’s diameter.
Semi Finishing
In this step, the shape of the workpiece becomes more defined. A small and even layer of material is left for the final cut.
Finishing
This stage comes last in most cases. Accurate tools cut the part to its final size and give it a high quality surface.
Super Finishing
This extra step is used when extremely high precision is needed. It is common in aerospace work and creates an even finer surface.
2. By Dimensional Approach
2D Milling
The cutter moves along the X & Y axes while the Z axis stays at one depth. This method works well for making flat profiles and simple shapes.
3D Milling
In this process, the cutter moves at the same time in X, Y and Z directions. This allows the creation of complicated 3 dimensional surfaces and contours.
Multi-Axis Milling
Machines with four or five axes are used for this method. They can rotate the workpiece or the tool head to machine very complicated shapes.
3. By Milling Direction
Climb Milling
In climb milling the cutting tool rotates in the same direction as the workpiece feed. This technique often produces a better surface finish. It also reduces tool wear.
Conventional Milling
With conventional milling, the tool rotates opposite to the feed direction. This method creates more friction. Manufacturers often use it for roughing passes on hard materials.
5 Principal Applications of Profile Milling
Aerospace Components
Profile milling creates turbine blades and airframes from alloys such as titanium. This process gives tight tolerances, mostly around ±0.05 mm. This accuracy is vital for maintaining aerodynamic properties.
Medical & Surgical Tools
Medical device production depends on profile milling to meet strict requirements. This process makes a lot of detailed medical parts which also include orthopedic implants such as knee trays and custom prosthetics. Surgical instruments also need this method to achieve precise shapes.
Automotive Parts
Automotive manufacturers use profile milling to make engine parts and complicated body panels. The method’s precision assures parts fit exactly. This improves both vehicle performance and reliability.
Molds, Dies & Tooling
Profile milling is essential for making injection molding dies and stamping tools. It produces accurate cavities with quite smooth surfaces; therefore often manual polishing is not needed.
Other Fields
Profile milling serves many advanced industries. It creates housings for robotics & consumer electronics, shapes turbo machinery parts as well as machines advanced composites and energy sector components.

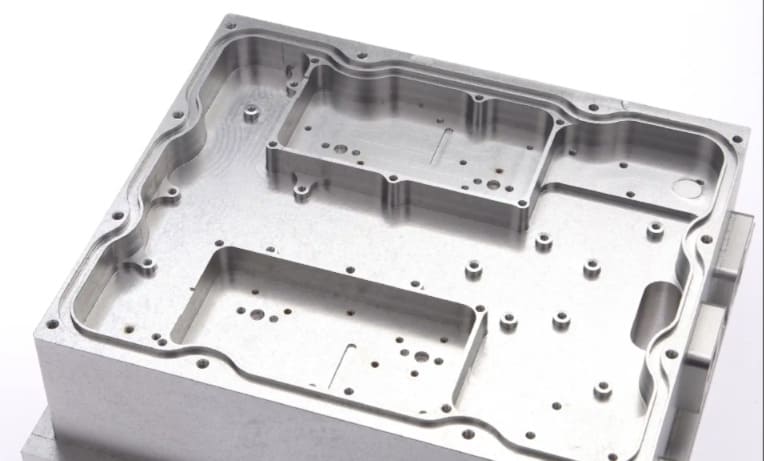

Key Considerations in Profile Milling
Consistent results in profile milling depend on careful attention to different important factors.
Tool Deflection & Rigidity
Dimensional accuracy suffers when tool deflection occurs and this may result in chatter. To keep tools rigid, limit overhang to five times the tool diameter or less. Use rigid tool holders such as hydraulic or shrink‐fit types as it further improves stability.
Moreover choose tools with larger core diameters to increase stiffness and resist bending during heavy cutting. These steps help achieve precise cuts and make tools last longer.
Surface Finish Factors
The quality of surface relies on the selection of right machining parameters.
For soft alloys like aluminum, set cutting speeds between 200 and 600 m/min and use feed rates from 150 to 400 mm/min. When working with hardened steel, lower the cutting speed to 50 to 120 m/min and set feed rates at 100 to 300 mm/min.
Always check that tool engagement is correct and that the tool radius matches the part’s contour. Doing so prevents tool marks and produces a smooth finish.
Design for Manufacturability (DFM)
Design parts to make milling easier. Keep depth‐to‐width ratios in the range of 3:1 to 4:1 for stable machining. Set internal corner radii to about 130 percent of the tool radius to fit the cutter’s shape. Also make sure the part’s geometry matches the intended tool paths to avoid problems with access. Following these rules cuts manufacturing costs and boosts efficiency.
If needed, RICHCONN’s experts can review designs and suggest changes to help assure that your parts are easy to manufacture and affordable.
CAM Toolpath Planning & Free-form Challenges
Machining free‐form surfaces calls for careful toolpath planning. Use adaptive strategies such as scallop‐based or iso‐planar paths to handle surface changes. Apply non constant offset paths to avoid both repeated cuts and missed areas. This method streamlines the process, in particular for complicated 3 dimensional shapes.
Advantages & Drawbacks of Profile Milling
| Advantages | Drawbacks |
|---|---|
| High precision on complicated shapes | Expensive machinery & setup |
| Extraordinary surface finish; also reduces post‐work | Significant programming & tooling complexity |
| Versatile across materials & axes | Higher risk of tool wear & machining vibrations |
When to Choose Profile Milling
Choose profile milling when your project needs tight tolerances along with complicated shapes. This method works best for parts with curved surfaces or detailed contours that other machining processes cannot achieve. Because of this, industries like aerospace & medical device manufacturing rely on it for high‐value components.
To Sum Up
Profile milling has a key role in manufacturing for shaping intricate parts with precision. You will find it useful in everything from aerospace components to medical devices.
For expert CNC machining that meets your exact design needs, Richconn is your best option. You can contact us anytime.
Related Questions
Profile milling forms the outer edges of a workpiece. In contrast face milling uses the tool’s face to create broad and flat surfaces.
Yes. Profile milling does suit low volume jobs because it needs little setup and allows for design changes without costly tooling.
Yes. You can use 3 axis CNC machines for profile milling. These machines can handle many profile types with accuracy.
The time needed depends on the part’s complexity. With fast tooling and good programming, you can finish a part in several minutes or a few hours.
