Many industries depend on PVD coating to get attractive, durable and strong surfaces. Compared to traditional coatings, PVD provides better wear resistance and performance. In this blog post we will cover what PVD coating is and how it works. We will also see its application, main types, limitations and comparisons with other coating methods.

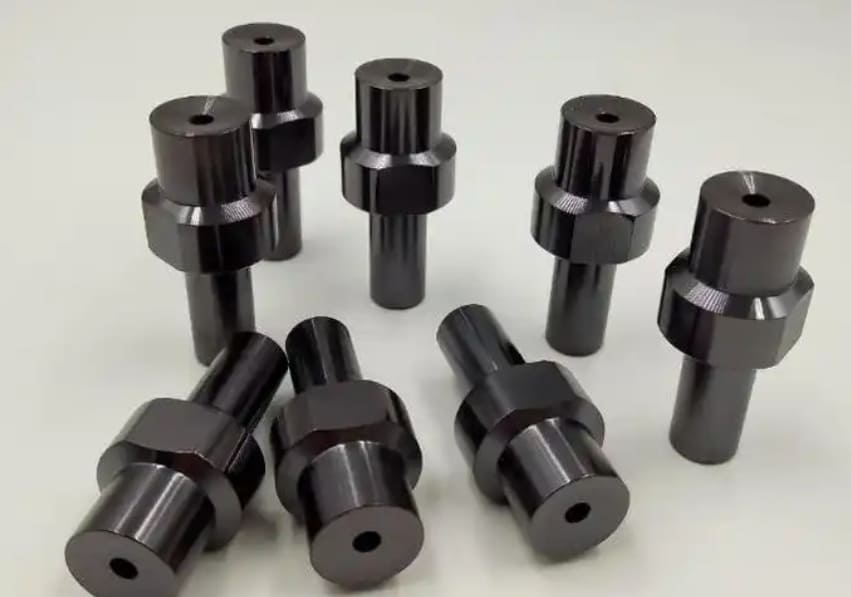

Understanding Physical Vapor Deposition (PVD)
In simple terms Physical Vapor Deposition (PVD) is an advanced coating method. In this method solid materials are first vaporized inside a high vacuum chamber. The vapors then condense on the substrate resulting in an ultra thin film whose thickness can range from a few nanometers to several micrometers.
Since this deposition occurs atom by atom, the resulting coating is extremely pure and durable. Due to these characteristics, PVD coatings are ideal for applications that need hard, precise and wear resistant surfaces.
Also See: What is DLC Coating

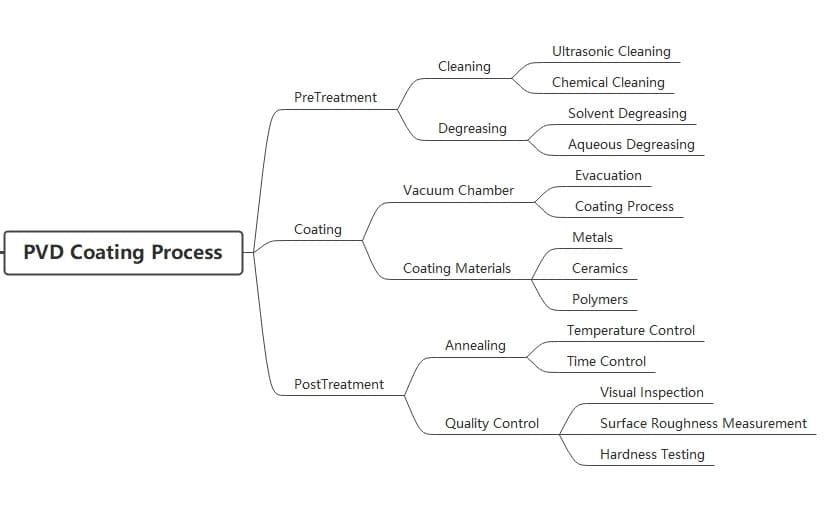

Step by Step PVD Coating Process
1. Substrate Preparation
For successful PVD coating, careful substrate preparation is necessary. First the substrate’s surface is thoroughly degreased and cleaned. Sometimes heat treatment or polishing is also performed. Due to these steps contaminants get eliminated and coating sticks properly.
At RICHCONN, our CNC machining and surface finishing teams prepare materials beforehand. They attain surface finishes of Ra <0.4μm which guarantee maximum adhesion for your PVD coatings.
2. Vacuum Chamber Setup
After preparation, the substrate is placed in a stainless steel vacuum chamber. The chamber pressure is then reduced to between 1×10⁻⁶ and 1×10⁻⁴ Torr which is less than the pressure of outer space. This low pressure eliminates air and moisture which minimizes contamination.
3. Material Vaporization
In the next step the coating material is vaporized. This material is usually metal such as chromium or titanium. Methods like sputtering, electron beam evaporation or thermal evaporation are used to convert the material into a vapor.
4. Vapor Transport
After vaporization the atoms or molecules move through the vacuum chamber. As they move, they sometimes react with gases like oxygen or nitrogen. Due to these reactions compounds such as Al₂O₃ or TiN are formed.
5. Film Deposition
The vapors finally arrive at your substrate surface. At this stage they condense into a uniform and thin film. Generally, the thickness of this deposition film ranges from 0.25 microns to 4 microns.
6. Post Deposition Treatments
After the coating is complete, additional treatments are often performed on the coated part; for example annealing or polishing to improve surface quality.
In order to confirm that the coating meets all required performance standards, thorough quality checks also are performed.
Top 5 PVD Coating Techniques

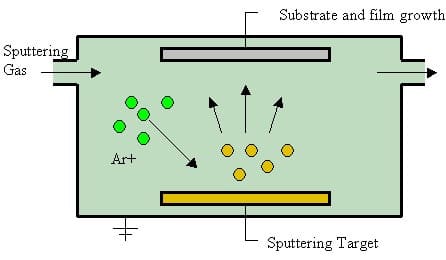

1. Sputter Deposition
Process

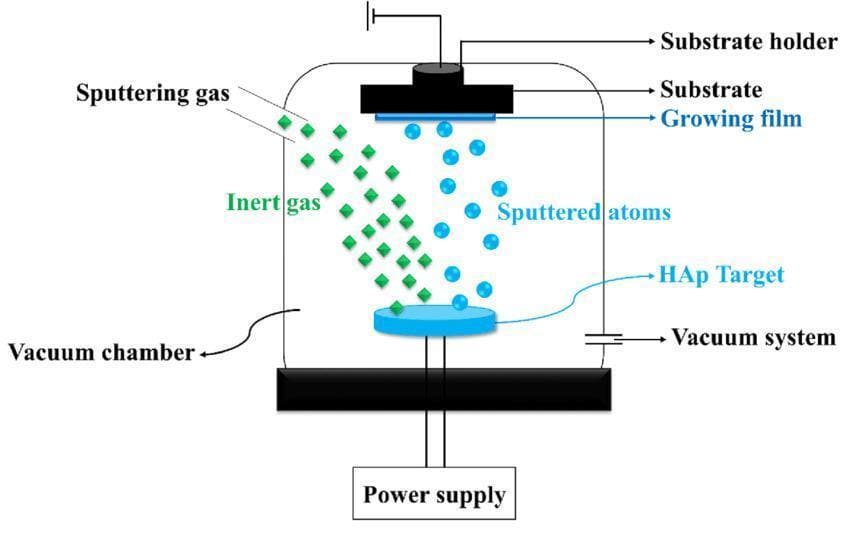

In sputtering, energetic particles, which are usually argon ions, strike with the target cathode. Due to this collision, atoms get detached from the surface of cathode. These atoms then move across the vacuum chamber and form a coating on the surface of substrate.
Advantages
Through this flexible method, you can deposit nearly any material such as composites, alloys, insulators and metals. Compared to other techniques, sputter deposition achieves better step coverage and higher quality films. In addition it provides accurate thickness control and can coat large substrates uniformly.
2. Electron Beam Evaporation
Process
In electron beam evaporation, a high energy electron beam (3-40 kV) is used to heat the source material. Under high vacuum conditions, the material evaporates. These vapors rise upward across the vacuum chamber and deposit on the substrate, thus forming a thin coating.
Advantages
For vaporizing such materials that have extremely high melting points such as niobium and tungsten, this method is very effective. It produces fast coating results at low substrate temperatures and offers precise control over the process.
At Richconn, with our advanced PVD equipment we often use electron beam evaporation for aerospace fasteners and complicated optical components that need high temperature resistance.

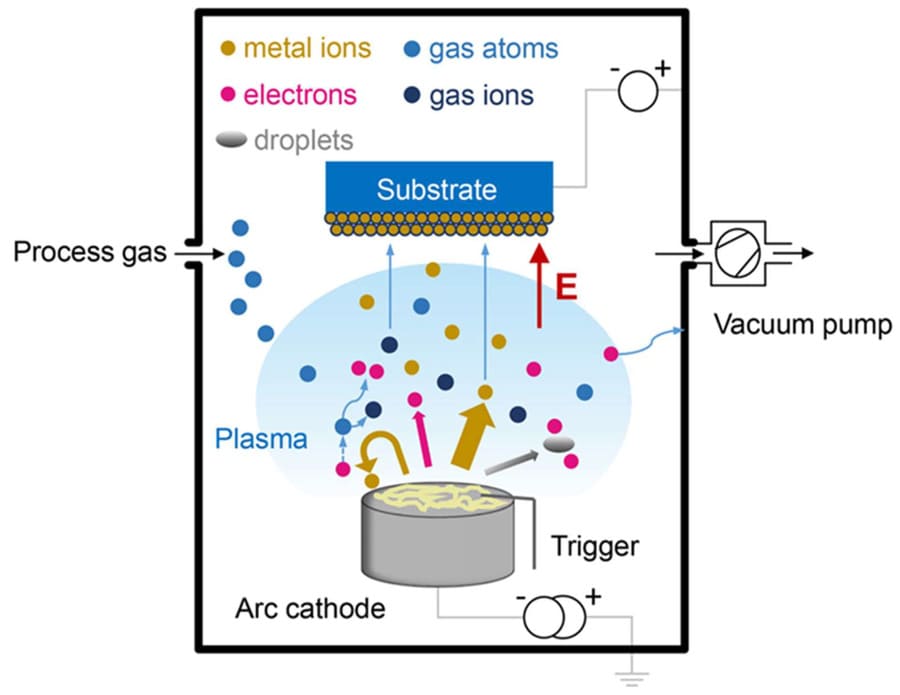

3. Cathodic Arc Evaporation (Arc PVD)
Process
In Arc PVD, a high current, low voltage electric arc is used which directly strikes the target material. This causes the cathode surface to rapidly transform into a highly ionized plasma. This plasma then moves towards substrate and coats it.
Advantages
Due to its high ionization rates, this technique produces strong & high density coatings. These deposited layers have high corrosion resistance and hardness.
4. Thermal Evaporation
Process

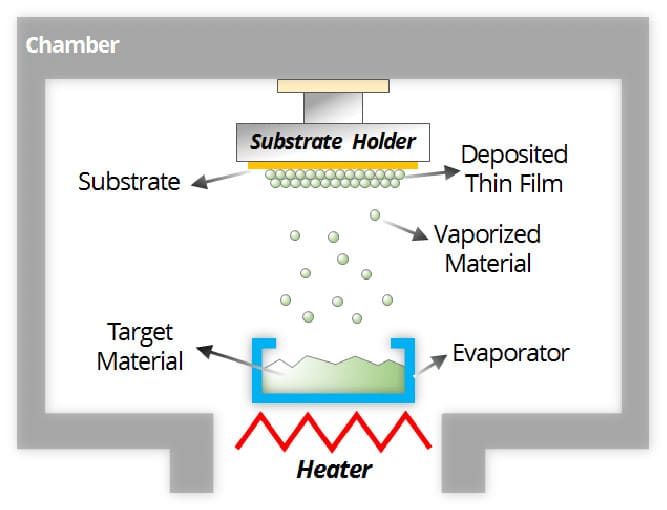

Thermal evaporation works by heating the source material until it reaches its evaporation point. This process creates vapors which travel through a vacuum chamber. These vapors then condense on the substrate to form a coating.
Advantages
Due to high vacuum conditions, thermal evaporation produces extremely uniform and pure thin films. It is less expensive compared to other PVD methods. For small scale production, it is particularly useful due to its simple design.

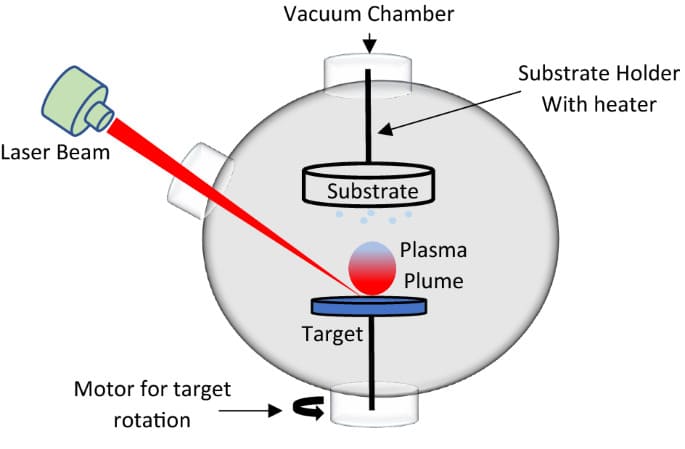

5. Pulsed Laser Deposition
Process
In PLD, the target material is ablated by striking it with high power laser pulses. Due to this ablation a plasma plume is created. This plume travels towards the substrate and deposits on it.
Advantages
This technique effectively preserves complex material stoichiometry. It can deposit a variety of materials which include polymers and biomaterials. It is particularly useful for creating thin films with specific chemical compositions.
Industrial Applications

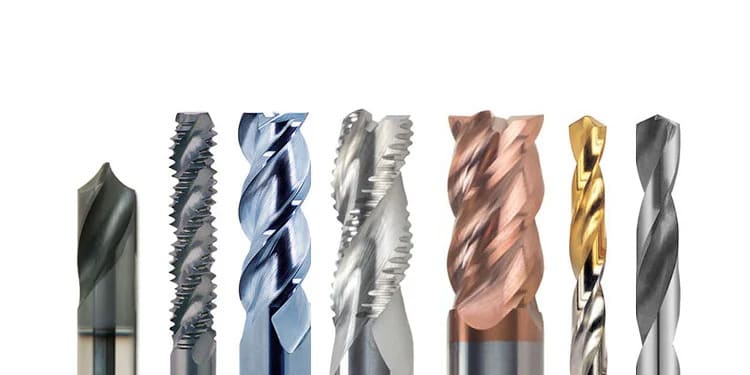

PVD Coatings for Cutting Tools and Tooling
PVD coatings have dramatically changed the tooling and machining sector. Manufacturers apply coatings such as Titanium Carbon Nitride (TiCN) or Titanium Nitride (TiN) directly onto cutting tools such as milling cutters, drill bits and inserts. These coatings significantly increase the hardness of the tool.
As a result your cutting tools stay sharp for longer duration, even under harsh operating conditions. This improves the cutting speed and reduces the frequency of tool replacements. Consequently your productivity and production efficiency improve significantly.

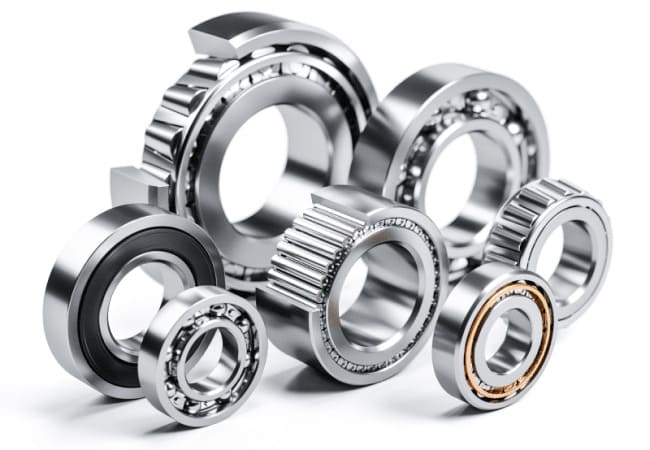

PVD Coatings in Automotive Components
In automotive applications, PVD coatings are used for two primary purposes: functional and decorative.
From a functional perspective, manufacturers use PVD coating for engine parts such as camshafts, piston rings and fuel injectors to reduce friction and wear. Due to these coatings, engines run efficiently in spite of high temperatures and pressures. Moreover coatings like chromium nitride are used to attain outstanding corrosion resistance. These coatings are particularly important for automotive parts which are subjected to harsh environmental conditions.
From a decorative standpoint PVD coating provides a premium and long lasting finish for automotive parts such as grills, wheel rims, badges and interior trim. They deliver a chrome like appearance with reduced environmental problems compared to traditional chrome plating.
PVD Coatings in Medical Devices and Implants

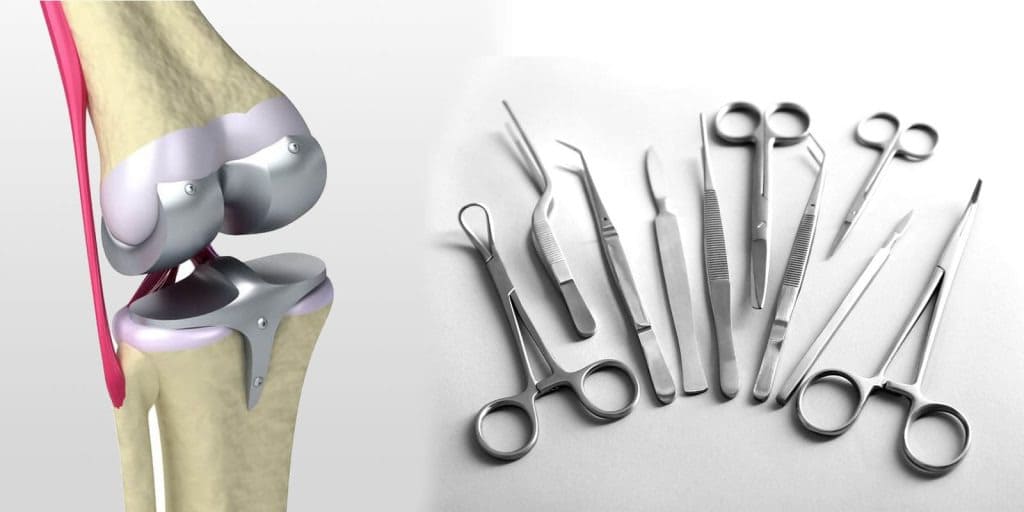

In the medical field, PVD coating is used to increase the functionality and lifespan of surgical instruments and medical implants. For example needles and scalpels are often coated with dark TiAlN or diamond like carbon. Due to these coatings the hardness and edge retention of surgical tools improve. Moreover they reduce wear caused by repeated sterilization and help minimize glare during medical operations which improve your visibility.
In medical implants PVD coatings are used to create a hard, wear resistant surface. Usually they are applied to components like dental implants, joint replacements and heart valves. This increases their biocompatibility and reduces the release of metal ions.
PVD Coatings in Electronics Parts
The electronics industry applies PVD coatings to protect components from abrasion, corrosion and wear. Due to this protective layer electronic parts remain protected from environmental factors, thus increasing the lifespan of your devices.
Furthermore PVD coating increases the thermal and electric conductivity of electronic components. As a result your electronics provide reliable performance, particularly in critical applications.

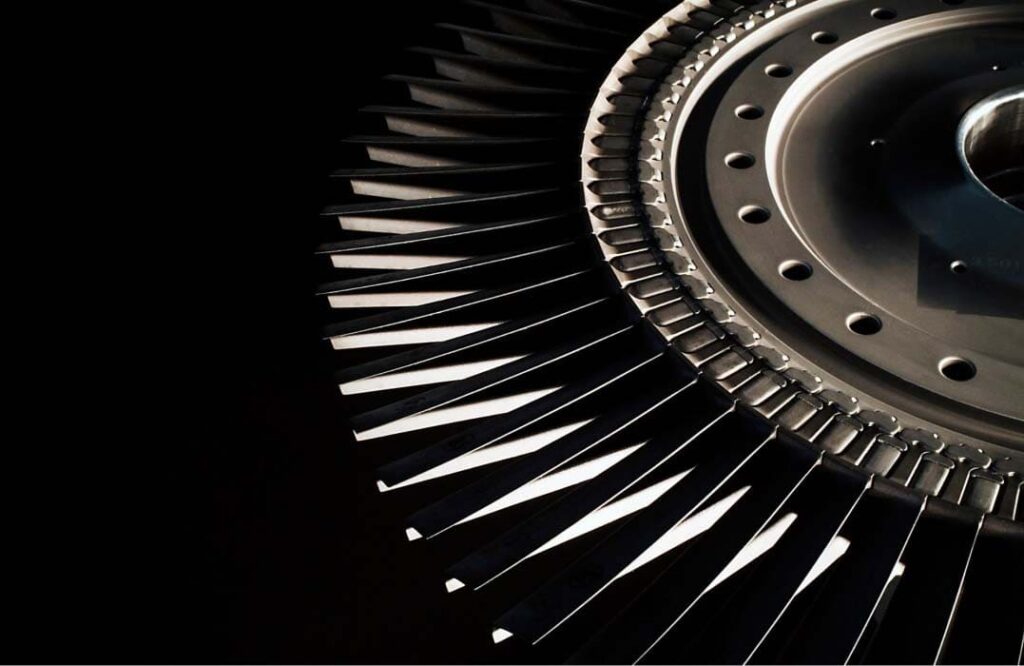

PVD Coatings in Aerospace and Aviation
In the aerospace industry, PVD coatings are often used for parts which are subjected to extreme environments. For example components like aerospace fasteners and turbine blades are treated with coatings that provide heat resistance and anti wear protection. Such coatings can withstand the high temperatures and pressures generated in aircraft engines. Importantly these coatings also maintain the performance and safety of aircraft due to their minimal weight impact
Recently, engineers at RICHCONN worked with an aerospace OEM to improve the hybrid work flow by combining CNC and PVD processes. They machined components from Inconel 718 using 5 axis systems and then applied proprietary AlCrN coatings. This approach led to 15% weight reduction and doubled component life in jet engine trials.
Limitations of PVD Coating
High Equipment and Setup Cost
Setting up a PVD system demands significant financial investment. Special vacuum chambers, cooling mechanisms and advanced equipment are needed which often cost hundreds of thousands of dollars. It is especially difficult for small businesses to adopt PVD technology without strategic financial planning.
In order to overcome this financial barrier, many SMEs and startups choose to work with experienced full service providers like RICHCONN.
Slower Process Throughput
Compared to other coating techniques, PVD coating operates at a slower rate with material typically deposited at a rate of only 1-2 Å/sec. This slow deposition rate can lead to production delays. Such delays are particularly noticeable during large production runs.
Line of Sight Deposition
The PVD coating method works only with direct exposure between the vapor source and the surface. Due to this line of sight characteristics, it is very difficult to achieve uniform coating on complex shapes, deep parts or internal surfaces.
Process Complexity and Skilled Operation
Since the PVD process involves high vacuum and temperature conditions, it requires operators with technical knowledge and specialized skills. In order to maintain optimal operating conditions, operators must be proficient in materials science, vacuum technology and process current rules. Consequently this requirement increases both labor costs and operational complexity.
Substrate Limitations
The substrate material has a significant impact on the performance of a PVD coating. Some materials respond better to the coating process than others. Furthermore coating thicknesses commonly reach only a few microns. This may be limiting and insufficient for applications which need thick protective layers.
Comparing PVD with Other Coating Methods
PVD vs Chemical Vapor Deposition (CVD)
| Feature | PVD | CVD |
|---|---|---|
| Process | Vacuum based physical deposition | Chemical reaction between vapors and substrate |
| Coating Thickness | Thinner (typically 2.5 μm) | Thicker (typically 7.5 μm) |
| Temperature | Lower (200 to 450°C) | Higher (200 to 1000°C) |
| Surface Quality | Reflects substrate surface with good metallic luster | Slightly rougher than substrate surface |
| Geometry Coverage | Limited on sides, back | Excellent for complicated geometries including deep holes |
| Environmental Impact | minimal pollution | May produce harmful byproducts |
PVD vs Electroplating
| Feature | PVD | Electroplating |
|---|---|---|
| Process | Vacuum based physical deposition | Electrochemical deposition in liquid solution |
| Durability | Highly resistant to corrosion, wear and UV exposure | Less resistant, may require clear top coats |
| Uniformity | More uniform coating with better edge control | Can have large edge build ups |
| Environmental Impact | Environment friendly, minimal waste | Uses harmful chemicals |
Also See: What is Metal Plating
Get PVD Coated Parts from Richconn
Do you need high quality PVD coating services? Richconn excel in premium custom PVD coatings known for outstanding durability and wear resistance. For achieving better scratch and corrosion resistance than traditional coatings, we use advanced methods that deposit layers as thick as 0.1 to 0.3 microns. In addition we offer a variety of color options, from gold to rainbow and chameleon effects. For a quote, contact us today.
To Sum Up
PVD coating stands out due to its environment friendly process, outstanding durability and widespread use in industries such as medical and aerospace. Although it requires a higher initial investment, its features like resistance to rust, long lasting performance and customizable potential make PVD a forward looking and smart choice.
Related Questions
How does the choice of substrate material affect the adhesion & effectiveness of PVD coatings?
The substrate material has a profound effect on the adhesion of PVD coatings. Usually surfaces prepared through grinding adhere better than those processed by micro abrasive blasting. Furthermore factors such as cleanliness, smoothness and pre coating treatment also affect the coating effectiveness. Smooth surfaces generally give better coatings results.
Are PVD coated parts expensive?
Yes PVD coated parts are generally more expensive than conventionally coated ones. The reason for this higher price is the complexity and slowness of the PVD coating process.
How can PVD coatings be customized to meet specific industry requirements?
To adapt the PVD coatings for particular industry needs, parameters can be adjusted during deposition, target materials can be carefully selected and additional functions such as antimicrobial agents can be added.
How to ensure the quality of PVD coating?
To guarantee the quality of PVD coating, examine surface roughness, conduct adhesion tests like Rockwell tests or scratch, determine coating thickness and perform microscopic inspections.
