Cutting channels or grooves with precision is usually very difficult. If the procedure goes wrong then finishes can suffer, vibrations may occur and tools might get worn out. Slot milling gives an effective solution for these issues.
This blogpost will explain the basics of slot milling, highlight key approaches and will also share important strategies to help you get optimal results with slot milling.
What Is Slot Milling?
In simple terms, slot milling, also known as keyway manufacturing or groove cutting, is a machining operation. In this procedure a rotating cutter forms accurate channels, slots or grooves inside the workpiece. Machinists can modify both slot width & depth which are usually from a few millimeters to 25 mm or more. This flexibility makes this procedure perfect for keyways, gears as well as assorted machine parts.
How Slot Milling Stacks Up Against Other Milling Operations
| Milling Type | Description | How It Is Different From Slot Milling? |
|---|---|---|
| Peripheral Milling | Material is sheared by cutter’s edge as it travels parallel to the side of workpiece. | In slot milling the full cutter diameter bites into part to shape a slender slot. |
| Face Milling | The tool’s face removes material to leave a broad, flat plane. | Slot milling – by contrast – forms slender channels rather than wide flats. |
| End Milling | The cutter tip makes occasional slots & profiles. | Although slot milling may incorporate end mills yet it concentrates on holding slot width & depth uniform. |
| Side Milling | Vertical surfaces are machined on part edges. | Slot milling works inside the stock, not limited to an external edge. |
Slot milling distinguishes itself by carving accurate, deep grooves inside the material while other methods mostly machine edges or surfaces.
The Mechanics and Key Cutting Parameters Behind Slot Milling
Controlling both key cutting parameters as well as basic mechanics is what guarantees slot-milling’s optimal results.
- Axial Depth (ap) defines the plunge depth per pass; upper limits move from 4D with cutters above 20 mm to 10D with tools below 3 mm.
- Full-width Engagement (ae = tool diameter) refers to cutting across the full slot width. This approach allows fast material removal but increases cutting force.
- Feed per Tooth (Fn) sets thickness of chip taken by every cutting edge, and full-slotting guidelines cap this value at 0.12 mm.
Vibration levels, cutting forces as well as chip removal inside narrow slots all respond directly to how these parameters are set.
Common Slot-Milling Techniques and the Cutters that Drive Them
Slot milling offers multiple cutters & techniques combinations that match specific materials and slot geometries. By selecting an appropriate option you can boost both throughput and accuracy.
Side and Face Milling Cutters
Long, deep open slots are best tackled with side and face cutters. Diameters that can reach 250 mm give these tools the stiffness needed for rapid stock removal.
Related Blogpost: A Complete Guide to Face Milling

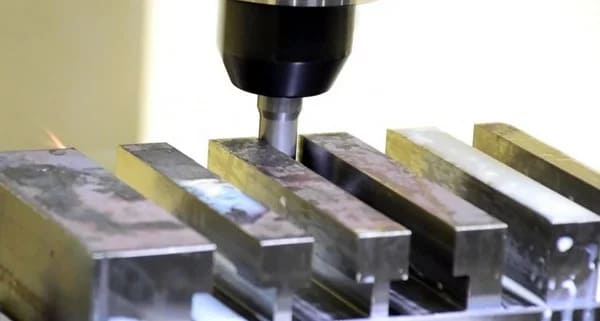

End Milling for Slots
End mills provide flexibility by handling closed slots as well as intricate, curved profiles; because they allow both side cutting & plunging.
T-Slot Cutters
T-slot cutters possess a dedicated geometry that is used in machining undercut. After a linear slot is opened then a cutter enlarges the bottom to form T-shape, required for fixtures and machine tool tables that accept T-nuts.
Gang Milling and Specialized Configurations
Gang milling maximizes efficiency by mounting several cutters on a single arbor. With this arrangement multiple parallel slots are produced in one pass.
Woodruff Keyway Slotting
For semicircular keyways in shafts, machinists rely on Woodruff keyslot cutters. Typically ground from HSS M2 these tools generate accurate curved slots that accept Woodruff keys within mechanical assemblies.
Taking a Step-by-Step Look at Slot Milling Procedure
Slot milling proceeds through a well-defined series of steps.
It starts with choosing a right cutter that matches both slot specifications and your work material. Once a cutter is selected then clamp the stock rigidly to eliminate vibration or movement. After that adjust appropriate feed rates and cutting speeds, then begin machining.
Furthermore instead of a direct plunge, the cutter should usually incline into material for more gradual entry. Sequential passes follow which make the slot while maintaining a high-quality finish and good chip removal.
Toolpath Tactics That Actually Work
Toolpath selection plays a major role in outcome. Tool lifespan, precision and overall rigidity are all influenced by your choice. You should keep all of the following strategies in mind for your upcoming task.
Conventional (linear) milling
It employs a basic uniform path that is very easy to implement. However this approach produces intense radial forces which can destabilize deep-slot machining.
Ramp-down entry
A non-abrupt, inclined ramp replaces an immediate plunge which guides the tool into cut. This gentler approach lowers vibration and impact forces.
Plunge milling
Plunge milling cuts vertically direct downward which offers superior structural support for long overhangs or deep slots. Still a separate finishing pass is often necessary afterward.
Trochoidal milling
It relies on fast, radial motions to maintain low radial loads. With this technique you can clear chips efficiently and also enhance cooling and extend tool life as well.
Professional Tips for Cleaner, Faster Slot Milling
Keep the Spindle Load Steady
You should always maintain a cutting tooth in contact with your workpiece. By doing so you can hold spindle load steady. But if it’s not done then disrupted engagement will create vibration which will burdens you machines and will harm the finish as well.
Select Angled Approach Rather than Plunging Directly In

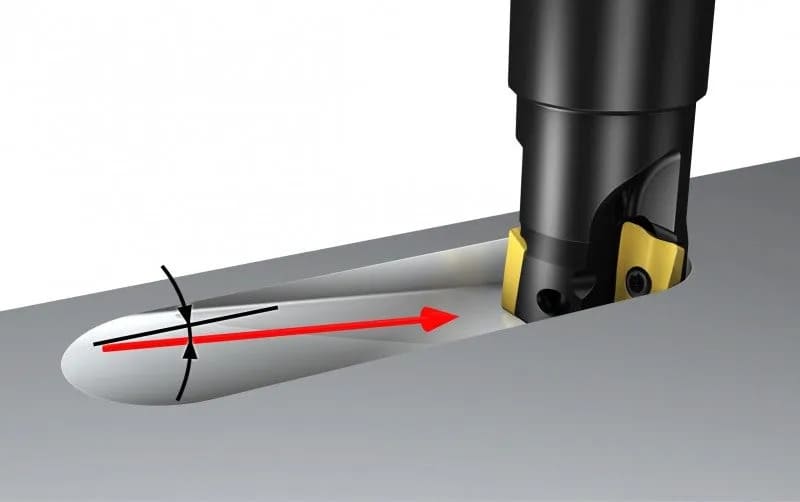

Do not directly plunge into working material. As a better option start the cut with an angled approach rather than a vertical drop. Keeping the ramp near 45 degrees cuts down tool impact while limiting vibration.
Cut in Down-milling Direction
Select climb – or down – milling whenever fixture provides sufficient stability. With this approach chips are swept clear of the cutting path more efficiently.
Related Blogpost: Up Milling vs. Down Milling
Keep Chips Flowing Out
Because slots readily trap chips, so heat rises and thus tools wear out sooner. Clear the cutting zone with coolant or compressed air. Chip-breaker geometry and shallow, repeated passes both reduce risk of clogging.
At RICHCONN tuned evacuation routines as well as high-pressure coolant keep even the narrowest slots clear.
Use Stout Cutters and Balance the Feed
Cutters with a larger diameter give noticeably higher structural strength. Such tools deflect less – particularly while cutting deep slots. Match your cutter speed equal to feed rate. This balanced feed curb inefficiency caused by sluggish cutting and also prevent heat generation by excessive speed.

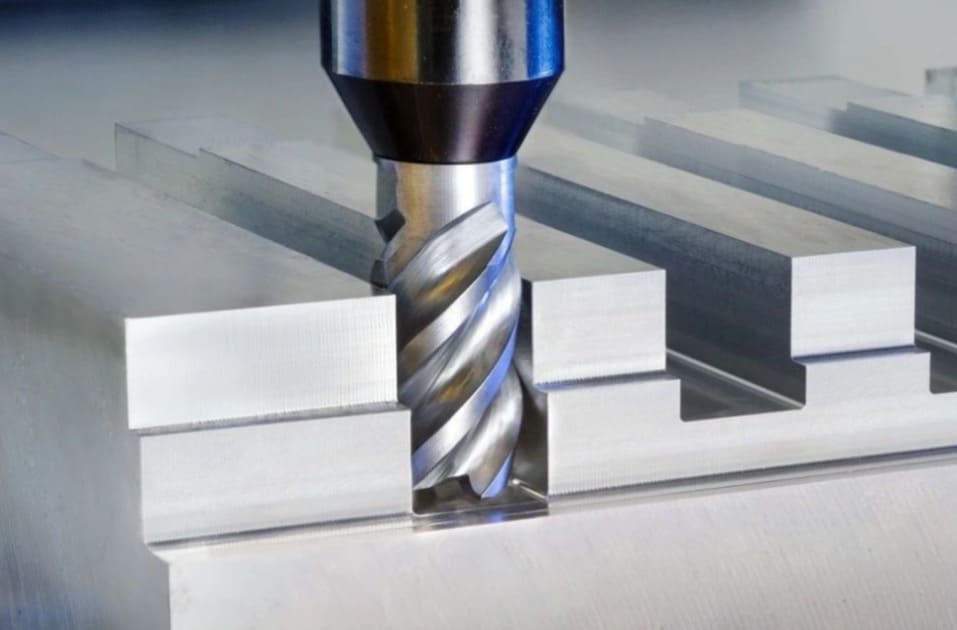

Why Bother with Slot Milling? Key Benefits
When executed properly slot milling offers clear benefits which render it indispensable when producing detailed components.
- Minimal spindle swaps streamline inner & outer profile machining. This increases efficiency and also improves precision by 20% to 30%.
- Slot milling produces deeper pockets or slots that obtains slot depths up to four tool diameters which far exceeds as compared to what standard end milling allows.
- Throughout plastic, metal as well as wood, slot milling cuts scrap by up to 15% and it also maintains consistency.
- Forms like curved, straight or closed-end slots all can be produced while maintaining strict 0.01 mm tolerances.
Where Slot Milling Falls Short?
Despite its benefits, slot milling still presents several important limitations.
Heat buildup problems
During continuous cutting, heat accumulates quickly in workpiece & tool. Without adequate cooling thermal distortion can occur and also tool life can be shortened.
Vibration and chatter issues
Cutting very narrow or deep slots generates significant vibration and high radial forces. With this, surface finish and precision suffer – particularly with titanium alloys or hardened steel.
To counteract these issues RICHCONN relies on real-time vibration tracking together with self-adjusting machining systems during high-performance projects.
Tool deflection in deep cuts
Long-overhang or slender cutters often deflect under mechanical stress while machining deep, narrow slots. The resulting deviation leads to dimensional errors; and when rigidity is low then tool breakage also is possible.
To Sum Up
When accurate channels or grooves are needed in many different materials then slot milling provides a flexible machining option. Getting desired performance requires correct cutter choice, sound toolpath planning and strict compliance with recognized approaches. Though heat & vibration can complicate procedures, applying proper methods can still produce top-quality components.
