Swiss CNC machining creates parts with great quality & precision. It is especially best for projects that require intricate and small components with excellent surface finishes and strict tolerances.
In this blogpost you will know how Swiss CNC machining works, its key benefits, common uses as well as factors to evaluate before choosing this procedure.
What is Swiss CNC Machining?
In simple terms Swiss CNC machining uses special lathes that are built to produce intricate and small parts with high accuracy. These machines were initially developed in Switzerland particularly for watchmaking.
Their unique feature is a guide busing system which holds the material firmly close to the cutting area. This configuration offers great stability and permits strict tolerances of up to 0.0001 inches which is perfect for manufacturing complex components.

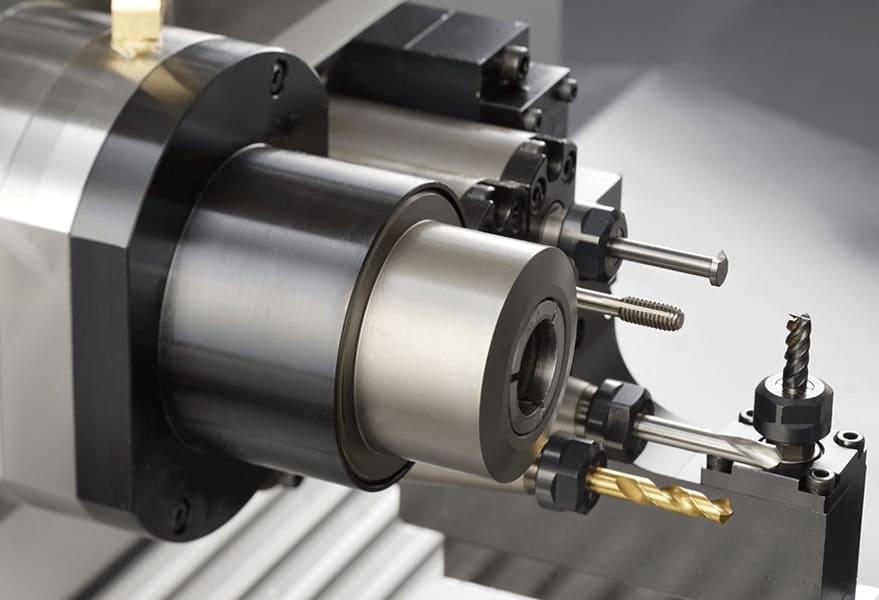

How Swiss CNC Machining Works
Swiss CNC machining obtains great efficiency & precision because of its refined automation and special structural design. Here is an overview of its methodology:
Mechanics of Function
In Swiss CNC machines the sliding headstock feeds the bar stock to a guide bushing. At any given time a small portion of material is pushed out of bushing. This arrangement decreases deflection and vibration. Therefore the machine maintains very strict tolerances, within 0.0001 inch, even with long, thin or very detailed components.

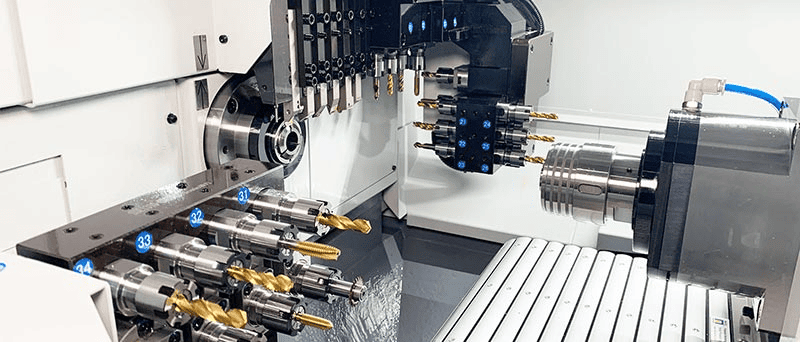

Tooling System
Swiss CNC machines have several tools that can perform operations such as milling, turning, threading, drilling and boring at the same time. Some machines have more than 10 axes. This technical potential permits the creation of intricate geometries as well as decreases the need for extra processing stages.
See Also: CNC Drilling vs CNC Boring

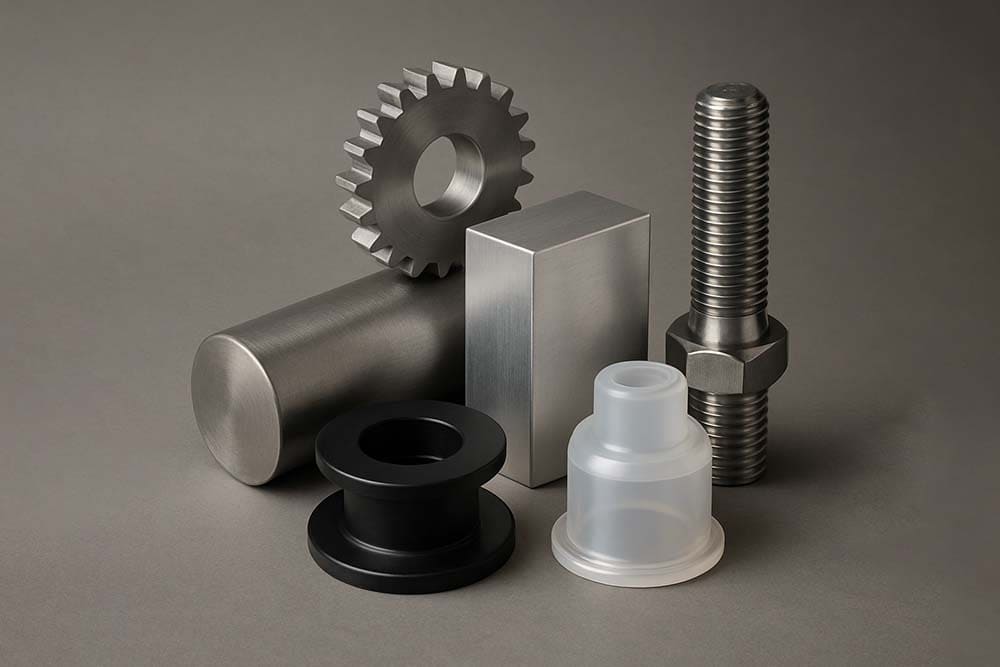

Materials
You can use Swiss CNC machining to machine a wide variety of materials such as brass, aluminum, tool steel, copper, stainless steel, plastics, titanium and exotic alloys. Its flexibility makes it good for industrial uses.
Automation
CNC programming controls the complete machining process. Bar feeders programmatically offer pure materials whereas sub‐spindles handle other operations without operator intervention.
Also See: What is Swiss Screw Machining

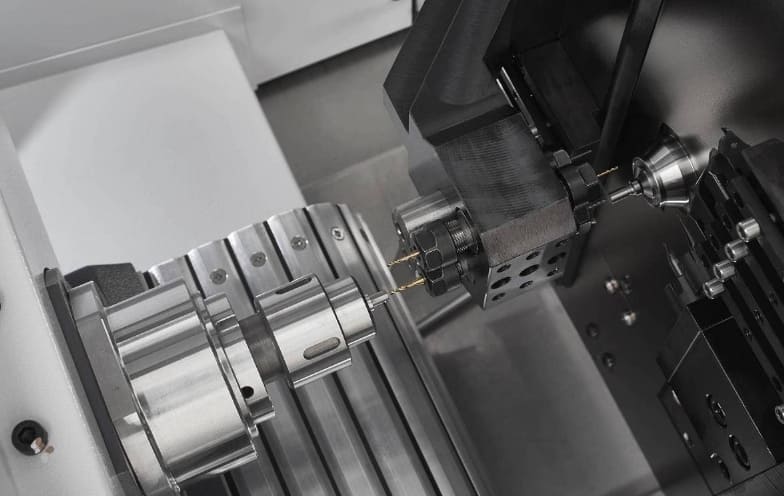

Main Advantages of Swiss CNC Machining
Great Surface Finish
Accurate cutting procedures & improved tool paths creates superior surface finishes. Usually this quality removes the need for extra finishing or polishing stages.
Tight Tolerances and High Precision
Through Swiss CNC machining you can obtain tolerances as high as ±0.0001 inch. This precision is very important in fields where even the slightest difference can impact safety or performance.
Lower Vibration and Deflection
The guide bushing design places the workpiece near the cutting tool. This placement decreases deflection & vibration which guarantees uniform precision.
Minimized Cycle Times
Swiss CNC machines can execute multiple tasks simultaneously & can automatically feed material. This integration greatly increases productivity and reduces cycle times even with intricate parts.
Flexibility
It handles a variety of materials – from titanium & stainless steel to plastics – and can create both intricate and basic geometries. This versatility makes it useful in wide range of industries.
Cost Optimization
Reduced waste production, thoughtful usage of materials as well as automated mass manufacturing capacity decrease costs per part. These optimizations increase profitability for machinery operators.

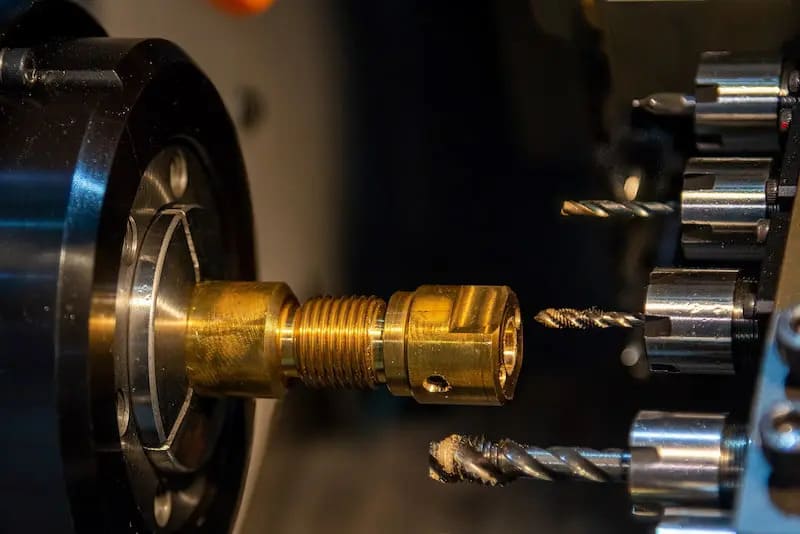

Common Industries and Use Cases
Aerospace
Engineers in aerospace rely on Swiss CNC machining to produce intricate parts such as aerospace fasteners, turbine blades, fuel system components and hydraulic fittings. This machining can easily manage lightweight profiles and intricate geometries. It is specifically suitable for working with special alloys which are required in systems necessary to flight safety.
Medical
In medical sector Swiss CNC machining is important in the production of dental abutments, surgical equipment and bone screws. You can count on its ±0.0005 inch accuracy for critical parts like endoscopic devices, spinal fixation components as well as catheters.
Firearms and Defense
Accuracy is critical in manufacturing firearm parts such as bolts, barrels, sights and triggers. Swiss CNC machining meets this specification by obtaining micron‐level precision which guarantees reliability and safety.
Whereas defense sector uses this machining procedure to produce highly engineered parts for guided missile assemblies, robotic weapon systems as well as special military equipment that meet stringent defense requirements.
Electronics
In electronics production Swiss CNC machining is important for manufacturing accurate terminals, micro connectors and sensor pins. This machining procedure permits you to uniformly create small & detailed elements.
Watchmaking and Fine Instruments
Swiss CNC machining originated in watchmaking industry. Now it is second to none in the production of pinions, delicate and small gears and internal motion components of watches. Its great precision and surface finish are very important in the production of premium‐quality precision equipment & luxury watches.
Automotive
Automotive manufacturers often use Swiss CNC machining to make accurate parts for suspension, brakes, engines and fuel systems. You can rely on its superior manufacturing and strict tolerances for important car components like connectors, injectors and shafts.
Swiss CNC Machining vs. Traditional CNC Turning
Swiss CNC machining & Traditional CNC turning are very different in their capabilities and procedure.
In Swiss CNC machining a guide bushings and sliding headstock position the workpiece near the cutting tools. This setup decreases deflection and vibration which let you obtain very strict tolerances. It is particularly good for manufacturing thin, long or very small parts.
In contrast traditional CNC turning holds the workpiece at one or both ends and is optimal for larger and shorter components.
However generally traditional procedures cannot match the performance and accuracy of Swiss machining when manufacturing large‐scale and complex parts.
Also See: Swiss Machining vs Traditional CNC Machining: A Complete Comparison
Factors to Keep in Mind When Picking Swiss CNC Machining
Production Volume and Batch Size

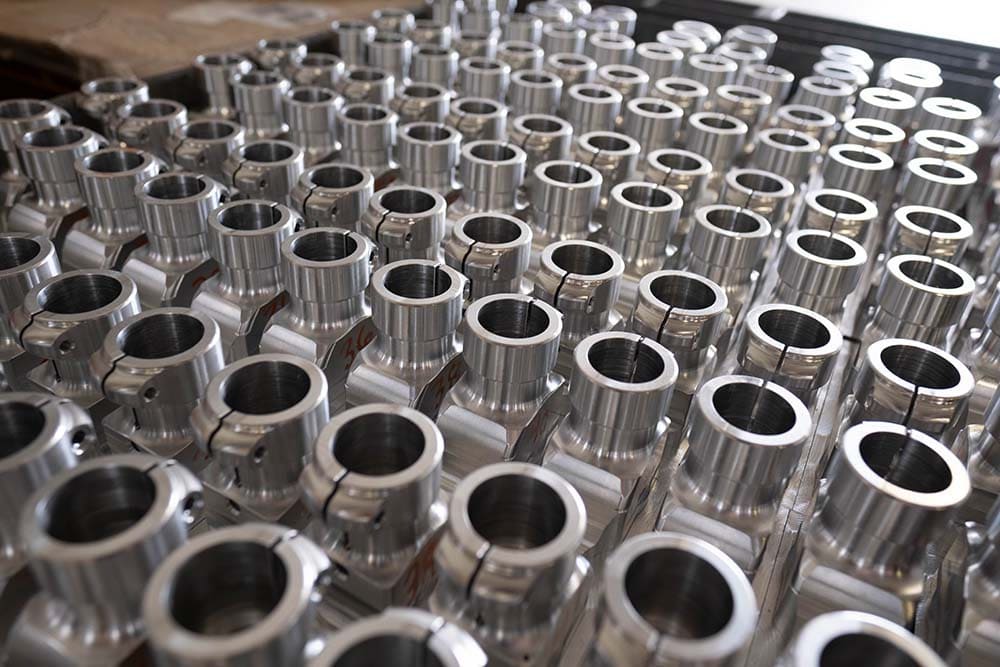

Swiss CNC machining is specifically good for medium to large‐scale manufacturing volumes. It can uniformly create as many as 30 components per hour which is budget‐friendly for big orders. This machining method is perfect if your preference is stability & uniformity.
On the other hand the starting setup time may not be convenient for very small production volumes unless your parts require particularly tight tolerances or they are highly intricate.
Part Size and Complexity

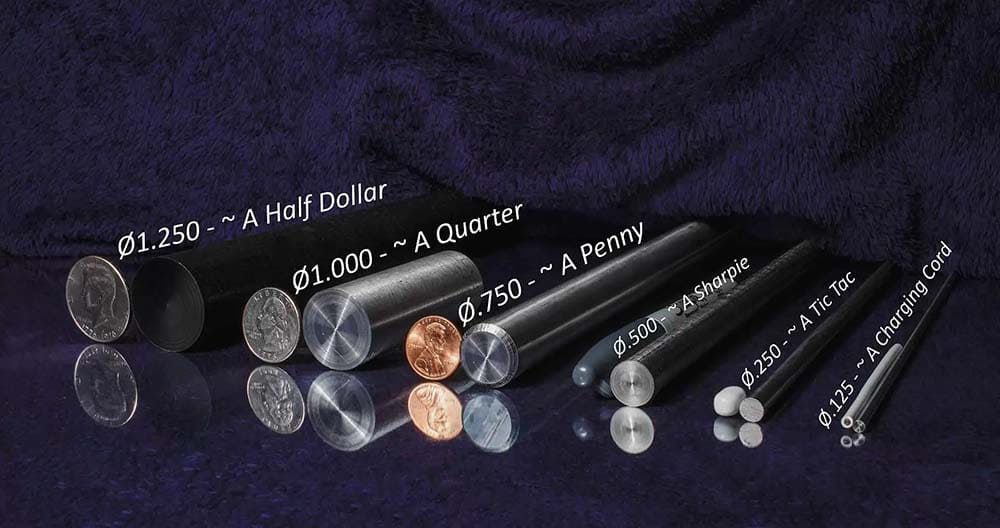

Swiss CNC machining is specifically good for thin, small diameter and very intricate components. It can usually accommodate parts up to 32 mm (about 1.25 inches) in diameter. Swiss machines can handle intricate elements such as cross‐holes, tight radii and threads easily. If your model demands profound recesses or multi‐axis machining then Swiss CNC is a great option.
Setup Time and Cost Implications
Starting setup of Swiss CNC machining is usually relatively complex in contrast to conventional approaches. Every new part requires appropriate tooling choice, accurate programming and thoughtful calibration. This leads to the high starting cost when your project necessitates low‐scale batches or prototypes.
Regardless of greater starting cost Swiss CNC machining is usually cost‐effective for intricate components or high‐volume manufacturing. The performance & automation of Swiss CNC machines typically outweigh the starting costs.
Material Type and Tolerance Demands
Swiss CNC machines can work on a variety of materials. Popular materials are titanium, aluminum, engineering plastics & stainless steel. If you are considering to work on exotic alloys such as hardened steels or Inconel then you should expect longer cycle times and higher tool wear. These considerations will affect both your lead time and expense cost.
Swiss CNC machining is a great option if your parts need very high tolerances (down to ±0.0001 mm). Still, remember that operating with strict tolerances or stronger materials will increase overall costs and complexity.
To Sum Up
Swiss CNC machining offers great flexibility, accuracy as well as performance. It is specially well‐suited for complex, small‐diameter parts in several fields. Its capability to obtain strict tolerances & excellent surface finishes makes Swiss CNC machining perfect for mass production.
If you need any kind of CNC machining services then Richconn is your best option. You can contact us anytime.
Related Questions
What kind of tolerances can be obtained?
Swiss CNC machines consistently deliver strict tolerances which are typically ±0.0001 – ±0.0005 inches. This is why this procedure is good for parts requiring high repeatability & precision.
Is Swiss CNC machining only good for small components?
Swiss CNC machining is perfect for delicate, thin and small parts – usually from 0.030 to 2 inches in diameter. Despite this, based on your design requirements and machine’s capabilities it can also handle some bigger components.
Can Swiss CNC machines operate on heat‐resistant or exotic alloys?
Swiss CNC machines can work smoothly on exotic & heat‐resistant alloys – for example titanium, nickel alloys & inconel. But operating on these alloys demands a thoughtfully planned machining approach and proper tooling as well.
Is Swiss CNC machining considered good for prototype manufacturing?
Yes Swiss CNC machining is well‐suited for prototypes specially for the manufacturing of highly accurate and intricate parts. Its capability to rapidly reprogram & adjust enables you to make quick prototypes as well as change designs quickly.
How eco‐friendly or green is Swiss CNC machining?
Swiss CNC machining decreases material waste with effective use of bar stock and accurate cutting techniques. Furthermore the automated nature of procedure reduces energy consumption. This is why it is recognized as more sustainable than less effective hand‐handled machining procedure.
Are there any dimensional limits or special tolerances for Swiss CNC machining?
Swiss CNC machining can typically handle diameters up to 1.25 inches (32 mm). Based on part’s material & geometry, dimensional tolerances of up to ±0.0001 inches can be obtained.
What is usual turnaround time for Swiss CNC machined components?
Turnaround times for Swiss CNC machined parts is usually two to six weeks. The estimated time frame relies on aspects such as industry demands, complexity of component and manufacturing volume.
