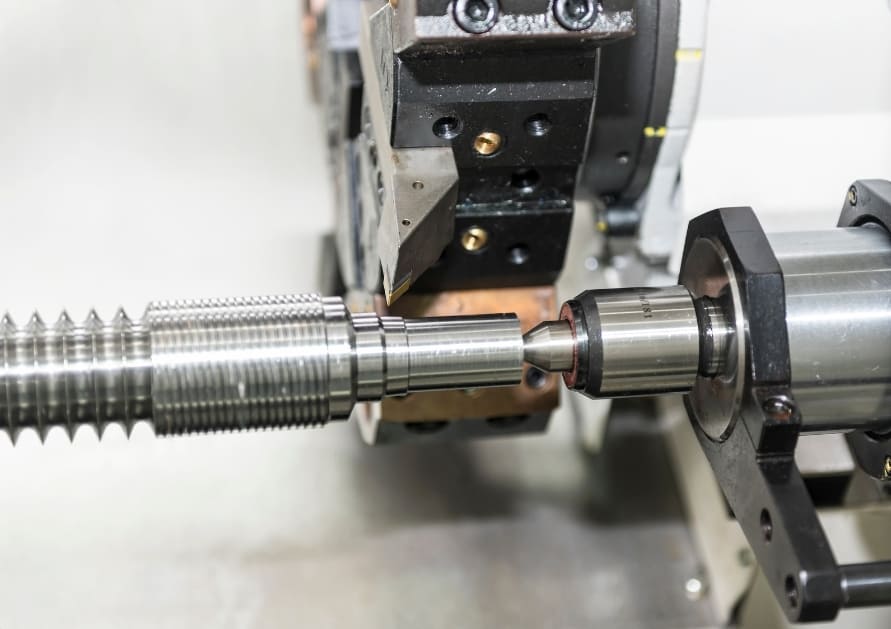

What is Swiss Machining and Why Does it Matter?

In modern manufacturing, no production process is complete without Swiss machining. It excels in producing small, exact components in a short time. This approach is now fundamental in fields including electronics and medical devices.

A particular type of lathe is used in the Swiss machining process. It is capable of fabricating intricate components with meticulous attention to detail.

Crafting delicate, detailed parts becomes a breeze with this tool. Swiss machining is a dynamic process that is constantly improving. This process opens up new opportunities in precise production thanks to technological advancements.

It makes the production process more streamlined in the modern day. This article explains the concept of Swiss Machining and its processes.

But before we begin, you must know the following key considerations:

• Do you know that Swiss machining can achieve tolerances as tight as ±0.0001 inch? This precision level is crucial for industries like aerospace and medical devices.
• Are you aware of the various materials that Swiss machining can handle? From stainless steel and titanium to plastics, Swiss machines are incredibly versatile.
• Have you considered how Swiss machining could improve your production process?
• Are you familiar with the industries that benefit most from Swiss machining?

Well, you will get answers to all these crucial questions in this post.

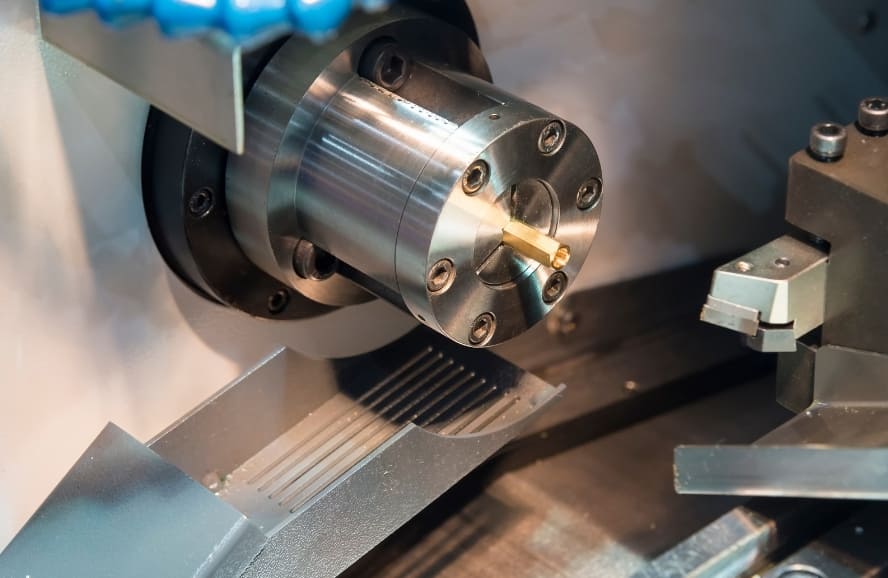

What is Swiss Machining?

Swiss machining is a process that creates small, complex components. It does so with extremely tight tolerances. It is also known as Swiss screw machining.

A Swiss-style lathe, a specific kind of lathe, is used in this process. Supporting the workpiece near the cutting tool decreases deflection and enhances accuracy. Their capacity to execute several machining processes simultaneously is their primary strength. It enables the simultaneous use of many tools on the workpiece.

An automated chuck is used to apply a Z-axis feed to the bar stock in Swiss machining. A guiding bushing is used to transport material in Swiss machines. Near the point of cutting, this bushing provides support for the material. There is less vibration and better accuracy in the cuts made with this configuration.

Countless tasks are within the machine’s capabilities. Many operations like turning, drilling, and milling fall under this category. It is capable of concurrently operating on the main and sub-spindles. It can manufacture intricate components in a single assembly. This saves time and improves accuracy.

What Materials Are Commonly Used in Swiss Machining?

Swiss machining is versatile and can handle many different types of materials. Let’s look at these materials used in Swiss machining:

1. Metals

In Swiss machining, stainless steel rules. Strong, corrosion-resistant stainless steel looks excellent. Hence, it’s perfect for making food and medical tools. Also, very fine tolerances can be made in stainless steel.

Another material is titanium, which is light but sturdy. Plus, it has good corrosion resistance. Aerospace and medical implant applications benefit significantly from its qualities. Although Swiss lathes aren’t always up to the task, they’re great with titanium.

When weight is a problem, aluminum is better. It is light, can be machined, and doesn’t rust. Aluminum is used in different fields, such as automobiles. Swiss machining creates complex metal parts quickly and accurately.

Brass is chosen for its electrical conductivity and machinability. It applies to things like ornamental objects and plumbing fittings. Swiss machines can quickly and accurately produce pieces made of brass. This is because the material is easy to deal with.

2. Plastics

Plastics are becoming more common in Swiss machining. Their unique qualities set them apart from metals. Plastics are cheaper, lighter, and chemical-resistant. Both aerospace and medicine gain from their use.

Acetal, or Delrin, is durable and low-friction. Gears and bearings frequently make use of this material. Teflon is recognized for its non-stick properties. It is used in chemical and food processing machines.

Due to their malleability and reactivity, plastics are difficult to machine. Yet Swiss machinery is up to the task. With the guide bushing’s support, deformation is less likely to occur. The result is the constant and rapid production of high-quality plastic components.

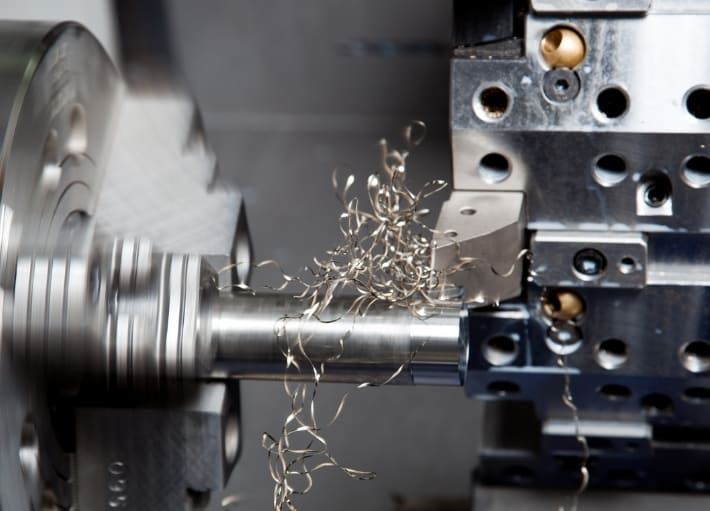

How Do Swiss Machines Work?

For production with pinpoint accuracy, Swiss machines are unrivaled. With pinpoint precision, they manufacture intricate, minute components. That said, let’s explore how they work step by step:

Step 1:  Material feeding

The process starts with the material stage. The machine receives a long bar of material, often metal. A guiding bushing holds this bar in place near the cutting point.

Swiss machining relies on the guiding bushing. It helps us

• Secure the material
• Lessen vibration
• Enable pinpoint cutting accuracy

As the machine works, the bar moves through the bushing. Hence, it exposes new material for cutting. You must keep the work area small and under control for precise results.

Step 2: Cutting operations

Cutting can start after the material is positioned. Swiss machines can cut in various ways depending on the job. Among these are;

• Thread cutting
• Milling
• Turning
• Drilling

In turning, the workpiece is spun as a cutting tool runs along its surface to shape it into the required shape.

Holes are made in the workpiece by drilling. The machine can make straight or angled holes. It comes in handy for components that need mounting points or interior features.

The material is removed from the workpiece using spinning cutting blades in milling. This can result in intricate forms or flat surfaces. Remember, Swiss machines can carve out complex shapes.

Thread cutting is another process in cutting operations. It is used for making threads on a workpiece, whether internal or exterior.

Step 3: Simultaneous operations

Swiss machines have multitasking capability. Many primary and sub-spindle tools can cut the part’s rear end. Producing more with less effort is possible because of this simultaneous machining.

It allows one-configuration production of complex parts. The computer control system of the machine precisely coordinates all these motions. So, it ensures that each action occurs at the exact moment and in the correct location.

Step 4: Part ejection and collection

When the part is complete, it’s time for ejection. The completed part is separated from the primary material bar.

After that, the part can go to the sub-spindle for any required processing. The component is removed from the machine when all processes are finished.

Conveyors are standard features on many Swiss equipment. This automated process keeps fragile, finely machined parts safe during manufacture.

What Are the Benefits of Swiss Machining?

The benefits of Swiss machining over alternative processes are numerous. What makes it such a popular option for various production needs? Below are the main advantages of Swiss machining:

1. High Precision

Exceptional accuracy is a hallmark of Swiss machinery. Guide bushings keeping the workpiece near the cutting tool reduce vibration and deflection. It enables precision cuts to be achieved within a thousandth of an inch.

Even minor errors in medical device manufacturing might have life-changing effects. So, this level of precision is very essential. Swiss machining is remarkable because it can maintain accuracy while making many pieces.

2. More Complex Parts

Swiss machines manufacture complex items with one setup, making them superb. Intricate features are possible thanks to their dual-sided operation and various tool locations. It suits components that require multiple machining steps or human assembly.

Swiss machining creates complicated components all at once. So, it prevents human error while transferring components between machines or processes.

3. Very Tight Tolerances

Tight tolerances are a hallmark of Swiss machining. The machines are capable of reliably making components with ±0.0001 inch tolerances. Flawless component fit is critical to safety and performance in sectors like aerospace.

So, this degree of precision is necessary. Maintaining such precise tolerances throughout massive production runs guarantees uniformity. It also ensures reliability in the completed goods, which is a considerable benefit.

4. Fast Operation

Swiss machining also has the advantage of being fast. The capacity to execute several tasks concurrently drastically cuts down on manufacturing time. Swiss machines can complete items in seconds, unlike traditional lathes.

Swiss machining is ideal for both low- and high-volume production runs. Thanks to its speed and capacity to run without user interaction for long periods.

5. Excellent Surface Finish

Exceptionally smooth surfaces are within the capabilities of Swiss machines. The machine’s accuracy and stiffness allow for immaculate cuts. Secondary finishing processes are usually not needed, saving time and money. Surface polish may impact part performance in fluid dynamics or precise fits.

6. Ready-to-Ship Parts

Making components ready for shipping is a major advantage of Swiss machining. The machine’s accuracy and surface quality make products ready to use. Its ability to produce complicated pieces in one setup also makes this possible.

Eliminating finishing and quality control steps speeds up manufacturing. So, the end product is better and secondary processes are less likely to go wrong.

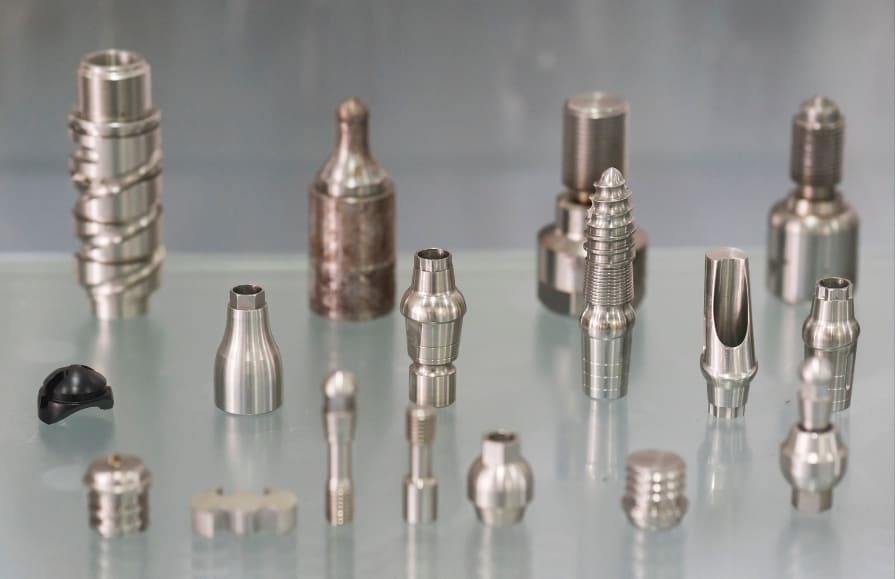

What Are the Applications of Swiss Machining?

Due to its accuracy and speed, Swiss machining has been used in many fields. Below are a few sectors where this technology shines:

1. Electronics industry

The electronics sector uses Swiss machining to manufacture small, precise components. These machines create intricate parts for pins, connectors, and sockets. They make small computer and electronics screws and fasteners.

Swiss tools are precise, which is vital for electrically connected parts. As electronics get more complicated, the need for Swiss-machined parts increases.

2. Medical devices and implants

In the medical field, Swiss machining is critical. Different medical gadgets and implants are made from it. Some examples are tooth implants, bone screws, and pacemaker parts. The machines work with biocompatible titanium and stainless steel.

For these uses, the high level of accuracy of Swiss machining is fundamental. Swiss machines make parts of medical devices that are safe, functional, and precisely sized.

3. Aerospace components

The aerospace industry needs very reliable parts with very tight tolerances. These needs are met by Swiss machining, which makes complicated, exact parts. These parts are used in many airplane systems, like the fuel and hydraulic.

Swiss machines can produce bolts, screws, and valve parts that are very complicated. Working with hard, heat-resistant alloys is particularly valuable in aerospace applications.

4. Hydraulic and pneumatic components

Carefully made parts are needed for hydraulic and pneumatic systems to work correctly. Swiss machining is the best way to make the small, complicated parts that these devices need. Fittings, valve spools, and pistons are all part of this.

Swiss tools ensure these parts fit together correctly because they hold tight tolerances. It is very important to prevent leaks and ensure the system works well. Swiss grinding makes surfaces smooth. It helps keep moving parts from rubbing against each other. This makes hydraulic and gas systems work better and last longer.

5. Automotive parts

Swiss machining makes many small, precise parts for the car business. Some examples are the parts of fuel injectors and the ABS brake system. Swiss machines can make these parts quickly and consistently. This is important for meeting the high-volume needs of the car industry.

It is beneficial for making complicated shapes in a single setup. Swiss machining creates complex pieces that would otherwise need many machines.

Comparing Swiss Machining with Other Machining Methods

The best things about Swiss machining can be seen by comparing it to other machining methods. Find these comparisons below:

Swiss Machining vs. traditional CNC turning

Swiss machining and traditional CNC turning are similar. Yet, they are pretty different in a few crucial ways. On Swiss machines, the material close to the cutting point is held in place by a guide screw.

It makes cuts more accurate by lowering deviation. For lengthy, thin parts, ordinary CNC lathes may be inaccurate. This is because they lack this functionality that Swiss machines have.

Swiss tools can also work on both ends of a part simultaneously. The way CNC turning usually works doesn’t let you do this. Hence, Swiss machining is often better and faster for making small, complicated parts. Traditional CNC cutting, on the other hand, is still better for bigger parts.

Swiss machining vs. multi-axis milling

Another flexible way to machine is multi-axis milling. It is not the same as Swiss machining in many ways. Milling machines use spinning cutting tools to take material from a still workpiece. But, Swiss tools are used to turn the material. Due to this basic difference, each method can only make certain kinds of parts.

Swiss cutting is excellent for making small, round parts with tight tolerances. For more extensive parts with complicated 3D shapes, multi-axis cutting works better. Swiss tools can often make parts faster since they can simultaneously do more than one thing.

But, multi-axis milling offers more flexibility on part size and shape. Most of the time, the part’s specific requirements determine which of these ways to use.

How to Select the Right Swiss Machining Service Provider

Choosing the right Swiss machining service is essential. It ensures that items meet production needs and quality standards. This choice could affect the success of a project, so it is paramount. Below are tips for selecting the right Swiss machining provider:

1. Machine specifications

Before you choose a Swiss machining service, consider the specs of their machines. Modern Swiss machines come in many shapes and sizes. Some are better at making micro-precision parts. Others are better at working with bigger bar stock. Find out how many axes and how fast the wheel can go.

Also, determine how many bars their tools can hold at most. The size and complexity of the parts they can make is crucial. A service company with different machine types can better meet your needs.

2. Available tooling and accessories

A service company’s tools and accessories are just as important as the machines they use. Find out what kinds of cutting tools they have on hand. Different high-quality tools make cutting more accurate and faster.

Look for service providers that use high-quality cutting tools from well-known companies. Most of the time, these tools last longer and clean surfaces better. The right tools can handle complex designs and speed up manufacture.

3. Ability to handle specific materials

When cutting, different materials need different methods. Ensure the company you choose has worked with the items you need before. Various types of steel, metal alloys, and plastics are often used for Swiss cutting.

But, some projects might need materials that aren’t as common. Such materials are titanium, Inconel, or medical-grade plastics. They should know how to select material-specific cutting tools and machinery.

4. Experience handling complex geometries and tight tolerances

Many choose Swiss machining because it can make complicated parts with tight standards. It is something that not all service providers are good at, though. Ask for examples or case studies of challenging projects they’ve already finished.

It will show you what they can do and how well they can solve problems. Also, find out how they check the quality of their work. Using high-tech measuring tools and stringent testing processes, providers can meet tight tolerances.

Get Swiss Machining Service from Richconn!

Richconn is a leader in Swiss machining services, offering a range of solutions tailored to various manufacturing needs. Our facility features Swiss-type CNC machines capable of micro-precision work and handling bar stock up to 32 mm in diameter, ensuring flexibility for different part sizes and complexities.

A key strength is our extensive tool collection, sourced from top manufacturers, with regular inspections to maintain consistency even in large production runs. Quality control adheres to ISO 9001 standards, with detailed inspection records provided for each sale to guarantee precision.

Customer service is vital at Richconn, with engineers and technicians collaborating closely with clients to ensure clear communication and optimized production solutions, reinforcing our reputation for reliability.

Final Thoughts!

The Swiss way of cutting has made things more precise, faster, and with more parts. Today, it’s a big player in the production industry. This flexible technology makes small, complex parts that stimulate innovation in many sectors.

Swiss machining is a fast and accurate way to make things. It can cut in different ways and has high-tech features like tight spec control. Swiss machining is becoming more important as companies need more complex parts.

If you are looking for Swiss machining services, contact us! Richconn can meet your needs.

FAQs about Swiss Machining

1. What Types of Parts Are Best Suited for Swiss Machining?

Swiss machining is excellent for making small, complicated parts with very tight standards. These parts are usually less than 32mm in diameter. Electronics and medical gadgets need precise, compact parts. Thus, it’s great. The flexibility to execute many operations on one workpiece makes it suitable. It creates complex shapes and features that traditional machining cannot.

2. Can Swiss Machining Handle Large Diameter Parts?

You may know Swiss machining for its skill at making small parts. However, this technology can also be used to make parts with a wider width. Many current Swiss-type lathes can handle bar stock with a width of up to 32 mm. At the same time, some can handle even bigger sizes. But, as the part size increases, the advantages of Swiss machining may diminish.

3. Is Swiss Machining Suitable for Prototyping?

Yes, Swiss machining can be an excellent choice for making prototypes. Swiss machines’ speed and flexibility allow rapid iteration and new design tests. Since Swiss machining can achieve tight tolerances, it can make very accurate samples.

4. How Does Swiss Machining Achieve Such High Precision?

The unique way Swiss machines are designed and how they work make them so precise. A guiding bushing keeps the object close to the cutting tool. This keeps the piece from deflecting and shaking too much during grinding. This guarantees precise and consistent part manufacturing when paired with the machine’s multitasking.
