You might know Teflon from non-stick pans in the kitchen. Yet, its most important role is in industrial settings where it shields essential machinery from damage. In this guide you’ll learn what Teflon coating is, explore its types and discover how it benefits aerospace, manufacturing and other demanding industries.

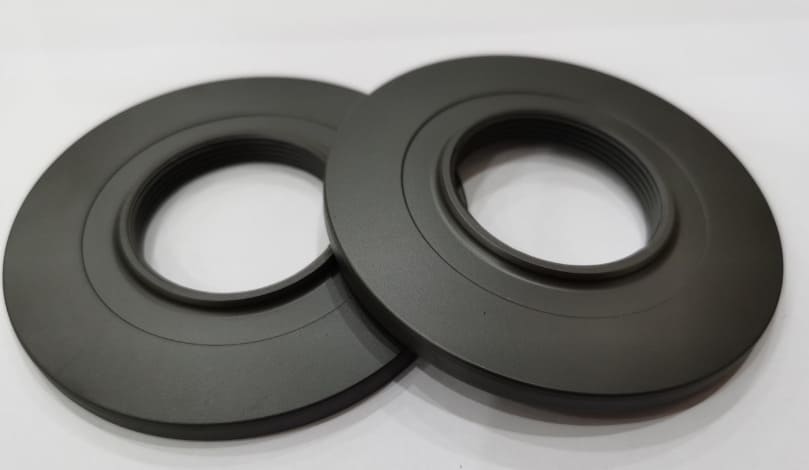

What Is Teflon Coating?
Basically, Teflon coating is a specialized industrial finish that is primarily composed of Polytetrafluoroethylene (PTFE). This fluoropolymer creates a robust non-stick barrier that resists chemicals and extreme heat. Industries use it to reduce friction and protect critical machinery parts from wear.
The Chemistry behind Teflon Coating
What Makes It Special
Teflon’s special power comes from its carbon-fluorine bonds. These bonds are among the strongest in chemistry, with bond strengths up to 504 kJ/mol. Because of this, Teflon stays non-reactive and can withstand most heat and chemicals.
Physical & Chemical Properties
Its unique chemical structure gives Teflon a powerful combination of properties. These traits are important for demanding industrial environments and applications.
Extremely low friction
Teflon offers one of the lowest coefficients of friction of any solid material, typically 0.05 to 0.10. This self-lubricating property lets parts move smoothly which significantly reduces wear and energy consumption.
High temperature resistance
These coatings maintain stability across a massive thermal range, from cryogenic lows up to 260°C (500°F). This ensures consistent performance whether in high-heat baking ovens or deep-freeze processing.
Chemical inertness & corrosion resistance
PTFE remains virtually unaffected by aggressive alkalis, acids and solvents due to its non-reactive nature. Only rare substances such as molten alkali metals can affect it, so it works well in chemical processing.
Electrical insulation
Teflon acts as a strong electrical insulator and provides high dielectric strength, reaching up to 170 kV/mm. Even its thin layers resist electrical breakdown. This property makes Teflon essential for isolating wires and shielding delicate electronic parts.
Oil and water repellency
The coating is highly oleophobic and hydrophobic, causing oils and water to bead up rather than spread. High contact angles (typically over 100°) prevent liquids from wetting the surface, simplifying cleaning processes.
Non-stick nature
PTFE’s surface energy is extremely low, about 18-19 dynes/cm. Because of this, almost no solid can form a chemical bond with it. Materials come off the coated surface easily which creates the well-known non-stick effect.
Main Types of Teflon Coatings
Teflon coatings are available in several forms, each designed for specific uses. Knowing the main types helps you select the best option for your needs.
PTFE (Standard Teflon)
PTFE is the most widely used and affordable Teflon coating. It provides excellent non-stick performance and low friction. With a continuous service temperature of 260°C (500°F), PTFE works well in industrial settings such as sealing bars and conveyor systems.

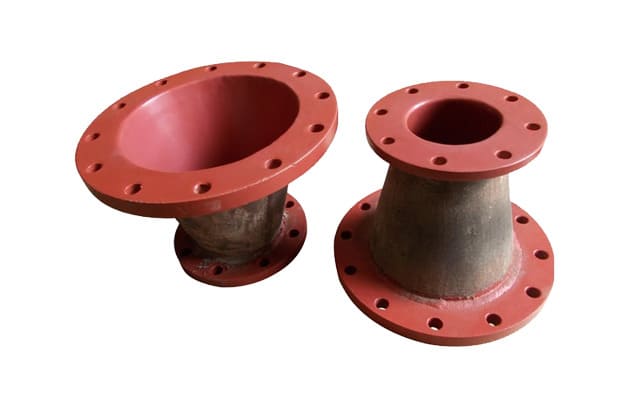

PFA (Perfluoroalkoxy)
PFA matches PTFE’s benefits but adds superior chemical resistance and a slightly higher service temperature. Because it is melt-processable, it creates thicker, non-porous coatings. This makes it ideal for extreme environments like chemical tank liners and high-purity applications.

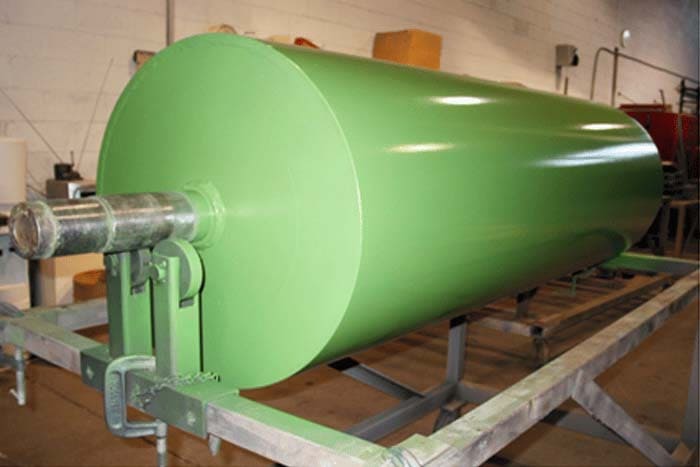

FEP (Fluorinated Ethylene Propylene)
FEP is another melt-processable fluoropolymer that gives excellent non-stick and release properties particularly for clear coatings and films. It typically works up to about 200–205 °C in continuous service, which suits heat-seal bars, food-contact conveyors and wire insulation.
Specialty blends and composite Teflon
These coatings mix a fluoropolymer base with fillers to boost specific properties. For instance adding bronze improves wear resistance whereas carbon can enhance electrical conductivity. These custom blends are engineered for unique challenges like high-load bearings or static dissipation.
Main Benefits of Teflon Coating
Non Stick Properties
Teflon stands out because it stops sticky substances such as doughs, glues and paints from sticking to surfaces. This feature makes cleaning much faster and reduces wasted materials. As a result manufacturers can improve production efficiency.
Chemical Resistance
PTFE acts as a strong barrier against harsh environments. It resists nearly all industrial chemicals, acids and solvents. This protection stops corrosion and contamination so processing equipment like tanks and valves lasts longer.
Temperature Resistance
Teflon coatings stay stable in both high and low temperatures. They work well from cryogenic levels up to 260°C (500°F) without losing performance. Therefore teflon-coated equipment can operate in harsh freezers or ovens without failing.
Reduced Wear & Friction
The coating has a very low friction coefficient which means moving parts experience less stress. This smooth movement protects bearings and gears from wearing out quickly. Equipment also uses less energy since it can run more smoothly.
Corrosion Protection & Longevity
Teflon forms a tough shield over metal parts, keeping out oxygen, moisture and rust. This protection stops both chemical and environmental damage. As a result components last longer and remain reliable even in harsh conditions.
At RICHCONN we manage every step—from making the part to preparing and coating the surface. This process ensures the substrate is ready for coating which leads to strong adhesion and a longer part lifespan.
Maintenance & Cost Benefits
Teflon coatings help prevent material buildup, so cleaning is faster and easier. This reduces downtime and lowers labor costs. Parts also need to be replaced less often which means manufacturers get a better return on their investment.
Common Applications of Teflon Coating
Industrial Machinery & Manufacturing
In packaging lines, Teflon coats conveyor belts and heat-sealing bars to prevent plastic film from sticking during high-speed operations. Manufacturers also apply it to rollers and guide rails to minimize wear, reduce friction and ensure smooth product transport.
Kitchen & Cookware products
On bakeware, pans and commercial trays, Teflon provides easy release for batters, eggs and sticky sauces. These coatings can withstand typical cooking temperatures well below 260 °C. It also lowers the need for oil and makes cleaning faster in both industrial & home kitchens.
Chemical Processing
Chemical plants use PFA and PTFE linings to protect valves, reactors and storage tanks from harsh solvents and acids. These barriers are inert and stop corrosion. They also keep products pure and help metal parts last much longer.
Medical Devices
In the medical field, Teflon is prized for its lubricity and biocompatibility. It is used to coat catheters, surgical tools and guide wires. The low-friction surface lets doctors insert and move these devices more easily which helps reduce tissue irritation.
Aerospace & Automotive
Engineers apply Teflon to fuel lines, bearings and seals. Its low friction cuts down on wear and boosts fuel efficiency. Teflon also stands up to extreme temperatures, so it protects parts in jet engines and rocket thrusters from both intense heat and freezing cold at high altitudes.
Electrical & Electronics
Teflon provides strong insulation for sensors, cables and circuit boards because of its high dielectric strength. Even thin layers prevent short circuits. It is also critical in semiconductor manufacturing where its chemical purity protects sensitive wafers from contamination during processing.
Food Processing & Packaging
In food processing, Teflon creates hygienic, non-stick surfaces and many of its formulations are FDA-compliant for food contact. It is applied to chutes, mixers and conveyors to improve product flow. In packaging, it coats heat-sealing equipment to ensure a clean release.
How Teflon Coating Compares to Other Coatings
While Teflon is a powerful coating, it is important to see how it stacks up against other options. The best choice depends entirely on your specific application’s performance demands.

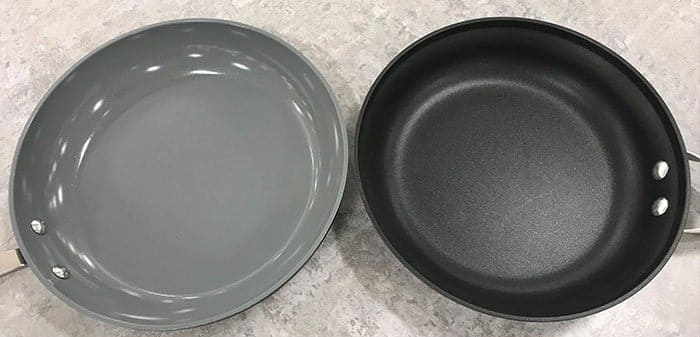

Teflon vs Ceramic Coatings
Teflon generally provides superior non-stick performance and longevity in release applications compared to ceramic which can lose its slickness over time.
Ceramic however, is harder and can handle higher temperatures—up to 426°C/800°F—without breaking down. This makes it more suitable for very high heat situations.
Teflon vs Powder Coat / Paints
Standard powder coats provide decorative finishes and robust physical protection but lack inherent lubricity. In contrast Teflon delivers functional benefits like an extremely low coefficient of friction (0.05–0.10). Unlike regular paints, Teflon chemically bonds to surfaces, repelling oil and resisting aggressive solvents.
Also See: Powder Coating vs Anodizing

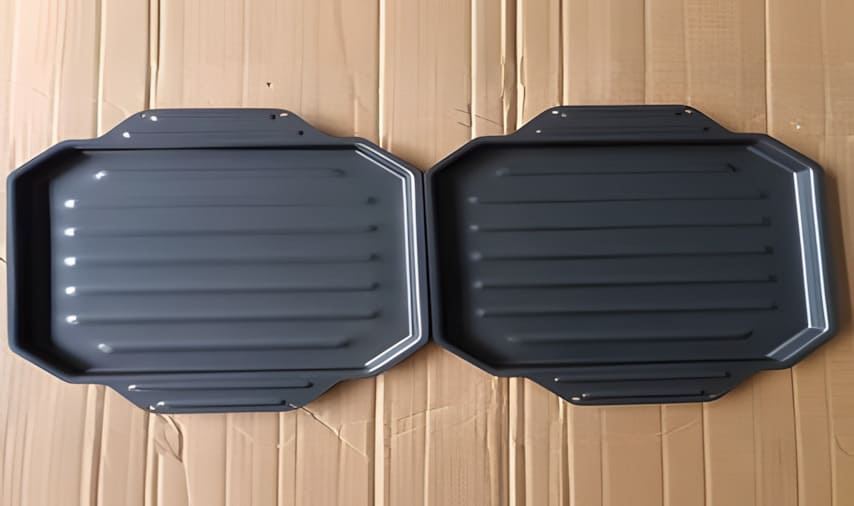

Teflon vs Anodized Surfaces
Anodized surfaces, particularly hard anodized aluminum, are incredibly durable and resistant to abrasion and scratches. While they offer decent wear protection, they lack the superior low friction and release properties of Teflon. Often, manufacturers combine both to achieve maximum hardness with non-stick benefits.
How to Choose the Right Teflon Coating?
Selecting the correct Teflon coating is not a one-size-fits-all process. You must carefully assess your operational environment and specific application needs to ensure longevity and optimal performance.
Evaluate Operating Conditions
Start by examining the environment where your component will work. Check the possible chemical exposure, operating temperature and the amount of abrasive wear expected. This review will show which properties your coating must have for reliable performance.
Match Coating Type to Application
Once your needs are defined, match them to a coating type. PTFE is a versatile standard for general-purpose use. Choose PFA for extreme chemical resistance and thicker builds whereas FEP is a strong choice for applications that require optical clarity and high flexibility.
Quality & Thickness Considerations
Finally consider the coating thickness and application quality. Industrial uses often need thicker coatings, from 25 to 50 microns, for maximum durability. Thinner coats are common for cookware. Always use a qualified applicator to ensure proper surface preparation for lasting performance.
At RICHCONN, we also provide Design for Manufacturing (DFM) feedback to optimize your part’s geometry for both effective coating and cost-effective machining.
Conclusion
In short, teflon coatings provide strong chemical resistance, superior non-stick properties and long-lasting durability for many industrial uses. Whether you work in aerospace, machinery, food processing, choosing the right fluoropolymer improves efficiency.
If you need expert precision coating services tailored to your specific manufacturing needs then Richconn is your best option. You can contact us anytime.
Related Questions
Gently wash with a soft sponge and mild dish soap. To protect the non-stick surface, you should always avoid using abrasive scrubbers, metal utensils and high heat.
Ingesting small flakes is generally harmless as Teflon is chemically inert and passes through the digestive tract without being absorbed.
Yes it significantly lowers maintenance by minimizing friction-related wear which in turn prevents material buildup and protects components from rust and corrosion.
Teflon coatings are not limited to kitchen items. In industry, PFA provides high chemical resistance, PTFE offers dry lubrication and FEP is used for precise packaging and molding.
PTFE is naturally white but pans are often coated with pigments or additives for appearance and performance. Industrial coatings usually stay white to maintain non-reactivity and purity.
Modern PTFE coatings are safe and not linked to long-term health issues. Past concerns were tied to PFOA, a chemical that is no longer used in the manufacturing of Teflon.
