Industrial manufacturing nowadays requires efficiency and cost-effectiveness to create quality parts. For prototypes and short batches, vacuum casting is suitable. This method is precise, flexible, and affordable. Thus, its approach appeals to many industries.
Vacuum casting is popular method in the automotive and aerospace industries. It is also used for prototyping, component creation, and model creation in consumer products.
This guide covers all the details about vacuum casting. It examines its operations and assesses its advantages and disadvantages. You will know when this strategy is ideal and how it helps modern production.
What is Vacuum Casting?
Vacuum casting is a manufacturing method used to make high-quality parts, especially for prototypes and small production runs. It works by pouring liquid materials, like polyurethane, into silicone molds in a vacuum chamber. This process removes air bubbles and allows for precise detail reproduction. Many industries, such as aerospace and automotive, prefer vacuum casting because it is cost-effective and produces items that are nearly finished with great surface quality. While it enables quick prototyping and accurate results, it may not be suitable for parts that are sensitive to heat or pressure.
What Are the Main Pros and Cons of Vacuum Casting?
The merits and downsides of this manufacturing method should be considered before its application. Vacuum casting has benefits but also some drawbacks. Find the pros and cons of vacuum casting below:
Advantages of vacuum casting
1. High-detail reproduction
Vacuum casting helps reproduce intricate details. The plastic molds used in this process can capture little detail of the source model. The pressure makes the resin run into the mold, filling every space. This process produces parts that are very close to the original design.
Due to its high level of accuracy, vacuum casting is perfect for projects that need exact copies. These include building models, medical devices, or consumer product prototypes.
2. Material versatility
Vacuum casting’s material adaptability is remarkable. This approach works with several polymers, each with its properties. Parts might appear and feel like ABS, polypropylene, or rubber.
Thus, designers can test their goods using production-similar materials. It makes the samples they use for testing more accurate. It also makes parts out of more than one material or color possible through the same casting process.
3. Cost-effective for small batches
Vacuum casting is usually cheaper than other procedures for small batches. Making the plastic models used in this process doesn’t cost too much. They typically manufacture 20–25 components before needing replacement.
Vacuum casting is an inexpensive approach to manufacturing prototypes. It helps to test the market or make a few items. It’s in between making one-off samples and making a lot of them. Unlike injection molding, firms may create modest numbers without paying more for tooling.
4. Quick turnaround times
These days, product creation processes happen very quickly, so speed is often essential. With its quick turnaround times, vacuum casting wins on this front.
When the original model is ready, the silicone mold only takes a day or two to make. After that, making parts is quick and can be done in as many hours. This speed lets product development go through quick iterations.
Limitations of vacuum casting
1. Mold durability
Even though vacuum casting has many benefits, making models that last a long time can be challenging. Silicone molds used in this process only last a short time. This limitation is because silicone is soft and can break or change shape after much usage.
Every time a part is made and removed, the mold is stressed. Over time, stress can cause details to fade, sizes to change, or even mold to tear.
2. Production volume constraints
Vacuum casting excels in small-batch manufacturing but struggles in significant numbers. It is slower for big production runs compared to injection casting.
The time needed to cast and cure each part is different. It can be anywhere from a few hours to a day, based on how big and complicated it is. Also, the production rate is limited because molds need to be replaced after only a few castings.
3. Material property limitations
Vacuum casting can work with a variety of resins. But, it can’t match the full range of material properties available with methods. Even though vacuum casting materials can be used in many ways, they are less robust. They conduct heat and perform poorly compared to engineering-grade polymers.
What Are the Uses of Vacuum Casting?
Due to its benefits, vacuum casting is used in numerous sectors. It can make complex, high-quality parts quickly and cost-effectively. So, it is helpful in many important ways.
1. Prototyping
Vacuum casting is great for making prototypes. Therefore, it is an integral part of making new products. It bridges the gap between idea models and pre-production samples. Thus, designers and engineers can create functional representations of their designs.
It is excellent for making prototypes for user testing or ensuring the plan is correct. Prototypes may appear, feel, and operate like the final product. They can bring minor characteristics to life and work with diverse materials. Product users and impacted parties need this precision to provide appropriate feedback.
2. Low-Volume Manufacturing
In addition to making prototypes, vacuum casting is great for low-volume manufacturing. So, it benefits businesses that need small amounts of specialized parts. It’s suitable for new goods just starting to hit the market.
Small quantities of unique medical device parts can be made using vacuum casting. Without expensive manufacturing tools, organizations can test or launch products faster.
In the automobile industry, it helps to make replacement parts for old or low-volume cars. Vacuum casting is a cheap way to make these unique parts. It mainly applies when demand isn’t high enough to support big production runs.
How Does Vacuum Casting Work?
Step 1: Create a 3D Model of the component
The vacuum casting process starts with a 3D component model. This example shows how the whole process should be done. Computer-aided design (CAD) software lets designers replicate parts exactly. This stage is vital since it provides its final shape, size, and features.
The 3D model makes it easy to make changes and improvements before production starts. Designers can test multiple model variations to verify they fulfill criteria. When done, this computer model will be used to make the master pattern.
Step 2: Make a master pattern of the mold
After finishing the 3D model, the next step is to make an actual master pattern. Most of the time, 3D printing or CNC cutting is used to make this design. Which of these ways to use relies on things like the level of accuracy needed. It also depends on the surface finish and the properties of the material.
The master design has to be perfect since it will be used as a guide to making the silicone mold. Any flaws in the original design will appear in every cast after it. Designers spend additional time polishing the master pattern surface for better results.

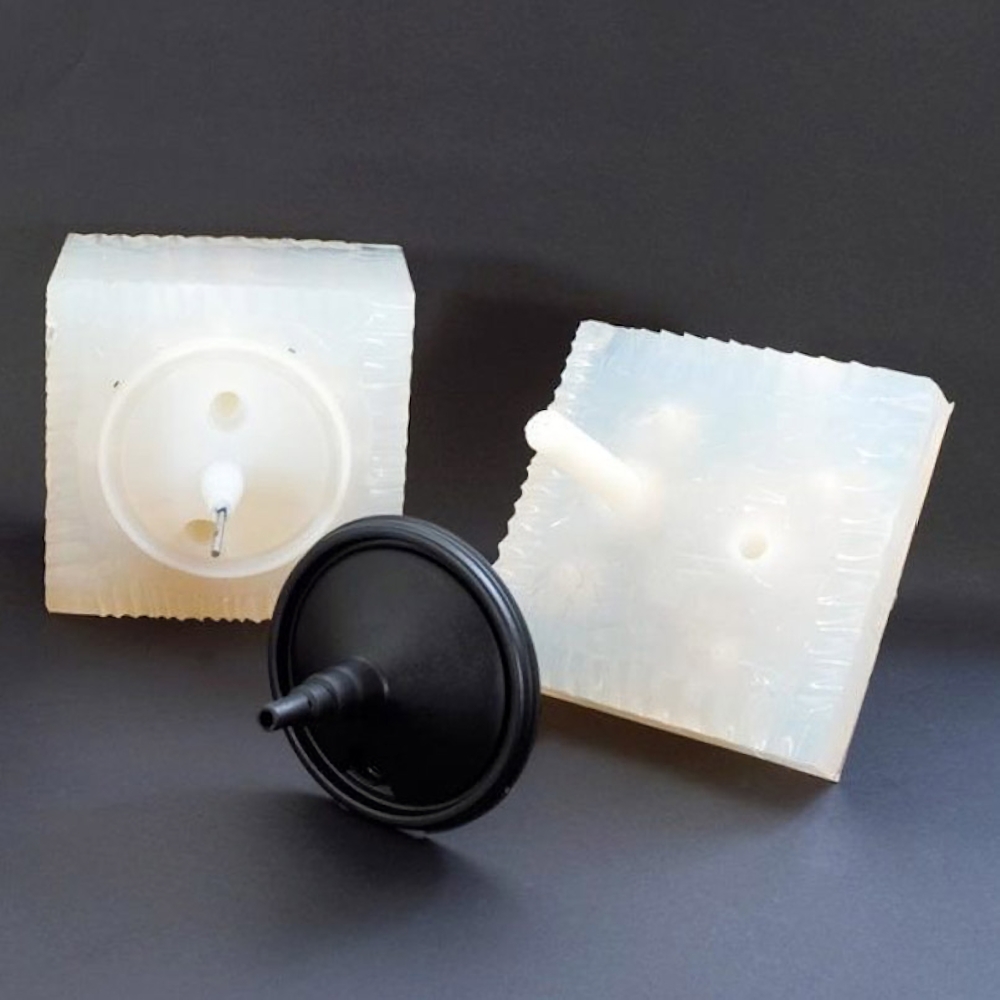

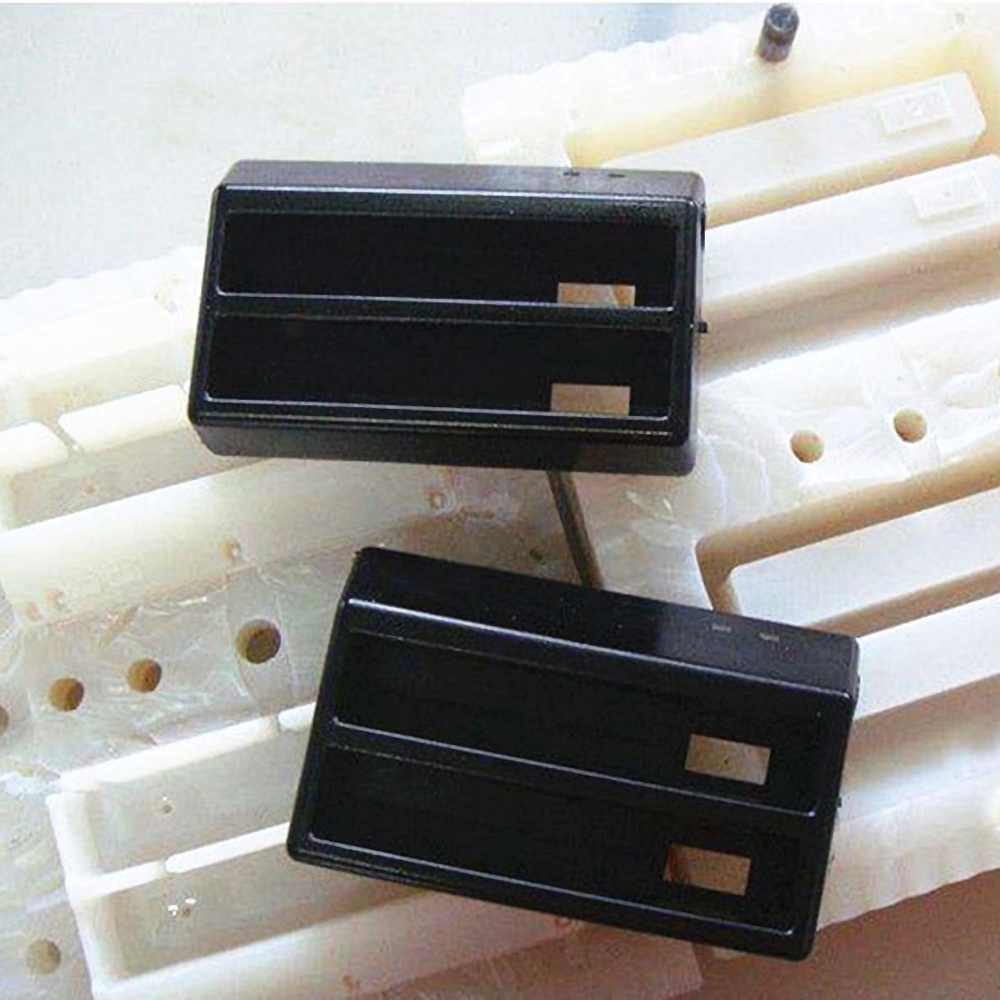

Step 3: Making silicone molds
After making the pattern, build the silicone mold. With the mold in a container, silicone liquid is poured around it. The jar is put in a room without ventilation to remove silicone air bubbles. Every master pattern detail must be captured at this stage.
Once the silicone has been degassed, it is left to dry. It can happen at room temperature or faster in an oven. When the silicone cast is hard, it is carefully cut and peeled away from the master design. The result is a copy of the original part with much detail.
Step 4: Casting the Parts Under Vacuum
Once the silicone form is ready, the casting process can begin. The chosen resin is mixed according to the directions given by the maker. Colorants or other additives are often added to get the needed qualities. After that, this mix is put into the rubber mold.
The whole cast is put in a room with no airflow. When the chamber is empty, the mold’s air is sucked out. The low pressure makes the resin spread and fills up the mold completely. This vacuum setting ensures the resin gets into every crack and nook. Thus, it makes the end parts very detailed.

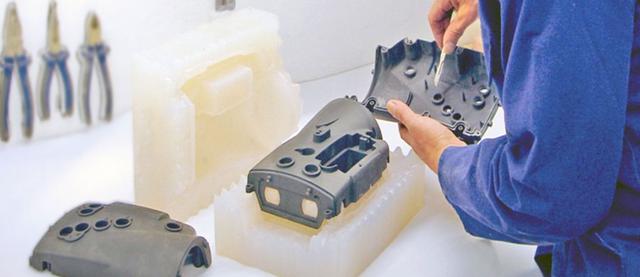

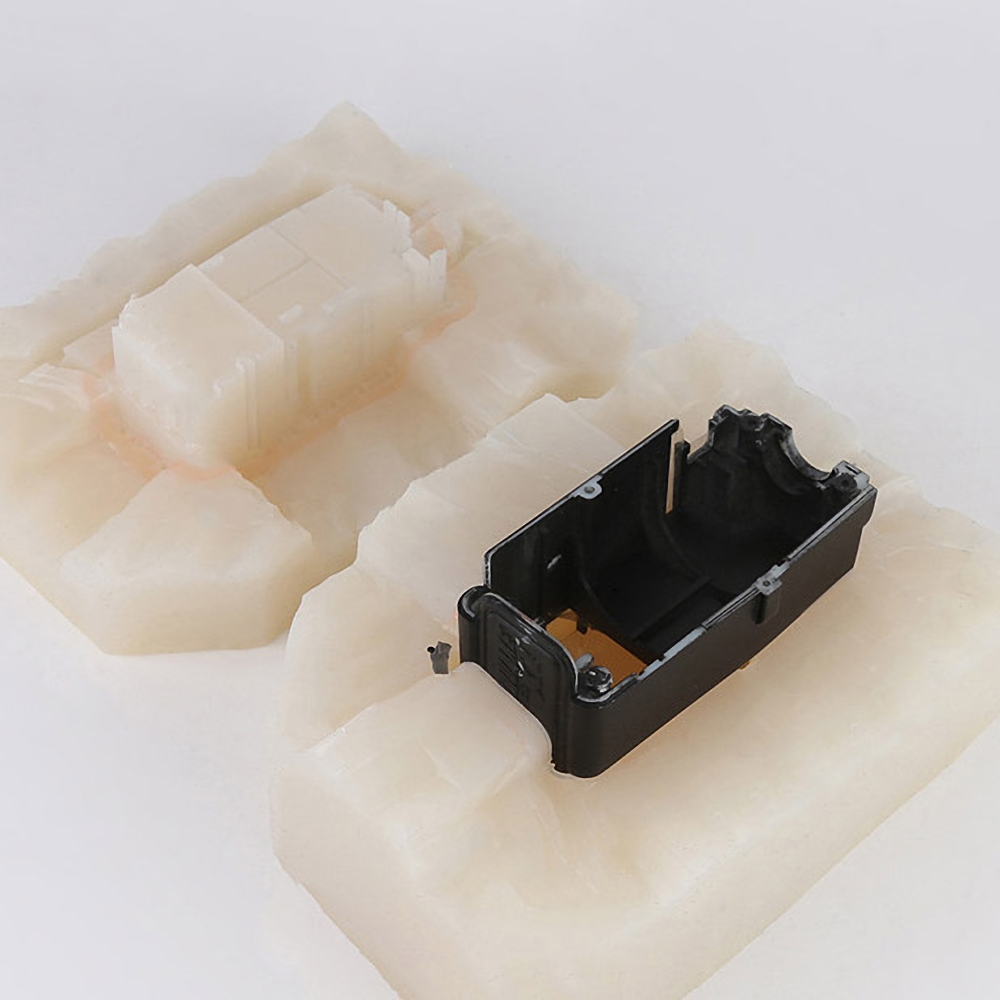

Step 5: Curing and de-molding
The resin must dry and solidify after being created. It may happen at room temperature or in an oven, depending on the glue. A few hours to a day can cure it. It depends on part size and adhesive.

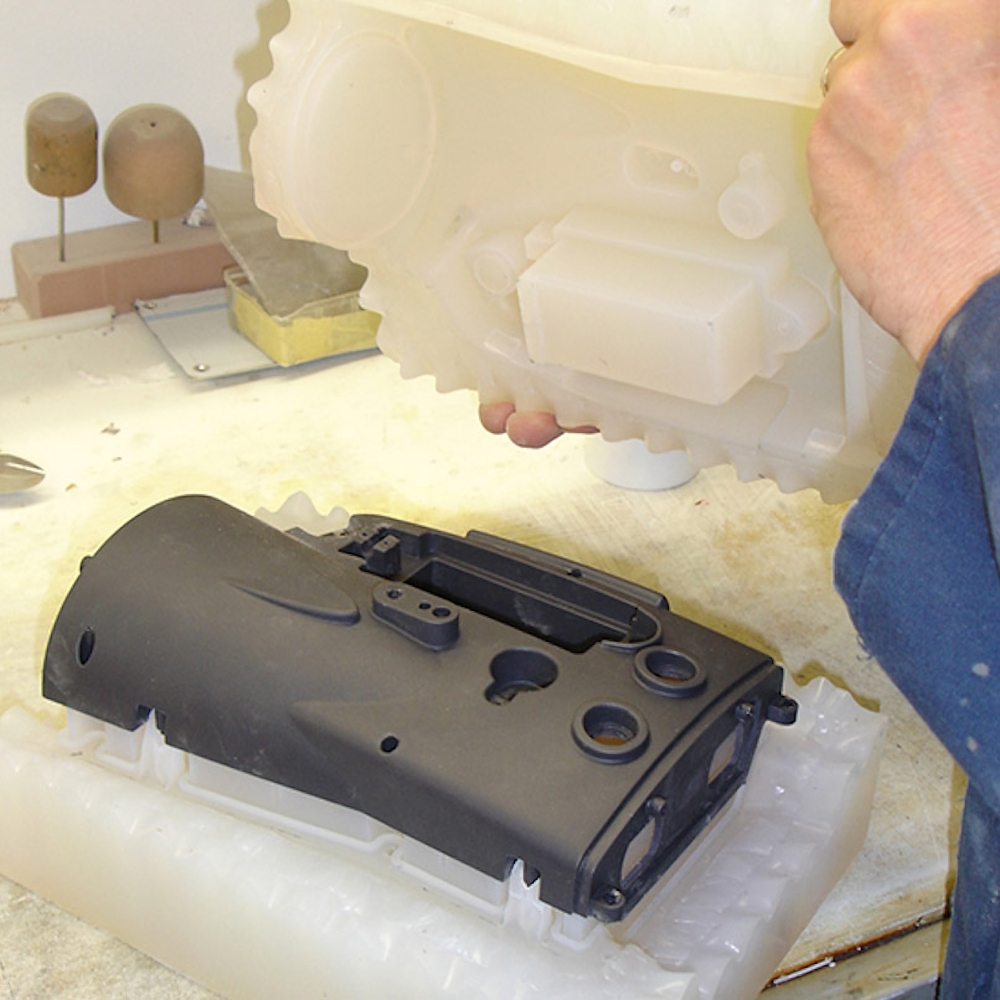

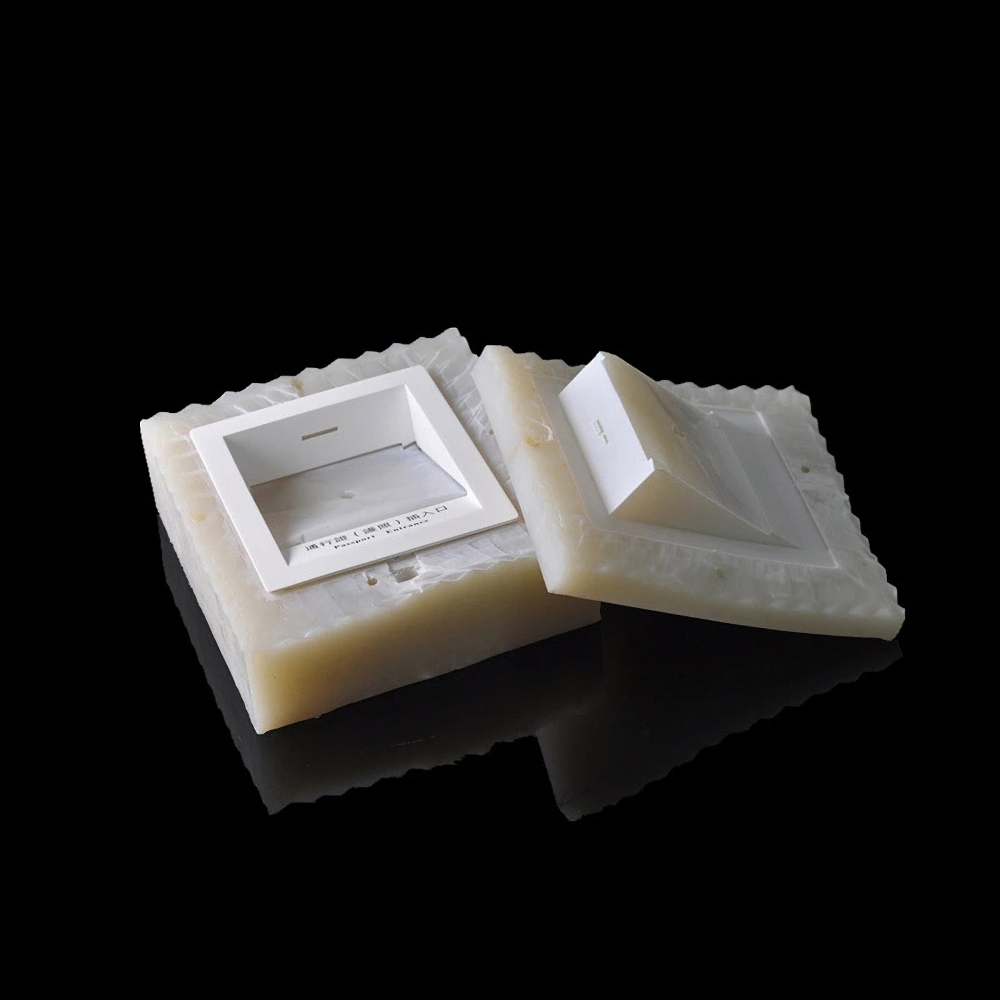

While the part is still warm, it is carefully removed from the silicone mold. For this step, called “de-molding,” extreme care is required so as not to damage either the part or the mold. After material removal, it can be smoothed out with finishing steps like sanding.
What Materials Are Used for Vacuum Casting?
Many materials can be vacuum cast. Each material has distinct properties that make it valuable for different activities. These are some common materials used are:
1. Polyurethane Resins
The most common vacuum casting materials are polyurethane resins. Their appeal is that they may resemble different polymers. When it comes to hardness, these resins are very flexible. So, manufacturers can make parts anywhere from very soft to very rigid.
Since they are flexible, polyurethane resins can be used for many things. It goes from making soft seals to hard cases. One great thing about polyurethane plastics is that they can handle being struck. They are perfect for parts that may be hit or forcefully pushed during use.
2. Epoxy Resins
For uses that need outstanding performance, epoxy resins are the best choice. It works for high-temperature or mechanically stressed end parts. Also, they are solid and stiff. So, they can be used for structural components or parts that need to keep their shape when loaded.
Another exciting thing about epoxy resins is that they are very chemical-resistant. These materials do not rust. So, they’re ideal for components exposed to domestic cleansers or industrial chemicals.
3. Silicone Rubbers
Silicone is usually thought of as a mold-making material for vacuum casting. But it’s also an excellent material for casting on its own. For items that are flexible and resistant to heat, silicone rubber is ideal. Silicone rubber suits parts that flex, stretch, or compress without losing form. This is due to its springiness and flexibility.
Silicone rubber is fantastic since it doesn’t vary much with temperature. It retains its traits at extreme temperatures. Silicone rubber also blocks electricity. That makes it a standard electronics and electrical system part.
Comparing Vacuum Casting with Other Manufacturing Processes
The correct production process is crucial in manufacturing. So, find the comparisons of these processes below:
1. Vacuum Casting vs. Injection molding
Plastic pieces are made by vacuum casting and injection molding. However, both have several industrial uses. High-pressure injection molding pumps molten plastic into a metal mold. It’s ideal for mass-producing identical items quickly and affordably.
However, vacuum casting uses models made of rubber and works with little pressure. Smaller production runs, usually up to a few hundred parts, work best with it.
For injection molding, expensive metal forms that take weeks or months to make are needed. Silicone molds are used for vacuum casting and can be made in a few days. So, creating small batches with vacuum casting is more versatile and cost-effective.
2. Vacuum Casting vs. 3D printing
Most prototypes and small batches are 3D printed and vacuum cast. In layers, 3D printing makes complex forms difficult to manufacture otherwise. It’s very flexible and doesn’t need molds. It can quickly make things from a computer file.
Vacuum casting doesn’t shape-shift. But, it offers better surface smoothness and mechanical qualities than 3D printing. It can work with more materials, including manufacturing polymers with similar properties.
For unique prototypes or minimal amounts, 3D printing works great. However, vacuum casting becomes cheaper as component count increases, especially for larger pieces.
3. Vacuum Casting vs. CNC machining
In CNC machining, a computer-controlled machine removes material from a solid block. It removes materials to make the required part. It is an example of subtractive manufacturing. It’s known for being very accurate and works with metals, plastics, and more.
Since vacuum casting is an additive process, it wastes less material than CNC milling. Making many of the same parts is usually faster and cheaper.
But CNC machining is excellent at making things with tight specs and smooth surfaces. CNC machining helps work with metals and other hard materials.
What Are the General Applications of Vacuum Casting?
Different industries use vacuum casting because it can make many kinds of parts. It is also flexible and cheap for small to medium production runs. That said, below are the general applications of vacuum casting:
Medical Implants
In medicine, vacuum casting is integral to designing and making many different devices. It’s great for creating models of new implant designs. Doctors and researchers can test their ideas before applying expensive approaches.
Vacuum casting can manufacture small, patient-specific implants using biocompatible materials. Vacuum casting uses a method that can copy small details. So, it’s beneficial for making anatomy models for planning surgeries or training doctors.
Automotive Industry
The automotive industry often uses vacuum casting in the testing and planning stages. This method makes creating samples of interior parts easy and quick. These samples let designers test how well the product works and looks.
If it performs well, they may now start mass production. When original tools are lost, or demand is low, vacuum casting comes in handy.
Aerospace Components
Precision and dependability are crucial in aerospace parts. This industry prototypes and makes small, non-critical items using vacuum casting. It’s used to create models for testing aerodynamics and mockups for instrument panels.
Also, it’s used to create mockups to fit the inside of cars. The process can produce parts that are both light and strong. So, it helps make parts for unmanned aerial vehicles (UAVs) or experimental airplanes.
Consumer Goods
The consumer goods industry gains a lot from the speed and flexibility of vacuum casting. It’s often used in product development to make working models of items. These include toys, home tools, and electronics cases.
Designers can test these samples for shape, size, and function. They can also be used to test the market or show them off at trade shows. It allows complicated, high-quality items to be made without paying much for the tools.
Food Industry
It might not be apparent initially, but vacuum casting is also used in the food business. Food mold is made using this method, mainly in the baking and candy industries. Custom silicone molds made by vacuum casting create appealing candy and dessert pieces.
Vacuum casting is also used to plan and make prototypes of food packages. It lets designers make realistic models of possible packaging. Thus, it helps them test performance and how they look before mass production.
Get Custom Vacuum Casting Service from Richconn!
Vacuum casting is a versatile manufacturing process that effectively bridges the gap between prototyping and small-scale production, making it ideal for various industries such as automotive, aerospace, medical, and consumer goods. While it may use less material and behave differently than injection molding, its flexibility allows for quick adjustments, offering excellent quality, speed, and cost-effectiveness for small batches. Richconn provides tailored vacuum casting services, leveraging cutting-edge tools and a skilled team to ensure precision from initial design to final production. With years of experience, Richconn helps bring innovative ideas to life without the constraints of traditional manufacturing.
FAQs About Vacuum Casting
How Long Does a Typical Vacuum Casting Process Take From Start to Finish?
Generally, the whole process of vacuum casting takes five to seven days. Making the master design can take 1-2 days. The silicone mold may need 1-2 days. Then, the parts will be 1-3 days, based on their complexity and number.
Is Vacuum Casting Suitable for Mass Production?
Vacuum casting isn’t the best way to make a lot of things. Up to 20 to 50 parts per mold are best for small to medium runs. Vacuum casting is ideal for flexibility and intricacy in experimental and small-scale production.
Can Vacuum Casting Reproduce Fine Details?
Yes, vacuum casting is excellent at making small features look great. The silicone molds can hold very complicated textures and shapes. Since there is no air pressure, the plastic takes up the whole mold. Thus, it makes an exact copy of every detail. It works great for parts with names, textures, or complex forms.
What Are the Surface Finishing Options for Vacuum Casting?
Vacuum cast parts offer various surface finishing options. Some are treated with metal, painting, shining, and adding texture. Parts can be sanded for a smooth finish or left as-cast for a matte look. The answer rests on what the part is supposed to do and how it looks.
