Vertical milling machines have a key role in today’s manufacturing, whether in small shops or advanced CNC environments. These machines are known for their accuracy, versatility and easy setup. They can handle many tasks with high precision. In this blog post you will learn how vertical milling works, see its main components as well as get tips to improve accuracy & extend tool life.
What Is Vertical Milling
Vertical milling is a machining technique in which a cutting tool fixed on a vertical spindle is used to remove material. This setup is common and affordable. It works well for making detailed features, pockets and other shapes on a part’s surface with great accuracy.
Key Components of a Vertical Milling Machine
Every component of a vertical mill has a particular job such as providing support or controlling the cut.
1. Column & Base
The base forms the heavy bottom of the machine. It keeps the machine stable and absorbs vibrations. The vertical column sits on the base and acts as the main support for all other key parts.
2. Knee, Saddle, Table
The knee moves up and down along the column to set cutting depth. It holds the saddle which moves the table in the Y direction. The table itself moves the workpiece along the X axis.
3. Spindle, Quill (If Applicable)
The spindle is the main part that holds and spins the cutting tool at high speed. The quill contains the spindle and lets operators make fine vertical adjustments during machining.
4. Feed Mechanisms, Power Feed, Controls
Feed mechanisms move the table with precision. Power feed systems automate this movement for steady results. Operators use the control panel to set speeds, feeds as well as machining positions.
5. Clamping/ Workholding Mechanisms
Vices, clamps and custom fixtures hold the workpiece firmly on the machine’s table. Secure workholding is essential. It assures accuracy, keeps the process safe and produces a smooth surface finish.
At RICHCONN, we handle complicated jobs by designing and using custom fixturing systems. These systems provide strong stability during high speed cutting. They help us keep tight dimensional tolerances and reduce the need for manual adjustments.
Step by Step Vertical Milling Process
Turning a raw material block into a finished part needs several organized steps. Every stage has a vital role in reaching the desired accuracy & quality.
Planning & Design Phase
A digital blueprint marks the start of the process. Engineers use CAD software like AutoCAD or SolidWorks to make a 3D model. CAM software then creates the exact toolpaths for the machine. This phase also covers choosing the right cutting operations, setting their order and estimating the total machining time.
Setup/ Fixturing/ Workholding
Next step is to mount the workpiece securely on the machine’s table. Devices such as vises, clamps or custom fixtures hold it in place. A solid setup stops movement and absorbs vibration during cutting. This is key for holding tight tolerances and getting a quality surface finish.
At Richconn, we often rely on quick-change fixturing systems. These systems cut down setup time and help us maintain accuracy across different production runs.
Tool Installation & Zeroing/ Reference Setting
Once the workpiece is fixed, the right cutting tool goes into the spindle. The machine must know the workpiece’s exact position. To do this, the operator sets a “zero” or reference point. This is done by using a probe or by gently touching the tool to the part to mark the starting spot.
Roughing Pass(es)
Roughing is the first stage of machining. Here the main objective is to remove most of the unwanted material quickly. Machinists use deeper cuts and higher feed rates during this step. This pass does not aim for a smooth finish. Instead, it shapes the part close to its final form and leaves about 0.5 mm of material for later steps.
Also see: CNC Roughing and Finishing – A Thorough Comparison Guide
Intermediate/ Semi Finish Pass
Once roughing is complete, the intermediate pass removes the leftover material. This step gets the workpiece ready for the final finish. The tool engages less material to produce a more even surface. By doing this, the process transitions from roughing to finishing and helps improve both quality & accuracy.
Finishing Pass (es)
The finishing pass is vital for reaching the required surface finish and exact dimensions. For this purpose machinists use a very shallow depth of cut, mostly between 0.003 and 0.010 inches and slow down the feed rate. This step smooth’s the surface and removes any marks from earlier passes.
For parts that need extra finishing, Richconn provides in-house surface treatments like bead blasting, anodizing as well as powder coating. These options assure both precise dimensions and a high quality appearance in one workflow.
Inspection & Validation
Inspection takes place after all machining is finished. Machinists check the part using precision tools such as calipers, micrometers or Coordinate Measuring Machines (CMMs). This step is essential to confirm that every dimension and tolerance matches the original design before the part is accepted.
Deburring, Cleanup & Post Process Steps
Machining can leave behind burrs which are sharp edges that must be removed for safety & function. Workers remove these using manual or automated deburring methods. Afterward, they clear away chips and coolant from the part. Additional steps like polishing or bead blasting may follow to further improve the finish.
Maintenance & Shutdown
After a job is finished, caring for the machine is also very important. This process includes cleaning the machine thoroughly, lubricating the guideways as well as inspecting tools for wear. Regular tasks such as checking fluid levels and cleaning filters help prevent problems and keep the mill accurate and dependable for future work.
Types of Vertical Milling Machines & Operations
1. Machine Types/ Variants
Vertical milling machines come in different designs. Each type serves a particular role.

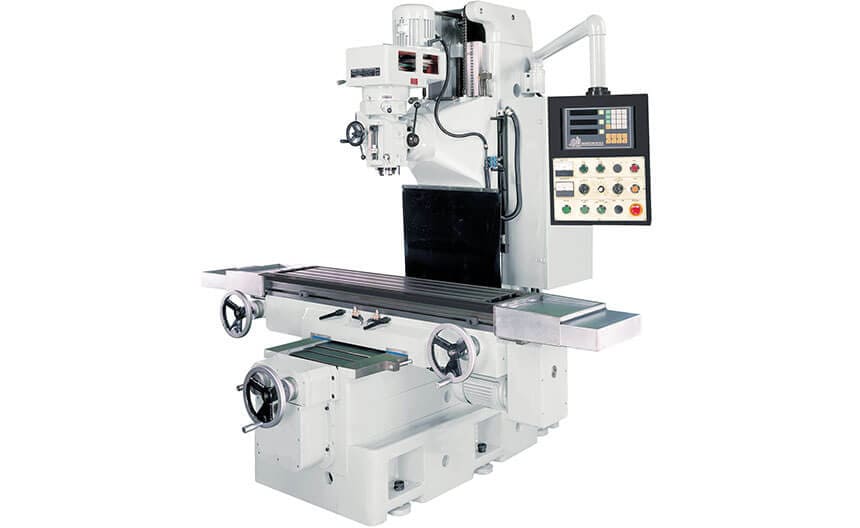

Turret Mill
A turret mill keeps its spindle fixed in place and the table moves along the X, Y and Z axes. A movable quill lets operators drill with precision. This mill works well for prototypes and small production runs.
Bed Mill
In a bed mill, the spindle travels up & down. The table shifts horizontally. This setup gives the machine extra rigidity and stability. It can handle large or heavy parts and delivers high accuracy.

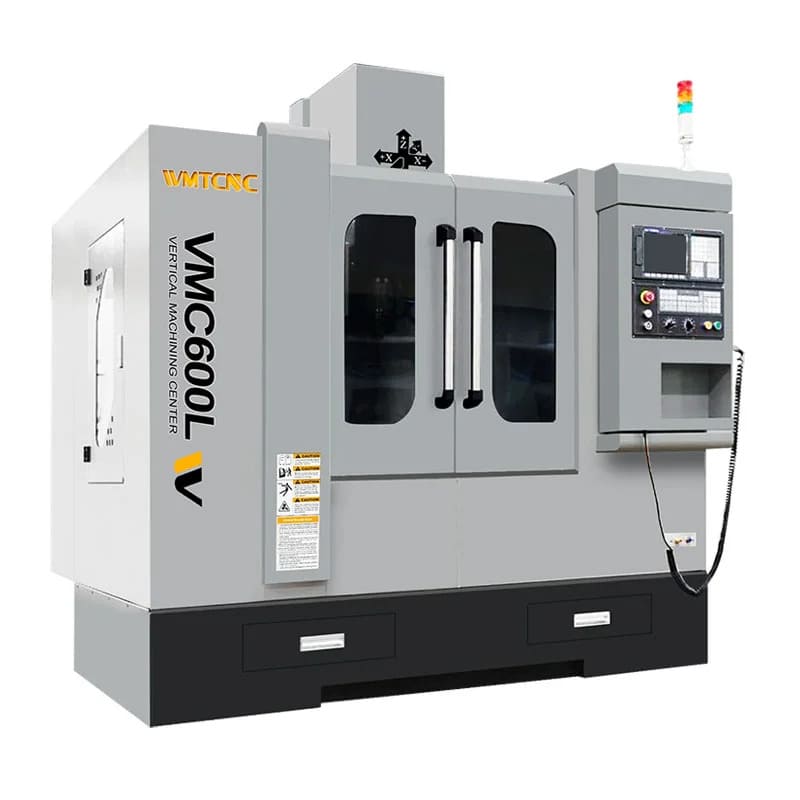

CNC Vertical Machining Centers (VMCs)
VMCs run automatically under computer control. They often include automatic tool changers and can operate on 3, 4 or 5 axes. These features boost productivity and allow for complicated, high volume jobs with reliable repeatability.
Also see: Difference Between 3-Axis and 5-Axis CNC Machining
Column and Knee Mills AND Benchtop Mills
Column and knee mills have a knee that moves vertically to support the table.
Benchtop mills are compact and affordable. They suit hobbyists or labs and work best for small parts and lighter materials.
Universal Mills
Universal mills feature a swiveling head. This head can switch between vertical and horizontal positions. This design lets the machine tackle a wide variety of milling tasks and angles.
2. Vertical Milling Operations/ Modes
Vertical milling uses several cutting methods. Each operation relies on a particular tool and approach to form unique shapes on a workpiece.
Face Milling
Face milling creates a flat, smooth surface on the top of the workpiece. This process uses a large cutter with multiple inserts. This tool can cover a broad area in one pass.
Also see: A Complete Guide on Face Milling

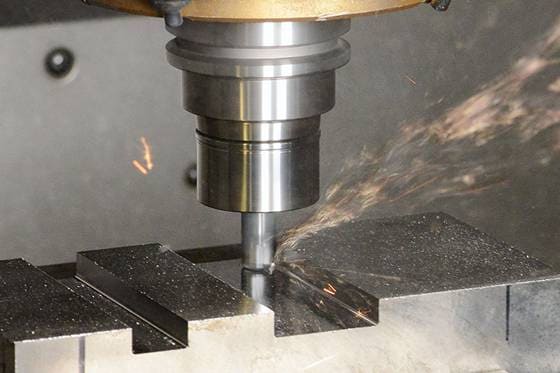

End Milling
End milling uses a cylindrical tool to cut features like pockets, steps as well as complicated contours. The cutter removes material with its end as well as its sides. This makes it suitable for detailed and flexible shaping.

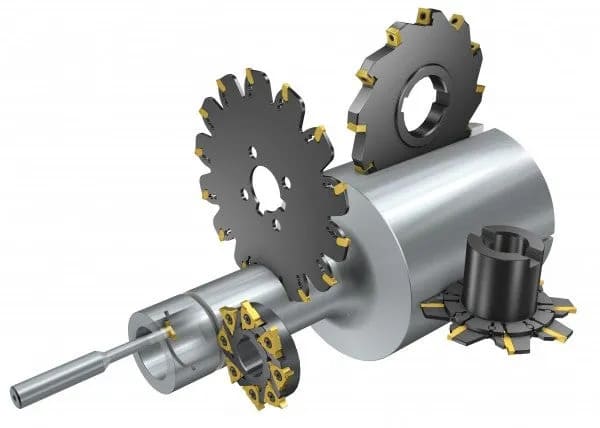

Slot Milling/ Groove Milling
Machinists use this operation to create narrow channels, grooves or keyways in a part. The cutter’s diameter usually matches the slot width. This match assures precise features such as T slots and guide channels.

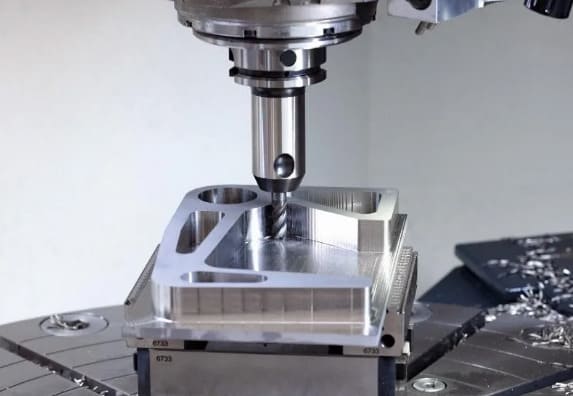

Profile/ Contour Milling
Profile milling shapes the outer vertical or sloped surfaces of a component. This tool moves along a set path. This method works well for forming complicated external shapes and finishing the sides of parts.
Plunge Milling
Plunge milling removes large amounts of material quickly. This tool feeds straight down into the workpiece. This technique is very effective for roughing out deep cavities, slots or pockets before the final finishing steps.

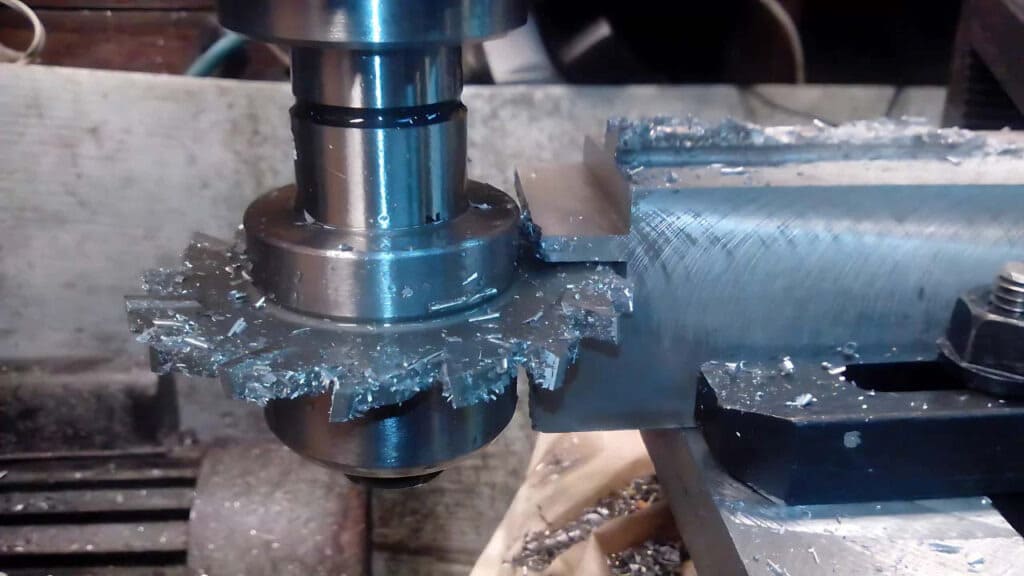

Side Milling
Side milling uses the cutter’s side edge to machine vertical or angled surfaces along the side of a workpiece. This operation creates precise shoulders, steps or slots that run parallel to the table’s movement. Often, machinists complete these features in a single pass for better efficiency.
Also see: A Guide on Side Milling Types, Uses & Techniques

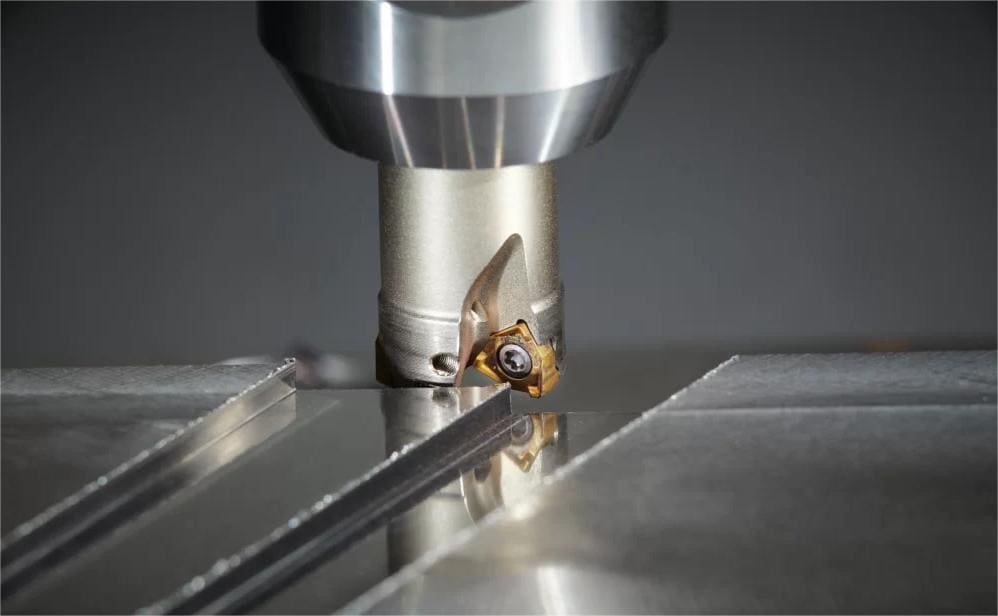

Shoulder Milling
Shoulder milling creates a 90 degree step or shoulder at the edge of a part. The cutter removes material both axially & radially. This produces a clean, square corner and is often used in mold making and for structural parts.
Thread Milling (Where Vertical Orientation is Used)
Thread milling produces internal or external threads with a rotating cutter that traces a helical path. Unlike tapping, this method lets the thread fit be adjusted. It works well for large or custom threads, particularly in hard materials.
Straddle Milling, Gang Milling
Straddle milling uses two side cutters to machine parallel surfaces on opposite sides of a workpiece in one pass. Gang milling mounts several cutters on a single arbor. This setup can machines multiple features at once and boosts productivity for complicated parts.
Angular/ Chamfer/ Form Milling
- Angular milling machines surface at an angle to the cutter’s axis.
- Form milling uses specially shaped cutters to make complicated profiles such as gears.
- Chamfer milling creates beveled edges, often set at a 45° angle.
Expert Tips & Best Practices
Following proven best practices is key to getting the most from your vertical milling operations. The expert tips below can boost your machine’s performance, raise accuracy as well as help your cutting tools last longer.
Rigidity is King
Precision depends on a rigid setup. Always choose the shortest tool that works for your job. Clamp the workpiece firmly in place. This approach limits vibration and chatter. As a result you get better dimensional accuracy along with a smoother surface.
Use Climb Milling When Possible
If your machine can handle it, select climb milling instead of conventional milling. This method lowers tool wear and produces a cleaner cut. It also pushes cutting forces into the machine table which increases stability. Be careful with older manual machines, since climb milling can cause backlash.
Optimize Chip Evacuation
Clearing chips from the cutting area is critical. Chips left behind may get recut. Therefore use high pressure coolant, mist or compressed air to remove them. This protects your tool and keeps the finish consistent.
Gradual Parameter Tuning
Begin with safe, conservative values for speed, feed and depth of cut. Increase these settings step by step. If you notice chatter or your tool wears out quickly, lower the feed rate or reduce the depth of cut to keep the process stable.
Avoid Full Width Cuts on First Pass
Taking a full width cut at the start puts extra load and heat on the tool. Instead, use an offset or adaptive toolpath. This method limits tool engagement. You can then cut faster and deeper while reducing stress on the cutter.
Monitor Tool Wear & Change Proactively
Replace tools before they fail. Use calculations or modern sensors to track tool wear in real time. Changing tools early avoids workpiece damage and keeps part quality high.
Use Multiple Passes Rather Than a Single Aggressive One
Remove material with several light passes instead of making one deep cut. This method lowers tool deflection and increases accuracy. It also keeps heat and stress off the cutting edges. Thus the cutter lasts longer.
Use Finishing Passes with Climb Milling & Smaller Stepovers
Get a better surface finish by using climb milling and taking small stepovers on your final pass. This technique leaves a lower scallop height on the surface. You will also see fewer marks and the finish will be smoother and more precise.
Measure Frequently
Do not trust only your initial setup. Check the workpiece often with calipers or micrometers during machining. By measuring as you go, you can spot any tolerance issues early and adjust before problems become serious.
Keep Machine Clean & Perform Regular Maintenance
Accuracy depends on a clean machine. Clear chips and dirt from the table, ways as well as lead screws on a regular basis. Lubricate the machine as scheduled to avoid wear and to keep movement smooth and maintain precision over time.
Account for Thermal Effects
Heat from the spindle and cutting process causes the metal to expand which can affect tight tolerances. Always run a warm up cycle before starting critical jobs. This brings the machine to a stable temperature and cuts down on thermal errors.
At RICHCONN, we also use temperature compensation routines during production, particularly for aerospace-grade parts. Thus every dimension stays within micron-level limits even when heat builds up.
Use CAM Simulation & Verification
Run a full simulation of the toolpath in CAM software before starting the program. This step lets you find possible collisions, inefficient moves or gouges in the part. By checking virtually first, you avoid costly mistakes and make the machining process more efficient.
To Sum Up
Vertical milling provides quick setup, precise results and flexibility. These qualities make it well‐suited for producing accurate parts in industries like aerospace, automotive and prototyping. This process is also affordable for small batches and complicated shapes. If your project needs precision milling, Richconn can help bring your designs to life. You can contact us any time.
Related Questions
Yes. Plunge milling works on a vertical mill. This method is particularly helpful when the machine has limited power or rigidity or when you need to create deep pockets.
Yes. Vertical mills can drill holes with great accuracy. By placing a drill bit in the spindle, the machine can make precise holes in the material.
Tools in vertical milling are usually longer & thinner therefore they bend more easily. In horizontal milling, the tools are shorter and thicker which makes them more stable and less likely to deflect during deep cutting.
Chatter happens when the machine, tool or workpiece lacks enough stiffness, causing vibrations. You can reduce chatter by using plunge milling which changes how the cutting forces act.
Yes it is possible. Richconn uses 5 axis vertical milling to make complicated parts with high accuracy and smooth surfaces in just one setup. This approach improves overall efficiency.
