Anodized aluminum is used in countless products from smartphone cases to aircraft components. Sometimes these parts show blotchy or uneven colors. Both manufacturers and customers can be disappointed by this result. In this blog post we will explain the reasons behind these color differences. We will also share practical solutions to get a smooth and consistent finish every time.
How Anodizing Works and Why Color Uniformity Matters
Anodizing uses an acid bath and electric current to create a tough oxide layer on aluminum. This layer is porous and mostly measures 10 to 25 microns thick for colored finishes. The pores absorb dye before the part is sealed for protection. Final color depends on the oxide’s thickness, size of the pores and the alloy’s composition.
If the process lacks control, the color may turn out dull or patchy. Consistent dyeing and correct sealing keep colors bright and prevent fading. These steps are critical for quality and brand consistency, especially in demanding industrial fields.
Also See: A Complete Guide to Aluminum Anodizing

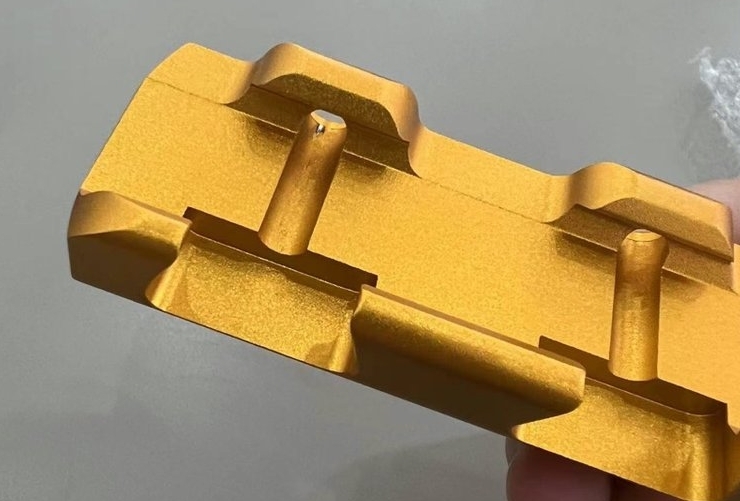

Main Causes of Uneven Surface Color
Getting a smooth, even color is the main goal for anodized aluminum parts. But a number of issues can prevent this result. Below are the most common reasons for uneven surface color and what happens at the material level.
1. Alloy Variations
Alloy composition of aluminum often causes color differences. Alloys have elements like copper, silicon or manganese and each reacts differently during anodizing. Silicon can give the surface a gray tint while copper can make it appear brighter. These differences in the base metal affect the final look and how the dye is absorbed. This leads to inconsistent color.
2. Surface Contamination
Uniform finishes depend on proper surface preparation. Dirt, oils or grease left from handling or machining can block the dye from soaking in evenly. Even tiny chemical residues or pre‐existing oxide layers can disrupt anodizing. These problems can cause discoloration, spots or patchy coatings.
This is why choosing a manufacturer with strict cleaning standards is important. At RICHCONN, we include detailed cleaning steps in our advanced CNC machining and fabrication procedures. This helps lower the risk of contamination before anodizing starts.
3. Inconsistent Etching
Etching prepares aluminum for anodizing. If this process is not even, the surface texture will not be consistent. Consequently a rough or patchy texture will stop the oxide layer from forming evenly and affects dye absorption. As a result the finished part may show blotches or color differences. Changes in etching temperature, time or chemical concentration are main causes of inconsistent etching.
4. Anodizing Bath Irregularities
Problems in the anodizing bath also cause color inconsistencies. Chemical imbalances in the electrolyte, like too much iron or chloride ions, can create defects and spots.
Temperature control is also important. If the bath is too hot or too cold, oxide growth and coloring rates change. Uneven agitation and incorrect racking of parts disrupts current flow. These issues cause the coating to vary in thickness and make the surface look patchy.
5. Dyeing and Sealing Issues
Dyeing and sealing are key to a strong, even color. If dyeing is inconsistent, the surface will be blotchy or streaked. This happens when dye temperatures are uneven or the dye tank doesn’t circulate well. After dyeing, sealing must be done correctly. This is because a bad seal can’t keep the dye in the aluminum’s pores. Over time, the color will fade and the finish will become dull because the dye leaks out.
6. Mechanical Stress and Handling
Physical damage can ruin color uniformity, even with a good finish. Dents and scratches from careless handling break the anodized layer and change how it looks. Internal mechanical stress is another risk.
Manufacturing can leave behind stress that forms tiny cracks in the anodic coating. Studies show that strains as small as 0.1% can break the film. When this happens, the base metal is exposed and discoloration appears.

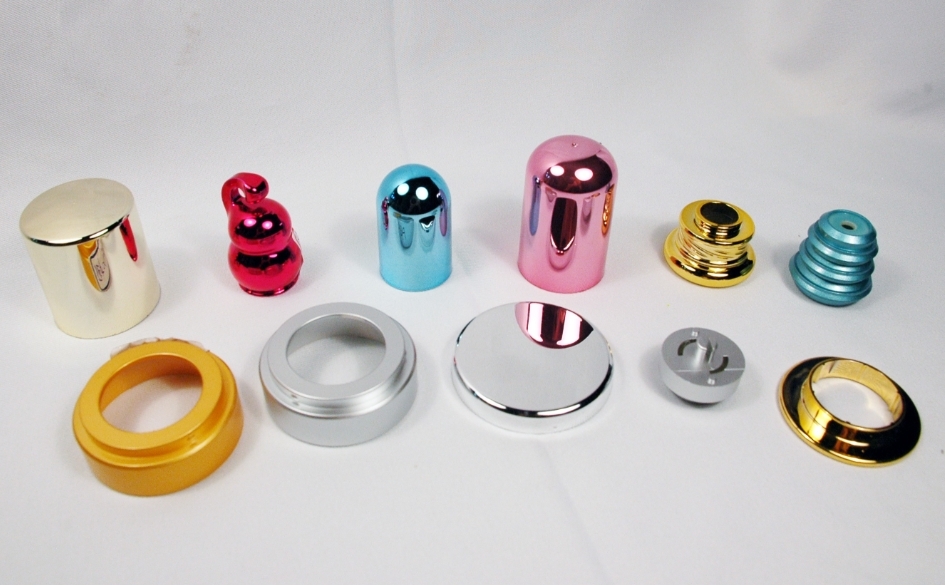

Fixes and Best Practices to Get Uniform Anodized Colors
After the identification of main causes behind uneven coloring, we can look at the solutions. These solutions & best practices address every issue directly and will get you consistent & high quality finishes.
Optimizing Alloy Selection
Start by selecting the right aluminum alloy to assure a consistent anodized color. 6000 series alloys like 6061, 6063 and 6082 are well known choices. They form a clear and even oxide layer and work well for both decorative and hard anodizing.
For areas exposed to marine conditions or high corrosion, use 5000 series alloys like 5052. Always choose material from a single batch. Because small differences in magnesium or silicon can cause color changes.
If you’re not sure which alloy is right for your project, RICHCONN can help you choose the right one and provide test samples. This way you’ll know what to expect.
Controlling Anodizing Parameters
Consistent finishes need control of the anodizing bath. Keep the bath conditions stable by having a consistent electrolyte composition and temperature between 20 and 25°C. Use proper racking to distribute current evenly across every part and avoid shading.
Good agitation is also needed. By moving the bath, you can prevent local temperature spikes and assure that the electrolyte flows to every part of surface. This will create a uniform oxide layer.
Thorough Surface Preparation
A clean surface is important for a uniform finish. Remove all contaminants before starting the anodizing procedure. This includes dirt, oils and any oxide layers left from handling or machining.
Use a strict cleaning routine with alkaline cleaners and acid etching to create a consistent surface texture. This flawless base lets the anodic film form evenly which then prevents blotches and assures that the dye absorbs uniformly.
Minimizing Mechanical Stress
Consistent anodized finishes depend on minimizing mechanical stress. Dents, scratches or even minor abrasions can damage the oxide layer and cause color changes. Handle parts with care during all manufacturing and finishing steps.
Use padded racks and protective packaging and also make sure staff follow proper handling procedures. Moreover apply stress relief treatments like annealing or cryogenic cooling before anodizing to reduce internal stresses and avoid micro‐cracks. These will produce a smooth and even color that lasts longer.
At RICHCONN, we train our team to handle every part with care to protect color quality from start to finish.
Standardizing Dyeing and Sealing Procedures
Use standard dyeing methods to get even color. Control the dye bath’s pH, concentration, and temperature as well as immersion time. After dyeing, seal the part properly. Sealing, mostly done in hot water at 95°C or higher, locks the dye inside oxide layer’s pores. It prevents color from fading and keeps the finish stable and durable over time.
To Sum Up
Anodized coloring needs attention at every step. You must control everything from choosing the right alloy to preparing the surface and sealing the finish. Tight control of these steps will give you perfect results. By controlling these you will avoid defects and get a strong finish.
For anodized aluminum parts with consistent and high quality color, contact RICHCONN today. We are here 24/7 to answer your questions or quote your project.
Related Questions
Anodized parts will always show slight shade or tone differences, which is quite normal. Alloy makeup, coating thickness, process settings and storage all contribute to these slight variations.
The 6000 series especially 6061, 6063 and 6082 gives the best anodized finish with good color uniformity and corrosion resistance. Moreover alloys from the 5000 and 7000 series also work well but have some drawbacks.
Yes you can repair a damaged spot by removing the old coating, sanding the area to match the original surface and then re‐anodizing and coloring just that area.
Yes handling parts with bare hands can leave fingerprints that will show up as marks or corrosion after anodizing. Using clean gloves and avoiding direct contact will keep the finish defect free.
Yes billet casting variations, like changes in alloy content between batches, can cause color differences in anodized parts even if they go through the same process.
