Many people notice that anodized parts lose their bright colors after some time in use. There are many factors both environmental and chemical that cause this fading. In this post we will look at the main reasons for anodizing fade such as weather conditions, UV light and poor sealing. We will also discuss how to prevent these problems.
What is Anodizing?
Basically anodizing is an electrochemical process that creates a layer of aluminum oxide on bare aluminium surface. This process forms a porous coating which ranges from 5 to 30 micrometers in thickness. This layer becomes part of the metal so it does not chip or peel away. To anodize, manufacturers pass an electric current through an acid bath in which aluminum acts as anode.
Also See: A Complete Guide to Aluminium Anodizing
Main Types of Anodized Coatings
There are many different anodizing methods and each method produces coatings with specific characteristics.
Type II (Sulfuric Acid Anodizing)
Type II is the most widely used anodizing process. In this method, the aluminum part is placed in a sulfuric acid bath kept at 68 to 70°F. It forms coatings that range from 0.00007″ to 0.001″ in thickness. Its porous nature allows dyes to penetrate easily which makes decorative finishes possible. Depending on the aluminum alloy, the process takes 20 to 60 minutes.
Type III (Hard Anodizing)
Also known as hard anodizing, Type III forms a denser and thicker oxide layer up to 0.002 (50 μm). In this process, a colder bath (around 34 to 36°F) and higher voltage is used. The resulting surface offers excellent resistance to corrosion and wear. For demanding applications it suits well and usually produces a dark gray finish. Since the pores are smaller, dyeing is uncommon.
Role of Dyes and Sealing
After anodizing, dyes add color to anodized parts by filling the tiny pores in the oxide layer. Sealing then follows which closes these pores to keep the dye in place and improve corrosion resistance. Common sealing methods such as nickel acetate or boiling water are used which protect surfaces from stains and help maintain bright colors.
At RICHCONN, we use automated nickel acetate sealing with real time pH monitoring. This process guarantees maximum dye retention and attains 99.8% pore closure.

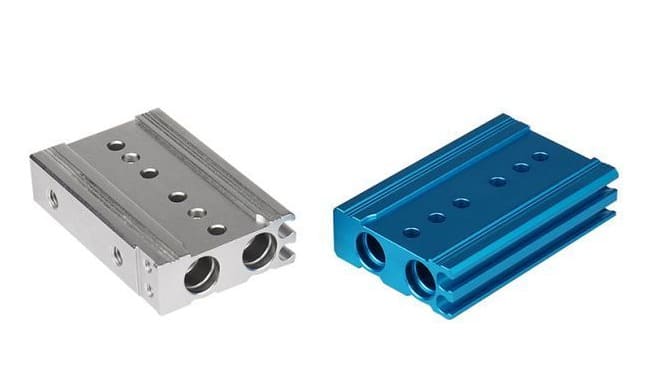

Factors Leading to Fading of Anodized Parts
Anodized parts are known for their durability. However there are several conditions that can still cause their color to fade over time.
1. Ultraviolet (UV) Radiation
Impact on Organic Dyes
Sunlight’s UV rays damage the dyes used in anodized coatings as time passes. Research has shown that some dyes lose up to 75% of their color after long term UV exposure. Organic dyes, in particular, fade quickly in outdoors use, even though the oxide layer itself stays intact.
Color Susceptibility
UV exposure does not affect all colors equally. Brighter colors such as blue, red and purple lose their brightness faster; because these shades depend more on organic dyes which are sensitive to UV light. Whereas darker colors like bronze or black use inorganic pigments or metallic deposits. These materials provide much better resistance to UV fading.
2. Exposure to Harsh Elements
Saltwater
Saltwater speeds up corrosion in anodized parts. Chloride ions from saltwater can enter the oxide layer which leads to surface chalking, pitting and a dull appearance. In coastal areas, these effects often appear within a year.
Pollution
Air pollution which includes molecular contaminants and acid rain weakens the anodic layer. Polluted air trap acidic or grime particles into the surface pores. This process makes color fading happen faster.
3. Humidity and Temperature Variations
High humidity allows oxygen and moisture to enter the porous oxide layer. These elements oxidize the metal and help break down dyes. When temperatures change quickly, the anodized layer contracts and expands. This movement creates microcracks and exposes dyes to more environmental stress. As a result color fades faster and surface corrosion can develop.
4. Chemical Exposure
Harsh Cleaning Agents
Alkalis, acids and solvents when used as cleaning chemicals can damage the anodized layer. These substances remove color and increase the risk of corrosion, particularly with frequent use. Moreover even everyday cleaners like bleach, ammonia or abrasive sprays can gradually fade or dull the surface.
Industrial Chemicals
In industrial environments, anodized parts may come into contact with corrosive vapors, solvents or chemical splashes that compromise the oxide layer. Caustic solutions and acid-based cleaners can attack the surface, thus leaving it discolored and rough. This type of exposure sometimes leads to pitting or complete color loss in certain areas.
Improper Sealing
Poor sealing leaves pores of the oxide layer open. Pollutants, moisture and UV light can then reach the dyes and metal underneath. This leads to rapid color fading sometimes in just a few months and increases the risk of corrosion. Moreover the product’s lifespan shortens. For keeping color vibrant and protecting the part, good sealing is very important.
5. Physical Wear and Abrasion
Surface Scratches
Scratches break through the anodic layer and make the color look faded or patchy. Bare aluminum becomes visible when the oxide layer is compromised. Even small marks can trap dirt which makes the part look dull faster.
Mechanical Stress
Rubbing, friction or repeated impacts slowly remove the anodized surface particularly at edges and in highly touched areas. When anodized layer becomes thinner, sometimes falling below the original 25 to 50 microns, color loss increases and the exposed metal becomes more prone to corrosion.
Using precision CNC-machined substrates from suppliers like RICHCONN helps achieve consistent anodizing thickness. This lowers the risk of wear-related fading.

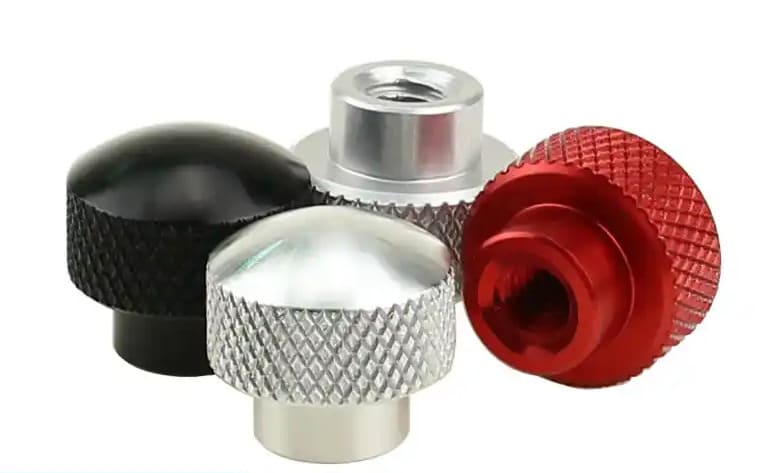

Preventive Measures to Mitigate Fading
Maintaining the appearance of anodized aluminum needs careful choices in both processes and materials. By taking preventive steps you can improve color stability and extend the durability of the part.
1. Selection of High Quality Dyes
Inorganic Dyes
For better fade resistance, select inorganic dyes. In these dyes, metal oxides such as chromate or iron oxide are used instead of organic compounds. They create colors that withstand UV exposure well. However expect these dyes to produce more subdued gold and bronze shades, not the bright tones seen with organic dyes.
UV Stable Dyes
Select dyes that have strong UV stability. Dyes rated 7 or 8 on the ISO 2135 scale offer the best protection. A rating of 8 provides twice the sun resistance of a rating of 7. For outdoor environments, choose black and darker shades as they generally last longer than blues and reds.
2. Proper Sealing Methods
Boiling Water Sealing
Apply deionized water at 205 to 212°F for standard hot water sealing. To ensure full hydration, maintain immersion for 2 to 3 minutes per micron of coating thickness. This approach lowers abrasion resistance by only 20 percent. During this process, boehmite crystals are formed that swell to close the porous layer.
Nickel Acetate Sealing
To protect dyed anodized parts from discoloration and fading, select nickel acetate sealing. During this process, keep the pH within 5.2 to 5.9 and maintain temperature between 200 to 210°F. Nickel ions form hydroxide precipitates that fill the pores and seal them well.
3. Quality Control
Monitor temperature, pH, and immersion times closely during sealing. Through micrometers, check coating thickness and perform regular adhesion tests. Filter solutions continuously with 5 to 35 micron filters and keep deionized water at high quality. To maintain uniform results in every production batch, record all process parameters.
At Richconn we rely on automated systems to monitor temperature and pH around the clock. We verify thickness for every part which is very important for reliable sealing.
4. Environmental Considerations
For long term durability, assess the installation environment before choosing anodized finishes. Keep colored anodized parts out of direct sunlight when possible. Use sheltered areas to cut UV exposure by up to 75%. To avoid the faster corrosion caused by saltwater, place parts away from coastal regions.
5. Maintenance and Care
Set up a routine cleaning plan with mild detergent and warm water. To avoid scratching the surface, always use non-abrasive sponges or soft cloths. Do not use acids, harsh chemicals or alkaline cleaners because they harm the anodized layer. Regularly Inspect parts for early signs of damage or fading so that immediate action can be taken.
To Sum Up
In short, anodized parts often lose color because of tough conditions, UV rays and weak sealing. You can keep anodized components looking good for longer by using strong sealing methods, selecting proper dyes and following good maintenance routines.
For precise and durable anodizing, you can always contact Richconn’s skilled surface finishing team.
Related Questions
Yes special care is needed. Stay away from rough scrubbers and harsh chemicals, clean with gentle, pH-neutral soaps, limit sunlight exposure and wash the parts regularly.
Strong cleaners, UV exposure, poor sealing, and environmental elements like saltwater and pollution are the main reasons anodized aluminum fades.
Yes. Compared to black or darker colors, shades such as pink and turquoise tend to fade more quickly. Organic dyes and those with low lightfastness ratings are particularly vulnerable to chemical effects and UV.
Yes. Compared to typical anodized finishes, powder coatings and PVDF hold color longer and resist chemicals better.
By electrolytic recoloring, deep cleaning or re-anodizing, you can restore faded parts. To prevent fading, seal parts well, use UV-resistant dyes and keep up with regular care.
Seal parts at 195 to 200°F, choose UV-resistant dyes rated 6 or above, run quality checks and set up the right protections for the environment.
