Wire EDM Machining Service

Delivering top-tier wire EDM services that ensure every part meets your exact specifications.

Home » Wire EDM Machining

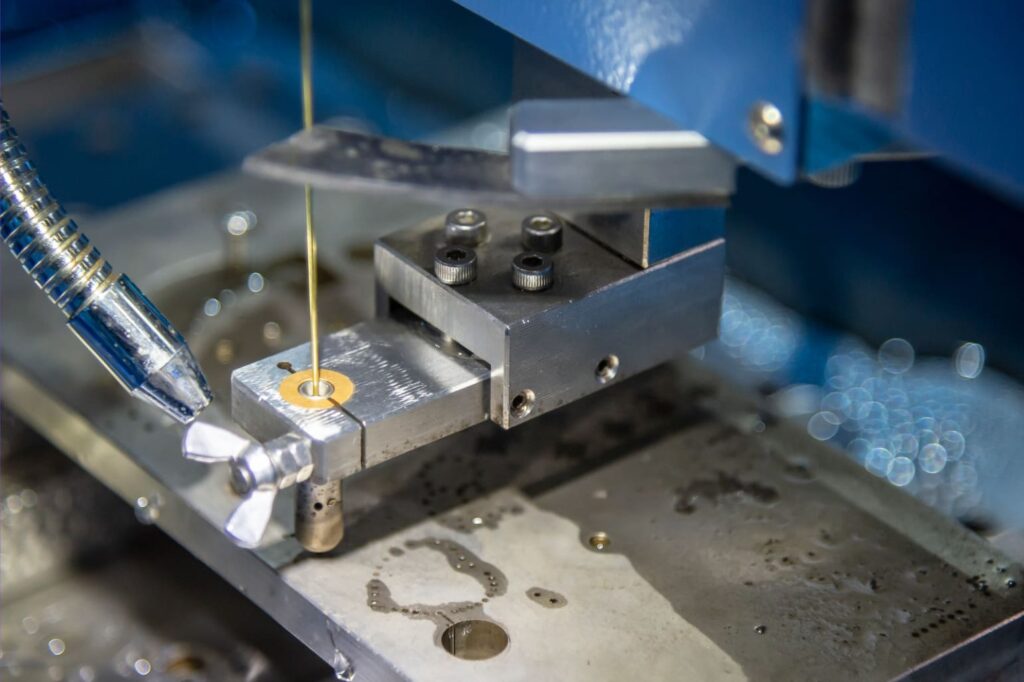

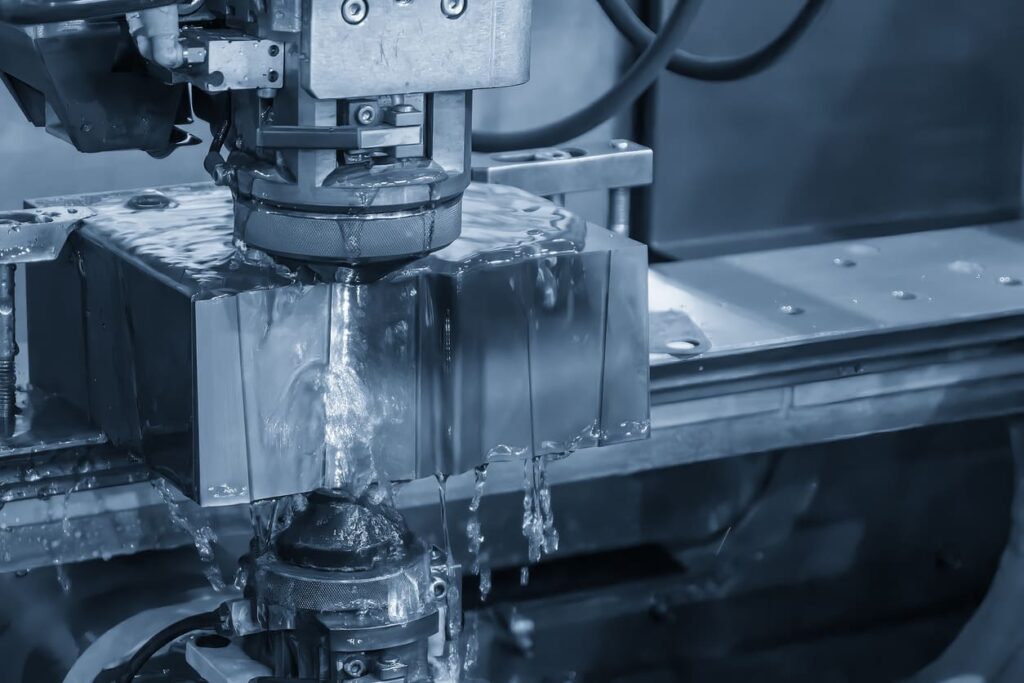

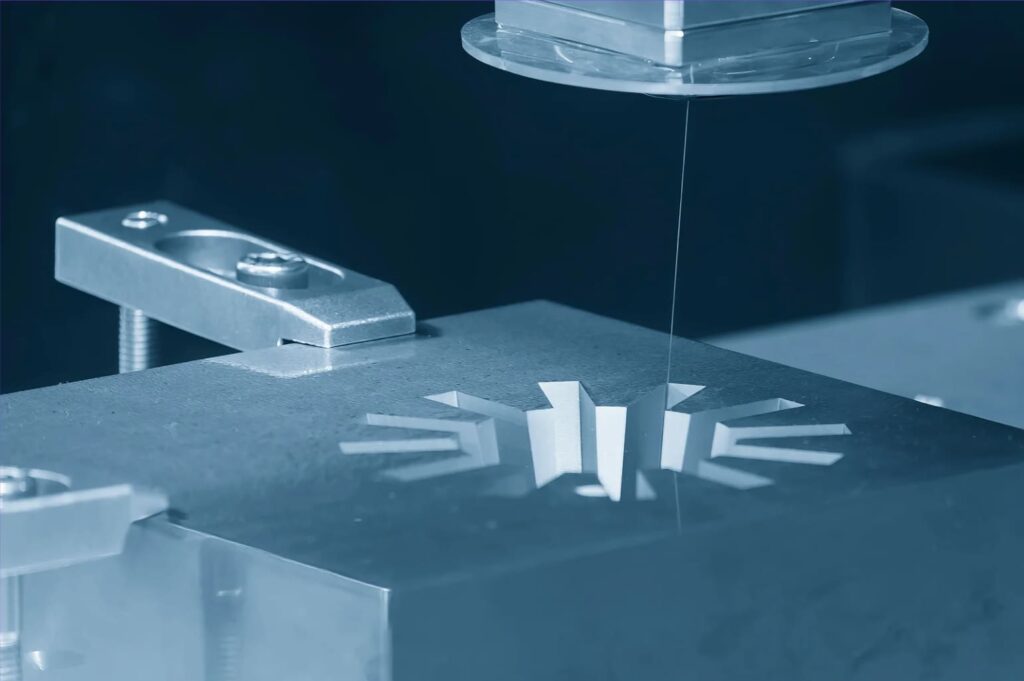

What is Wire EDM?

Wire Electrical Discharge Machining (EDM) is a precision manufacturing process that uses electrical discharges to cut conductive materials with high accuracy. A thin, electrically charged wire acts as the cutting tool, enabling the machining of intricate shapes and tight tolerances that traditional methods cannot achieve.

Benefits of Wire EDM Processing

Precision and Accuracy: Achieve extremely tight tolerances and intricate designs.
Versatility: Suitable for hard materials and complex geometries.
Minimal Distortion: No physical contact between the tool and the workpiece, reducing mechanical stresses.
Surface Finish: Provides a smooth surface finish, often eliminating the need for additional finishing processes.

Comprehensive Wire EDM Machining Solutions

We offer a full range of Wire EDM services to meet your manufacturing needs.

Prototype Development

From concept to creation, we help you bring your ideas to life with precision.

Production Runs

Whether you need small batches or large-scale production, we deliver consistent quality.

Complex Part Machining

Specializing in intricate designs and challenging materials.

Reverse Engineering

Recreate existing parts with exact specifications.

Materials that Can be Used for Wire EDM

The materials suitable for Wire EDM processing typically need to be electrically conductive. Here’s a detailed list of materials that are typically suitable for Wire EDM processing:

Tool Steels:

D2: Known for high wear resistance and toughness.
H13: High thermal stability and resistance to thermal fatigue.
M2: High-speed steel with excellent toughness and hardness.
A2: Air-hardening steel with good machinability and toughness.

Stainless Steels:

304: Widely used for its corrosion resistance and good mechanical properties.
316: Superior corrosion resistance, especially in chloride environments.
420: High hardness and wear resistance, commonly used in cutlery.
17-4 PH: Precipitation-hardened steel with high strength and good corrosion resistance.

Alloy Steels:

Inconel: Nickel-chromium-based superalloy with excellent high-temperature strength and oxidation resistance.
Hastelloy: Nickel-based alloy known for outstanding corrosion resistance in harsh environments.

Carbides:

Tungsten Carbide: Extremely hard and wear-resistant, used for cutting tools and wear parts.
Cemented Carbide: Composite material with high hardness and toughness, ideal for machining.

Titanium Alloys:

Ti-6Al-4V: High strength-to-weight ratio and excellent corrosion resistance, used in aerospace and medical industries.
Ti-6Al-2Sn-4Zr-2Mo: High temperature and creep resistance, used in high-stress applications.

Aluminum Alloys:

6061: Versatile with good mechanical properties and corrosion resistance.
7075: High strength, used in aerospace applications but less corrosion-resistant than 6061.

Copper Alloys:

Brass: Good machinability, thermal, and electrical conductivity.
Bronze: Strong and resistant to wear and corrosion.
Copper-Nickel Alloys: Excellent resistance to corrosion, especially in marine environments.

Nickel Alloys:

Inconel: Maintains strength and oxidation resistance at high temperatures.
Monel: Nickel-copper alloy with excellent corrosion resistance and high strength.

Graphite:

High thermal and electrical conductivity, easily machined, and used for EDM electrodes.

Superalloys:

Rene: High-temperature strength and creep resistance, used in turbine engines.
Waspaloy: Excellent high-temperature strength, corrosion, and oxidation resistance.

Practical Applications of Wire EDM

From aerospace components to medical instruments, and automotive parts to intricate electronic pieces, our wire EDM capabilities meet the exacting standards required for a wide range of complex projects.

Tool and Die Making:

Molds for Injection Molding: Wire EDM can create intricate molds with high precision, essential for producing complex plastic parts.
Die Casting Dies: Used for shaping metal parts, the process ensures the durability and accuracy of the dies.
Stamping Dies: Essential for cutting and forming sheet metal, Wire EDM produces highly precise and complex shapes.

Aerospace Industry:

Turbine Blades: Manufacturing of turbine blades for jet engines requires the high precision and intricate detail that Wire EDM provides.
Engine Components: Various engine components, including fuel system parts, benefit from the accuracy and finish of Wire EDM.

Medical Device Manufacturing:

Surgical Instruments: Precision and small-scale production of surgical tools, ensuring sharpness and intricate designs.
Implants: Custom implants such as hip joints and dental implants require the exacting precision of Wire EDM.

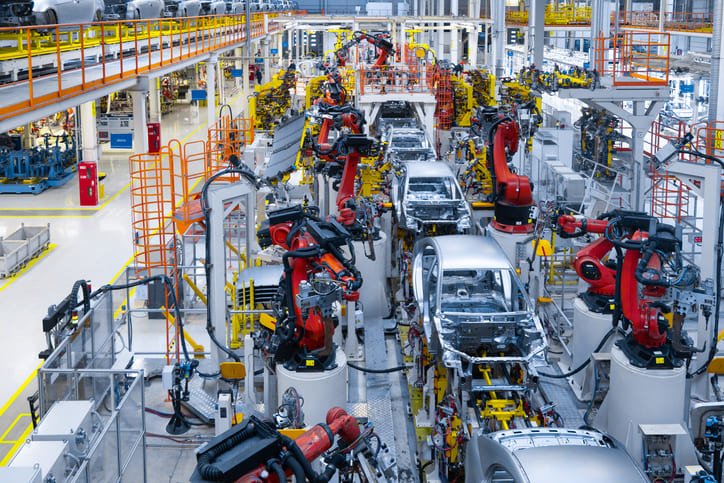

Automotive Industry:

Prototyping and Custom Parts: Creating prototypes and custom parts that demand high precision.
Fuel System Components: Precision cutting of components like fuel injectors ensures proper functioning and efficiency.

Electronics Industry:

Connector Manufacturing: Producing connectors and other small, precise electronic components.
Circuit Boards: Creating intricate patterns on circuit boards where precision is crucial.

General Manufacturing:

Prototype Production: Creating prototypes of parts and products with complex geometries and high precision.
Small Batch Production: Manufacturing small batches of parts where traditional tooling costs would be prohibitive.

Micro-Machining:

Small, Detailed Parts: Manufacturing of very small, detailed components used in various high-tech industries.

Why Choose Our Wire EDM Services?

With fast turnaround times, cost-effective solutions, and exceptional customer service, Richconn is your trusted partner for all your wire EDM needs.

High Precision and Accuracy

Our wire EDM machines achieve tolerances as tight as ±0.001mm, ensuring parts meet the most stringent specifications with consistent quality through advanced control systems and skilled operators.

Capability to Handle Complex Geometries

Wire EDM handles intricate and complex shapes effortlessly, with features as small as 0.05mm, making it perfect for unique designs and challenging parts.

Wide Range of Material Compatibility

Compatible with a diverse range of materials, including titanium, tungsten, and hardened steel, wire EDM caters to industries like aerospace, medical devices, and automotive components.

Superior Surface Finish

Naturally produces high-quality surface finishes with Ra values as low as 0.2µm, often eliminating the need for extra finishing processes, resulting in smoother and cleaner parts.

Fast Turnaround Times

Efficient processes and state-of-the-art equipment ensure parts are delivered quickly, typically within 5 to 7 days, prioritizing speed without sacrificing quality.

Cost-Effective Solutions

Competitive pricing structures provide high-quality parts at a reasonable cost, with options for volume discounts to make services even more affordable for larger orders.

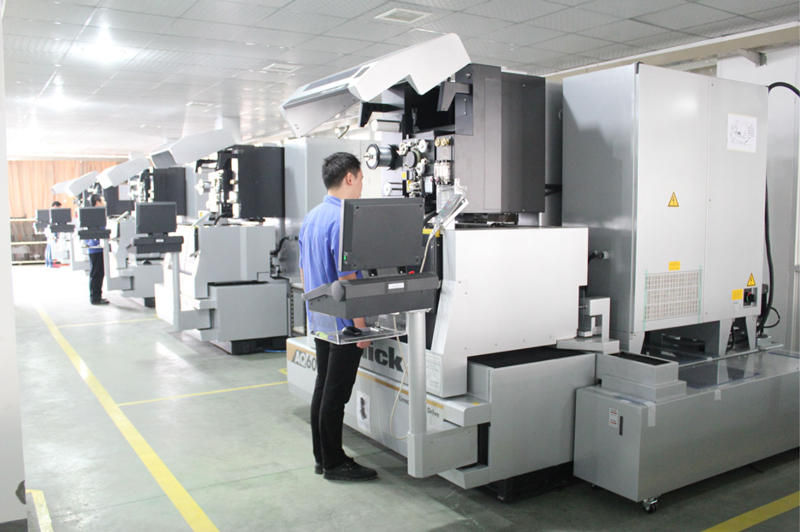

Explore Our State-of-the-Art Wire EDM Shop

Seeing is believing! We welcome you to visit our factory on-site to experience firsthand the quality and efficiency that set RICHCONN apart.

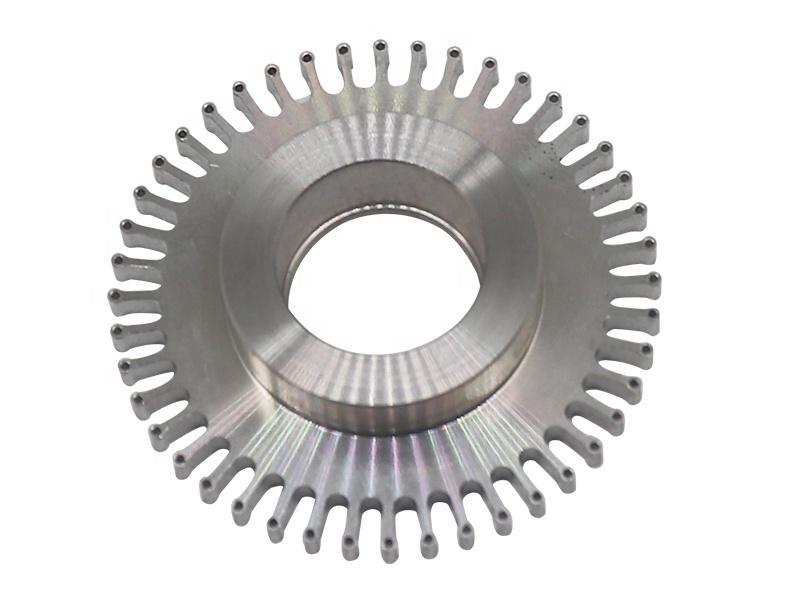

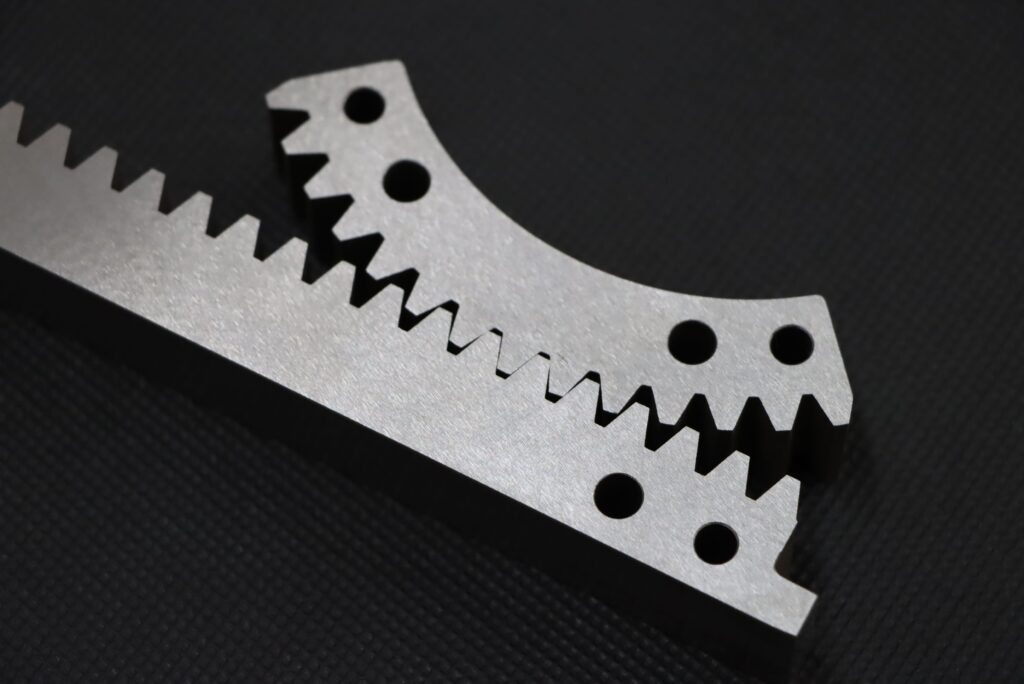

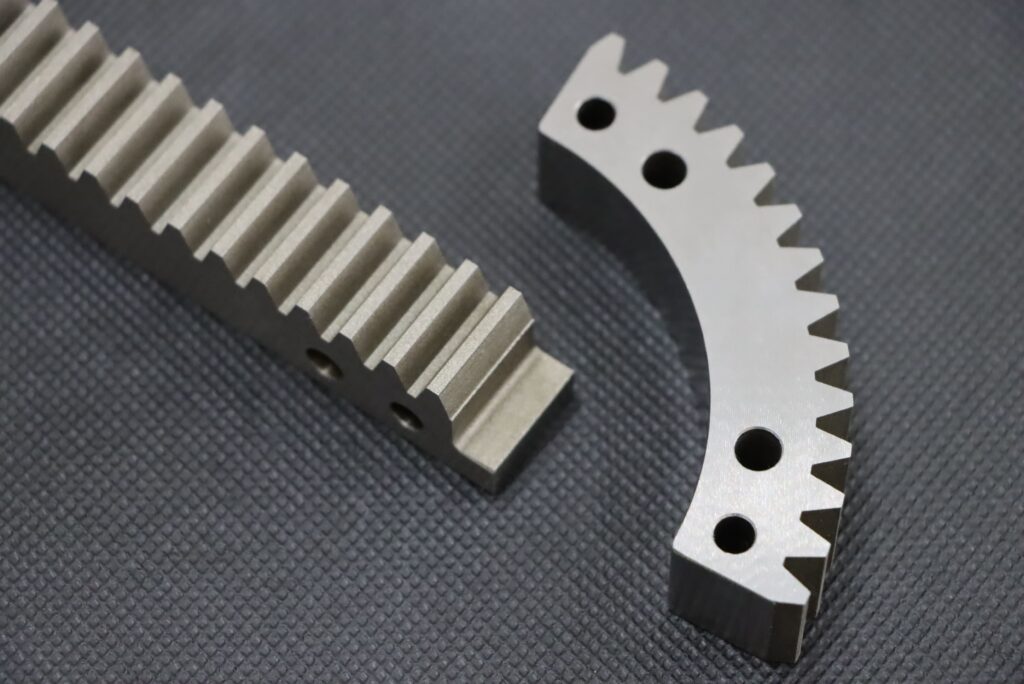

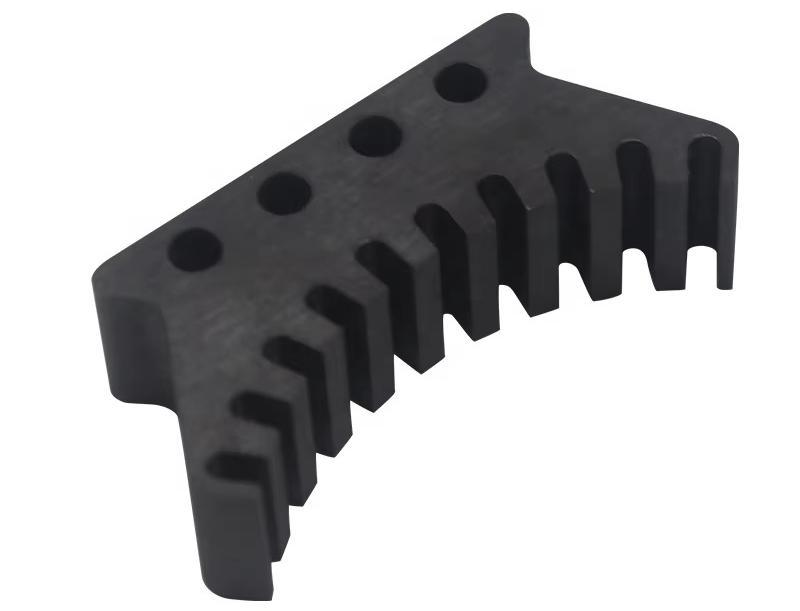

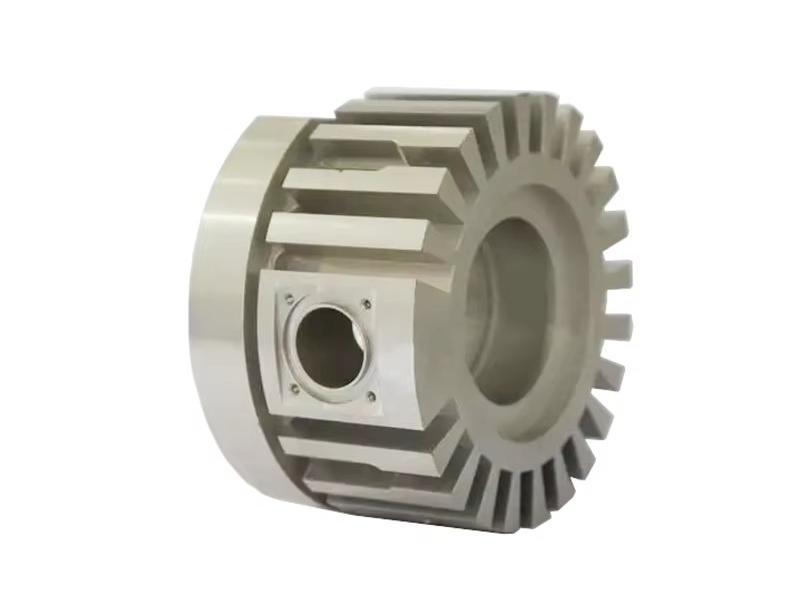

Wire EDM Parts Gallery

Comprehensive FAQ for Precision Cutting Needs

Our wire EDM machines can handle workpieces up to 500mm in height and 1000mm in length, with a maximum thickness of 300mm. This allows us to accommodate a wide range of part sizes and shapes.

Yes, wire EDM is highly versatile and can be used for both prototype development and full-scale production runs. Its precision and repeatability make it suitable for producing one-off prototypes as well as large quantities of parts with consistent quality.

Wire EDM excels in producing complex shapes and fine features that are difficult to achieve with laser or waterjet cutting. It can handle intricate details and tight corners with precision, without the risk of thermal distortion or material contamination associated with laser or waterjet methods.

Minimal post-processing is required after wire EDM cutting due to its high-quality surface finish. In most cases, parts can go directly to assembly or further processing. However, for specific applications, additional surface treatments or coatings may be applied as needed.

The typical lead time for wire EDM projects is 5 to 7 days. We can accommodate rush orders depending on the project requirements and current workload. Please contact us directly to discuss your specific needs and timeline.

We use advanced CAD/CAM software to design and simulate complex part geometries before cutting. This allows us to optimize the cutting path and ensure proper fit and function.

Get a Quote for Your Wire EDM Projects Today

Ready to take advantage of our top-tier wire EDM services? Contact us now for a personalized quote tailored to your specific project needs.
