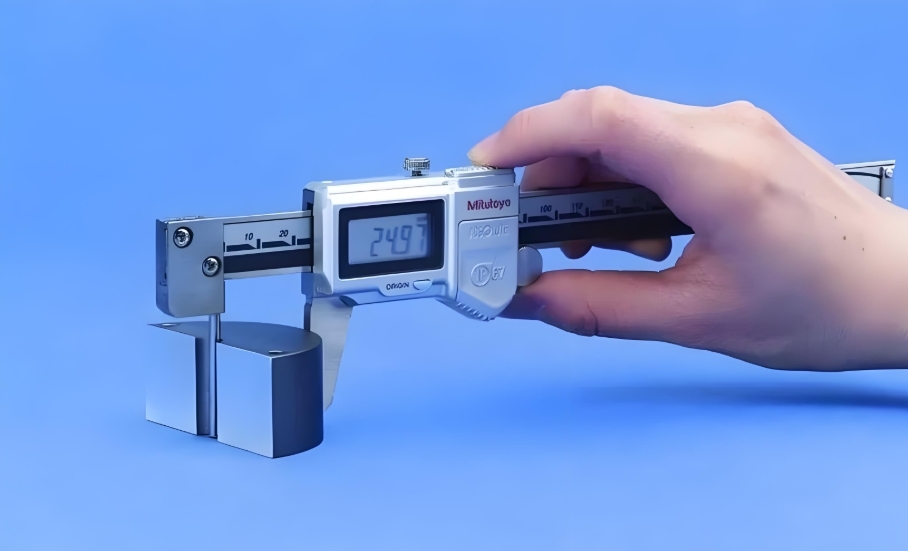

In CNC machining, exceeding tolerance limits is a major issue that impacts product quality as well as performance. It leads to production inefficiencies & part rejection.
In this blogpost we will cover causes of dimensional deviations, adjustment methods as well as advanced techniques for enhancing dimensional tolerance. We will also see practical application of tight tolerances.
Causes of Dimensional Deviations in CNC Machining

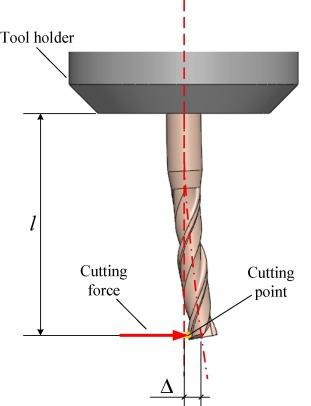

Tool Deflection and Tool Wear
Tool wear decreases sharpness of cutting edge, changes tool geometry and increases cutting forces which in turn lead to dimensional irregularities in CNC machined parts.
Tool deflection, on the opposite, occurs when the cutting forces overcome the stiffness of tool and cause it to bend during operation. This deflection causes excessive dimensional irregularities due to deviation of tool from its intended cutting path.
Thermal Expansion
The heat generated during machining process expands both workpiece and cutting tools. This thermal growth changes dimensions because of increase in material physical size.
Tool expansion changes both the effective cutting diameter of tool & its reach. Meanwhile expansion of the workpiece during machining results in undersized parts after cooling.
Machine Calibration & Maintenance Problems
During machining, machine calibration issues also cause dimensional deviation through incorrect tool offsets, misaligned axes, inaccurate positioning etc. These errors cause deviations in hole placement, feature alignment & cut depth which lead to out of tolerance parts.
Additionally machine maintenance problems such as degraded spindle fibers & worn out parts also lead to dimensional deviations.

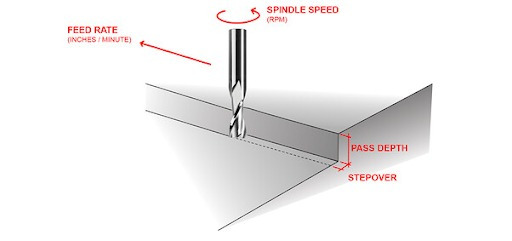

Cutting Parameters
Cutting parameters such as cutting speed & feed rate can cause dimensional deviations if they are not controlled properly.
Higher feed rates increase cutting forces which lead to poor material removal and tool deflection. Similarly high cutting speed generates a lot of heat which causes thermal expansion of tool and workpiece.
Also See: Feed Rate and Cutting Speed in CNC Machining
Material Properties
Material hardness and internal stresses are also primary reasons of dimensional deviations. Harder materials increase cutting forces that cause irregular material removal and tool deflection.
On the other side, internal stresses, which are present from earlier processes such as casting or forging, are usually released during machining. This stress causes warping & distortion of workpiece and changes its dimensions as well.
Environmental Factors
Both humidity & vibration cause dimensional inaccuracies during CNC machining. High humidity can affect the measurement accuracy, specially when using laser technology. It can cause materials to absorb more moisture which will change their dimensions. Additionally vibrations from unstable foundations or nearby machinery can affect cutting accuracy which can lead to dimensional irregularities in final workpiece.
Workpiece Clamping and Fixturing
During CNC machining, improper workpiece clamping and fixturing can also cause considerable dimensional irregularities.
Uneven distribution of clamping force can result in workpiece misalignment or bending. Similarly insufficient rigidity in fixtures allows movement & vibration during machining which in turn leads to inaccurate cuts.

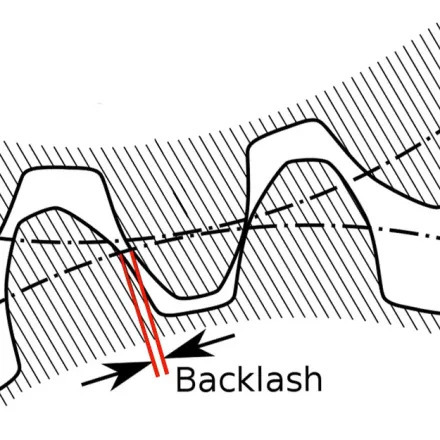

Machine Tool Backlash
Backlash occurs in CNC machine feed drive components such as ball screw nut pairs and gear drives where it creates lost motion during directional changes. This mechanical play forces the motor to idle for a while whereas keeping the table stationary, which causes dimensional errors. Even minimum backlash can introduce considerable deviations into highly-precise parts such as aerospace components.
Adjustment Methods to Maintain Dimensional Tolerances

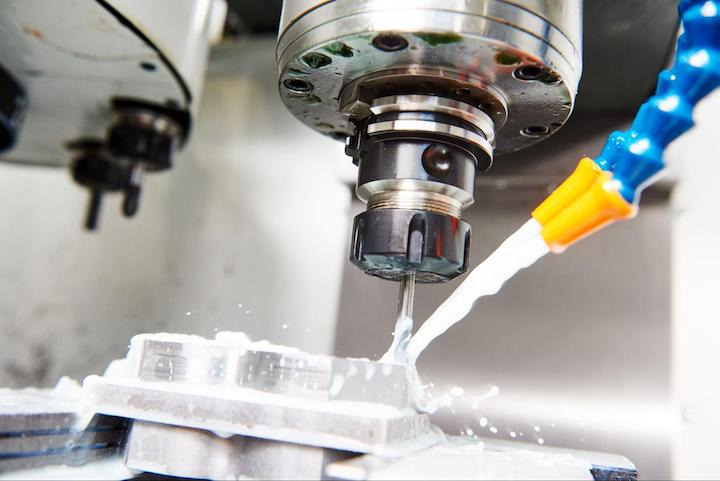

Thermal Management
Effective thermal management in CNC machining assures dimensional stability.
Using latest cooling systems such as high pressure cooler systems and cryogenic cooling reduces heat at the cutting zone. This in turn minimizes thermal deformation. Furthermore spindle chillers stabilize the spindle temperature during long operation to prevent thermal drift & assure machining accuracy.

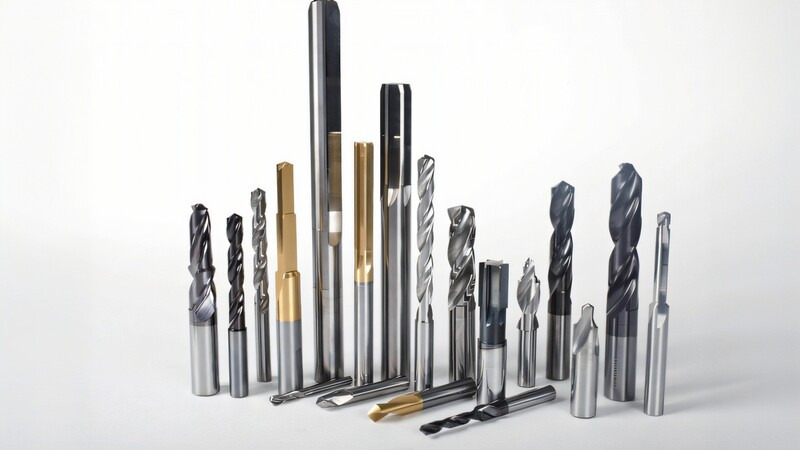

Tool Selection and Maintenance
Tool selection includes picking correct geometries, coatings and materials for the particular machining task in order to minimize wear and deflection. Whereas regular maintenance includes systematic inspections as well as sharpening and replacement schedules based on part count and cutting time.
Proper tool selection minimizes initial dimensional errors & constant maintenance prevents accuracy degradation over time.

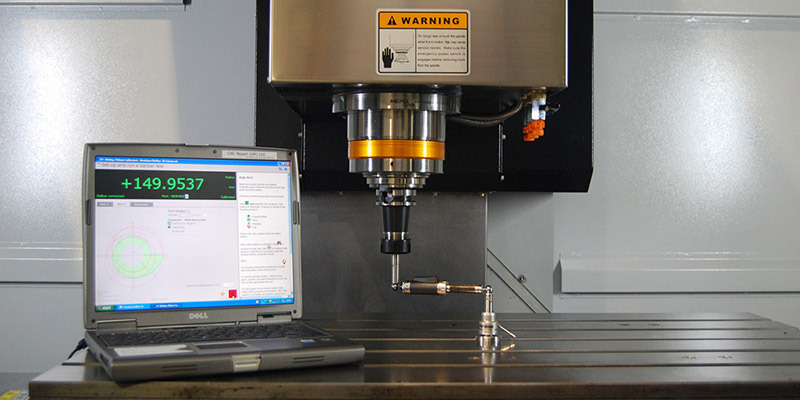

Machine Calibration and Preventive Maintenance
Regular machine calibration guarantees accuracy of axes through ballbar testing and laser interferometry.
Implement well designed maintenance routine which includes daily cleaning, component inspections and fluid level checks. Additionally, use digital logs to keep track of performance metrics. These methods prevent deviations & identify potential problems so they do not affect machining accuracy.
Environmental Control
During CNC machining keeping a stable humidity level is important for environmental control.
Humidity impacts material properties which in turn affect the machining process. So using climate control setups and dehumidifiers is vital to keep consistent conditions.
Furthermore it is important to control vibration using advanced techniques such as adaptive setups and real time monitoring to avoid dimensional inaccuracies.

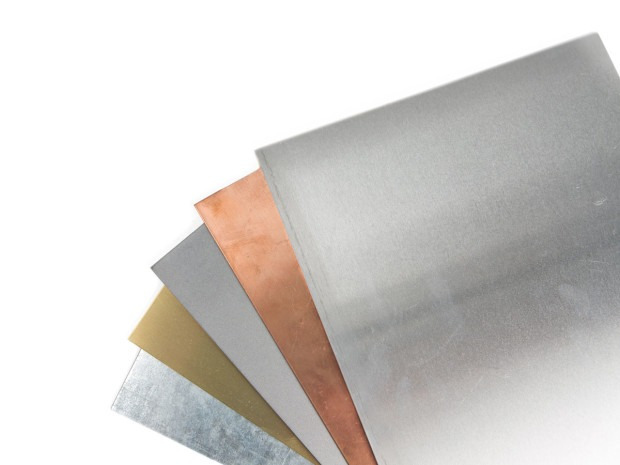

Material Selection and Preparation
Material selection involves choosing material that has minimal thermal distortion and stable mechanical properties in order to assure accuracy.
Proper preparation includes processes like stress relief to eliminate residual stresses as well as precise pre machining to guarantee perfect and uniform stock conditions.
These adjustments decrease material induced deviations in CNC machining operations.
Optimization of Cutting Parameters
Use response surface methodology or “Taguchi method” to improve feed rate as well as depth of cut and cutting speed. These techniques identify suitable combinations of parameters for given material and its tolerance requirements.
In addition apply adaptive control systems to adjust parameters in real time based on sensor feedback to maintain tight tolerances during machining process.

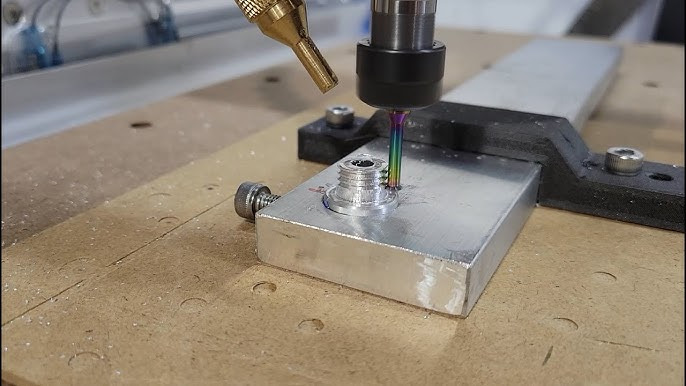

Improved Fixturing & Workholding
Apply advanced fixturing techniques such as dedicated fixtures for complicated parts & modular systems in case of flexibility to maintain dimensional tolerances. Besides that use pneumatic or hydraulic clamping for constant force distribution.
When securing the workpiece use magnetic system for ferrous materials and vacuum chucks for non ferrous components.
Compensation for Machine Tool Backlash
CNC systems can mitigate dimensional errors by software based backlash compensation.
In this process, the backlash of each axis is measured and these values are then entered into machine control parameters. After that CNC automatically adjusts tool positions to correct lost motion.
Some advanced controllers such as FANUC 0i provide separate compensation settings for cutting feeds (G01) & rapid traverses (G00).
Advanced Techniques for Enhancing Dimensional Accuracy

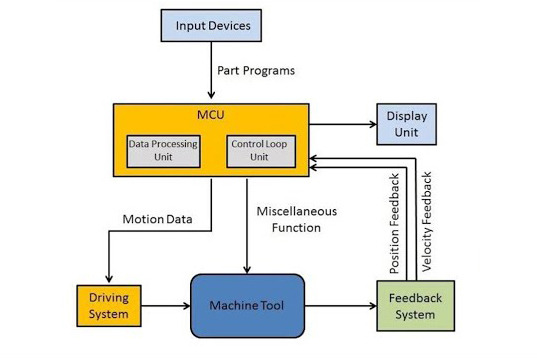

Feedback Systems & In-Process Measurement
During the machining operation, in process measurement systems use sensors and probes to give real time feedback on part dimensions. These systems, which are integrated with CNC controls, permit quick adjustments for thermal expansion and tool wear.
Feedback systems, on the other hand, monitor the speed and position of machine components to compare actual data with programmed values. This not only helps keep tight tolerance but also permits real time corrections.
Adaptive Control Systems
These systems also adjust machining parameters using real time feedback. They have sensors to detect vibration, tool wear and cutting forces. Advanced algorithms process this data so that these parameters can be improved. Despite variations in tool conditions or material properties, this real time adaptation maintains dimensional accuracy.
High-Precision Tooling & Machines
High precision CNC machines that have five axis capabilities allow machining of complicated geometries in a single step which greatly decreases position errors. Such machines are also equipped with adaptive control algorithms & thermal stabilization setups that help maintain micron level accuracy.
Moreover advanced cutting tools like those with TiAlN coatings not only increase tool life but improve heat resistance too.
Also See: What is CNC Precision Machining
Applications of Tight Tolerance
Automotive
Tight tolerances are important for automotive parts such as transmission parts, engine components, fuel injection systems etc. Precise machining of such parts assures smooth power transmission as well as better engine performance and accurate fuel delivery.
Aerospace
Aerospace components require great precision because of performance & safety needs. Tight tolerances guarantee accurate fitment of airframe structures, landing gear components, engine parts etc. This not only decreases aerodynamic drag but improves structural integrity in heavy duty environments too.
Medical devices
Devices in medical industry require high precision to guarantee patient safety and functionality. Parts like implants, diagnostic equipment and surgical instruments demand tolerances as tight as ±0.001 inches. This accuracy not only assures proper fit & biocompatibility but guarantees better performance of these components too.
High-precision machinery
Tight tolerances perform an important part in reducing assembly errors as well as assuring flawless alignment of components in high precision machinery. Even minor deviations can disrupt motion systems that can affect performance in semiconductor fabrication, precision robotics, optics, etc.
See Also: Tolerances in CNC Machining
To Sum Up
In short maintaining dimensional accuracy during CNC machining requires a comprehensive approach. Manufacturers can obtain tight tolerances by addressing thermal expansion, environmental factors & tool wear.
If you require expert CNC machining services with tight tolerances, then RICHCONN is best option. You can contact us anytime.
Related Questions
1. What role does machine calibration play in maintaining dimensional accuracy in CNC machining?
Machine calibration assures accurate positioning of tools, workpieces as well as axes. It compensates for wear, thermal expansion and mechanical inaccuracies in order to keep consistent part quality & tight tolerances in CNC machining.
2. How can thermal expansion impact precision of CNC machined components?
Thermal expansion can lead to changes in dimensions of machine components as well as workpieces during machining. This can be a cause for deviation in part dimension in precison application where strict tolerance are needed.
3. How does improper workpiece clamping lead to tolerance issues in CNC machining？
During machining improper clamping can cause distortion, misalignment & movement of workpiece. This in turn leads to dimensional inaccuracies as well as poor surface finish and out of tolerance parts.
4. How can backlash in lead screws affect workpiece dimensions, and what are the solutions?
Backlash in lead screws can cause axis reversals & positioning errors which can affect workpiece dimensions. To solve this problem it is necessary to use anti-backlash nuts, preloaded ball screws or software compensation to minimize its effect on machining accuracy.
