To select a steel for a project you need to understand the concept of yield strength; as this property affects project’s performance, safety and the choice of material. Yield strength directly affects structural integrity, cost and a project’s outcome.
Therefore in this blog post we will guide you about the main types of steel, their yield strengths and how to choose the right one for your application in order to get the best result.
What is Yield Strength of Steel?
In simple terms yield strength of steel is the amount of stress that steel can take before it deforms permanently and can’t go back to its original shape. To measure this, engineers use tensile testing methods like ASTM A370, ASTM E8 or ISO 6892‐1. These tests pull steel samples until they reach their yield point.
People often mix up yield strength and elastic limit but they are not the same.
Yield point is where steel turns its behavior from elastic to plastic. Elastic limit, on the other hand, is the highest stress at which the steel will still return to its original shape. Engineers use yield strength as a critical value for safe design.
Also See: Stiffness vs Strength vs Hardness in Metal Manufacturing
Yield Strength of Different Steel Types
Steel comes in several types and each type has its own yield strength and typical uses. Here is a comparison of mild, medium and high carbon steels.
1. Mild/ Low Carbon Steel
Low carbon steel also known as mild steel has a yield strength of 200 to 300 MPa. Many industrial fields use it for automotive body panels, construction, pipes as well as general fabrication. Its benefits are low cost, good shaping ability and easy welding. But its lower strength means it can’t handle heavy loads. This steel is best for projects where price and flexibility is more important as compared to maximum strength.
2. Medium Carbon Steel (e.g., AISI 1045)
Medium carbon steel has a yield strength of 350 to 450 MPa and some of its grades can go up to 550 MPa. Manufacturers use it for gears, shafts, axles and automotive parts that need more wear resistance and strength than what mild steel offers. This type of steel balances ductility with strength.
However this type is harder to weld and machine as compared to mild steel. Also Its cost is higher than mild steel.
3. High Carbon Steel (e.g., AISI 1095)
High carbon steel has a yield strength of 600 to 700 MPa. Its hardness and ability to hold an edge make it good for blades, cutting tools and springs. Main benefits of this steel are long life and high wear resistance. But it can rust and is brittle if not protected so not good for damp environments.
Also See: Carbon Steel vs Stainless Steel
4. Stainless Steel
Stainless steel has many types and each has its own yield strength & uses. Here are the main categories and their characteristics.
Austenitic (304/ 316)
Austenitic stainless steels (304 & 316) are easy to fabricate and are corrosion resistant. 304 has a yield strength of 215 MPa. And 316 has a yield strength of 290 MPa. These grades are used in food processing, kitchen equipment and chemical plants. They are easy to weld and shape but have lower strength as compared to other stainless steel types.
Duplex
Duplex stainless steels combine characteristics of both ferritic and austenitic types. Their yield strengths range between 500 & 700 MPa. 2205 is often used in chemical processing, oil & gas and marine applications.
Duplex steels offer high strength and high corrosion resistance so lighter structures are possible. Its initial cost may be higher and fabrication is harder but long term durability mostly balances out the cost.
Martensitic
Martensitic stainless steels have yield strengths between 400 & 600 MPa depending on the grade and heat treatment. These are used for turbine blades, knives and medical instruments that need wear resistance and hardness. Their main benefit is high strength, after heat treatment. They resist corrosion less than austenitic steels and can be more brittle.
Also See: A Complete Guide to Different Types of Stainless Steel
5. High Strength Alloy Steels
Engineers design high strength alloy steels for top performance. These can have yield strengths of 2,000 MPa or higher. Industries like automotive, aerospace, construction as well as defense use them for durability and safety. Their high strength allows manufacturers to use lighter and thinner parts which reduces overall weight and improves efficiency. But these steels are difficult to machine & weld and are much more expensive.
Compressive vs Tensile Yield Strength
Tensile yield strength in steel is the stress at which pulling forces cause it to deform. Compressive yield strength, on the other hand, is the stress at which squeezing/compressive forces cause deformation. It is usually 1.2 times the tensile yield strength. Both types of yield strength are important in design and construction as steel structures experience both tension and compression.
Richconn’s engineers can simulate both compressive and tensile loads during the design stage. This helps you optimize parts before any machining begins.
Stress Strain Curve Overview
Stress strain curve shows how steel responds as loads increase. This curve starts in an elastic region where steel can return to its original shape. When it reaches the yield point then permanent deformation starts. After this, strain hardening increases the steel’s strength until it hits the ultimate tensile strength. Then necking occurs and the steel breaks. Engineers use this curve to identify both yield & break points.
Role of Yield Strength in Steel Grade Selection
Yield strength is the first thing to consider when choosing the right steel grade. This is how steel will behave when subjected to real world stresses and forces.
Designing Load Bearing Structures
Engineers use yield strength to determine the size of columns, beams and reinforcement bars. They select structural steels like A992 (345 MPa) or A36 (250 MPa) to keep buildings and bridges from permanent bending. With the right yield strength, structures stay stable even when they carry heavy loads.
Matching Steel Grade to Application Needs
Every application needs a particular yield strength. Tools and machinery often use medium or high carbon steels with values between 350 & 700 MPa. Aerospace and automotive parts usually need high strength alloys, sometimes above 1000 MPa. Your selection of right grade can balance cost, safety and performance.
If you need help finding the right steel grade for your project, RICHCONN’s engineers can suggest options that best fit your budget and needs.
Other Considerations: Toughness, Ductility, Fatigue Resistance
Yield strength is only one part of the equation; ductility, toughness & fatigue resistance are the others.
Ductility lets steel bend without breaking. Toughness protects against sudden impacts. And fatigue resistance allows steel to handle repeated stress. The best steel grades combine all these for strong & long lasting results.
Factors Affecting Yield Strength of Steel
Many factors combine to determine the yield strength of steel. Each one affects how steel behaves in real life.
1. Chemical Composition
Different elements in steel are the basis of its strength. Carbon has the greatest effect. As carbon content increases, yield strength also increases but steel can become more brittle.
Chromium, manganese and nickel also contribute to it. Manganese increases toughness and strength. And chromium increases corrosion resistance and strength. By adjusting these elements, manufacturers can match steel to particular needs.
2. Manufacturing and Work History
How steel is made and processed has a big impact. Cold rolling and forging causes strain hardening which increases yield strength. If steel is cold worked too much it loses ductility and can’t bend without breaking.
3. Microstructure and Grain Size
Internal structure of steel, in particular the size of its grains, has a big impact on yield strength. Hall–Petch effect shows that smaller grains make steel stronger because they stop dislocations from moving. Procedures like heat treatment and controlled rolling can make grains finer. This results in higher strength.
4. Testing Conditions and Environment
Outside conditions also affect yield strength. High temperatures decrease it. Cold makes steel more brittle. Corrosive surroundings or leftover stresses from manufacturing and welding can weaken steel in certain areas.

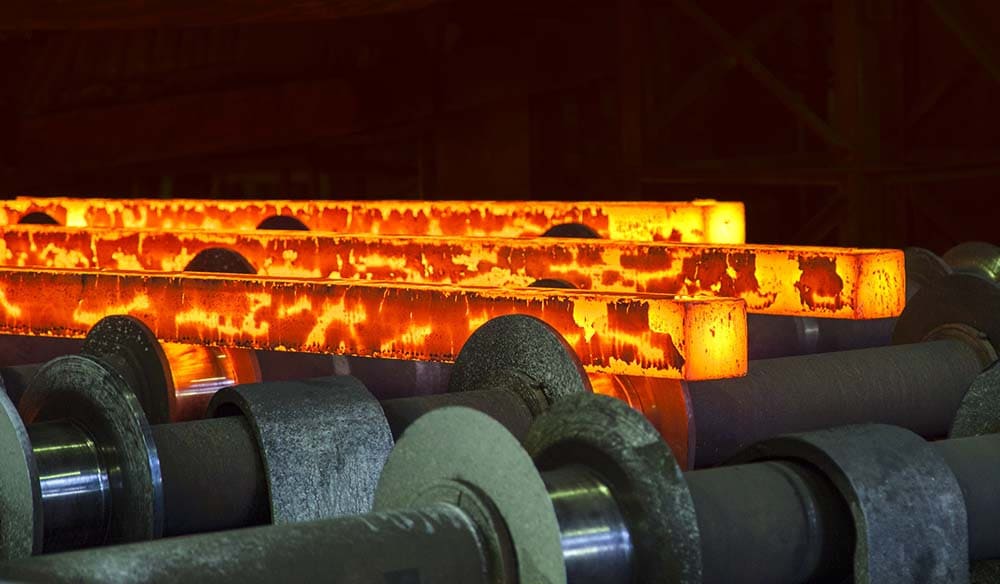

5. Heat Treatments
Heating and cooling steel like quenching and tempering changes its internal structure. Quenching forms martensite, a hard & strong phase. Tempering then balances toughness and strength. Your choice of heat treatment has a direct impact on the final yield strength.
At RICHCONN our team works with clients to select and apply the right heat treatment. So that parts perform well even in harsh conditions.
How to Increase Yield Strength of Steel
There are a lot of proven methods that can increase the yield strength of steel. Every method changes the steel’s structure or composition to improve its performance.
Alloy Design
Strengthening steel is possible by adding elements like carbon, manganese, nickel, chromium, molybdenum, vanadium and titanium. These additions make it harder for dislocations to move.
Precipitation Hardening
Micro alloying elements are introduced to form tiny carbides or nitrides. These particles not only increase strength but hold dislocations too.
Grain Refinement
Thermomechanical treatments or controlled rolling produce smaller grains. More grain boundaries appear as grains get finer and in some cases this almost doubles the yield strength.
Heat Treatment
Quenching, tempering and normalizing are processes that change the steel’s microstructure. These changes improve the balance between toughness and strength.
Work Hardening
Plastic deformation or cold working increases dislocation density. Steel becomes stronger & harder but loses some ductility.
You can use these methods separately or together. It depends on the application and the required properties.
To Sum Up
Yield strength has a big role in choosing steel and directly affects safety & performance in all uses. Understanding those factors that affect yield strength lets manufacturers and engineers select steel which is most affordable and meets project needs.
If you need accurate steel CNC machining or any expert advice regarding steel then you can contact Richconn anytime.
Related Questions
Does welding change yield strength in specific areas of structural steel?
Yes welding can change yield strength in localized areas. Heat affected zones often show lower yield strength because thermal cycles cause grain growth, microstructure changes and increased stress concentrations.
How to specify yield strength in steel RFQs?
In RFQs, specify the standard, required yield strength (e.g. 500 MPa or 520 MPa) and its method of testing. Moreover supplier certifications and testing quality are also necessary.
Why does yield strength matter for fatigue life and repeated loading?
Higher yield strength prevents plastic deformation which can increase fatigue life. But cyclic yield strength rather than monotonic yield strength gives a more accurate prediction of fatigue limits since it describes how the material responds to repeated loading.
